Product Overview

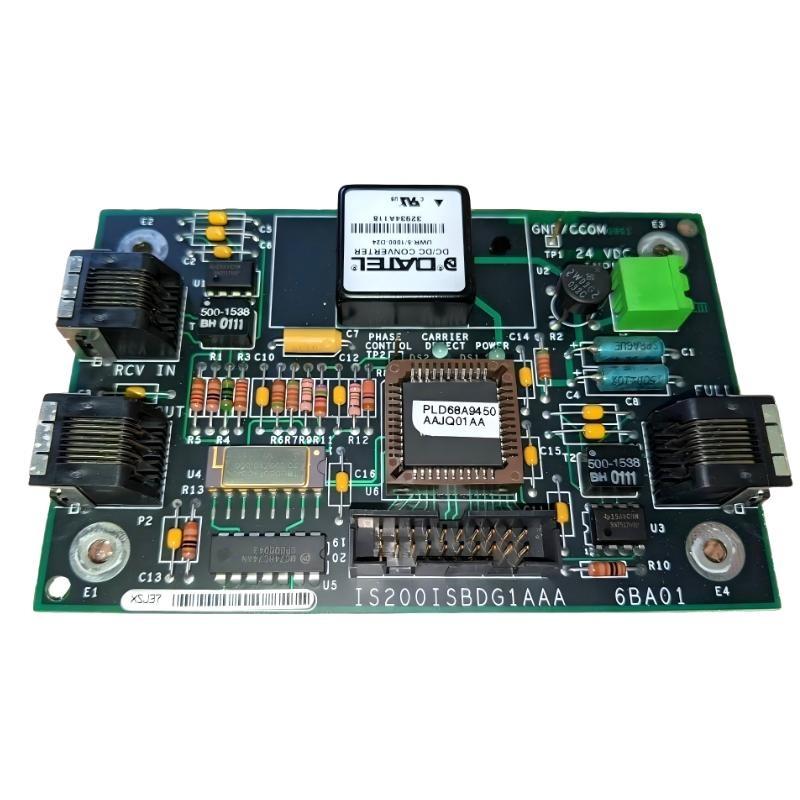

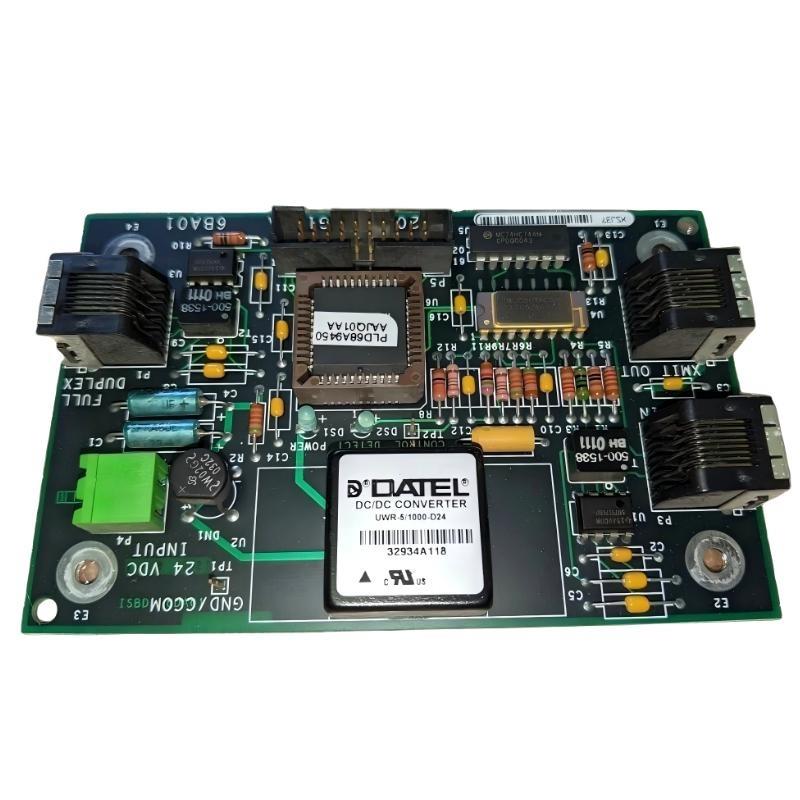

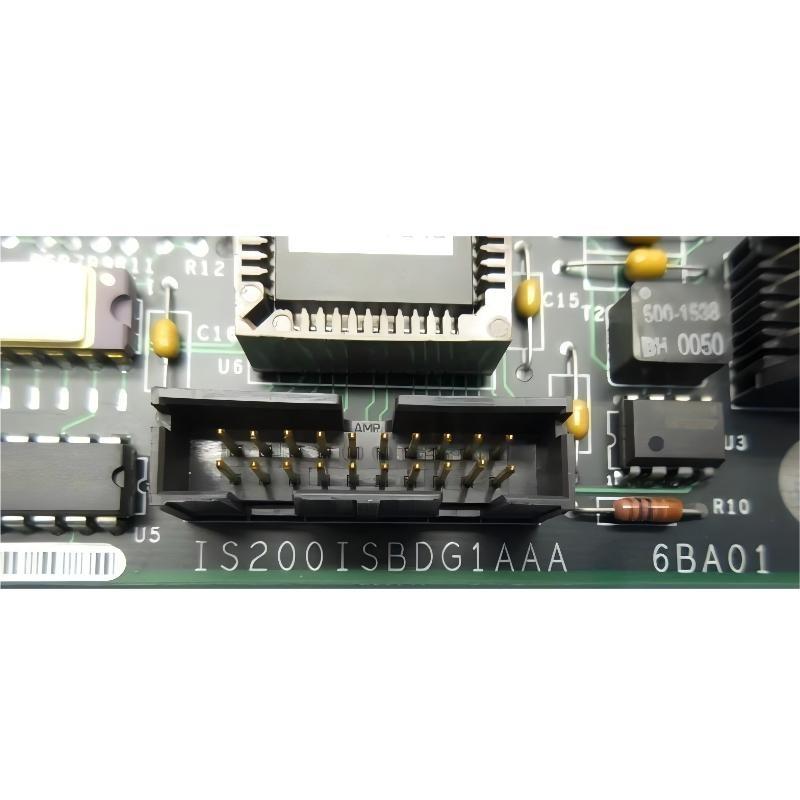

The GE IS200ISBDG1AAA is an integrated sensor bridge and diagnostic module for Mark VI turbine and industrial drive systems. Designed to condition, bridge, and analyze analog sensor inputs, it provides a stable interface between field instrumentation and the control processor. Its primary purpose is to ensure accurate measurement transfer, while enabling early detection من potential system anomalies, helping operators maintain safe and efficient plant performance.
Technical Specifications & Physical Dimensions
| Specification | Details |
|---|---|
| العلامة التجارية | GE |
| الطراز | IS200ISBDG1AAA |
| Module Type | Sensor Bridge & Diagnostic Module |
| Functional Role | Analog bridging, signal conditioning, diagnostic reporting |
| Compatible Systems | Mark VI turbine and industrial drive platforms |
| Input Types | Temperature, pressure, vibration, current, voltage |
| Output to Controller | الحالةed analog signals |
| PCB Construction | Industrial-grade, coated board |
| Dimensions (L × W × H) | 210 mm × 133 mm × 32 mm |
| الوزن | 0.68 kg |
| Operating Temperature | –20°C to +65°C |
| Mounting Method | Rack-mounted, keyed connector alignment |
Typical Applications
The IS200ISBDG1AAA is suitable in systems where multiple analog sensor signals must be accurately conditioned and monitored:
-
Turbine vibration and temperature monitoring circuits
-
Multi-sensor feedback in industrial drive cabinets
-
الحالة-based maintenance systems
-
Retrمنits replacing older ISBD revisions
-
Control systems requiring precise sensor bridging
Its integrated design simplifies wiring complexity and ensures high-fidelity signal transmission for critical control and protection loops.
Key Operational Advantages
This module improves measurement reliability through signal isolation and noise suppression. Operators benefit from consistent diagnostic outputs that reduce false alarms and allow early detection من potential equipment issues. The rugged PCB and protective coating support extended service life, while maintaining stability under variable temperature and electrical environments. Its compact form factor also allows efficient installation within dense control cabinets.
