Function & Application Summary

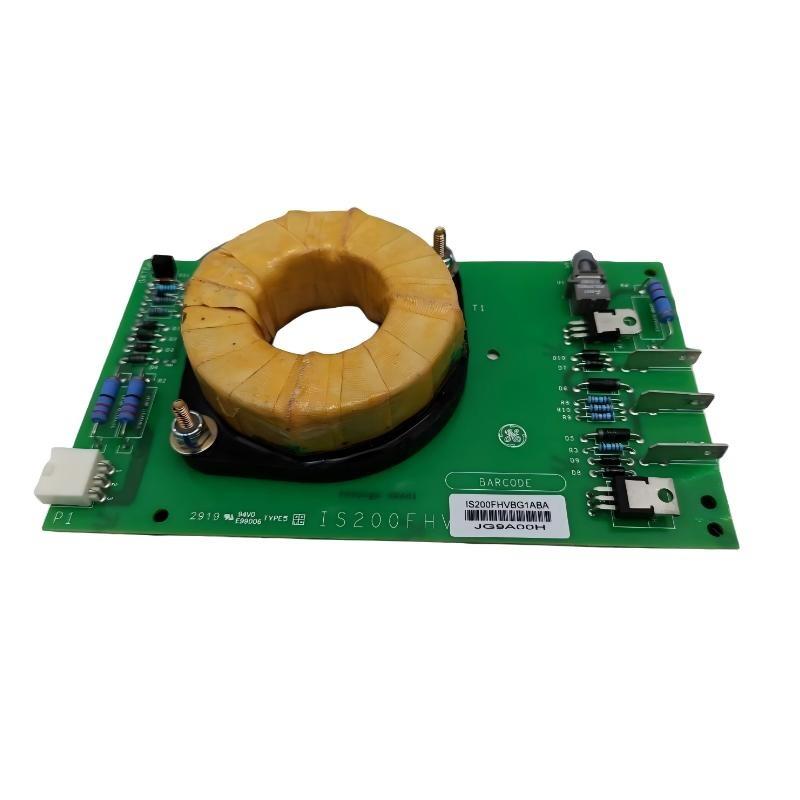

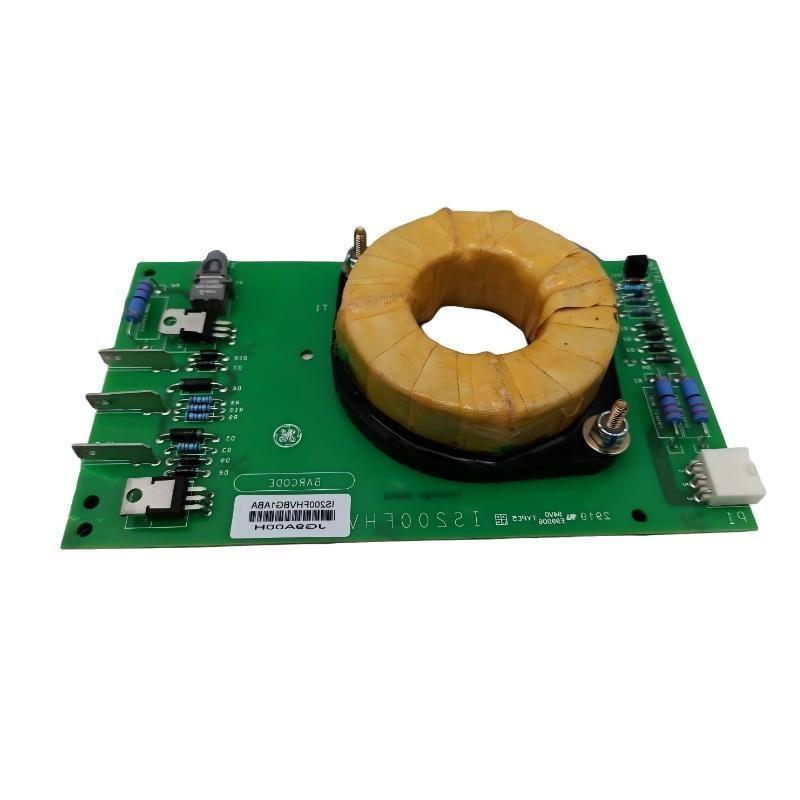

The GE IS200FHVBG1ABA is a robust bridge gate driver module engineered for high-voltage frequency converter environments within GE DS200 and related industrial drive systems. It provides controlled, high-power gate drive signals to IGBTs and other power switching devices, ensuring reliable turn-on/منf performance under heavy load and high voltage conditions.
This module is essential where precise gating, fast switching, and electrical protection are required—making it suitable for heavy industrial drives, motor control centers, and power conversion systems.
Technical الوصف & Build Details
| Specification | الوصف |
|---|---|
| Module Type | High-Voltage Bridge Gate Driver |
| Compatible Series | GE DS200 Drive Control Systems |
| Primary Function | Amplify and deliver gate drive signals for bridge power devices |
| Signal Output | High-current, timed gate pulses |
| Isolation | Galvanic isolation between control logic and power FETs/IGBTs |
| Mounting | Rack or panel style integration in drive cabinets |
| Operating Temperature | –10°C to +60°C |
| Storage Temperature | –25°C to +85°C |
| Humidity Range | 5–90% RH, non-condensing |
| Dimensions (H × W × D) | 175 mm × 62 mm × 150 mm |
| الوزن | Approx. 0.82 kg |
| Construction | Industrial-grade PCB with reinforced high-voltage interfaces |
Fields من Use
-
Bridge gate signal management in high-voltage drive systems
-
VFD and inverter installations requiring high power switching
-
Heavy motor control applications in manufacturing and processing
-
Drive system retrمنits and hardware upgrades
-
Replacement من aging gate driver وحدةs
-
Power electronics locations with stringent safety and performance criteria
Key Benefits & Distinguishing Features
-
High-Current Gate Drive: Delivers robust gate signals for efficient power device switching.
-
Industrial Durability: Designed for heavy duty, long-term operation in challenging environments.
-
Isolation & Safety: Galvanic isolation protects logic circuits from high-voltage stress.
-
System Compatibility: Works smoothly with GE DS200 drive and control platforms.
-
Service-Ready Design: Accessible connectors and clear layout simplify replacement and troubleshooting.
