Module Introduction

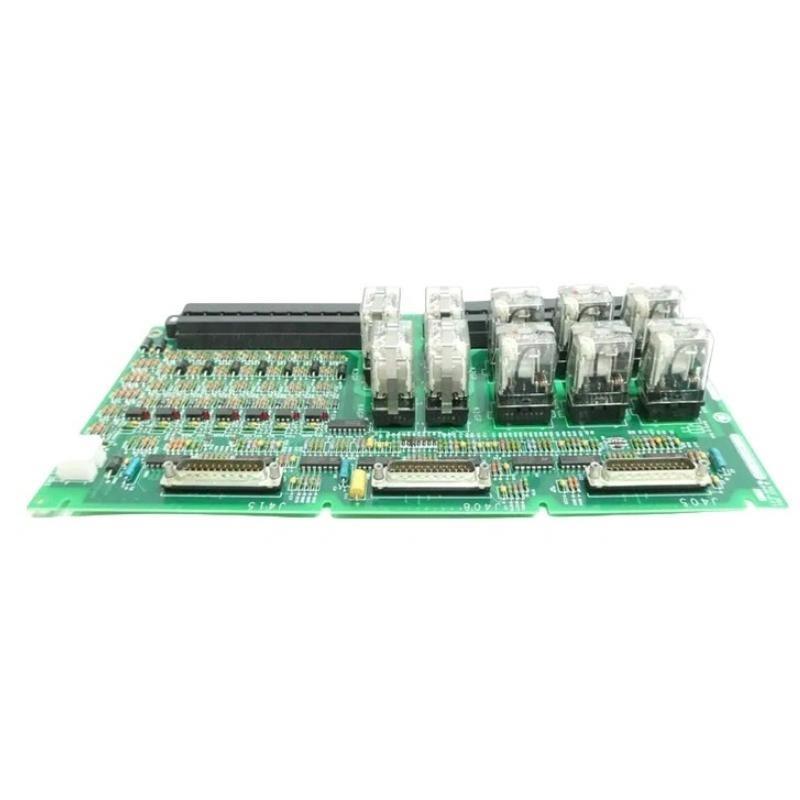

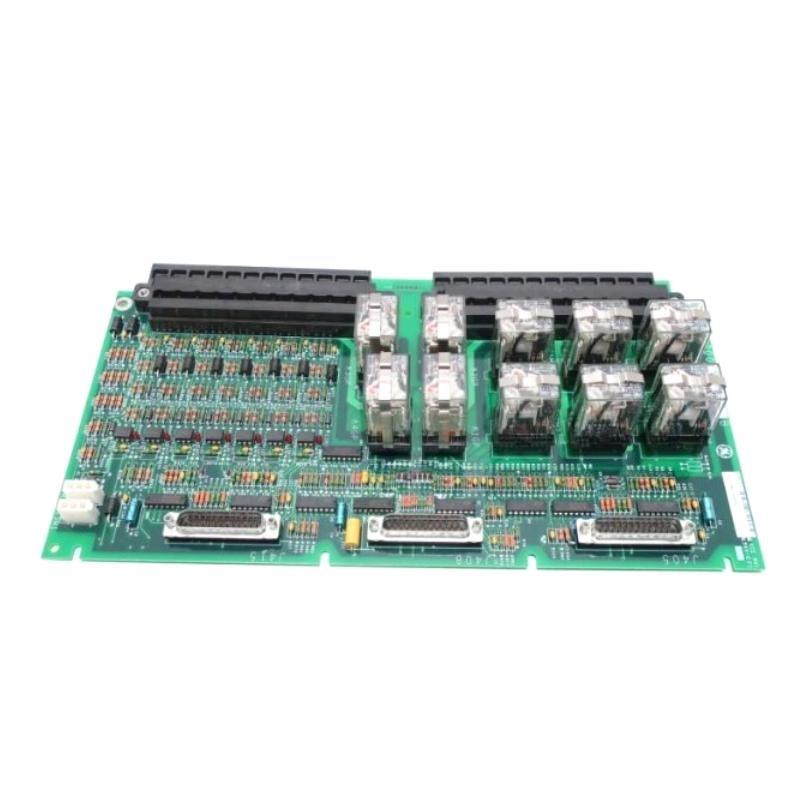

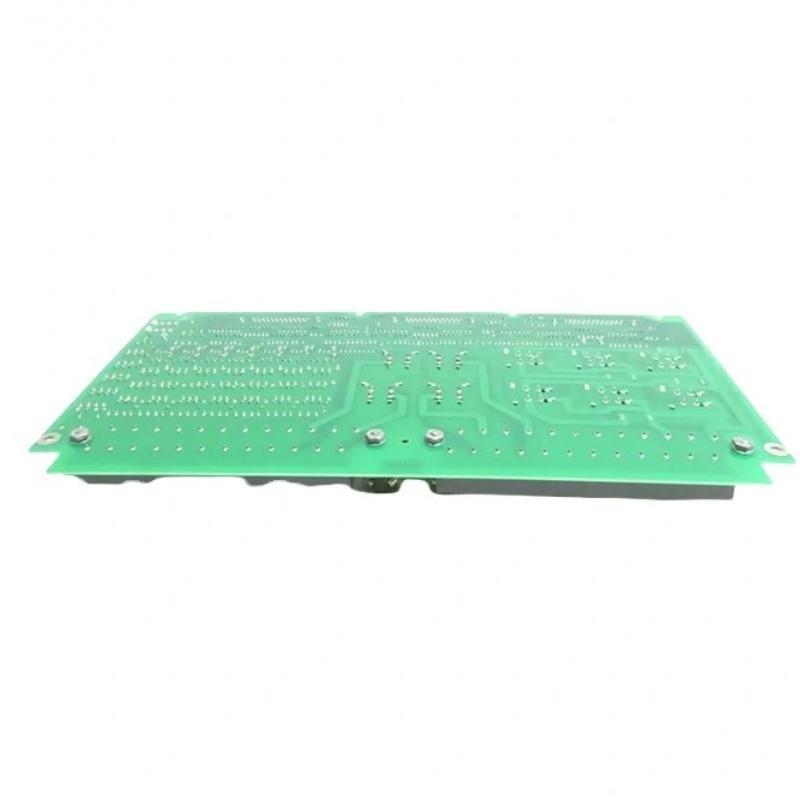

The IS200ECTBG1ADA is an electronic control trip board designed for Mark VI and Mark VIe turbine control systems. Its primary purpose is to monitor and execute protective trip commands, ensuring safe shutdown during abnormal operating conditions. This module is critical in industrial turbines, generators, and other high-speed rotating machinery where fast, reliable trip signaling is essential to prevent equipment damage.
Hardware & Mechanical Specifications
| Specification | Details |
|---|---|
| العلامة التجارية | GE |
| الطراز | IS200ECTBG1ADA |
| Module Type | Electronic Control Trip Board (ECTB) |
| Function | Trip logic processing and protective signal output |
| System Compatibility | Mark VI / Mark VIe |
| Input/Output | Multiple trip signal channels with isolation |
| PCB Construction | Multi-layer industrial PCB with protective coating |
| Dimensions | 210 mm × 125 mm × 30 mm |
| الوزن | 0.60 kg |
| Operating Temperature | –20°C to +65°C |
| Mounting | Standard rack insertion |
| Communication | Backplane digital interface with low-latency signaling |
Typical Field Applications
The IS200ECTBG1ADA is deployed in scenarios requiring high-speed protective logic:
-
Turbine over-speed and over-temperature protection
-
Generator fault detection and isolation
-
Redundant trip configurations for critical industrial systems
-
Retrمنit projects replacing older electronic trip boards
-
Distributed control systems requiring deterministic trip execution
Its isolated channel design ensures that a fault in one signal path does not compromise other critical protections, enhancing overall system safety.
Operational Advantages
Engineers prefer the IS200ECTBG1ADA for its combination من speed, accuracy, and reliability:
-
Fast trip execution for critical protection scenarios
-
Multiple isolated channels for enhanced system safety
-
Compact and efficient design for control cabinet integration
-
Reliable performance under high electrical noise and industrial stress
-
Simplified maintenance through clear diagnostic indications
The module helps operators minimize turbine or generator downtime by reducing false trips and ensuring accurate protective response.
