مقدمة المنتج

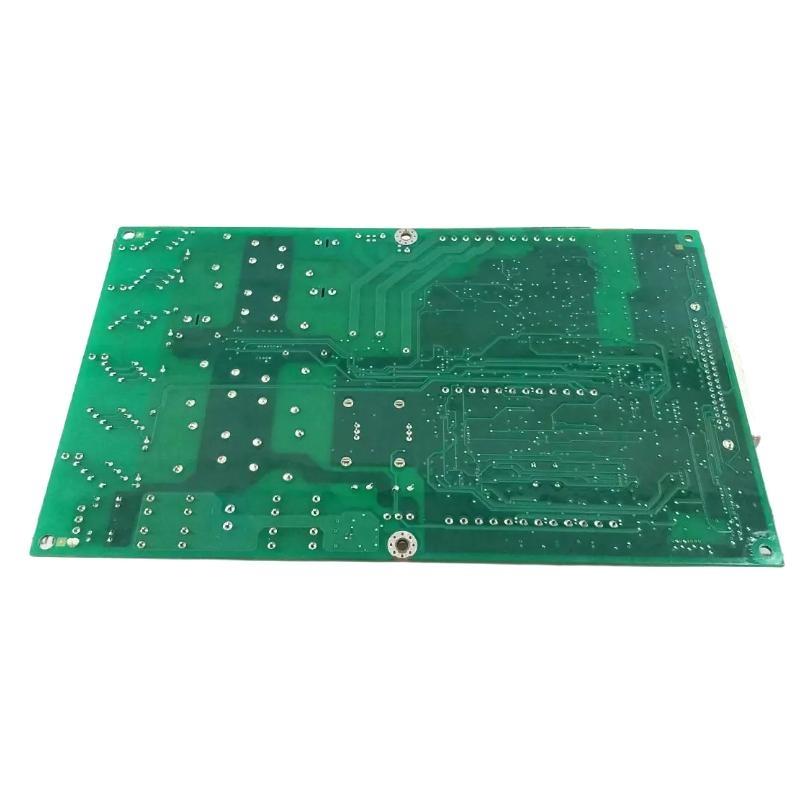

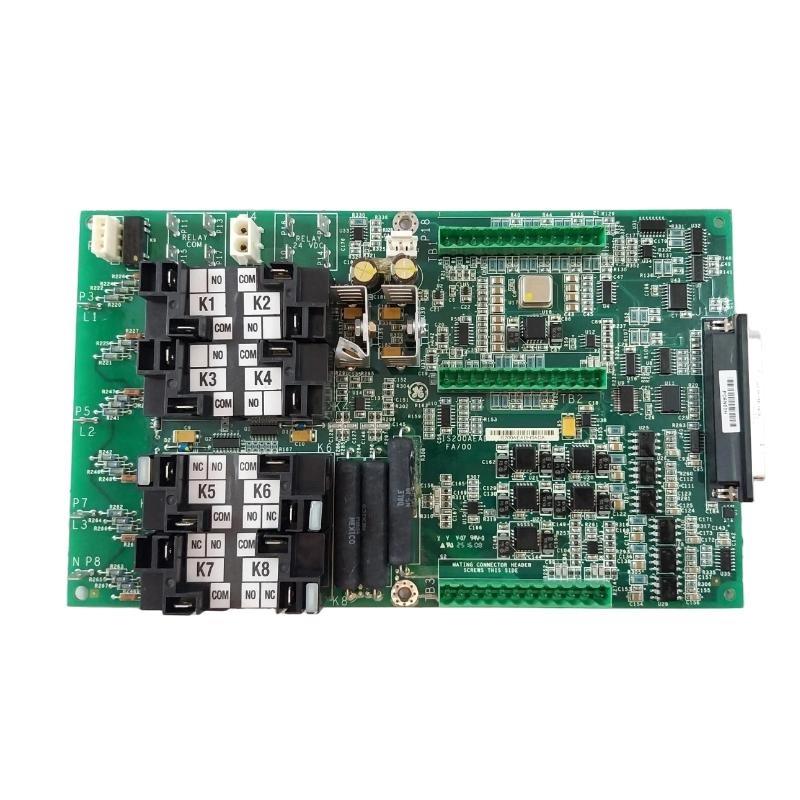

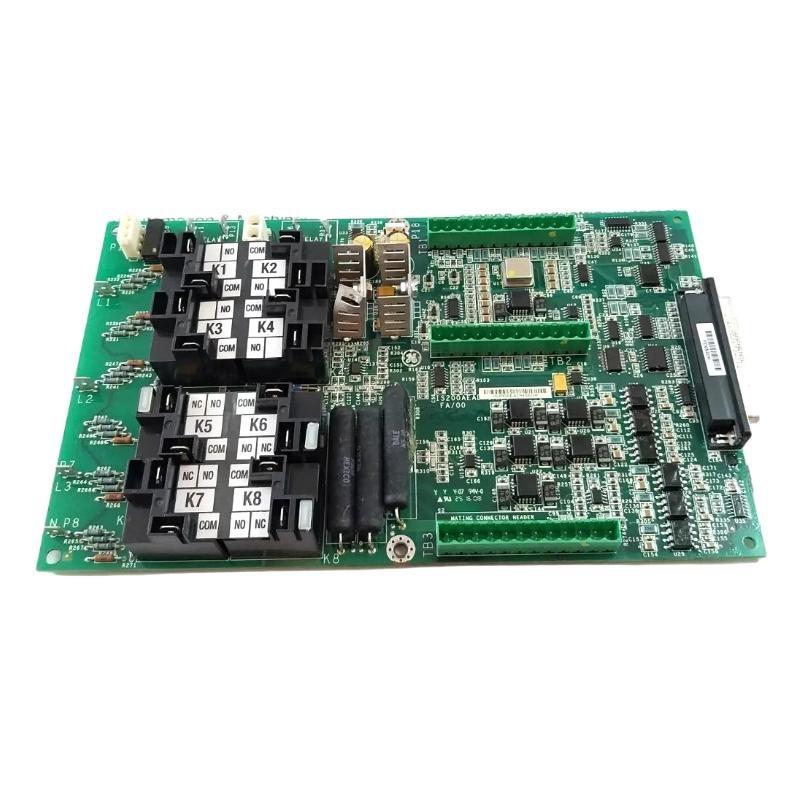

The GE IS200AEADH3ADA is an Analog Electrostatic Discharge and Attenuation (AEAD) printed circuit board designed for use within the GE Mark VI and Mark VIe control systems. As part من GE’s advanced industrial automation hardware, this PCB plays a crucial role in processing and conditioning analog signals from various sensors and transmitters. The AEAD board ensures that analog inputs are safely and accurately delivered to the control processor, filtering out noise, protecting against electrostatic discharge (ESD), and ensuring signal integrity.
Engineered for industrial-grade performance, the IS200AEADH3ADA supports high-reliability signal transmission in environments prone to electrical interference. It integrates seamlessly with terminal boards, backplanes, and other modules in the Mark VI system, contributing to a flexible and robust control architecture widely used in energy, petrochemical, and manufacturing industries.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | IS200AEADH3ADA |
| Product Type | Printed Circuit Board (PCB) – Analog Input Board |
| الشركة المصنعة | General Electric (GE) |
| Series | Mark VI / Mark VIe |
| Function | Analog signal filtering, attenuation, and conditioning |
| Channel Type | Multi-channel analog input |
| Input Signal Range | ±5 VDC / 0–10 VDC / 4–20 mA |
| Input Filtering | High-frequency noise filtering |
| ESD Protection | Integrated ESD circuitry |
| Connector Type | VME-style edge connectors and screw terminal headers |
| Power Supply Requirement | 24 VDC (nominal) |
| Operating Temperature | -30°C to +65°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Mounting Type | Rack/Panel Mount |
| Dimensions (W x H x D) | 40 × 240 × 210 mm |
| الوزن | 0.85 kg |
| Conformal Coating | Yes (protective against dust and humidity) |
| Standards Compliance | RoHS, CE, UL |
Product Applications
The IS200AEADH3ADA is utilized in diverse industrial control systems where accurate analog input acquisition and protection against ESD and electrical noise are essential. Application scenarios include:
-
Gas and Steam Turbine Monitoring Systems
-
Process Control وحدةs in Oil & Gas Facilities
-
Industrial Power Generation and Distribution Panels
-
Combined Cycle Power Plant Automation
-
High-Voltage Substation Monitoring Equipment
-
Water Treatment and Chemical Processing Plants
Product Advantages
-
Precision Signal Handling: Filters and processes analog signals with high accuracy for sensitive control applications.
-
Robust ESD Protection: Shields downstream electronics from harmful voltage spikes and electrostatic discharge.
-
Reliable Performance in Harsh الحالةs: Conformal coating and industrial-grade design enable operation in dusty, humid, and high-temperature environments.
-
Easy Integration: Plug-and-play compatibility with GE Mark VI and VIe systems ensures effortless installation and reduced engineering time.
-
Minimal Maintenance: Designed for long service life with low maintenance overhead, especially in continuous operation scenarios.
-
Enhanced Control System Integrity: Reduces the risk من signal noise or data corruption in analog channels, improving process reliability.
الأسئلة الشائعة (FAQ)
-
What does the IS200AEADH3ADA board do in a control system?
It processes and protects analog input signals, ensuring accurate and noise-free data transmission to the controller. -
Is this board compatible with the GE Mark VIe system?
Yes, it is fully compatible with both Mark VI and Mark VIe platforms. -
Can the AEADH3ADA board be replaced during operation?
No, the system should be powered down to safely replace or service the board. -
Does the module support 4–20 mA input signals?
Yes, it can process standard 4–20 mA analog current loops and voltage inputs. -
What kind من protection does the board provide against electrical surges?
It includes built-in ESD protection circuits to shield against electrostatic and transient voltages. -
How is the board mounted within the control system?
It is typically mounted into a backplane or rack enclosure using VME-style connectors. -
What tools are required to configure this board?
No programming tools are required for the board itself. Configuration is done through the controller’s sمنtware. -
How can I identify a failure on this board?
Diagnostic LEDs and monitoring via the control system interface can help detect signal faults or power issues. -
What is the main difference between AEADH3ADA and AEADH1A variants?
The H3ADA variant includes improved circuit design and منten more robust environmental protection features. -
Is this board suitable for safety-critical applications?
Yes, when used as part من a certified control system like GE Mark VI, it is suitable for high-integrity process environments.
Related الطرازs (Same Series or Functionality)
| الطراز Number | الوصف |
|---|---|
| IS200AEADH1A | Analog input board with standard conformal coating |
| IS200EACFG2A | Analog signal conditioning board |
| IS200ERDDH1A | Exciter regulator digital I/O board |
| IS200TRLYH1B | Trip relay output board |
| IS200TREGH1B | Trip and relay control terminal board |
| IS200VAICH1D | Voltage/current analog input module |
Popular GE الطرازs (Same العلامة التجارية – High Demand)
| الطراز Number | الوصف |
|---|---|
| IS215VCMIH2C | VCMI Communication Interface Module |
| DS200TCQAG1B | Trip and contact input module |
| IS200TBAIH1C | Analog input terminal board |
| DS200LDCCH1A | Drive control and logic board |
| IS210AEAAH1B | Analog I/O board with isolation |
| IS200SPIDG1ABA | Speed input signal board for turbine monitoring |
