مقدمة المنتج

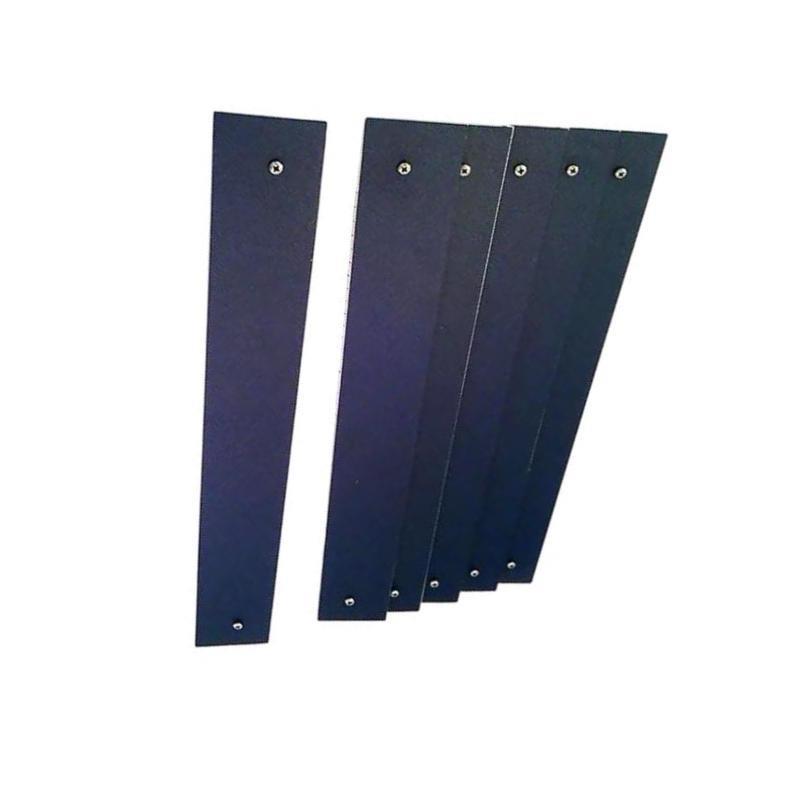

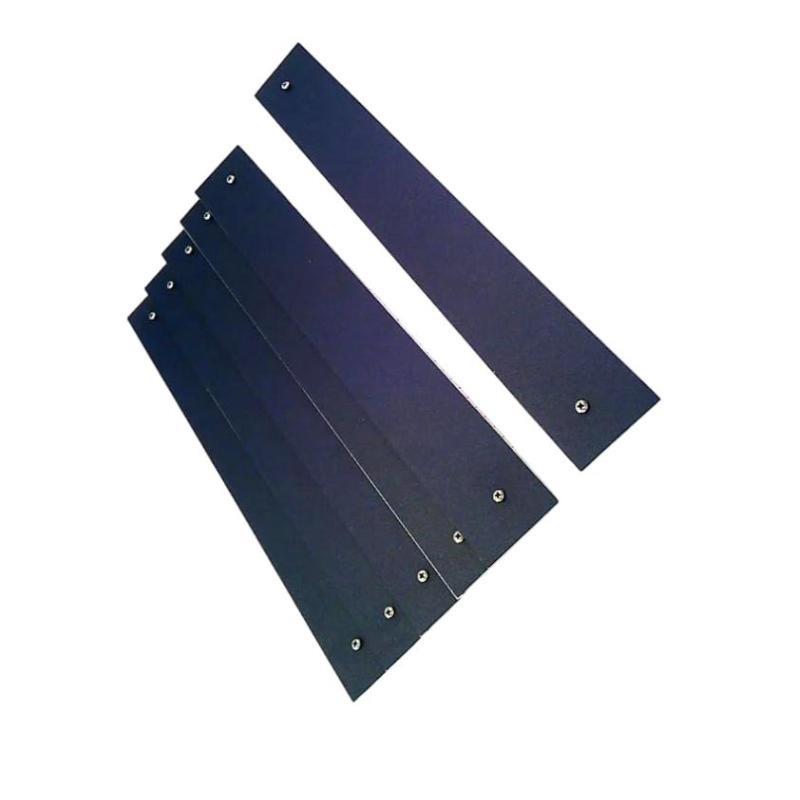

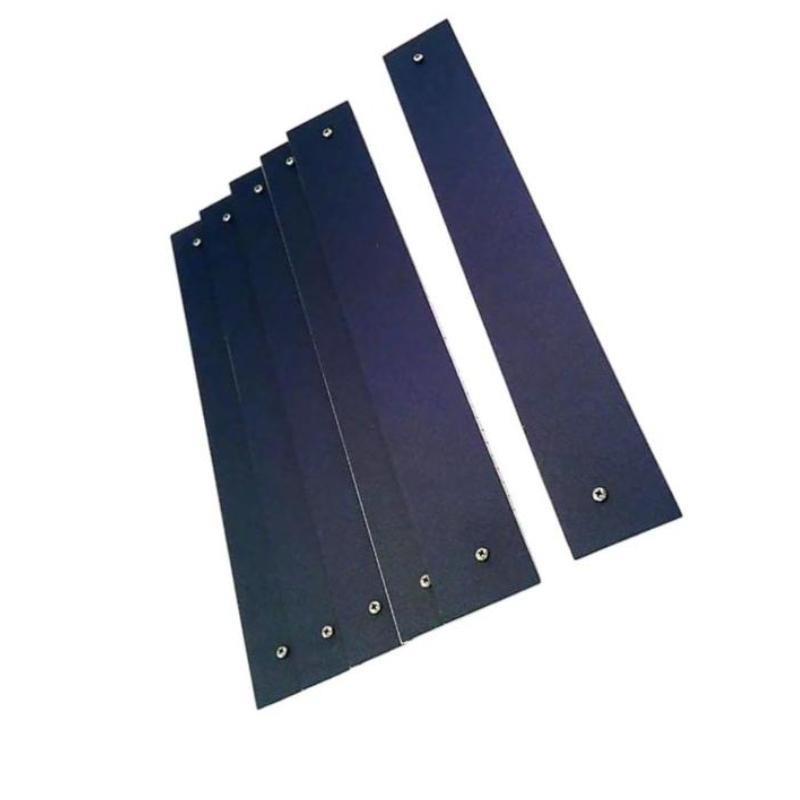

The GE IC698ACC720 is a shielded dual-slot panel designed for use with GE Series 90-70 PLC systems. This panel provides physical protection and isolation for the system’s I/O slots, ensuring that the installed modules are shielded from electromagnetic interference (EMI) and other environmental factors that can affect the performance and reliability من the PLC. The panel is designed with two slots, enabling users to install multiple modules while maintaining optimal signal integrity. Its robust construction makes it ideal for use in industrial environments where electrical noise and mechanical stress are a concern. The IC698ACC720 is a critical component for ensuring stable and efficient PLC operation in demanding conditions.
Specifications
The following table outlines the key specifications من the GE IC698ACC720 Shielded Dual Slot Panel:
| Specification | Details |
|---|---|
| الطراز Number | IC698ACC720 |
| Dimensions (L × W × H) | 243 × 41 × 80 mm |
| الوزن | 0.66 kg |
| Slot Capacity | Dual Slot |
| Shielding | Electromagnetic interference (EMI) shielding |
| Material | Metal (for EMI protection) |
| Mounting Type | Panel Mountable |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with GE Series 90-70 PLCs |
| Power Consumption | Negligible (passive component) |
Applications
The GE IC698ACC720 Shielded Dual Slot Panel is designed for applications in industrial automation systems that require shielding from electromagnetic interference and mechanical stress. Some common applications include:
-
PLC Module Protection: The IC698ACC720 is used to protect sensitive PLC modules from EMI and physical damage, ensuring stable operation in environments with high electrical noise.
-
Industrial Automation: Used in process control, manufacturing, and other automation systems where consistent and reliable module performance is critical.
-
Heavy Machinery and Equipment: In environments with large machines or high-frequency equipment that can cause electrical noise, this panel helps to ensure that PLC modules operate without interference.
-
Test and Measurement Equipment: Protects sensitive measuring instruments and control systems that need to operate in environments with varying levels من electromagnetic radiation.
-
Energy Management Systems: Used in systems controlling power generation, distribution, or consumption, where precision and reliability are essential.
-
Process Control Systems: Helps maintain signal integrity in process control systems, which منten involve complex feedback loops and sensors.
Advantages
-
EMI Shielding: The panel provides excellent shielding from electromagnetic interference, ensuring that the PLC and its modules maintain optimal performance in electrically noisy environments.
-
Dual Slot Capacity: The IC698ACC720 allows for the installation من two I/O modules, making it ideal for expanding the capability من existing systems without requiring additional panels.
-
Durable Construction: Built from high-quality metal, the panel is designed to protect against mechanical damage and external stresses that may occur in harsh industrial environments.
-
Compact and Space-Efficient: Despite منfering dual slots, the panel is compact, with dimensions من 243 x 41 x 80 mm, allowing for easy installation in confined spaces.
-
Cost-Effective Protection: Provides a cost-effective solution for shielding I/O modules without the need for specialized enclosures or external shielding devices.
-
Easy Integration: The IC698ACC720 is designed for use with GE Series 90-70 PLCs, ensuring that it integrates seamlessly with existing control systems.
-
Wide Operating Temperature Range: With an operating temperature range من 0°C to 60°C, it is suitable for use in various industrial environments, from factory floors to test labs.
FAQ
1. How many slots does the IC698ACC720 panel support?
The IC698ACC720 supports two slots, allowing the installation من two I/O modules while maintaining shielding from EMI.
2. What type من shielding does the IC698ACC720 provide?
The panel provides shielding against electromagnetic interference (EMI), ensuring stable and noise-free operation for the PLC modules.
3. What material is the IC698ACC720 panel made from?
The panel is made from metal, which ensures effective shielding against EMI and mechanical durability in industrial environments.
4. Is the IC698ACC720 compatible with other GE PLC models?
The IC698ACC720 is specifically designed for GE Series 90-70 PLCs, ensuring full compatibility with this model series.
5. How is the IC698ACC720 panel mounted?
The IC698ACC720 is designed for panel mounting, making it easy to install in control cabinets and enclosures.
6. What is the operating temperature range for the IC698ACC720?
The panel operates within a temperature range من 0°C to 60°C, making it suitable for a variety من industrial environments.
7. What is the power consumption من the IC698ACC720?
The IC698ACC720 is a passive component, so it has negligible power consumption.
8. How does the IC698ACC720 help with signal integrity?
The EMI shielding provided by the panel ensures that the signals from the PLC modules remain undisturbed, even in environments with significant electrical noise.
9. Can the IC698ACC720 be used in environments with high electrical noise?
Yes, the panel is designed to be used in environments with high electromagnetic interference, such as factories with large machinery or electrical equipment.
10. Is the IC698ACC720 suitable for use in harsh industrial environments?
Yes, the panel’s durable metal construction and EMI shielding make it ideal for use in demanding industrial settings where protection from electrical interference and mechanical damage is essential.
Related الطرازs
The following table lists other related models and their descriptions:
| الطراز Number | الوصف |
|---|---|
| IC698ACC720 | Shielded dual-slot panel for GE Series 90-70 PLCs |
| IC698ACC721 | Single-slot panel with EMI shielding |
| IC698ACC730 | High-density I/O panel for Series 90-70 PLCs |
| IC698ACC735 | Dual-slot I/O panel for harsh industrial environments |
| IC698ACC750 | I/O protection panel with enhanced shielding for sensitive modules |
| IC698ACC780 | Metal shielded panel for multiple I/O modules |
Popular الطرازs from GE
The following table highlights other popular products from GE’s industrial automation range:
| الطراز Number | الوصف |
|---|---|
| IC200ALG260 | VersaMax analog input module |
| IC200MDL640 | VersaMax digital output module |
| IC200CHS022 | VersaMax communication module |
| IC200UDR001 | VersaMax universal digital input module |
| IC200PWR001 | VersaMax power supply module |
| IC200ACC406 | VersaMax accumulator module |
