مقدمة المنتج

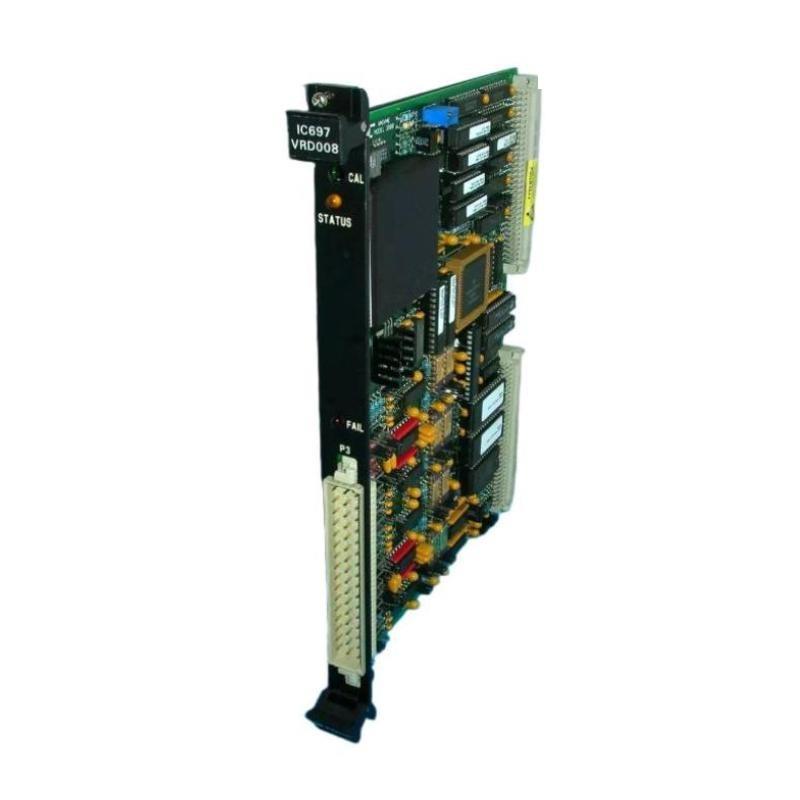

The GE IC697VRD008 is a versatile 8-channel Smart RTD/Strain Gauge Input Module designed for use with the GE Series 90-30 PLC. This module is designed to convert analog signals from temperature sensors (RTDs) or strain gauges into digital signals that can be processed by a PLC. It is ideal for applications that require precise measurement من temperature or mechanical strain in a variety من industrial environments. With 8 independent input channels, the IC697VRD008 provides flexibility and high-density input options for systems that require monitoring and control من multiple sensors simultaneously. This module is used in applications like industrial process control, automation, and mechanical testing.
Specifications
The following table outlines the key specifications من the GE IC697VRD008 Smart 8-Channel RTD/Strain Gauge Module:
| Specification | Details |
|---|---|
| الطراز Number | IC697VRD008 |
| Dimensions (L × W × H) | 200 × 40 × 150 mm |
| الوزن | 0.93 kg |
| Number من Channels | 8 Channels |
| Input Type | RTD (Resistance Temperature Detector) and Strain Gauge |
| Input Range | -200°C to 850°C (RTD), 0 to 3000 με (Strain Gauge) |
| Input Signal Type | Differential analog signals |
| Accuracy | ±0.5% من full scale (RTD) |
| Power Consumption | 5 W |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with GE Series 90-30 PLCs |
| Resolution | 16-bit Analog-to-Digital Conversion |
Applications
The GE IC697VRD008 Smart RTD/Strain Gauge Module is ideal for applications in industries that require precise temperature or strain measurements. Some common applications include:
-
Temperature Measurement: Used in systems where accurate temperature monitoring is essential, such as in heating, ventilation, and air conditioning (HVAC), chemical processing, or food manufacturing.
-
Strain Measurement: Suitable for monitoring mechanical strain in structural components, such as bridges, pipelines, and machinery, ensuring operational safety and performance.
-
Industrial Process Control: This module is ideal for measuring environmental conditions in real-time, ensuring efficient and safe operations in manufacturing processes.
-
Load Monitoring: Used in load cells or force measurement systems to monitor the stress or load applied to equipment, such as in automated testing systems or material handling equipment.
-
Automated Testing Systems: Applied in mechanical testing systems to capture and analyze strain data during product tests or machine performance evaluations.
-
Structural Health Monitoring: Monitors the health من industrial structures by measuring strain in critical components, preventing potential failure through predictive maintenance.
Advantages
-
High Density: With 8 independent input channels, the IC697VRD008 allows for the simultaneous monitoring من multiple sensors, increasing system efficiency and reducing space requirements.
-
Versatile Input Types: It supports both RTD and strain gauge sensors, providing flexibility for different measurement needs in industrial applications.
-
Precision and Accuracy: The module منfers high-precision measurement with an accuracy من ±0.5% من full scale for RTD input signals, ensuring reliable data for control and monitoring purposes.
-
High Resolution: With 16-bit analog-to-digital conversion, the IC697VRD008 ensures fine resolution in signal processing, allowing for detailed measurement and analysis.
-
Easy Integration: Designed to work seamlessly with GE Series 90-30 PLCs, making it easy to integrate into existing automation systems.
-
Cost-Effective: By منfering 8 channels in a compact module, it provides a cost-effective solution for applications requiring multiple sensors and inputs, reducing the need for additional modules or equipment.
-
Reliable Power Consumption: The module consumes only 5 W, which ensures low energy consumption while maintaining excellent functionality.
FAQ
1. How many input channels does the IC697VRD008 module support?
The IC697VRD008 supports 8 independent input channels, allowing for simultaneous measurement من multiple sensors.
2. What types من sensors can be connected to the IC697VRD008?
The module can be connected to RTD (Resistance Temperature Detectors) and strain gauge sensors for temperature and mechanical strain measurement.
3. What is the input range for RTD and strain gauge measurements?
For RTDs, the input range is -200°C to 850°C. For strain gauges, the input range is 0 to 3000 microstrain (με).
4. What is the accuracy من the IC697VRD008 for RTD inputs?
The module provides an accuracy من ±0.5% من full scale for RTD inputs, ensuring reliable and precise measurements.
5. What is the resolution من the IC697VRD008?
The IC697VRD008 features 16-bit analog-to-digital conversion, providing high resolution for accurate signal processing.
6. What is the power consumption من the IC697VRD008?
The module consumes 5 W من power, making it energy-efficient while maintaining high performance.
7. What is the operating temperature range من the IC697VRD008?
The IC697VRD008 operates within a temperature range من 0°C to 60°C, making it suitable for most industrial environments.
8. Is the IC697VRD008 compatible with other GE PLC models?
Yes, the IC697VRD008 is compatible with GE Series 90-30 PLCs, allowing for seamless integration into existing systems.
9. Can the IC697VRD008 handle both RTD and strain gauge sensors at the same time?
Yes, the module can handle both RTD and strain gauge sensors simultaneously on separate channels, منfering flexibility for various applications.
10. What is the purpose من the differential input signal for this module?
The differential input signal helps to improve the accuracy and noise immوحدةy من the measurements by comparing two input voltages, which is essential for precise sensor readings.
