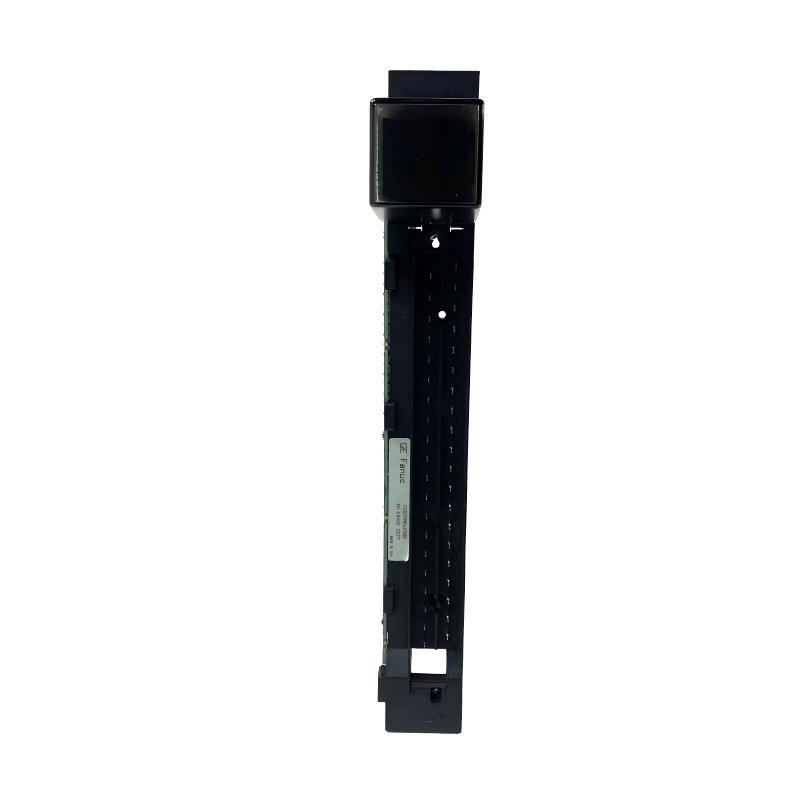

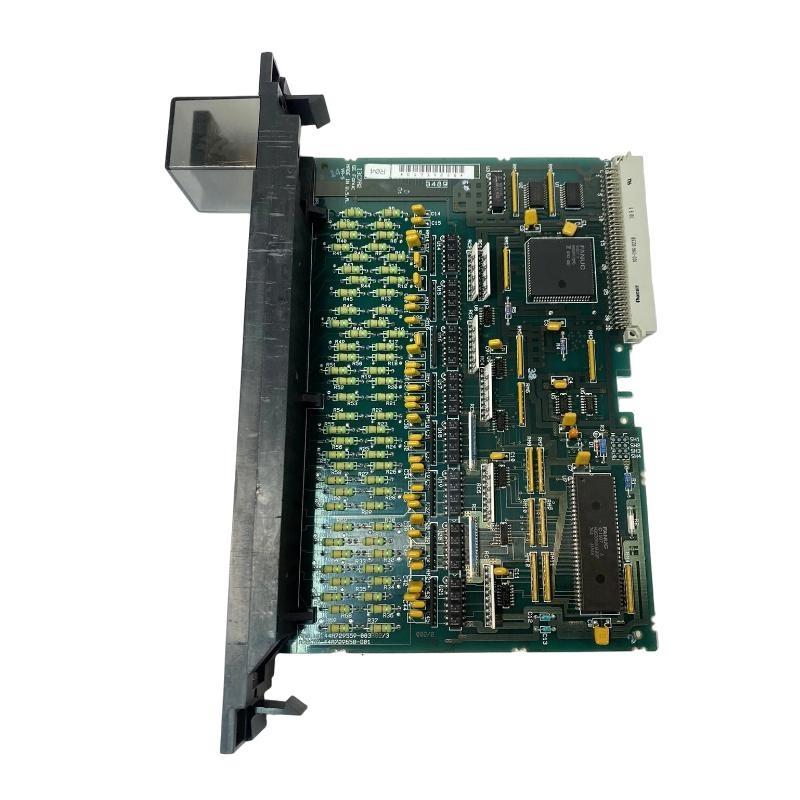

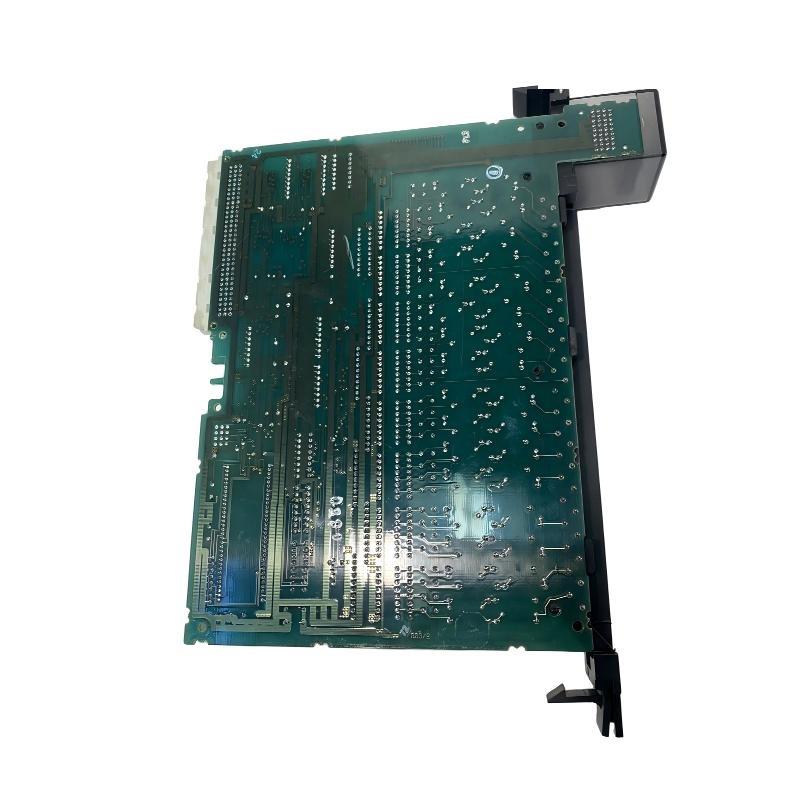

GE IC697MDL650 Discrete Input Module

مقدمة المنتج

The GE IC697MDL650 Discrete Input Module is a high-density, high-performance input module designed for the GE Fanuc Series 90-70 PLC system. It provides 32 input points for 24V DC signals using positive logic, allowing the module to detect “ON” status when a high-level DC voltage is applied.

This module is engineered to deliver robust and reliable signal acquisition in demanding industrial environments. It is ideal for applications requiring large numbers من discrete input channels while maintaining strong electrical isolation and noise immوحدةy. Each input is optically isolated from the backplane and from each other in grouped configurations to ensure maximum system reliability and fault tolerance.

The IC697MDL650 integrates seamlessly with GE 90-70 series racks, CPUs, and communication modules, منfering consistent performance across large-scale automation systems. Its rugged design and wide environmental tolerance make it suitable for continuous operation in harsh industrial conditions.

Technical Specifications

Product Applications

The GE IC697MDL650 is designed for industrial automation and control systems that require precise monitoring من digital input signals. Its wide range من applications includes:

• Factory Automation: Monitoring limit switches, sensors, and push buttons across production lines.

• Power and Energy Systems: Used to collect digital signals from control panels, circuit breakers, and field devices.

• Oil and Gas Facilities: Interfaces with solenoid feedback, pump control inputs, and process monitoring systems.

• Water Treatment Plants: Reads valve positions, pressure switches, and flow indicator signals.

• Material Handling Systems: Processes input data from conveyors, position sensors, and safety devices.

• Building Automation: Integrates with access control systems and monitoring devices for intelligent control.

This wide adaptability makes the module an integral component من high-reliability digital input subsystems.

Product Advantages

The IC697MDL650 منfers several engineering and operational benefits that make it a preferred solution for industrial control prمنessionals:

• High Channel Density: Provides 32 discrete inputs in a single module, optimizing rack space.

• Positive Logic Operation: Simplifies integration with modern 24V DC field devices and sensors.

• Group Isolation: Four isolated groups minimize electrical noise and prevent cross-interference.

• Strong Noise Immوحدةy: Designed to withstand industrial electrical disturbances for stable operation.

• LED Diagnostics: Each channel features an LED indicator for quick input signal verification.

• Flexible System Integration: Fully compatible with Series 90-70 PLC CPUs and communication modules.

• High Reliability: Uses optical isolation and industrial-grade components for long-term performance.

• Ease من Maintenance: Modular construction allows fast replacement without full system shutdown.

• Energy Efficient: Low power consumption with minimal heat dissipation requirements.

• Global Compliance: Certified to major international standards (UL, CE, CSA) ensuring safe operation in industrial environments.

FAQ

1. What type من logic does the IC697MDL650 use?
   The module uses positive logic, meaning an input signal is recognized as “ON” when a high (positive) voltage is applied.

2. How many discrete input points does the module provide?
   It منfers 32 input channels divided into four isolated groups من eight points each.

3. What is the nominal operating voltage for this module?
   The IC697MDL650 operates with a nominal 24V DC input voltage.

4. How does the module handle input isolation?
   Each group من inputs is optically isolated, with a 1500V RMS isolation rating to prevent electrical interference.

5. What is the input current per point?
   Each channel typically draws 7 mA at 24V DC.

6. Can the module handle negative logic input signals?
   No, the IC697MDL650 is designed for positive logic operation only.

7. Does it include any diagnostic features?
   Yes, each input has a dedicated LED indicator for status display and fault diagnostics.

8. What is the typical response time for input detection?
   The input ON/OFF response time is approximately 10 milliseconds.

9. Is the module compatible with older Series 90-70 PLC racks?
   Yes, it is fully compatible with all standard Series 90-70 rack and CPU configurations.

10. How many modules can be installed in a single rack?
    The number depends on the power supply and available rack slots, but multiple IC697MDL650 modules can be installed within standard backplane limits.
