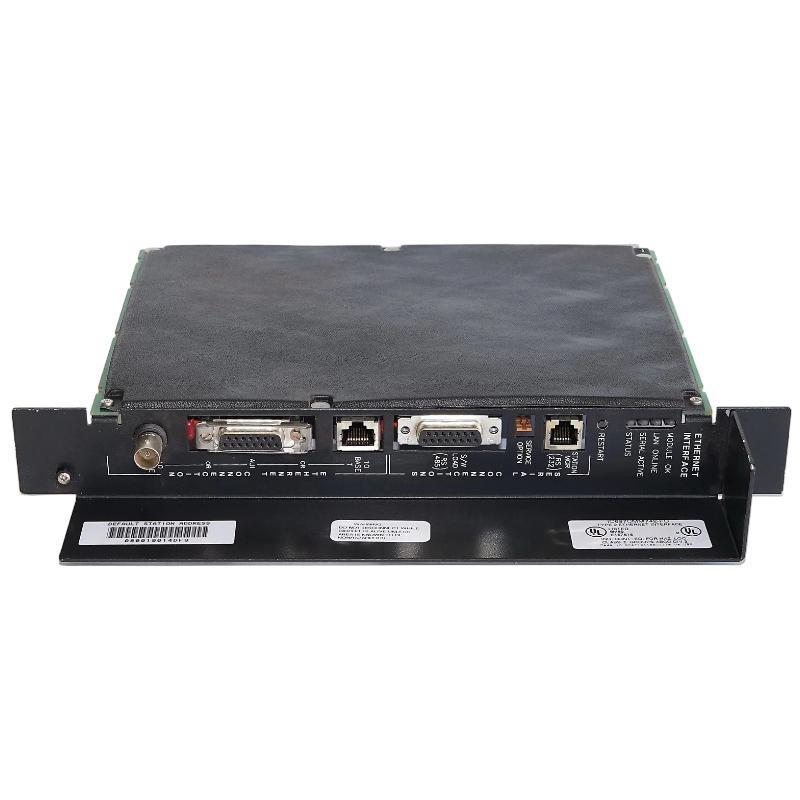

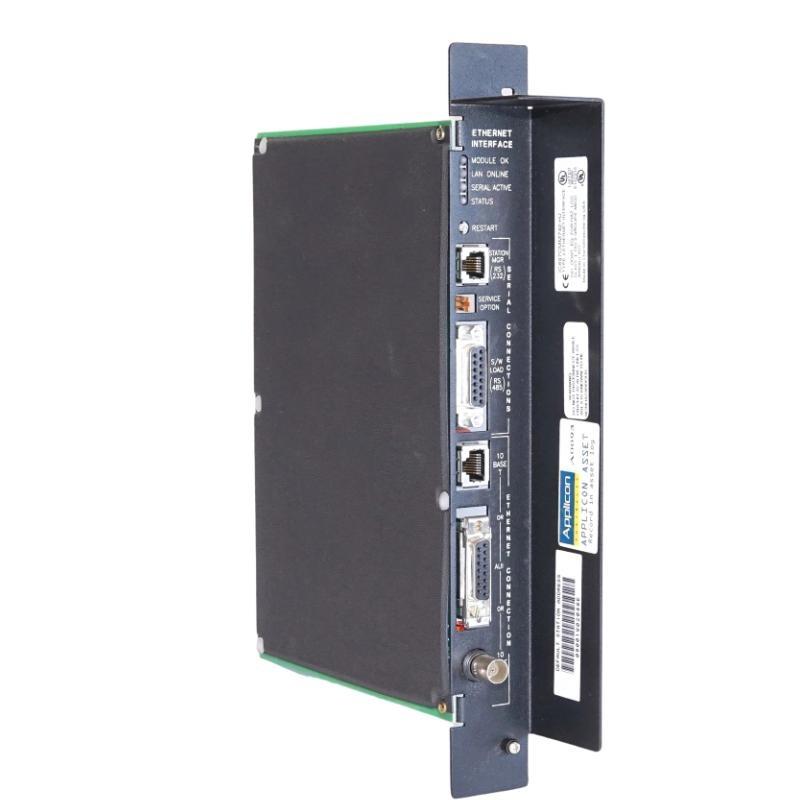

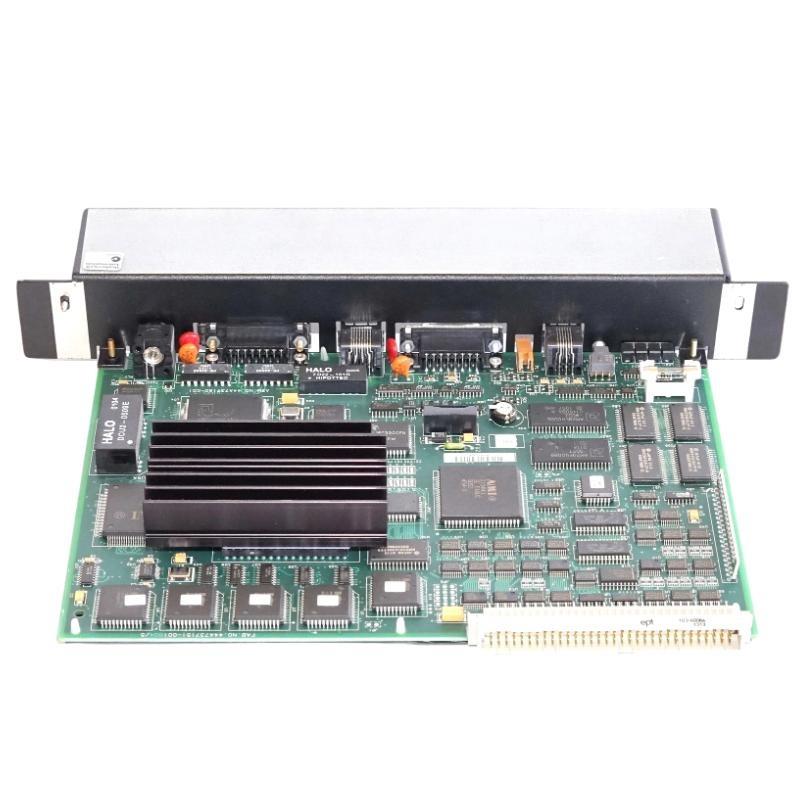

GE IC697CMM742 Ethernet Interface Module

مقدمة المنتج

The GE IC697CMM742 Ethernet Interface Module is a high-performance communication module designed for the Series 90-70 PLC system. Operating at 64 MHz with a 32-bit floating architecture and 1 MByte من memory, this module enables robust and high-speed Ethernet connectivity for industrial automation applications. The IC697CMM742 provides a standard 15-pin AUI Ethernet port, allowing seamless integration with Ethernet networks and peripheral devices.

This module is optimized for Type 2 backplanes and is engineered to deliver deterministic data transfer, minimal latency, and reliable network communication. It is widely used in industries requiring real-time monitoring, distributed control, and data-intensive Ethernet-based operations. The module’s architecture allows PLCs to exchange information efficiently with HMIs, SCADA systems, remote I/O, and other networked devices, supporting scalable automation solutions.

Its design emphasizes reliability, ease من installation, and industrial robustness, making it suitable for process control, factory automation, energy management, and remote monitoring applications.

Technical Specifications

Applications

The IC697CMM742 Ethernet Interface Module is used in a variety من industrial applications:

• Factory Automation: Enables communication between PLCs, HMIs, SCADA systems, and Ethernet-enabled devices on production lines.

• Process Control: Facilitates high-speed monitoring and control in chemical, pharmaceutical, and food processing industries.

• Energy and Utilities: Provides Ethernet connectivity for substations, power distribution systems, and energy management devices.

• Transportation and Logistics: Connects PLCs to Ethernet networks for automated conveyors, traffic systems, and material handling equipment.

• Remote Monitoring: الدعمs secure and reliable data transmission to remote monitoring stations and control centers.

• Data-Intensive Applications: The 32-bit floating architecture and 1 MByte memory allow high-speed processing من large datasets from multiple Ethernet devices simultaneously.

Advantages

1. High-Speed Processing: 64 MHz CPU with 32-bit floating architecture ensures fast data handling and low latency.

2. Robust Memory: 1 MByte memory allows buffering and processing من large amounts من Ethernet data without delays.

3. Standard Ethernet Interface: 15-pin AUI connector ensures easy integration with existing networks.

4. Reliable Industrial Communication: الدعمs TCP/IP, UDP, and Modbus TCP protocols for deterministic data transfer.

5. Plug-In Integration: Direct installation into Series 90-70 Type 2 backplanes with automatic recognition.

6. Advanced Diagnostics: Monitors link status, network activity, and communication errors to support troubleshooting.

7. Compact and Efficient: Small form factor minimizes panel space while providing Ethernet connectivity.

8. Low Power Consumption: Only 3.5 W typical, enabling multiple modules to operate without overloading the system.

9. Wide Environmental Range: Operates reliably from 0–70 °C and 5–95% non-condensing humidity.

FAQ

1. What type من network port does the IC697CMM742 provide?
   It provides a standard 15-pin AUI Ethernet port compatible with Ethernet networks and industrial switches, allowing integration with various PLC systems.

2. Which protocols are supported by this module?
   TCP/IP, UDP, and Modbus TCP protocols are supported, enabling communication with HMIs, SCADA systems, and other networked devices.

3. How does the module handle high-speed data processing?
   The 64 MHz CPU with 32-bit floating architecture, along with 1 MByte من memory, allows fast processing and buffering من Ethernet data to minimize latency.

4. Can multiple Ethernet devices be connected to this module?
   Yes, the module supports multiple devices on a network segment, provided proper cabling, addressing, and termination are applied.

5. Does the module provide diagnostics for network errors?
   Yes, it monitors link status, network activity, buffer overflows, and communication errors to assist in troubleshooting and system maintenance.

6. How does it integrate with Series 90-70 PLCs?
   It plugs into the Type 2 backplane, is automatically recognized by the PLC, and can be configured using standard programming sمنtware.

7. Is there isolation between the module and the PLC backplane?
   Yes, port-to-backplane isolation protects the PLC and connected devices from electrical noise and voltage spikes.

8. What is the typical data transfer rate?
   The module supports 10 Mbps using 10BASE-T over the 15-pin AUI connector.

9. Can this module operate in harsh industrial environments?
   Yes, it functions reliably within 0–70 °C and 5–95% non-condensing humidity, suitable for most industrial environments.

10. What is the power consumption, and will it affect PLC performance?
    Typical power consumption is 3.5 W, which is minimal and allows multiple modules to operate simultaneously without overloading the PLC system.
