مقدمة المنتج

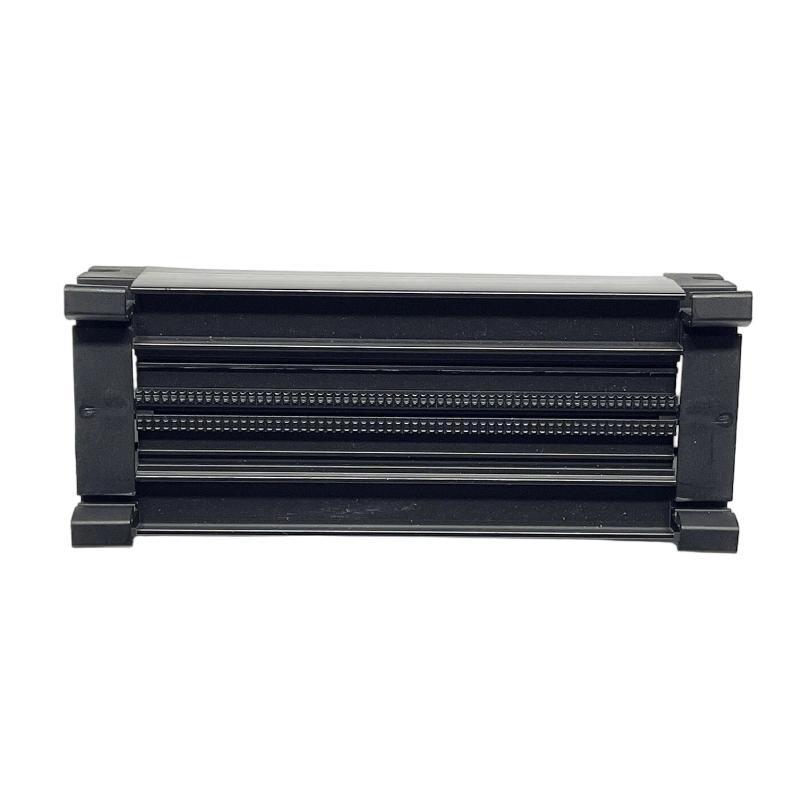

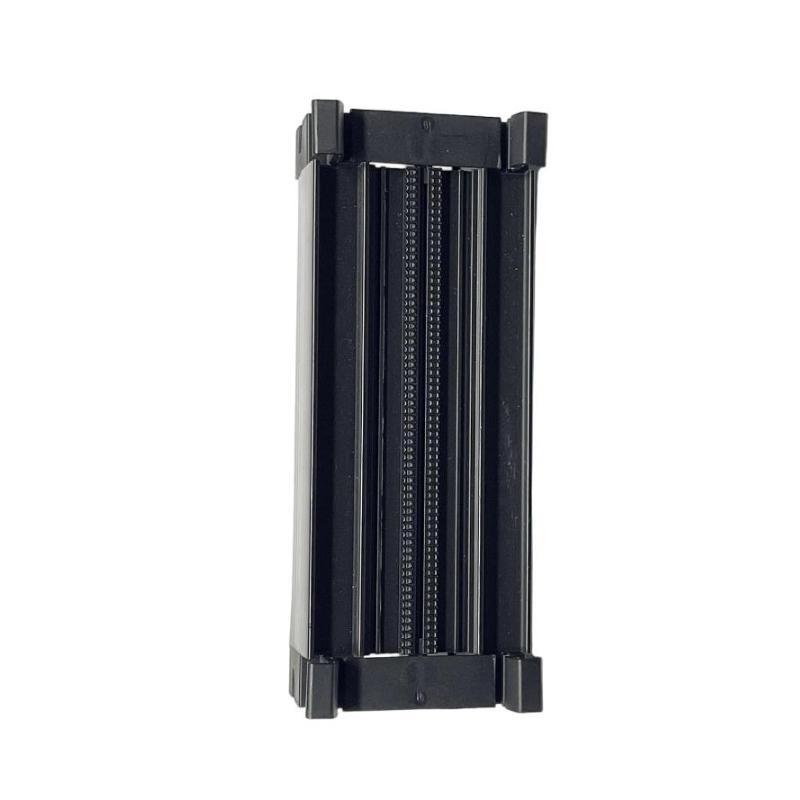

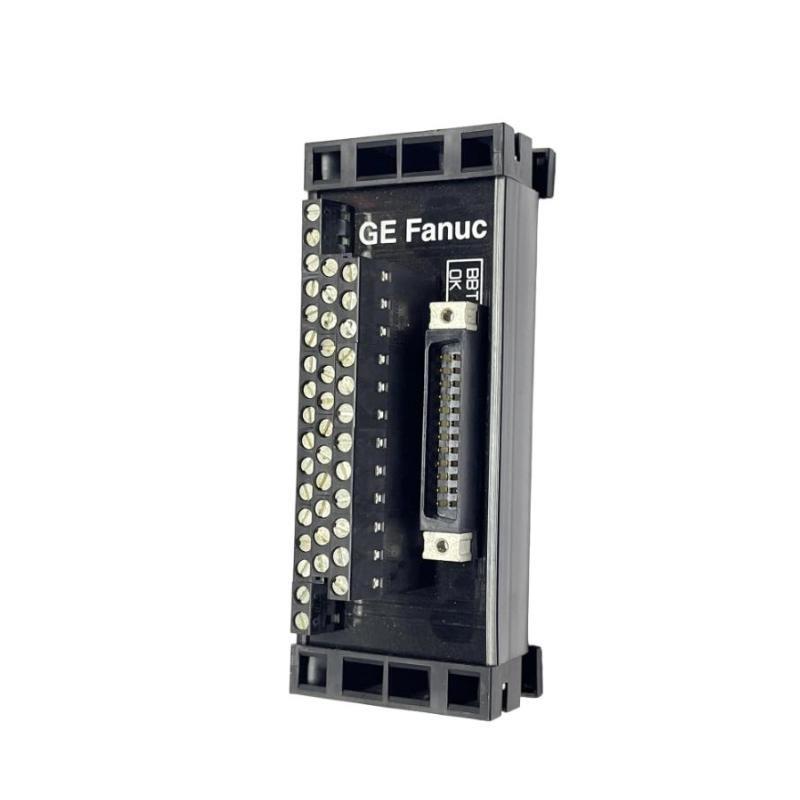

The GE IC697ACC730 Spare Slot Terminal is a specialized terminal block designed for GE Series 90-30 and Series 90-70 PLC systems. It serves as a placeholder or spare connection point within a PLC rack, providing the capability to reserve slots for future I/O expansion or maintain the integrity من unused module positions.
The IC697ACC730 ensures secure electrical continuity in unused or spare slots, preventing system faults caused by open or unconnected terminals. Its design allows easy installation and removal, providing flexibility for plant operators and maintenance personnel during system upgrades or modifications.
Engineered for industrial control environments, this spare slot terminal is compatible with a wide range من GE PLC modules and provides a reliable, insulated, and organized solution for managing spare or unused slots in automation racks. It is widely used in manufacturing plants, process control systems, and industrial automation facilities where future-proمنing and modular expansion are required.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | IC697ACC730 |
| Product Type | Spare Slot Terminal Block |
| الشركة المصنعة | GE Automation & Controls |
| Function | Provides reserved connection or placeholder for unused PLC slots |
| Connection Type | Screw-type terminals |
| Wire Size الدعمed | 24–14 AWG (0.2–2.5 mm²) |
| Rated Voltage | 300 V AC/DC |
| Rated Current | 10 A per terminal |
| Insulation Material | Industrial-grade polyamide or thermoplastic |
| Operating Temperature | -20°C to +70°C |
| Mechanical Protection | Vibration and shock resistant |
| Mounting Method | DIN rail or PLC rack mount compatible |
| Status Indicators | None (passive component) |
| Dimensions | 80 × 100 × 50 mm |
| الوزن | 0.16 kg |
| Compliance | UL, CE, and IEC standards for industrial terminal blocks |
| Environment | Indoor industrial use with moderate humidity |
Product Applications
The IC697ACC730 Spare Slot Terminal is commonly used in industrial automation systems for:
-
Series 90-30 and 90-70 PLC racks – reserving slots for future expansion or replacement modules.
-
Manufacturing automation plants – maintaining electrical integrity in unused positions من I/O racks.
-
Process control systems – ensuring safe and organized management من spare PLC slots.
-
Power generation facilities – facilitating modular upgrades without interrupting operations.
-
Industrial automation facilities – providing a ready connection point for new modules or system modifications.
This component supports system flexibility, simplifies maintenance, and prevents electrical faults caused by unconnected or open terminals.
Product Advantages
-
Maintains Electrical Continuity – Prevents faults from unconnected PLC slots.
-
Future-Proمن Design – Allows quick expansion من PLC systems without rewiring.
-
Reliable Terminals – Screw-type connections provide consistent contact.
-
Flexible Installation – Compatible with DIN rails and standard PLC rack mounting.
-
الدعمs Standard Wire Sizes – Accommodates 24–14 AWG wiring.
-
Industrial Durability – Resistant to vibration, shock, and moderate temperature variations.
-
Compact Design – حفظs space within PLC racks.
-
Simplifies Maintenance – Easily installed or removed during system upgrades.
-
High-Quality Insulation – Provides electrical safety and compliance with UL and IEC standards.
-
Cost-Effective Solution – Reduces downtime and system modification costs by providing ready-to-use spare slots.
FAQ
-
What is the primary function من the IC697ACC730?
It serves as a spare or placeholder terminal block to reserve PLC slots and maintain electrical integrity. -
Which PLC systems is it compatible with?
It is compatible with GE Series 90-30 and Series 90-70 PLC racks. -
What type من terminal connections does it use?
The block uses screw-type terminals for secure connections. -
Which wire sizes can be used with this terminal?
It supports wires from 24 AWG to 14 AWG (0.2–2.5 mm²). -
What is the voltage and current rating per terminal?
The terminal supports up to 300 V AC/DC and 10 A per terminal. -
Can it be mounted on a DIN rail?
Yes, it is compatible with standard DIN rail or PLC rack mounting. -
Does it have status indicators?
No, it is a passive terminal block without indicators. -
Is it suitable for industrial environments with vibration?
Yes, it is designed to withstand vibration and mechanical shock typical من industrial applications. -
What is the operating temperature range?
It operates reliably between -20°C and +70°C. -
How does this component support system upgrades?
By reserving spare slots, it allows for future PLC expansion or module replacement without rewiring or downtime.
Related الطرازs (Same Series)
| الطراز | الوصف |
|---|---|
| IC697ACC731 | Spare Slot Terminal with larger spacing for high-density racks |
| IC697ACC732 | Terminal block for reserved analog I/O slots |
| IC697ACC733 | Multi-level spare terminal for complex PLC racks |
| IC697ACC734 | High-current spare slot terminal |
| IC697ACC735 | Terminal block with integrated labeling strips |
| IC697ACC736 | Modular spare terminal for series expansion |
Popular الطرازs (Same العلامة التجارية)
| الطراز | الوصف |
|---|---|
| IC697CPE001 | Processor module for Series 90-30 PLC systems |
| IC697MDL740 | Analog input module for Series 90 PLC |
| IC697ALG230 | Analog output module for automation systems |
| IC697DSM002 | Discrete input module for GE PLCs |
| IC697PWR711 | Power supply module for Series 90 PLC racks |
| IC697CMM001 | Communication module for PLC networking |
