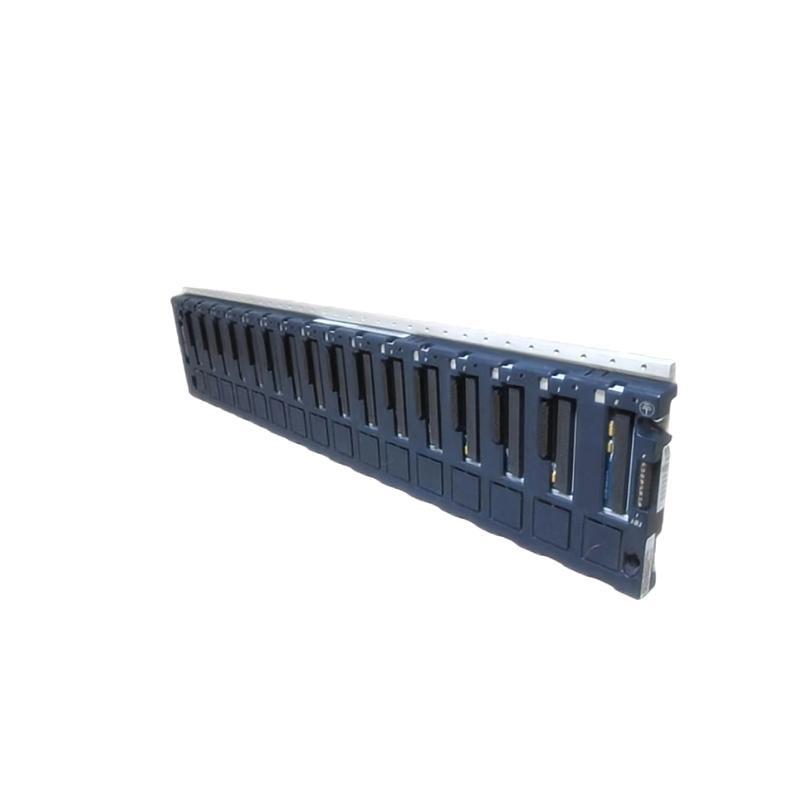

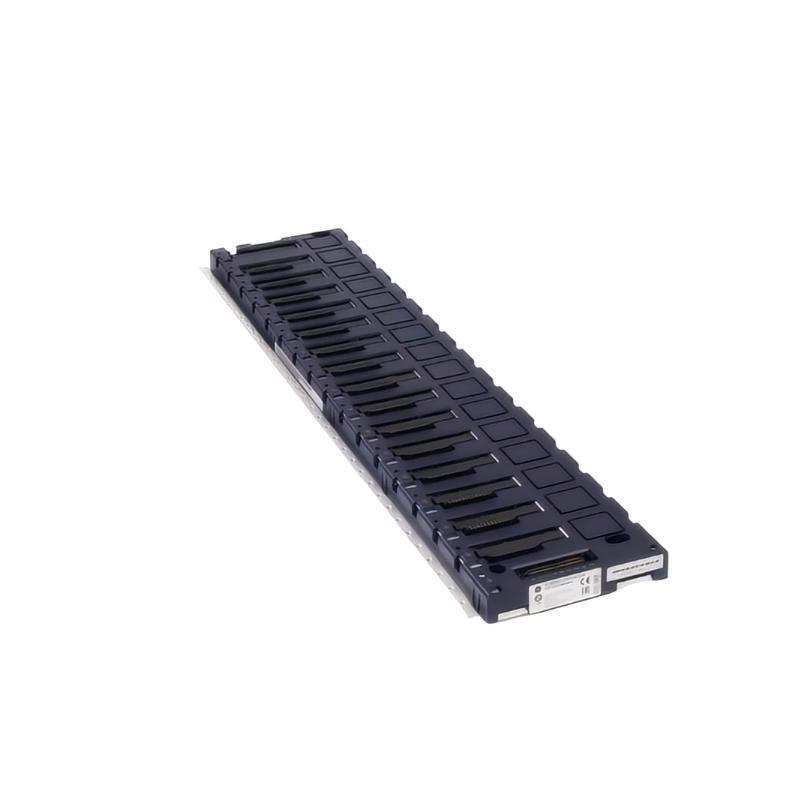

GE IC695CHS016 16-Slot Universal Backplane

مقدمة المنتج

The GE Fanuc IC695CHS016 is a 16-slot universal backplane designed for the PACSystems RX3i series. It serves as a foundational component in industrial automation systems, providing a flexible platform for integrating various I/O and option modules. The backplane supports both PCI-based (IC695) and high-speed serial (IC694) modules, facilitating seamless system expansion and module compatibility.

مواصفات المنتج

Applications

• Industrial Automation: Facilitates integration من various control modules for manufacturing processes.

• Process Control Systems: الدعمs complex control strategies in industries like chemical, oil & gas, and pharmaceuticals.

• Machine Control: Enables precise control and monitoring من machinery operations.

• Building Automation: Integrates HVAC, lighting, and security systems for centralized control.

• Energy Management: Assists in monitoring and controlling energy consumption in industrial settings.

Product Advantages

• Modular Design: الدعمs a wide range من modules, allowing for customized system configurations.

• Dual-Bus Architecture: Enhances compatibility by supporting both PCI and high-speed serial modules.

• Hot Swap Capability: Allows for module replacement without system downtime, improving maintenance efficiency.

• Robust Construction: Designed to withstand harsh industrial environments with high vibration and shock resistance.

• Integrated Grounding: Ensures system safety and reduces electrical noise through an internal grounding bar.

• Scalability: Provides flexibility for future system expansion and upgrades.

الأسئلة الشائعة (FAQs)

1. What modules are compatible with the IC695CHS016 backplane?

   • It supports both PCI-based (IC695) and high-speed serial (IC694) modules.

2. Can modules be hot-swapped in this backplane?

   • Yes, the backplane supports hot swapping, allowing module replacement without shutting down the system.

3. What are the power requirements for the backplane?

   • It requires 600 mA at 3.3 VDC and 240 mA at 5 VDC.

4. What is the recommended mounting orientation?

   • The backplane should be mounted horizontally for optimal performance.

5. What is the enclosure rating من the IC695CHS016?

   • It has an IP20 rating, suitable for NEMA/UL Type 1 enclosures.

6. What are the dimensions من the backplane?

   • The dimensions are 141.48 x 601.98 x 147.32 mm.

7. Is there an integrated grounding bar?

   • Yes, the backplane includes an internal grounding bar for system safety.

8. What is the operating temperature range?

   • The backplane operates within a temperature range من 0°C to 60°C.

9. What is the weight من the IC695CHS016?

   • The backplane weighs 2.06 kg.

10. Is the backplane suitable for high-vibration environments?

    • Yes, it is designed to withstand vibrations ranging from 5 to 2000 Hz at 5G.
