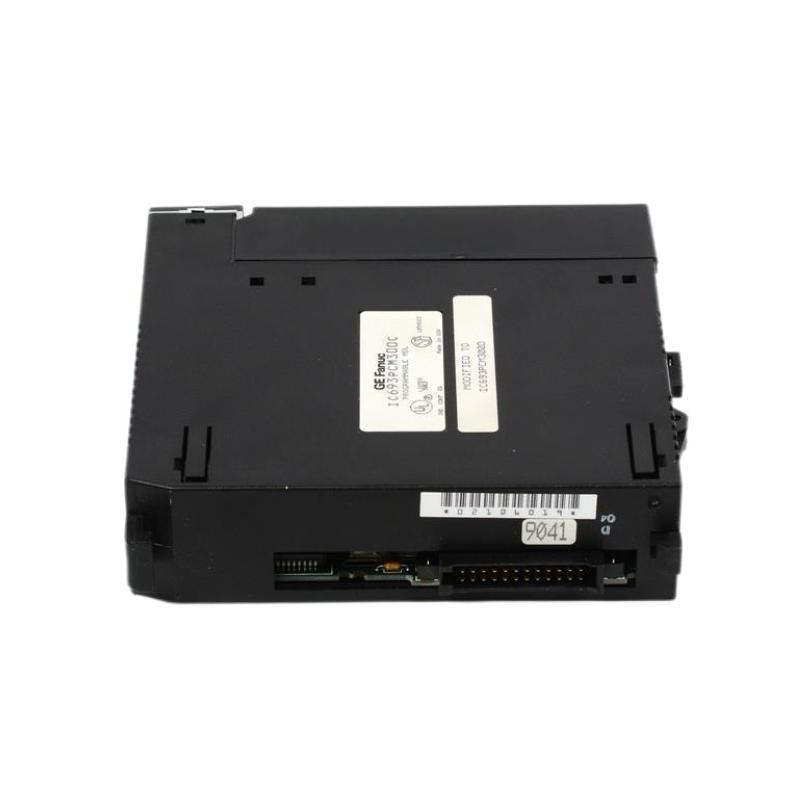

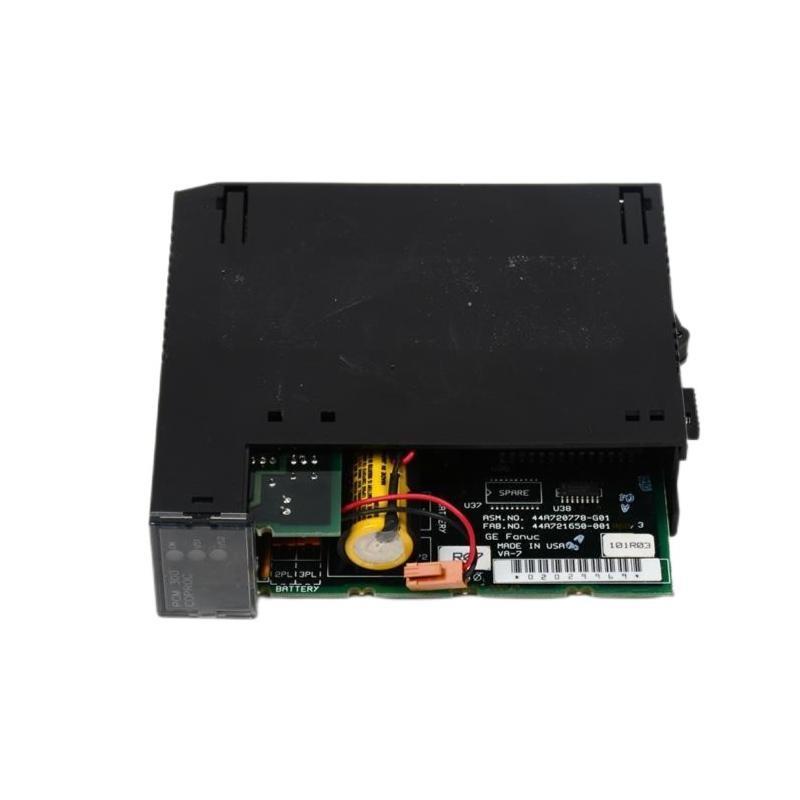

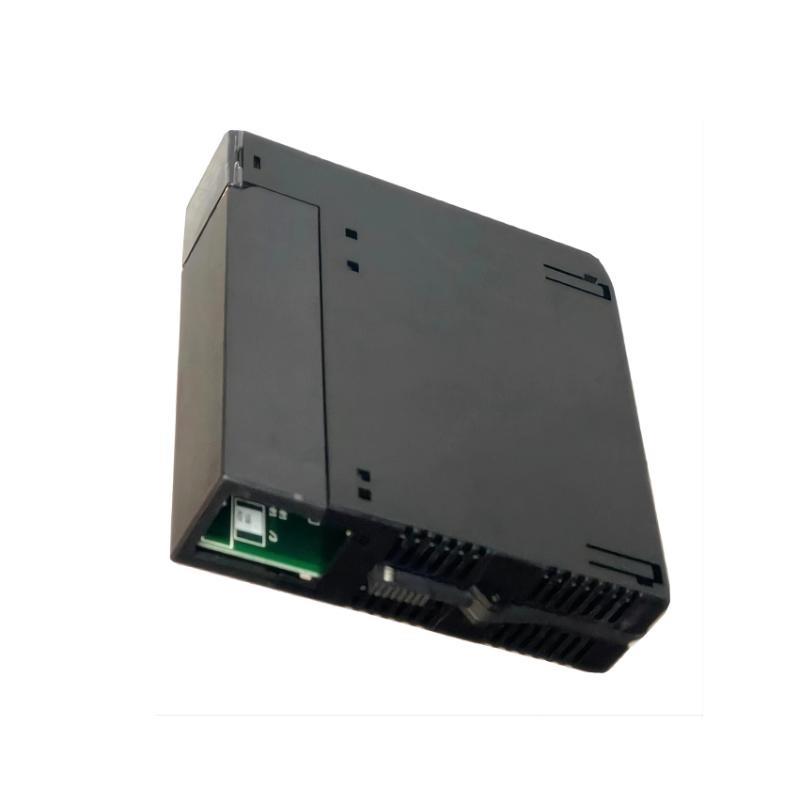

GE IC693PCM300 Programmable Coprocessor Module

مقدمة المنتج

The GE IC693PCM300 Programmable Coprocessor Module (PCM) is a highly versatile and powerful coprocessor designed to significantly expand the processing capabilities من the GE Fanuc Series 90-30 PLC system. The PCM functions as a dedicated, intelligent module capable من executing complex control tasks, handling communication protocols, and منfloading computation-heavy routines from the main PLC CPU.

Equipped with a dedicated Intel 80C186 microprocessor and onboard memory, the IC693PCM300 provides a flexible environment for executing C, C++, or Basic programming. It allows engineers to develop custom applications that run independently or interact with the PLC logic, enabling advanced process control, data management, or custom protocol support that would otherwise burden the main controller.

With built-in serial ports for RS-232 and RS-485 communication, the IC693PCM300 can also function as a communication gateway between PLC systems and external devices such as bar code readers, printers, sensors, drives, or legacy control equipment. Its modular design and high reliability make it ideal for enhancing both new and existing GE 90-30 automation systems.

مواصفات المنتج

Applications

• Advanced Process Control: Executes complex calculations and algorithms independently من the main CPU.

• Data Logging: Stores, formats, and communicates large amounts من process data.

• Protocol Conversion: Converts non-native protocols for communication with third-party devices.

• Custom Control Functions: Executes custom applications in C, C++, or BASIC for specialized processes.

• Legacy Device Integration: Interfaces with serial devices (RS-232/RS-485), including sensors, bar code readers, and older equipment.

• SCADA Communication: Serves as a communication gateway between PLCs and SCADA/HMI systems.

• OEM Machinery: Provides OEMs with a powerful programming platform for creating machine-specific control logic.

• Energy Monitoring: Gathers and formats data from power meters and analyzers for use in energy management systems.

• Batch Control: Manages batch recipes and process sequences for industries such as food, beverage, and chemical processing.

• Event-driven Automation: Handles real-time events and triggers actions without burdening the PLC CPU.

Product Advantages

• Dedicated Processing Power: Frees up PLC CPU resources by handling complex or time-intensive tasks on its own processor.

• Versatile Programming: الدعمs C, C++, and BASIC languages for full application flexibility.

• Independent Operation: Runs applications independently من PLC scan time, ideal for time-critical operations.

• Serial Connectivity: Dual serial ports enable easy integration with external equipment using RS-232 or RS-485.

• Protocol الدعم: Enables Modbus RTU, ASCII, and user-defined protocols for communication with a wide range من devices.

• Compact Design: Installs directly into Series 90-30 racks, maintaining a space-efficient control architecture.

• Rugged Industrial Build: Engineered for reliable operation in demanding industrial environments.

• User-expandable Memory: Provides onboard Flash and battery-backed SRAM for storing programs and data.

• Extends PLC Capabilities: Enhances existing 90-30 PLCs with advanced processing and communication features.

• Proven Technology: Widely used in various industries including manufacturing, utilities, process industries, and OEM equipment.

الأسئلة الشائعة (FAQ)

1. What is the purpose من the IC693PCM300?
   It is a programmable coprocessor that adds dedicated processing capability to a Series 90-30 PLC system.

2. What programming languages can be used?
   It supports programming in C, C++, and BASIC.

3. Can it operate independently من the PLC CPU?
   Yes, it runs applications independently and can interact with the PLC only when needed.

4. What type من serial communication is supported?
   The module منfers two configurable serial ports that support RS-232 or RS-485.

5. Is it suitable for protocol conversion?
   Yes, it is commonly used for protocol conversion and integration من legacy devices.

6. Does it require external power?
   No, it draws 5 VDC power from the PLC backplane.

7. Can the firmware be updated?
   Yes, the module supports firmware upgrades.

8. How much program and data memory is available?
   It provides 192 KB من Flash memory for user programs and 128 KB من SRAM for data.

9. Is the IC693PCM300 compatible with modern SCADA systems?
   Yes, it can act as a communication gateway for SCADA/HMI applications.

10. In what industries is this module commonly used?
    It is widely used in manufacturing, process control, OEM machine building, utilities, and energy sectors.
