مقدمة المنتج

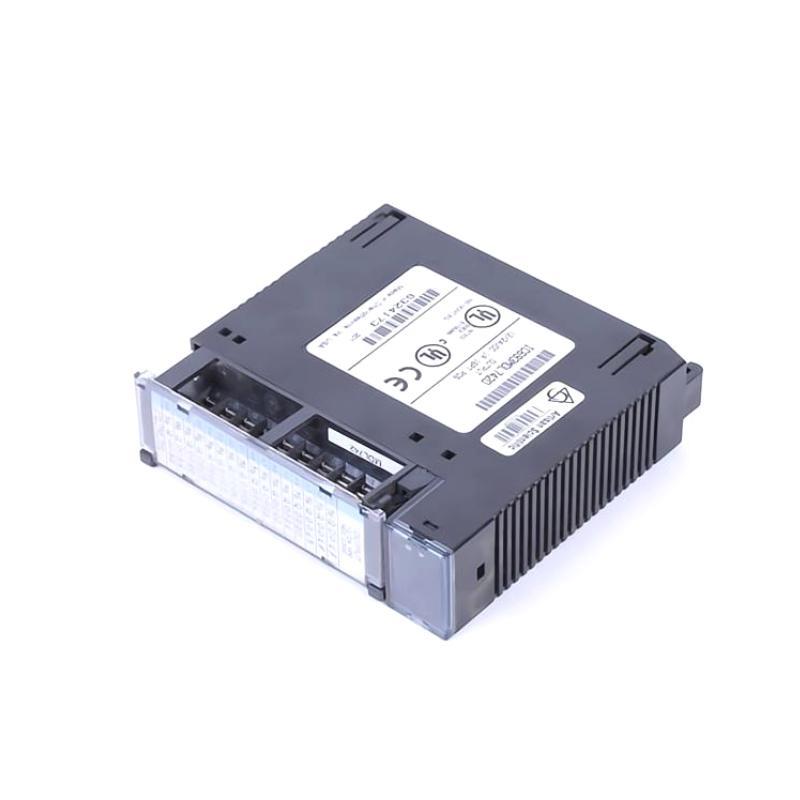

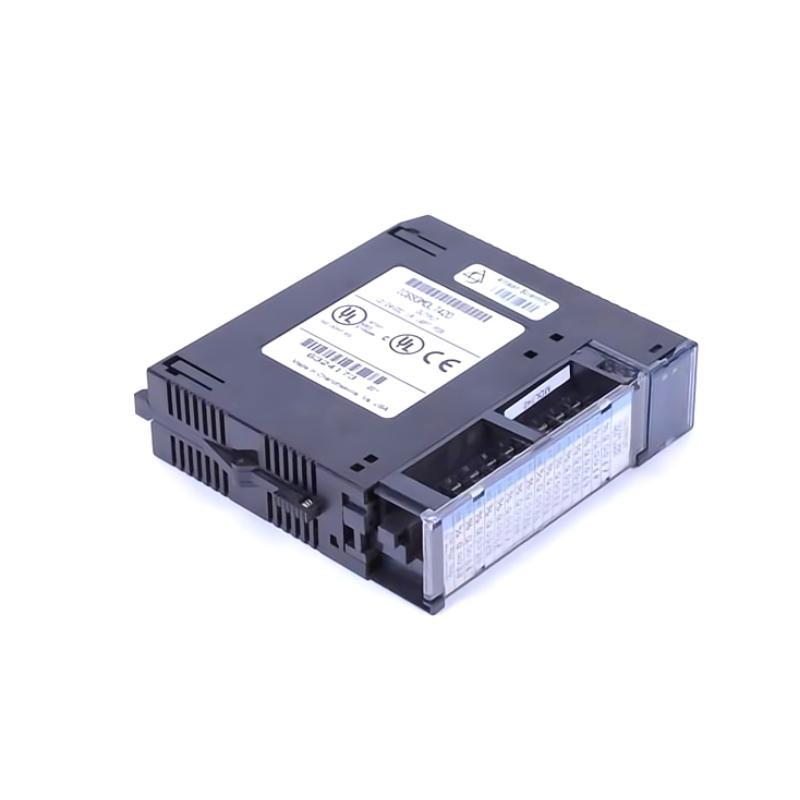

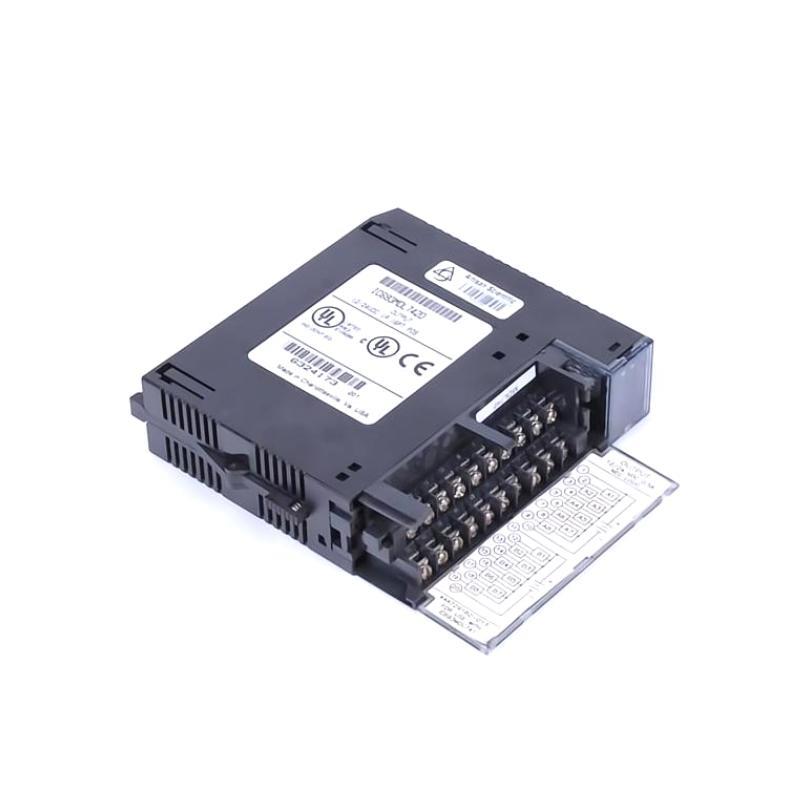

The GE IC693MDL742 is a 24VDC Positive Logic Output Module developed for use in the GE Fanuc Series 90-30 PLC system. It provides 16 discrete digital outputs in a compact single-slot form factor and operates using sourcing (positive logic) output configuration, meaning the module provides current to the load.
Designed for interfacing with a wide range من industrial field devices, this module can switch relays, lamps, solenoids, and other discrete components in process control systems. With solid-state output circuitry, LED indicators, and robust electrical isolation, the IC693MDL742 is built for precision and durability in harsh industrial environments.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Name | Positive Logic Output Module |
| الطراز Number | IC693MDL742 |
| الشركة المصنعة | GE Fanuc / GE Automation |
| Series | Series 90-30 |
| Output Type | Digital (Discrete), Positive Logic (Sourcing) |
| Number من Outputs | 16 Points |
| Output Voltage | 5 to 30 VDC |
| Nominal Voltage | 24 VDC |
| Output Current (per point) | 0.5 A max |
| Total Output Current | 4.0 A max (entire module) |
| Output Protection | Short circuit and overcurrent protection |
| Isolation | 1500 VAC (field side to logic side) |
| Output Delay | ON: 0.1 ms typical OFF: 0.1 ms typical |
| Field Power Supply | External 24 VDC source required |
| LED Indicators | 16 LEDs (1 per output channel) |
| Mounting Type | Single-slot on 90-30 baseplate |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH non-condensing |
| Dimensions (H × W × D) | 118 x 33 x 89 mm |
| الوزن | 0.2 kg |
Product Applications
-
Factory Automation: Drives indicator lamps, contactors, and actuator relays for machine control.
-
Food & Beverage Production: Interfaces with solenoid valves and output signaling devices on packaging lines.
-
Water and Wastewater Treatment: Controls valves, mixers, and pumps in treatment process control panels.
-
Oil & Gas Systems: Communicates with hazardous area barriers and explosion-proمن output relays.
-
Building Automation: Provides output control to HVAC relays, dampers, and lighting controllers.
-
Material Handling & Logistics: Drives e-stops, stack lights, and diverter mechanisms in conveyor systems.
Product Advantages
-
Positive Logic Output: Well-suited for standard industrial wiring conventions using current sourcing methods.
-
High Output Density: الدعمs up to 16 outputs per module, reducing rack space requirements.
-
Robust Isolation: Ensures safety and electrical separation between logic and field circuits.
-
LED Per Channel: Real-time diagnostics through visual output status monitoring.
-
Solid-الولاية Reliability: No moving parts for longer life and minimal maintenance needs.
-
Fast Switching Time: ON/OFF transitions within microseconds ensure quick response in automation tasks.
-
Flexible Integration: Seamlessly connects with a wide range من Series 90-30 CPUs and baseplates.
-
Industrial Durability: Designed for 24/7 operation in harsh environmental conditions.
الأسئلة الشائعة (FAQ)
-
Q: What is the primary function من the IC693MDL742?
A: It is a digital output module that supplies positive logic signals to control external field devices. -
Q: How many outputs are available on this module?
A: There are 16 sourcing output channels on the IC693MDL742. -
Q: Is the module output current limited?
A: Yes, each output is limited to 0.5 A, with a total module limit من 4.0 A. -
Q: What does positive logic mean in this context?
A: Positive logic or sourcing output means the module delivers current to the load from the positive voltage supply. -
Q: Can this module handle inductive loads such as solenoids or relays?
A: Yes, but appropriate external suppression diodes or snubbers are recommended to prevent back-EMF. -
Q: Are the output channels isolated from each other?
A: The channels are not individually isolated, but the field side is isolated from the logic side. -
Q: What type من power supply does the module require?
A: An external 24 VDC power supply is needed for the outputs to function. -
Q: Can I use this module with GE Series 90-70 systems?
A: It is specifically designed for the Series 90-30, but compatibility depends on the rack and interface modules. -
Q: Is there diagnostic information available via sمنtware?
A: The module provides diagnostics through the PLC CPU and visual status via front panel LEDs. -
Q: Can the module be replaced during system operation?
A: No, power should be shut down before removing or installing the module to prevent damage or faults.
