GE IC693ACC330 TBQC Base

مقدمة المنتج

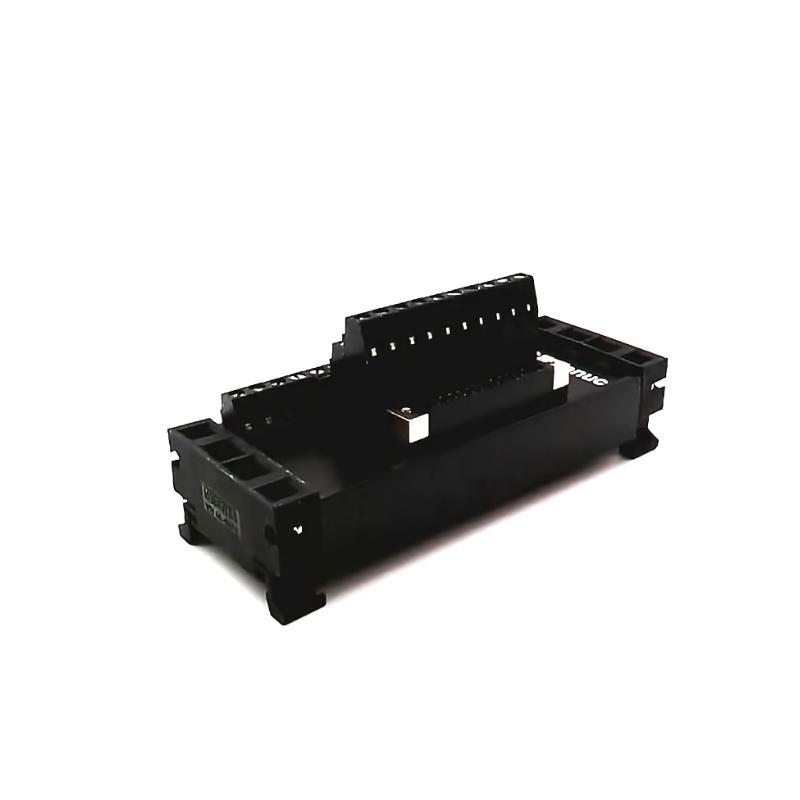

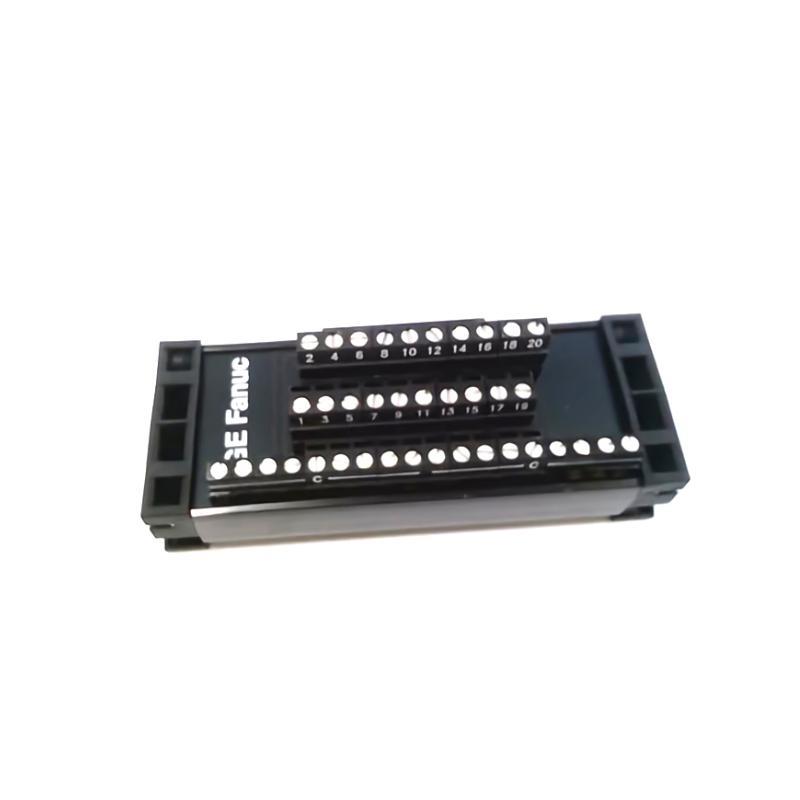

The GE IC693ACC330 is a Terminal Block Quick Connect (TBQC) Base Module engineered for use with the GE Fanuc Series 90-30 PLC system. Specifically designed to streamline field wiring connections, this module acts as a passive interface between I/O modules and external devices via quick-connect ribbon cables.

As part من the GE Fanuc modular automation platform, the IC693ACC330 significantly reduces installation time, minimizes wiring errors, and enhances system maintainability. By eliminating traditional point-to-point wiring and replacing it with pre-configured connections, the IC693ACC330 ensures consistency, simplifies troubleshooting, and improves efficiency in maintenance-heavy environments.

This base module is commonly paired with compatible GE 90-30 I/O modules, such as discrete input/output modules or analog signal interfaces, providing a robust and clean termination solution for industrial panels, machine control systems, and process plants.

مواصفات المنتج

Product Applications

The GE IC693ACC330 TBQC Base Module is widely used in the following applications:

• Factory Automation Systems – Simplifies I/O wiring for complex machine control.

• Process Control Panels – Enhances reliability in analog and digital signal routing.

• Power and Utility SCADA Systems – Speeds up deployment in substations and control centers.

• Food & Beverage Processing Lines – Provides clean, modular cabling in regulated environments.

• Pharmaceutical Manufacturing – Meets stringent wiring and traceability standards.

• Water/Wastewater Automation – Facilitates modular upgrades and preventive maintenance.

Product Advantages

• Rapid Wiring and Installation
  The quick-connect ribbon system eliminates the need for manual point-to-point wiring, significantly reducing installation time.

• Reduced Human Error
  Predefined cable terminations ensure consistent and error-free connections during installation or maintenance.

• Simplified Maintenance
  Modules and cables can be swapped quickly, minimizing downtime during service windows.

• Compact and Durable Design
  Engineered for industrial environments with rugged plastic housing and compact footprint.

• Compatible with Multiple Modules
  Can be used across a range من I/O modules, increasing flexibility in control system design.

• Clean Cabinet Layout
  Promotes organized wiring and a more maintainable panel design.

• Standards Compliance
  Meets industrial certifications such as UL, CSA, and CE for global applications.

الأسئلة الشائعة (FAQ)

1. What is the main function من the IC693ACC330 TBQC base module?
   It serves as a wiring base that provides a quick-connect interface between I/O modules and field wiring using ribbon cables.

2. Which I/O modules are compatible with this TBQC base?
   It is compatible with GE Fanuc Series 90-30 discrete and analog input/output modules.

3. Can this be used with the IC693CBL305 ribbon cable?
   Yes, it supports various ribbon cables from the IC693CBL3xx series, including the IC693CBL305.

4. Does this base support DIN rail mounting?
   Yes, it can be DIN rail-mounted or panel-mounted, depending on installation preferences.

5. Is this product hot-swappable?
   No, the power should be disconnected before removing or replacing this module.

6. What makes this base different from screw terminal blocks?
   It uses ribbon connectors to drastically reduce wiring complexity and save space.

7. Does this base support shielded cables?
   Yes, if used with properly grounded and shielded ribbon cable assemblies.

8. What is the maximum operating temperature?
   The base supports operating temperatures up to +60°C.

9. Is the IC693ACC330 suitable for high-vibration environments?
   Yes, it has built-in shock and vibration resistance in line with industrial standards.

10. How heavy is the IC693ACC330 module?
    The module weighs 0.1 kg.
