مقدمة المنتج

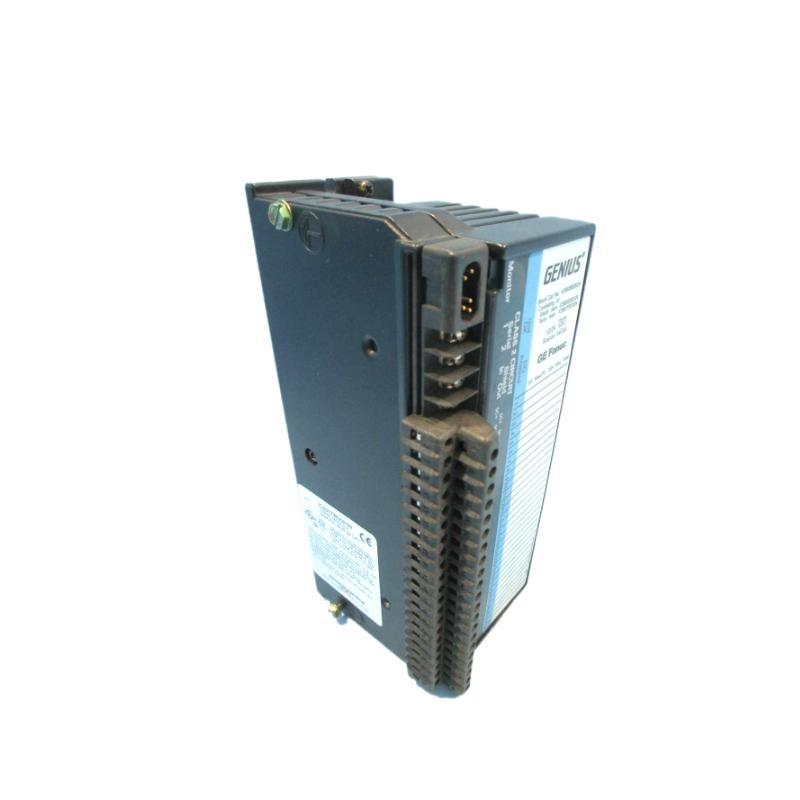

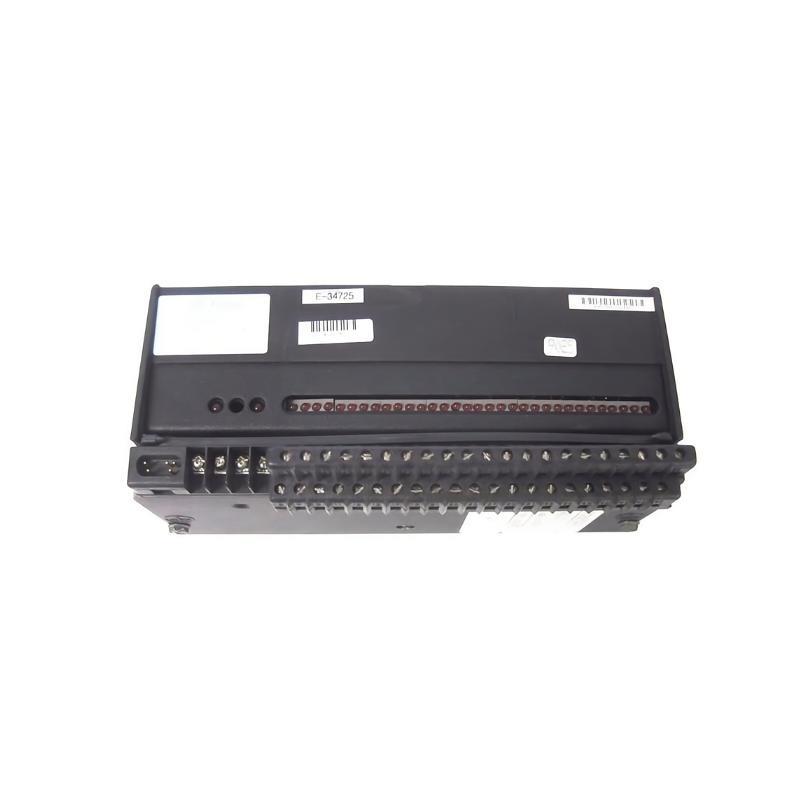

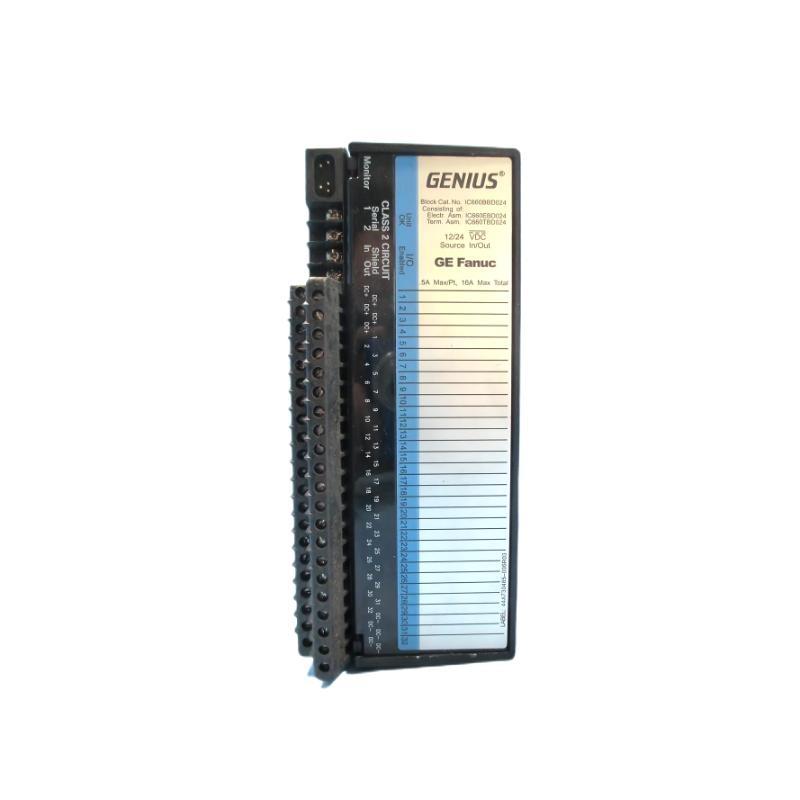

The GE Fanuc IC660EBD025 is an electronic assembly module designed for integration within the Genius I/O system. This module is engineered to work seamlessly with the IC660BBD025 32-circuit DC sink block, facilitating efficient communication between controllers and field devices that provide binary signals. Operating within a voltage range من 5 to 24 VDC, the IC660EBD025 supports a variety من input devices, including 2-wire and 3-wire electronic proximity switches. Its robust design and advanced diagnostics make it a reliable component in industrial automation applications.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | IC660EBD025 |
| الشركة المصنعة | GE Fanuc / Emerson Automation |
| Series | Genius I/O |
| Function | 32-Circuit Discrete Input/Output Electronic Assembly |
| Input/Output Type | Sink |
| Voltage Range | 5/12/24 VDC |
| Input Voltage Range | 4.9 to 5.3 VDC (5 V supply), 10 to 30 VDC (12/24 V supply) |
| Number من Circuits | 32 (configurable as inputs or outputs) |
| Input Impedance | 3.3 KΩ |
| Input Processing Time | 1.4 ms (plus selectable filter delay) |
| Selectable Input Filter Times | 1 to 100 ms (configurable in steps) |
| Maximum Output Current | 0.5 A per circuit |
| Maximum Inrush Current | 4 A up to 10 ms (once every 0.5 sec maximum) |
| Total Block Output Current | 16 A |
| Output OFF Leakage Current | 10 µA maximum |
| Output Turn-On Delay | 0.5 ms maximum |
| Output Voltage Drop | 2.0 V maximum at 4 A inrush |
| Diagnostics | Switch Fault detection |
| Block to Block Isolation | 850 V |
| Heat Dissipation | 11 W minimum with 8 inputs, 18 W maximum with 32 outputs at 0.5 A |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +100°C (-40°F to 212°F) |
| Humidity | 5% to 95% non-condensing |
| Vibration | 5–10 Hz 0.2” (5.08 mm) displacement, 10–200 Hz at 1G |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| الوزن | 0.821 kg |
Product Applications
The IC660EBD025 module is widely utilized across various industries for integrating discrete field devices into control systems. Key application areas include:
-
Manufacturing: Facilitates efficient data communication from sensors and actuators on production lines.
-
Automotive: Enables real-time monitoring and control من assembly line equipment.
-
Food and Beverage: الدعمs precise control and monitoring من processing and packaging machinery.
-
Pharmaceuticals: Provides real-time access to critical process parameters, ensuring regulatory compliance.
-
Water and Wastewater Treatment: Allows for smart monitoring and control من pumps, valves, and analyzers.
-
Energy: Enhances control من equipment in power generation and distribution systems.
Product Advantages
-
Versatility: الدعمs both sourcing and sinking I/O configurations, accommodating various field devices.
-
High-Density I/O: Offers 32 configurable circuits, maximizing I/O capacity within a compact module.
-
Advanced Diagnostics: Provides switch fault detection, enhancing system reliability and maintenance efficiency.
-
Robust Design: Built to withstand harsh industrial environments, ensuring long-term durability.
-
Flexible Input Filtering: Selectable input filter times allow for noise reduction and signal stabilization.
-
Efficient Power Management: Low power consumption contributes to overall energy savings.
-
Compact Size: Small footprint allows for easy integration into existing systems.
-
High Isolation: 850 V block-to-block isolation ensures signal integrity and safety.
-
Rapid Response: Fast input processing and output response times enable real-time control.
-
Wide Operating Range: Suitable for various industrial environments with broad temperature and humidity tolerances.
الأسئلة الشائعة (FAQs)
-
Q: What is the primary function من the IC660EBD025 module?
A: It serves as a 32-circuit discrete input/output electronic assembly for industrial automation systems. -
Q: Can the module be configured for both input and output operations?
A: Yes, each من the 32 circuits can be individually configured as either an input or an output. -
Q: What types من devices can be connected to this module?
A: It supports connection to various discrete devices such as sensors, switches, and actuators. -
Q: What is the maximum output current per circuit?
A: Each output circuit can handle up to 0.5 A من steady-state current. -
Q: Does the module provide diagnostic features?
A: Yes, it includes switch fault detection to aid in troubleshooting and maintenance. -
Q: What is the operating voltage range for the module?
A: The module operates within a voltage range من 5 to 24 VDC. -
Q: What are the dimensions and weight من the module?
A: The module measures 224.4 x 88.9 x 100 mm and weighs 0.821 kg. -
Q: Is the module suitable for use in harsh environments?
A: Yes, it is designed to operate within a temperature range من 0°C to +60°C and up to 95% non-condensing humidity. -
Q: How does the module handle electrical isolation?
A: It provides 850 V block-to-block isolation to ensure signal integrity and safety. -
Q: Can the input filter times be adjusted?
A: Yes, the module منfers selectable input filter times ranging from 1 to 100 ms.
Related الطرازs (Same Series or Functional الفئة)
| الطراز | الوصف | Voltage | Circuits | I/O Type |
|---|---|---|---|---|
| IC660EBD101 | 8-Circuit Combination I/O Module | 115 VAC | 8 | Combo |
| IC660EBD110 | 16-Channel Discrete Input Module | 115 VAC | 16 | Input |
| IC660EBA024 | 32-Circuit Discrete Input/Output Module | 12/24 VDC | 32 | Source |
| IC660BBD024 | 32-Circuit Discrete I/O Block | 12/24 VDC | 32 | Source |
| IC660BBD025 | 32-Circuit TTL Sink I/O Block | 5/12/24 VDC | 32 | Sink |
| IC660BBA024 | 4-Input, 2-Output Current Source I/O Block | 24/48 VDC | 6 | Analog |
