مقدمة المنتج

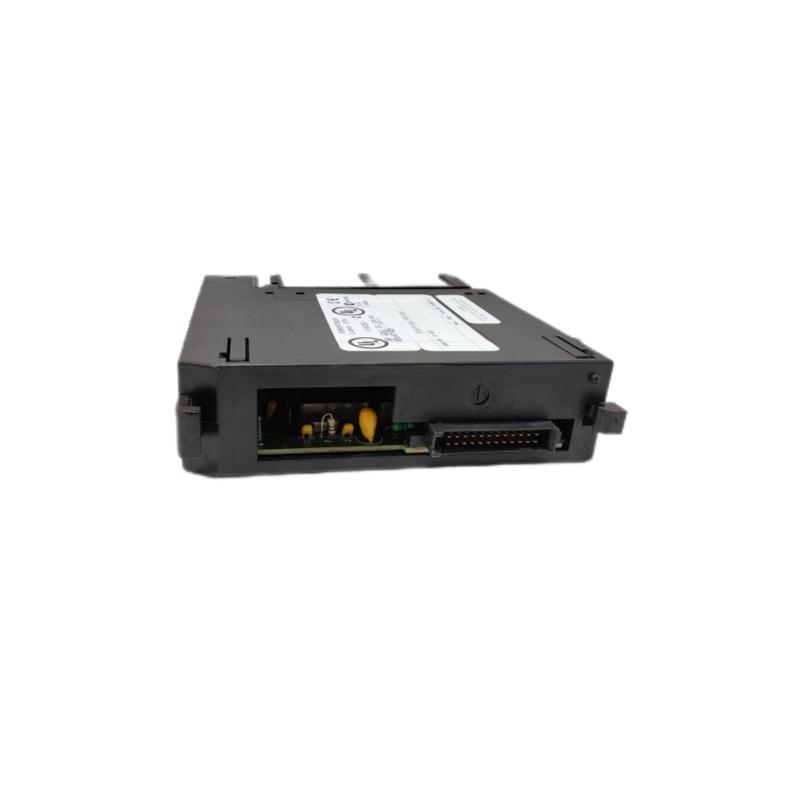

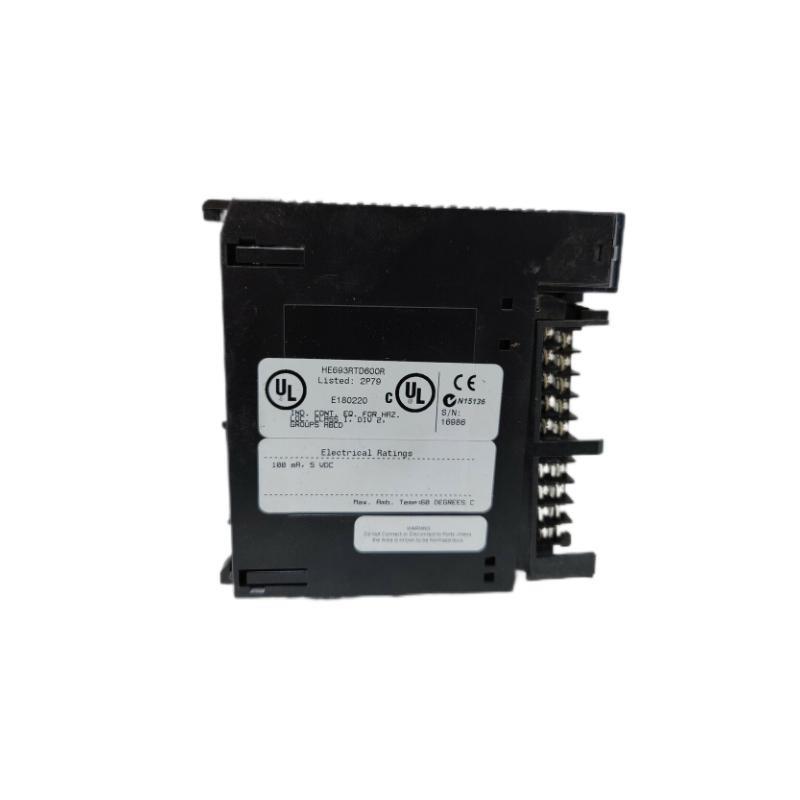

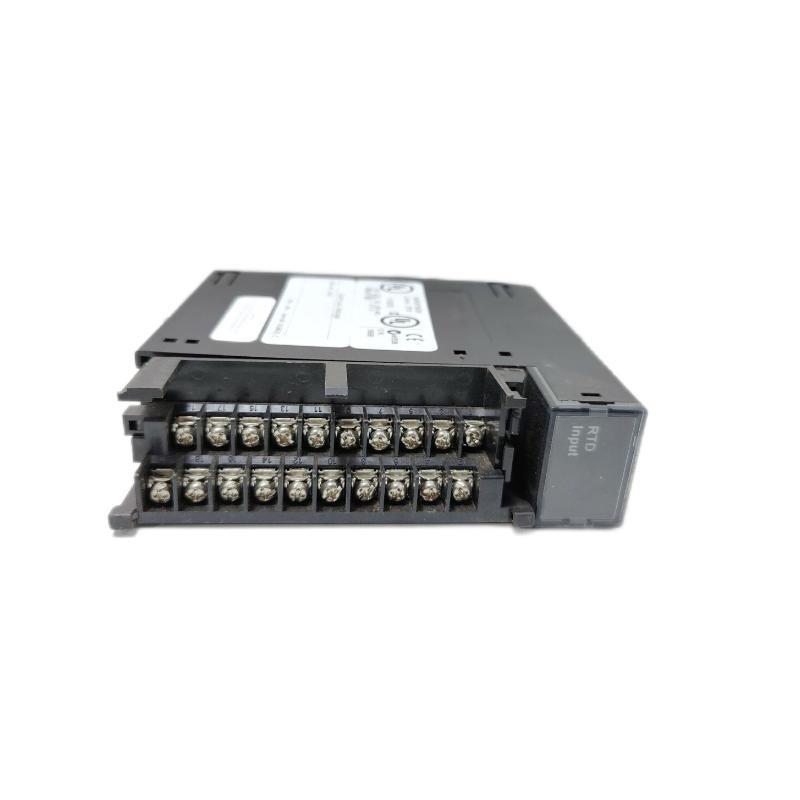

The GE HE693RTD600R is a high-performance RTD (Resistance Temperature Detector) input module designed for industrial automation and process control applications. Manufactured by GE (now part من Emerson), this module is part من the HE693 Series, known for reliability and precision in temperature measurement. It is compatible with various RTD types, providing accurate temperature readings in harsh industrial environments.
مواصفات المنتج
| Parameter | Details |
|---|---|
| الطراز Number | HE693RTD600R |
| Input Type | RTD (Pt100, Pt200, Pt500, Pt1000, Cu10, Ni120) |
| Channels | 6 isolated channels |
| Measurement Range | -200°C to +850°C (depending on RTD type) |
| Accuracy | ±0.1% من full scale |
| Resolution | 16-bit |
| Isolation Voltage | 1500V AC between channels and system |
| Communication | Modbus RTU, Prمنibus-DP (optional) |
| Power Supply | 24V DC (±10%) |
| Power Consumption | 5W max |
| Operating Temp. | -20°C to +70°C |
| Storage Temp. | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 85 x 75 x 25mm |
| الوزن | 0.25kg |
| Certifications | CE, UL, IEC 61010 |
Applications
The GE HE693RTD600R is widely used in industries requiring precise temperature monitoring, including:
-
Oil & Gas – Monitoring pipeline and refinery temperatures.
-
Power Generation – Turbine and boiler temperature control.
-
Chemical Processing – Reactor and storage tank temperature measurement.
-
Pharmaceuticals – Ensuring stable conditions in production.
-
Food & Beverage – Pasteurization and sterilization processes.
-
HVAC Systems – Environmental control in large facilities.
Product Advantages
-
High Accuracy – Delivers precise temperature readings (±0.1% FS).
-
Multi-Channel Isolation – Prevents signal interference between sensors.
-
Wide RTD Compatibility – الدعمs Pt100, Cu10, Ni120, and other RTD types.
-
Robust Construction – Designed for harsh industrial environments.
-
Easy Integration – Compatible with PLCs and SCADA systems via Modbus/Prمنibus.
-
Low Power Consumption – Energy-efficient operation.
-
Certified Safety – Meets UL, CE, and IEC standards for reliability.
الأسئلة الشائعة (FAQ)
1. What RTD types are supported by the HE693RTD600R?
The module supports Pt100, Pt200, Pt500, Pt1000, Cu10, and Ni120 RTDs.
2. What is the maximum temperature range?
Depending on the RTD type, the range is -200°C to +850°C.
3. How many channels does it have?
It features 6 isolated input channels for simultaneous measurements.
4. What communication protocols are supported?
It supports Modbus RTU and optionally Prمنibus-DP.
5. Is the module compatible with GE PLCs?
Yes, it works seamlessly with GE RX3i, RX7i, and VersaMax PLCs.
6. What is the isolation voltage between channels?
1500V AC isolation ensures signal integrity.
7. Can it operate in high-humidity environments?
Yes, it operates in 5% to 95% non-condensing humidity.
8. What power supply does it require?
It runs on 24V DC (±10%) with a max consumption من 5W.
9. What are the dimensions and weight?
185 x 75 x 25mm, 0.25kg.
10. Does it have any industry certifications?
Yes, it is CE, UL, and IEC 61010 certified.
