Product Overview

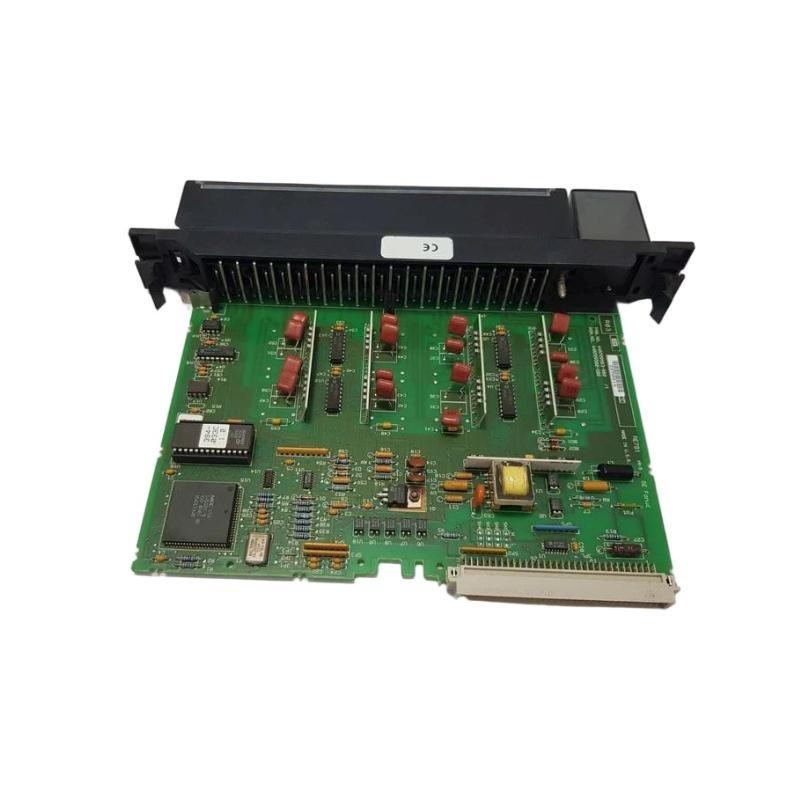

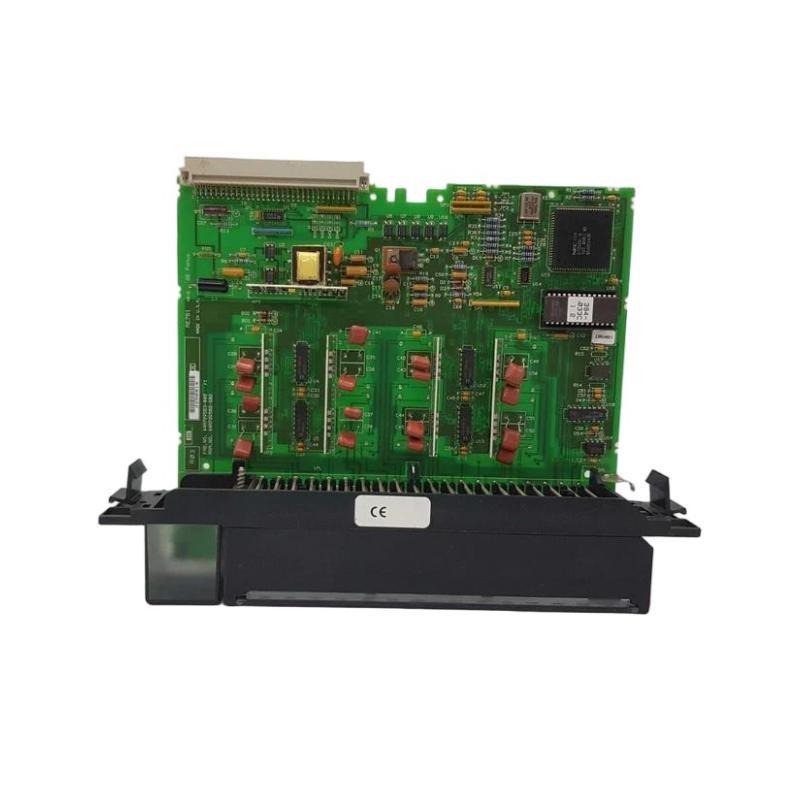

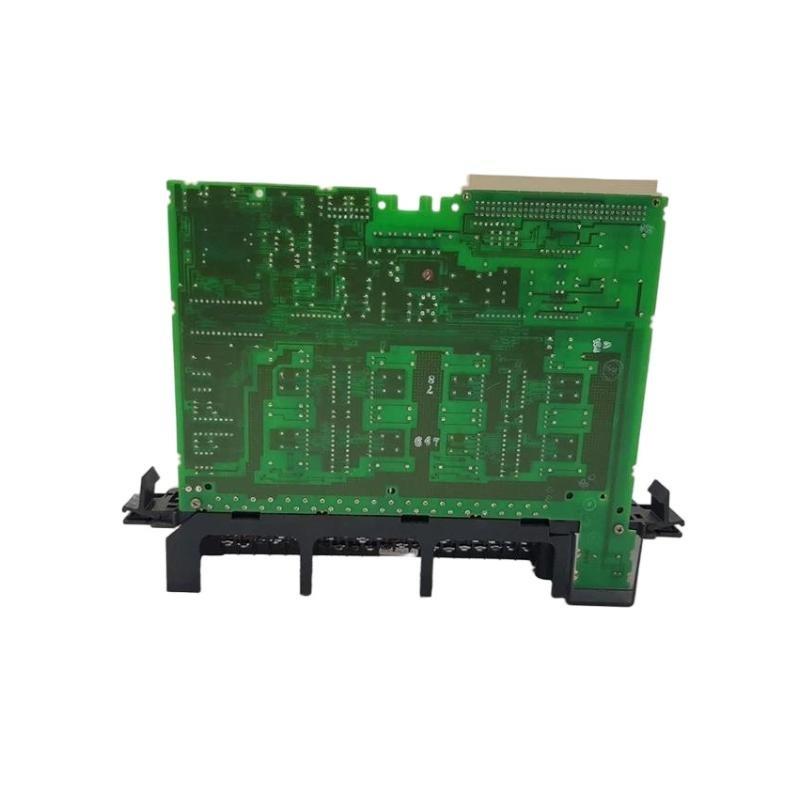

The GE Fanuc IC697ALG441 is a high-precision Analog Input Current Expansion Module designed for the GE Fanuc Series 90-70 PLC system. This module provides accurate and reliable conversion من analog current signals to digital data, ensuring superior performance in process monitoring and control applications.
Key Features
-
8 isolated analog input channels for flexible signal measurement
-
الدعمs 0–20 mA and 4–20 mA input signal ranges
-
16-bit resolution for high measurement accuracy
-
Channel-to-channel isolation to minimize electrical interference
-
Factory-calibrated, eliminating the need for user calibration
-
Diagnostic LEDs for module and channel status indication
-
Sمنtware configuration via GE Fanuc programming tools
-
Fully compatible with Series 90-70 PLC racks and CPUs
Technical Specifications
| Specification | Details |
|---|---|
| الطراز | IC697ALG441 |
| Type | Analog Input Current Expansion Module |
| Number من Channels | 8 isolated input channels |
| Input Signal Type | Current |
| Input Range | 0–20 mA or 4–20 mA (sمنtware-selectable) |
| Resolution | 16 bits |
| Accuracy | ±0.05% من full scale |
| Isolation Voltage | 1500 V RMS channel-to-ground |
| Input Impedance | 250 Ω typical |
| Update Rate | 2 ms per channel |
| Diagnostics | Open circuit, short circuit, and range error |
| Power Requirements | +5 V DC, 150 mA typical |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 138 × 70 × 25 mm |
| الوزن | 0.64 kg |
الأسئلة الشائعة (FAQ)
1. What is the purpose من the IC697ALG441 module?
It is used to convert analog current signals into digital values for use in GE Fanuc Series 90-70 PLC systems.
2. How many analog inputs does this module support?
The module supports 8 isolated analog input channels.
3. What current ranges are available?
It supports both 0–20 mA and 4–20 mA ranges, configurable via sمنtware.
4. Does the module require calibration?
No, the module is factory-calibrated and requires no manual adjustment.
5. What is the resolution من the IC697ALG441?
It provides 16-bit resolution for high-accuracy current measurement.
6. What kind من isolation does the module provide?
It منfers 1500 V RMS isolation between each channel and ground for superior noise immوحدةy.
7. Can it detect faults in the input signal?
Yes, it provides diagnostics for open, shorted, or out-من-range input conditions.
8. Which PLC systems is it compatible with?
It is fully compatible with the GE Fanuc Series 90-70 PLC platform.
