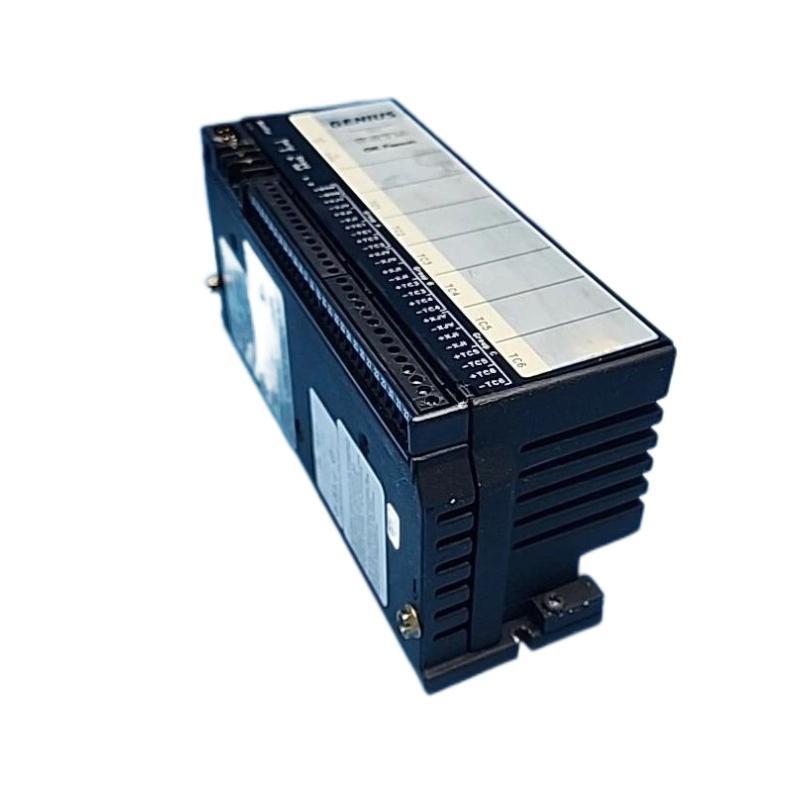

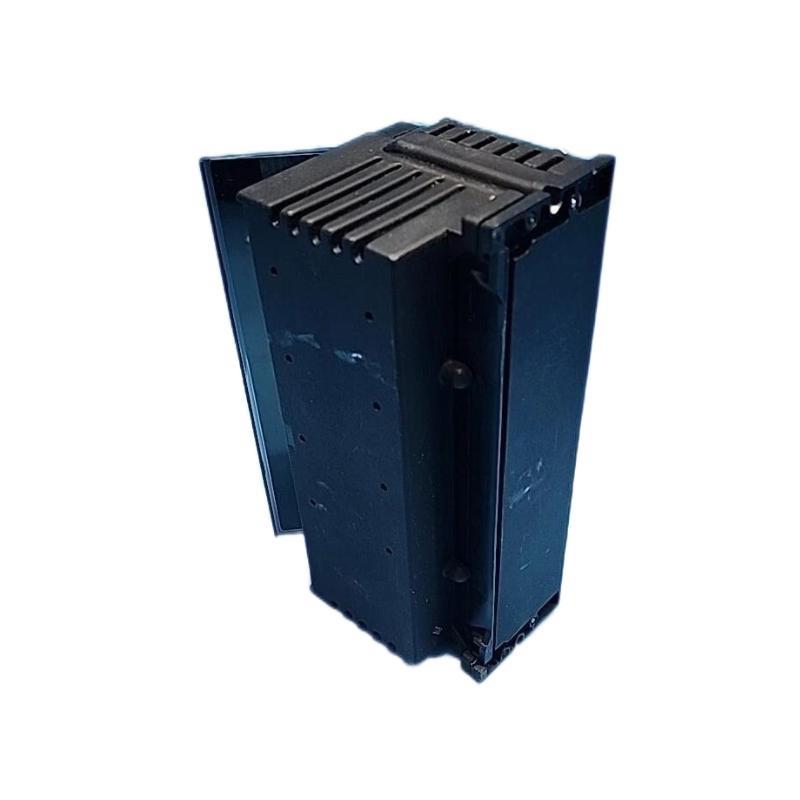

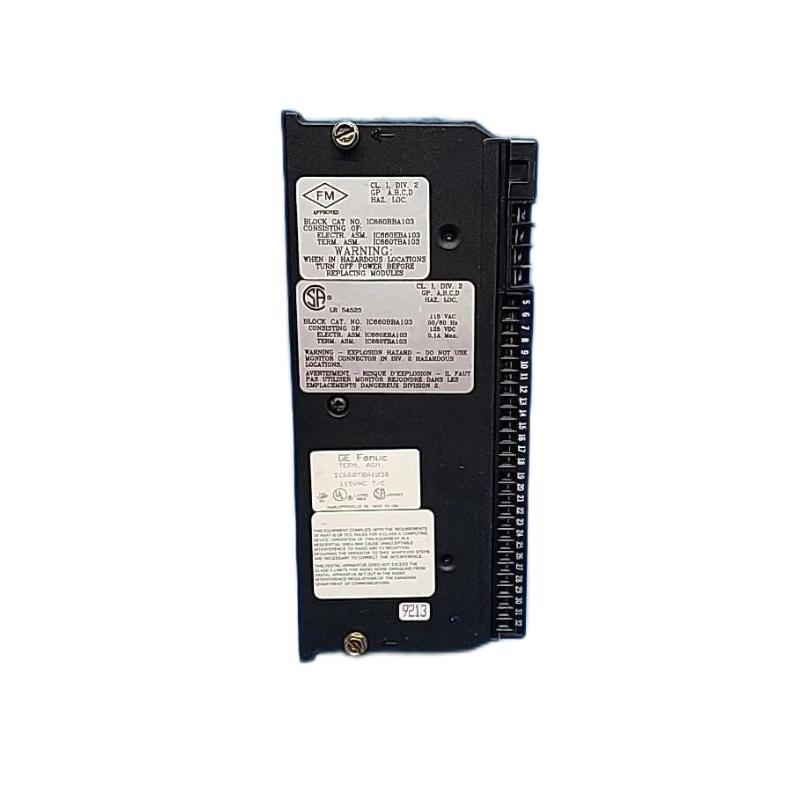

GE Fanuc IC660BBA103 Thermocouple Input Module

Product Overview

The GE Fanuc IC660BBA103 is an advanced Thermocouple Input Module designed for use in Genius I/O systems. It is purpose-built for demanding industrial temperature measurement applications that require high accuracy, signal isolation, and robust diagnostics. This module is especially suitable for environments where multiple thermocouple types are used, منfering the flexibility من supporting a wide variety من sensor types and wiring schemes.

With six isolated input channels, the IC660BBA103 supports direct connection من thermocouple sensors—such as Types J, K, T, E, R, S, B, and N—and delivers reliable temperature readings with high precision. Its rugged construction, noise immوحدةy, and intelligent features make it a critical component in systems across power generation, oil and gas, chemical, food processing, and manufacturing sectors.

Key Features

• Six Thermocouple Input Channels: الدعمs simultaneous high-precision temperature monitoring.

• Multi-Type Sensor الدعم: Compatible with a wide range من thermocouple types (J, K, T, E, R, S, B, N).

• Cold Junction Compensation: Integrated compensation circuitry for high-accuracy readings.

• Channel Isolation: Provides channel-to-channel and channel-to-ground isolation.

• Advanced Diagnostics: Detects open circuits, over/under-range signals, and sensor faults.

• High Resolution: Offers precise temperature readings with 0.1°C resolution.

• Wide Input Range: Accepts inputs across broad industrial temperature ranges.

• Hot-Swappable Design: Enables replacement without system shutdown.

• Ruggedized for Industry: Built to endure extreme temperature, vibration, and EMC conditions.

• LED Indicators: Real-time LED status for module operation and channel health.

Technical Specifications

Industry Applications

• Oil & Gas: High-temperature pipeline monitoring and furnace control.

• Power Generation: Turbine and boiler temperature regulation.

• Pharmaceuticals: Batch temperature tracking for cleanroom processes.

• Food and Beverage: Accurate heating/cooling cycle control in ovens and chillers.

• Metals and Smelting: Crucible and kiln temperature control.

• Automotive Manufacturing: Paint curing and plastic molding temperature control.

Product Advantages

• Universal Sensor الدعم: One module can support multiple thermocouple types, reducing inventory and complexity.

• Superior Accuracy: Cold junction compensation and 0.1°C resolution ensure reliable data.

• Operational Efficiency: Fast update rate supports tight-loop temperature regulation.

• Fault Tolerance: Continuous diagnostics reduce downtime and enhance safety.

• Easy Maintenance: Hot-swappable design and LED diagnostics minimize service effort.

• Flexible Deployment: Operates reliably across a wide range من environments and panel configurations.

• System Integration: Seamless compatibility with Genius Bus networks and PLC جي إي فانوكs.

الأسئلة الشائعة (FAQ)

1. Which thermocouple types are supported by IC660BBA103?
   It supports Types J, K, T, E, R, S, B, and N thermocouples.

2. Does this module منfer cold junction compensation?
   Yes, it has built-in automatic cold junction compensation for accurate readings.

3. How many input channels does the module support?
   The module includes six fully isolated thermocouple input channels.

4. What is the accuracy and resolution?
   The resolution is 0.1°C, providing highly detailed temperature data.

5. Can the IC660BBA103 be replaced while the system is live?
   Yes, the module is hot-swappable for minimal process interruption.

6. Is the module suitable for harsh environments?
   Absolutely. It’s designed for industrial conditions with EMC protection and a wide temperature range.

7. What voltages does it require?
   It operates with 5V logic and 24V DC field power.

8. Can it detect thermocouple failures?
   Yes, it detects open sensors, signal out-من-range, and cold junction issues.

9. What are the mounting options?
   The module is intended for panel mounting.

10. What control systems is this module compatible with?
    It is compatible with Genius I/O networks and GE Fanuc Series 90-70, RX3i PLC systems.
