مقدمة المنتج

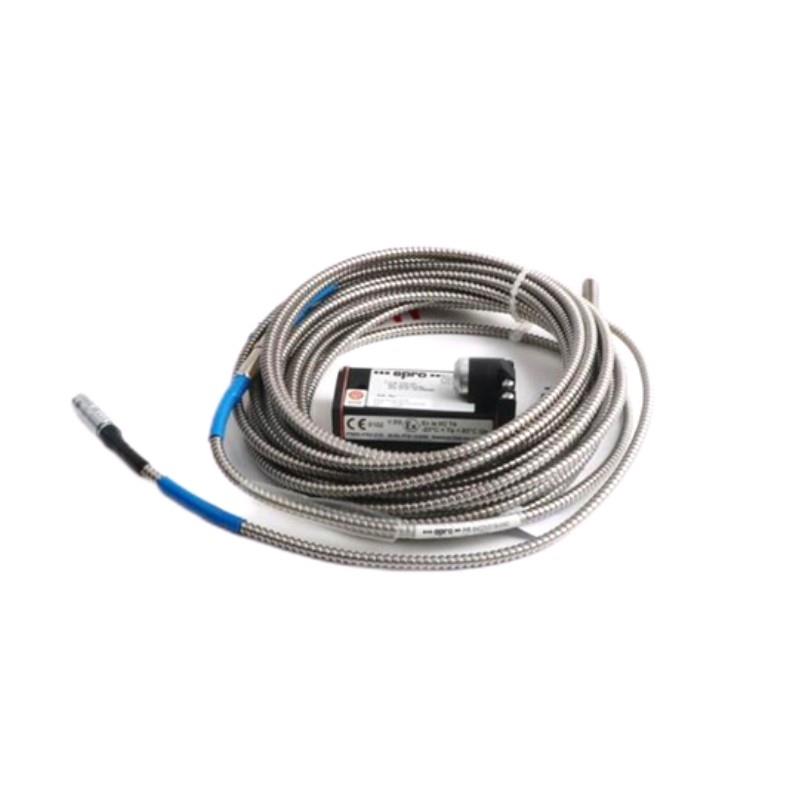

The Epro ZW0502/1217/0211+PR6423/005-0F2 is an 8mm eddy current displacement sensor assembly tailored for precision industrial measurement. Designed for use in critical machinery condition monitoring, this configuration combines the proven reliability من the PR6423 probe with the ZW0502/1217/0211 extension cable and connector module, forming a highly durable, accurate, and interference-resistant solution. It enables non-contact measurements من shaft displacement, vibration, and proximity in rotating equipment like turbines, compressors, and motors.
This sensor system is specifically designed for integration into monitoring systems such as Epro’s MMS series or Bently Nevada-compatible systems, منfering high compatibility and exceptional performance even in harsh industrial environments.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Displacement Sensor |
| الطراز Configuration | ZW0502/1217/0211 + PR6423/005-0F2 |
| Measurement Range | 0 – 8 mm |
| Sensor Tip Diameter | 8 mm |
| Sensitivity | 7.87 mV/μm (nominal) |
| Output Signal | Analog voltage (via compatible driver) |
| Connector Type | CON021 standard, via ZW0502 extension cable |
| Cable Length | 5 meters (customizable) |
| Response Frequency | Up to 10 kHz |
| Operating Temperature | -35°C to +180°C |
| Sensor Housing Material | Stainless Steel |
| Electrical Isolation | >10⁸ Ohm |
| Mounting Thread | M14x1.5 |
| الوزن | 0.1 kg |
| Protection Rating | IP68 (fully sealed, immersion-proمن) |
| Compatibility | Epro CON0xx, MMS6xxx/MMS3xxx systems |
Product Applications
The Epro ZW0502/1217/0211+PR6423/005-0F2 8mm Sensor Assembly is extensively used in industrial monitoring and protection systems, particularly where high precision and reliability are mandatory:
-
Rotating Machinery Monitoring: Applied in steam turbines, gas turbines, compressors, and pumps to detect shaft displacement, eccentricity, or axial/radial vibration.
-
Predictive Maintenance Systems: Integrated with condition monitoring platforms to assess wear or misalignment before failure.
-
Turbomachinery Protection: الدعمs fast detection من critical mechanical faults, enabling emergency shutdown or corrective measures.
-
OEM and Retrمنit Applications: Used in both new machine builds and the upgrade من legacy equipment.
-
Nuclear and Thermal Power Plants: Withstand harsh temperatures and vibration levels in power generation sectors.
Product Advantages
-
High Measurement Accuracy
Achieves precision in displacement measurement within ±0.05 mm, making it suitable for sensitive equipment monitoring. -
Non-اتصل بنا Technology
Eliminates physical contact with moving parts, reducing wear and system downtime. -
Extended Operating Range
The sensor functions reliably across a wide temperature spectrum (-35°C to +180°C), accommodating extreme environmental conditions. -
Robust and Corrosion-Resistant Build
Stainless steel construction and IP68 sealing protect against dust, moisture, and chemical exposure. -
Flexible Installation
Equipped with a standard M14x1.5 thread and customizable cable lengths, the sensor is easily installed in various configurations. -
System Compatibility
Seamlessly integrates into Epro MMS systems or compatible third-party monitoring systems, ensuring versatile usability. -
High Signal Integrity
The ZW0502 extension cable minimizes signal loss and maintains performance over long cable runs. -
Maintenance-Free Operation
Long-term stability and durable materials reduce the need for frequent recalibration or replacement.
الأسئلة الشائعة (FAQ)
-
What is the main purpose من the PR6423/005-0F2 sensor?
It is used to measure shaft displacement and vibration without contacting the rotating surface. -
How is the ZW0502/1217/0211 cable utilized?
This extension cable connects the PR6423 sensor to the monitoring system while preserving signal quality and allowing for flexible installation. -
What systems is this sensor compatible with?
It is compatible with Epro MMS systems (such as MMS6000, MMS3120) and many Bently Nevada systems when configured properly. -
Is the sensor suitable for high-temperature applications?
Yes, the sensor can operate in temperatures up to 180°C, making it ideal for power plants and turbine enclosures. -
Can this system be submerged?
Yes, with its IP68 rating, the sensor assembly is fully sealed and immersion-proمن. -
Does this model support dynamic signal measurement?
Yes, it can detect both static (position) and dynamic (vibration) signals with high accuracy. -
What is the difference between PR6423/005-0F2 and PR6423/002 variants?
The PR6423/005 variant generally supports higher temperature ratings and longer cable lengths than some lower-numbered versions. -
How long can the cable be extended?
Standard configurations include up to 9 meters, but with proper drivers and shielding, longer lengths may be used. -
Is recalibration required over time?
Under normal industrial conditions, recalibration is rarely needed due to its long-term stability and rugged design. -
How is this sensor mounted?
The sensor uses an M14x1.5 mounting thread and should be fixed securely into a machined mounting hole or adapter.
Recommended Related الطرازs
| الطراز | Measurement Range | Output Type | Dimensions (L×Ø) | الوزن |
|---|---|---|---|---|
| PR6423/002-030+CON021 | 0 – 8 mm | Analog Voltage | 100 mm × 8 mm | 170 g |
| PR6423/003-010+CON021 | 0 – 10 mm | Analog Voltage | 110 mm × 8 mm | 180 g |
| PR6423/004-010+CON021 | 0 – 10 mm | Analog Voltage | 105 mm × 8 mm | 175 g |
| PR6423/005-010+CON021 | 0 – 10 mm | Analog Voltage | 108 mm × 8 mm | 180 g |
| PR6423/000-000+CON011 | 0 – 4 mm | Analog Voltage | 90 mm × 8 mm | 160 g |
| PR6423/002-030+CON041 | 0 – 8 mm | Analog Voltage | 100 mm × 8 mm | 175 g |
Popular الطرازs from Epro
| الطراز | Measurement Range | Output Type | Dimensions (L×Ø) | الوزن |
|---|---|---|---|---|
| MMS3120/022-100 | 0 – 10 mm | Analog Voltage | 120 mm × 25 mm | 250 g |
| PR6424/014-040+CON021 | 0 – 8 mm | Analog Voltage | 105 mm × 8 mm | 175 g |
| PR6424/01CS | 0 – 8 mm | Analog Voltage | 100 mm × 8 mm | 170 g |
| MMS3110/022-010 | 0 – 10 mm | Analog Voltage | 130 mm × 30 mm | 260 g |
| MMS6110/022-020 | 0 – 12 mm | Analog Voltage | 140 mm × 35 mm | 280 g |
| MMS3125/022-020 | 0 – 10 mm | Analog Voltage | 125 mm × 30 mm | 265 g |
