مقدمة المنتج

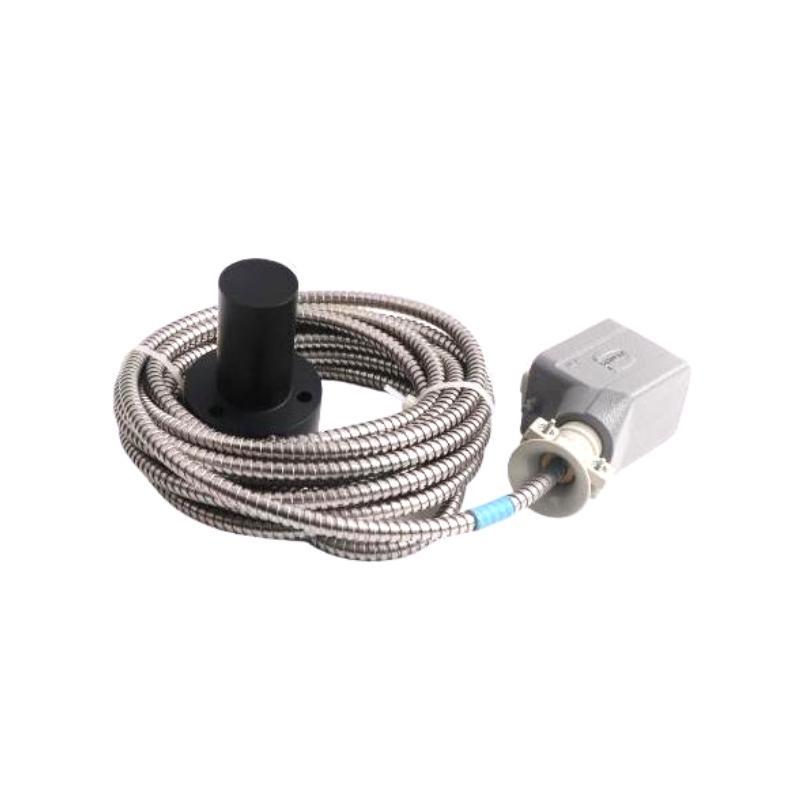

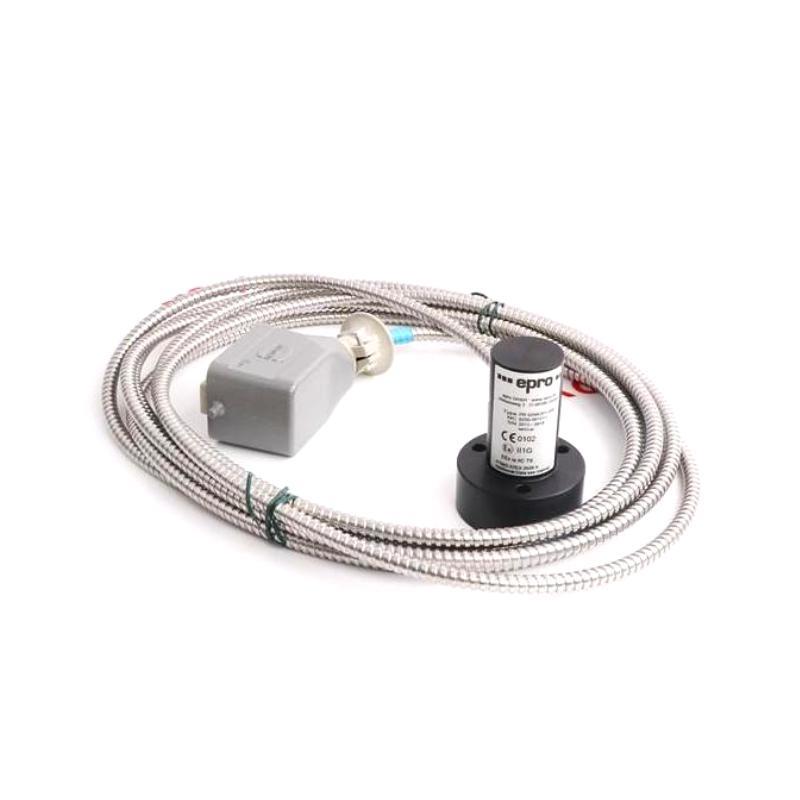

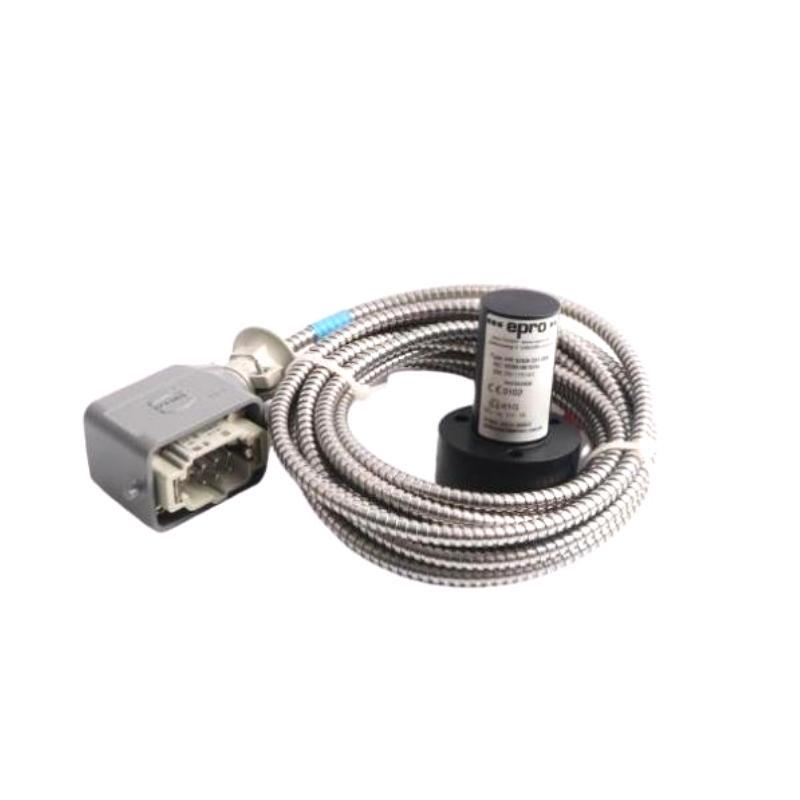

The Epro PR9268/201-000 is a robust and high-performance electrodynamic velocity sensor designed for industrial vibration monitoring applications. Manufactured by Epro, a renowned name in condition monitoring and machinery protection, this sensor is engineered to detect mechanical vibrations in rotating machinery with outstanding accuracy and stability. The PR9268/201-000 is especially suitable for critical equipment such as turbines, compressors, pumps, and fans, where monitoring vibration levels is essential to ensure reliability and prevent unexpected failures.
As an electrodynamic velocity transducer, the PR9268/201-000 outputs a voltage proportional to the velocity من the vibrating surface to which it is attached. It requires no external power source, which makes it highly reliable in harsh industrial environments. This passive operation mode, combined with rugged construction, gives it an edge in long-term condition monitoring and predictive maintenance systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Product الطراز | PR9268/201-000 |
| Measurement Type | Electrodynamic velocity sensing |
| Measuring Range | ±50 mm/s |
| Frequency Range | 10 Hz to 1,000 Hz |
| Sensitivity | 28.5 mV/mm/s ±5% |
| Output Signal | Voltage (passive sensor, self-generating) |
| Mounting | Screw thread M8 or via magnetic base |
| Housing Material | Stainless Steel |
| Operating Temperature Range | -25°C to +120°C |
| Shock Resistance | Up to 1,000 g peak |
| Protection Rating | IP65 |
| Connector Type | MIL-C-5015 or fixed cable |
| Cable Length | Typically 1 to 10 meters (customizable) |
| Dimensions | 78 × 58 mm |
| الوزن | 0.93 kg |
| Compliance | ISO 10816, DIN ISO 7919 |
Applications
The Epro PR9268/201-000 is widely used across various industries to monitor vibration levels and maintain machinery health. Typical application scenarios include:
-
Power Plants – Monitoring turbines and generators for imbalance and misalignment.
-
Petrochemical Facilities – Detecting early-stage faults in large compressors and pumps.
-
Water Treatment Plants – Ensuring consistent performance in pumps and blowers.
-
Steel & Paper Mills – Continuous monitoring من roller bearings and gearboxes.
-
Oil & Gas Platforms – Reliable vibration detection in harsh منfshore conditions.
-
Manufacturing Lines – Preventive maintenance for motors and conveyor systems.
Its wide frequency response and rugged construction make it suitable for both slow-speed and high-speed rotating equipment.
Product Advantages
-
Passive Operation – No external power required, increasing reliability and simplifying system design.
-
High Sensitivity and Accuracy – Precise vibration velocity detection with minimal signal drift over time.
-
Rugged Design – Built with stainless steel housing to withstand harsh industrial environments.
-
Wide Frequency Response – Effective for a broad range من machinery speeds and vibration modes.
-
Flexible Mounting Options – Can be mounted via threads or magnetic base, enabling easy installation.
-
Long-Term Stability – Designed for consistent operation under extreme conditions without recalibration.
-
Standardized Output – Compatible with many monitoring and diagnostic systems via industry-standard output.
-
Proven Field Performance – Trusted by engineers and maintenance prمنessionals worldwide for reliability.
الأسئلة الشائعة (FAQ)
-
What is the main function من the PR9268/201-000 sensor?
It measures the velocity من mechanical vibrations on rotating equipment to monitor their condition and detect faults. -
Does the sensor need external power?
No, it is a passive device and self-generates its output voltage. -
Is this sensor suitable for high-temperature environments?
Yes, it operates reliably up to 120°C. -
What equipment can this sensor be used on?
Turbines, pumps, compressors, fans, and other rotating machinery. -
Can the cable length be customized?
Yes, cable lengths are available upon request, typically from 1 to 10 meters. -
Is the sensor waterproمن?
It has an IP65 rating, making it dust-tight and protected against water jets. -
What is the sensitivity من the sensor?
It provides a sensitivity من 28.5 mV/mm/s. -
What standards does it comply with?
It complies with ISO 10816 and DIN ISO 7919 for vibration monitoring. -
How is it mounted?
It can be mounted using an M8 threaded hole or magnetic base for temporary applications. -
What signal conditioning or monitoring systems is it compatible with?
It is compatible with various vibration monitoring systems, including Epro’s own CON series and third-party systems.
Related الطرازs (Same Series or Similar Functionality)
| الطراز | Measurement Type | Frequency Range | Sensitivity | Mounting Type |
|---|---|---|---|---|
| PR9268/200-000 | Electrodynamic Velocity | 10 Hz – 1 kHz | 28.5 mV/mm/s | M8 thread |
| PR9268/203-000 | Electrodynamic Velocity | 5 Hz – 1.2 kHz | 30 mV/mm/s | Flange or screw mount |
| PR9268/205-000 | Electrodynamic Velocity | 10 Hz – 600 Hz | 25 mV/mm/s | Magnetic base |
| PR9268/207-000 | Electrodynamic Velocity | 10 Hz – 1 kHz | 28 mV/mm/s | Adhesive mount |
| PR9268/208-000 | Electrodynamic Velocity | 10 Hz – 1 kHz | 28.5 mV/mm/s | Side exit cable |
| PR9268/210-000 | Electrodynamic Velocity | 8 Hz – 1 kHz | 30 mV/mm/s | Screw mount |
Popular الطرازs from the Same العلامة التجارية (Epro)
| الطراز | Product Type | Key Function | Application Area |
|---|---|---|---|
| PR6423/002-030 | Eddy Current Sensor | Shaft displacement measurement | Turbines, compressors |
| MMS3120/022-100 | Vibration Monitoring Module | Multi-channel vibration data acquisition | Industrial monitoring systems |
| PR6424/014-040+CON021 | Eddy Current Probe System | Axial and radial displacement | Rotating machinery |
| MMS6110 | Diagnostic Interface Module | Signal processing for sensors | Online monitoring systems |
| CON011 | Connection Module | Sensor signal interface | Vibration monitoring systems |
| PR6423/003-010 | Eddy Current Sensor | Shaft vibration measurement | Petrochemical, power plants |
