Product Overview

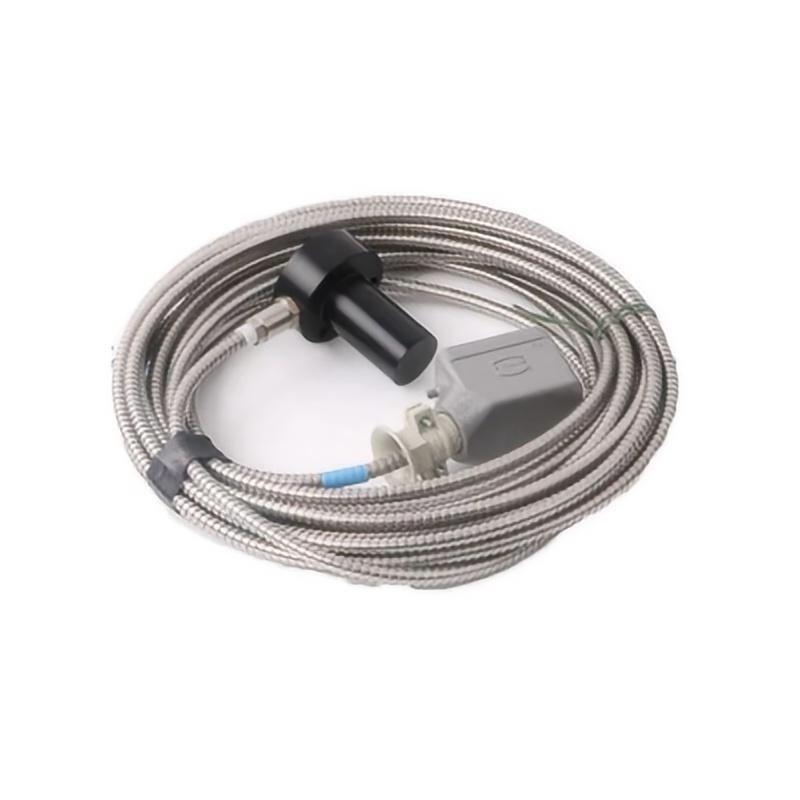

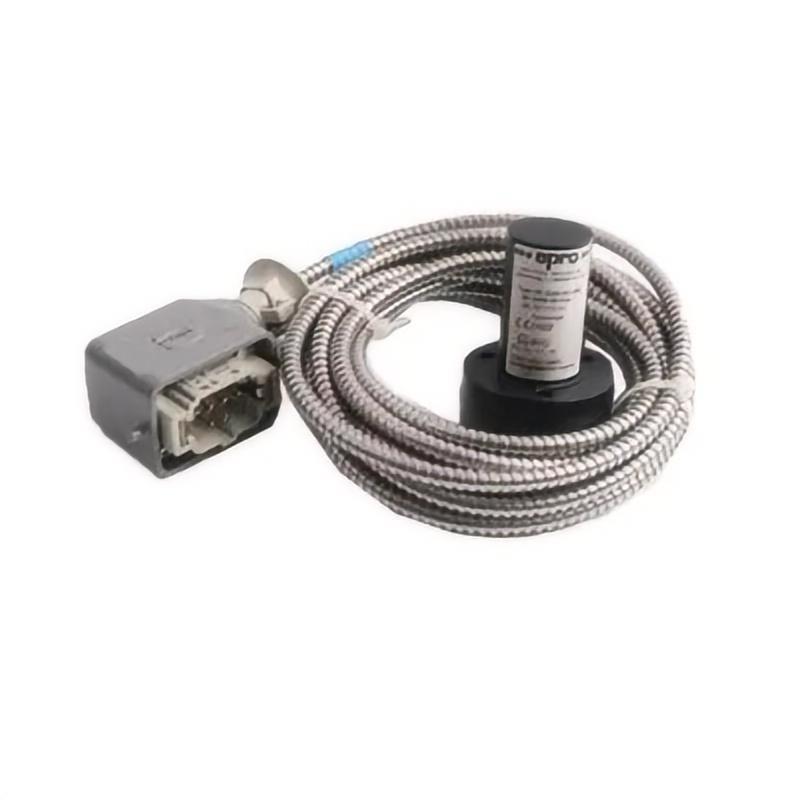

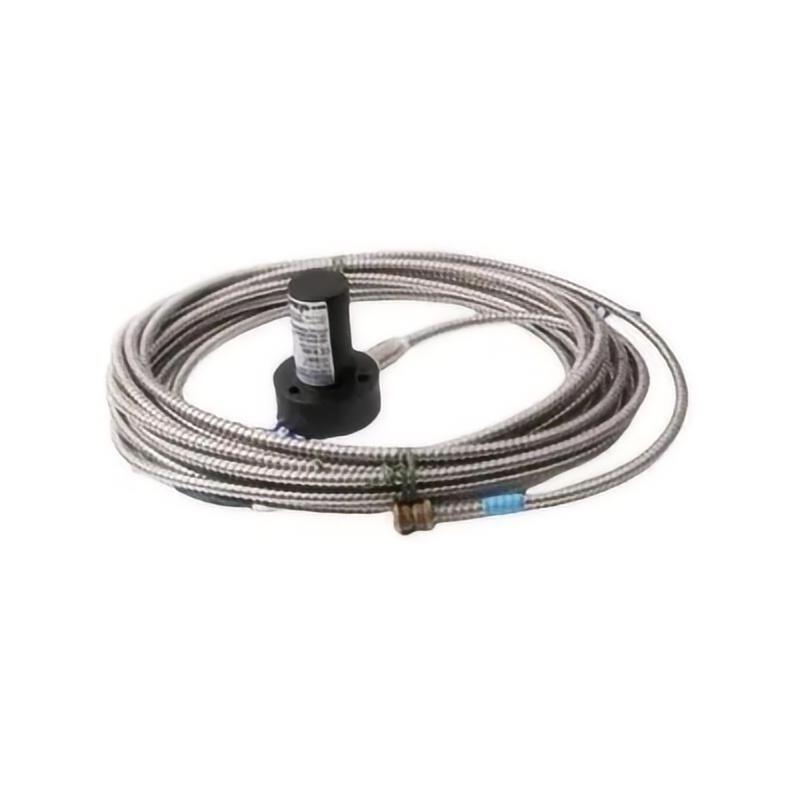

The Epro PR6480/041-000-CN 8mm Eddy-Current Sensor is a high-performance proximity probe specifically designed for accurate non-contact measurement من shaft vibration, displacement, and position in rotating machinery. With its durable 8mm tip construction and advanced sensing technology, the sensor provides stable and reliable monitoring under harsh industrial conditions. It is widely applied in turbines, compressors, pumps, and other critical equipment for predictive maintenance and machinery protection.
Key Features
-
8 mm probe diameter for compact installation in machinery
-
High accuracy non-contact vibration and displacement measurement
-
ممتاز resistance to oil, dirt, and dust contamination
-
Designed to operate reliably in high-temperature environments
-
Compatible with CON0xx drivers for stable signal processing
-
Rugged stainless-steel construction for extended service life
Technical Specifications
| Item | Specification |
|---|---|
| الطراز | Epro PR6480/041-000-CN |
| Sensor Type | Eddy-Current Proximity Probe |
| Tip Diameter | 8 mm |
| Measurement Range | Up to ±2 mm (depending on setup) |
| Frequency Range | DC to 10 kHz |
| Sensitivity | 7.87 mV/µm (typical, with CON0xx driver) |
| Output Signal | Voltage proportional to displacement |
| Dimensions | Sensor head diameter 8 mm |
| الوزن | 0.1 kg |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Housing Material | Stainless steel |
| Connection | Compatible with CON0xx drivers |
| Applications | Shaft vibration, axial displacement, and machinery condition monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps and fans
-
Gearboxes and electric motors
-
Power generation plants
-
Oil and gas machinery monitoring
الأسئلة الشائعة (FAQ)
Q1: What is the probe diameter من the PR6480/041-000-CN?
The probe diameter is 8 mm.
Q2: What is the typical sensitivity من this sensor?
It has a typical sensitivity من 7.87 mV/µm when used with CON0xx drivers.
Q3: Can this sensor work in high-temperature environments?
Yes, it operates from -35 °C to +180 °C.
Q4: Is the PR6480/041-000-CN compatible with CON031 drivers?
Yes, it is compatible with CON0xx series drivers, including CON031.
Q5: What is the measurement range من the sensor?
It supports up to ±2 mm من displacement depending on the setup.
Q6: Which industries commonly use this sensor?
It is widely used in oil & gas, power generation, turbines, compressors, and heavy rotating machinery.
Q7: What is the housing material من the sensor?
It is made من durable stainless steel.
Q8: How is the sensor installed?
It is installed using threaded connections for secure mounting.
