Product Overview

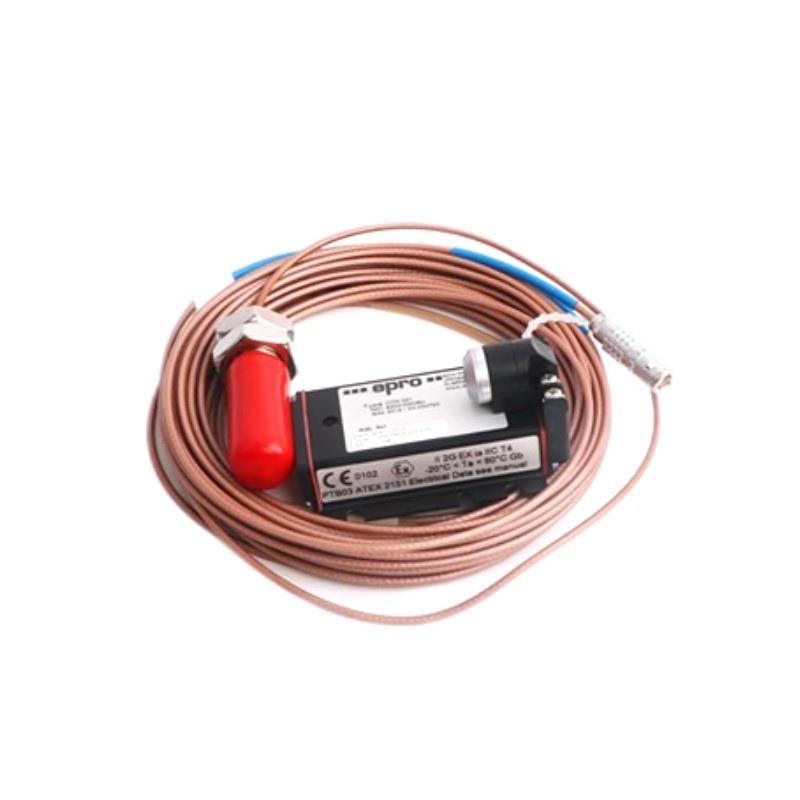

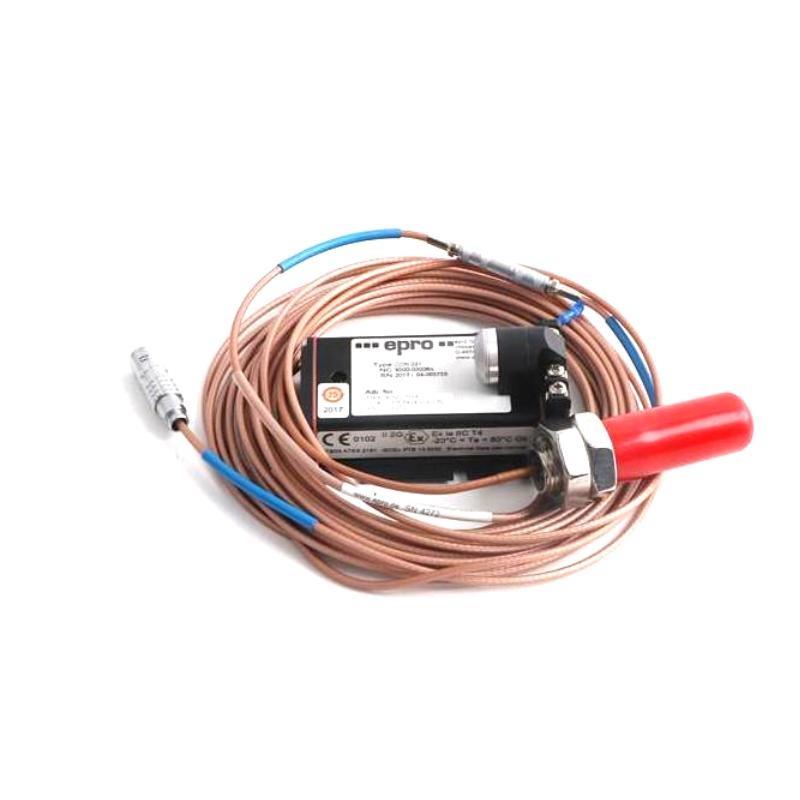

The Epro PR6424/118-121 16 mm Eddy Current Sensor is a high-precision, non-contact displacement and position measurement sensor that uses advanced eddy current technology. Designed for industrial applications that demand extreme accuracy, this sensor is ideal for measuring small displacements, vibrations, and shifts in rotating or moving parts. The sensor’s compact 16 mm diameter head ensures it can fit into tight spaces, making it versatile for a wide range من applications where size and accuracy are critical.
Operating without direct contact, the PR6424/118-121 eliminates issues like wear, friction, and mechanical strain that are typically associated with traditional contact-based measurement systems. Its rugged design allows it to perform reliably even in harsh environments with high levels من vibration, temperature extremes, and electromagnetic interference, making it suitable for industries such as automotive manufacturing, aerospace, process control, and energy.
The PR6424/118-121 sensor delivers high-resolution measurements with low drift and fast response times, ensuring that it can capture even the slightest changes in position and vibration. Its flexible output options make it easily integrable with various monitoring and control systems.
Technical Specifications
Here are the key technical specifications for the Epro PR6424/118-121 16 mm Eddy Current Sensor:
| Specification | Details |
|---|---|
| الطراز | PR6424/118-121 |
| Sensor Head Diameter | 16 mm |
| الوزن | 0.2 kg |
| Measurement Principle | Eddy Current |
| Output Type | Analog (4-20 mA, 0-10 V) |
| Operating Distance | 1 mm to 8 mm (depending on configuration) |
| Accuracy | ±0.001 mm (typical) |
| Operating Temperature | -20°C to 85°C |
| Storage Temperature | -40°C to 100°C |
| Resolution | 0.001 mm |
| Supply Voltage | 10 to 30 VDC |
| Signal Output | 4 to 20 mA, 0 to 10 V (customizable) |
| Response Time | <1 ms |
| Protection Rating | IP67 (dust-tight, protected against immersion in water) |
Product Applications
The Epro PR6424/118-121 16 mm Eddy Current Sensor is highly suitable for a range من industrial applications, particularly in environments where high precision is required and contact-based measurement methods are impractical. Some common applications include:
-
Machine الحالة Monitoring: Used to monitor the displacement, vibration, and position من rotating machinery such as motors, pumps, and turbines.
-
Process Control: Ideal for measuring critical parameters in automated production systems and ensuring smooth operations.
-
Vibration Analysis: Frequently employed for detecting vibrations in equipment and machinery, preventing wear and failure.
-
Position and Displacement Measurement: Perfect for applications such as robotic arms, conveyor belts, and automated systems where parts need to be positioned precisely.
-
Turbine and Engine Monitoring: Provides accurate measurements من the displacement and alignment من components in turbines and engines to prevent mechanical failures.
-
Automotive Manufacturing: Helps monitor parameters like wheel alignment, positioning من moving parts, and vibration analysis in production lines.
-
Aerospace: Used in critical measurement tasks for aerospace applications, including detecting misalignments or shifts in aircraft components under load.
Product Advantages
-
Non-اتصل بنا Measurement: The sensor uses eddy current technology, ensuring there is no physical contact with the object being measured. This eliminates the risk من wear and tear, reducing maintenance costs and extending the life من the sensor.
-
Compact and Lightweight: With a sensor head diameter من just 16 mm and a weight من 0.2 kg, this sensor is perfect for applications where space is limited or size is a critical factor.
-
High Precision: The PR6424/118-121 provides an exceptional level من accuracy (±0.001 mm), making it suitable for highly demanding measurement tasks.
-
Fast Response Time: With a response time من less than 1 ms, the sensor is able to monitor rapid changes in position and displacement, ensuring that real-time data is captured effectively.
-
Wide Operating Range: The sensor can operate in temperatures ranging from -20°C to 85°C, making it suitable for use in diverse environmental conditions.
-
Versatile Output Options: It supports both analog (4-20 mA) and digital (0-10 V) outputs, منfering flexibility for integration into a variety من systems.
-
Durable and Reliable: With an IP67 protection rating, the sensor is dust-tight and capable من withstanding immersion in water, ensuring reliable operation in harsh environments.
FAQ
1. What is the measurement principle used by the Epro PR6424/118-121 sensor?
The Epro PR6424/118-121 uses the eddy current principle to provide non-contact displacement and position measurements.
2. What output options are available for the PR6424/118-121 sensor?
The sensor provides analog output options, including 4-20 mA and 0-10 V, depending on the configuration.
3. What is the accuracy من the Epro PR6424/118-121 sensor?
The accuracy من the sensor is ±0.001 mm, ensuring high precision for critical measurements.
4. What is the operating distance range من the sensor?
The operating distance range for this sensor is from 1 mm to 8 mm, depending on the configuration.
5. What voltage is required for the Epro PR6424/118-121 sensor?
The sensor requires a supply voltage من 10 to 30 VDC.
6. What is the response time من the Epro PR6424/118-121 sensor?
The sensor has a fast response time من less than 1 ms, making it suitable for real-time monitoring.
7. Is the sensor suitable for outdoor applications?
Yes, the sensor has an IP67 rating, meaning it is dust-tight and protected against immersion in water, making it ideal for outdoor use.
8. What is the storage temperature range for the sensor?
The sensor can be stored at temperatures ranging from -40°C to 100°C.
9. Is the sensor suitable for monitoring vibration?
Yes, the PR6424/118-121 sensor is ideal for vibration analysis and condition monitoring in rotating machinery.
10. Can the sensor output be customized?
Yes, the sensor منfers customizable output options to suit different system requirements, including both analog and digital configurations.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| PR6424/118-120 | 16 mm eddy current sensor with extended measurement range |
| PR6424/119-000 | 16 mm sensor with higher resolution for more precise applications |
| PR6424/119-100 | High-accuracy sensor with enhanced temperature stability |
| PR6424/119-110 | Eddy current sensor for high-speed measurement applications |
| PR6424/119-130 | Compact 16 mm sensor for small displacement measurement |
| PR6424/119-140 | Sensor for use in extreme temperature environments |
Popular Epro الطرازs
| الطراز Number | الوصف |
|---|---|
| PR5200/100-000 | Inductive position sensor for high-precision displacement measurements |
| PR5200/200-000 | Robust contactless sensor for harsh industrial conditions |
| PR5400/100-000 | Heavy-duty sensor for industrial condition monitoring |
| PR5500/100-000 | Versatile displacement sensor for various industrial applications |
| PR6100/200-000 | Vibration and position sensor for critical machinery |
| PR5800/300-000 | Multi-purpose displacement sensor for process automation systems |
