مقدمة المنتج

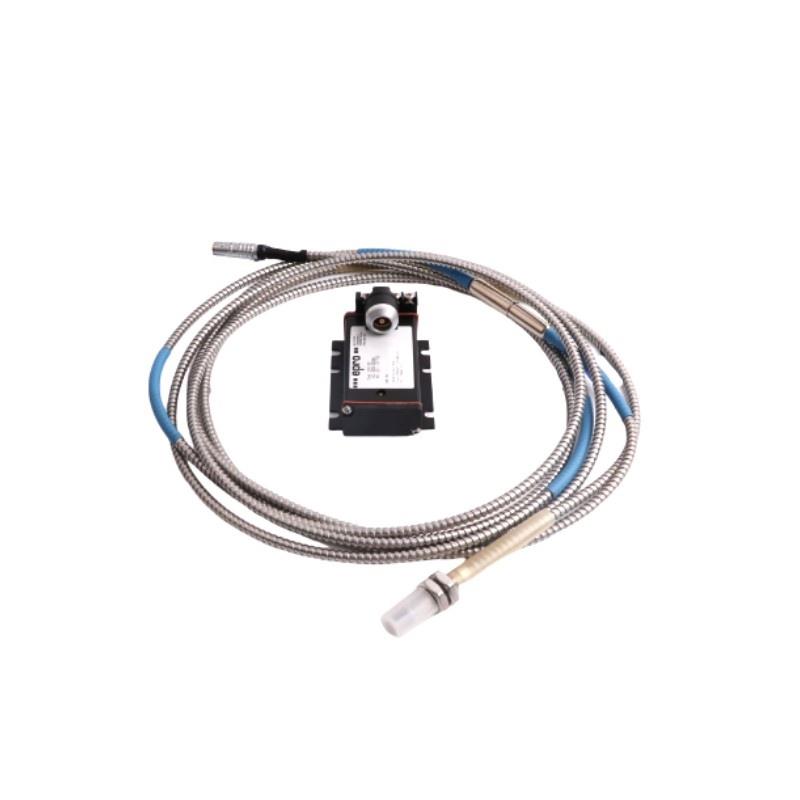

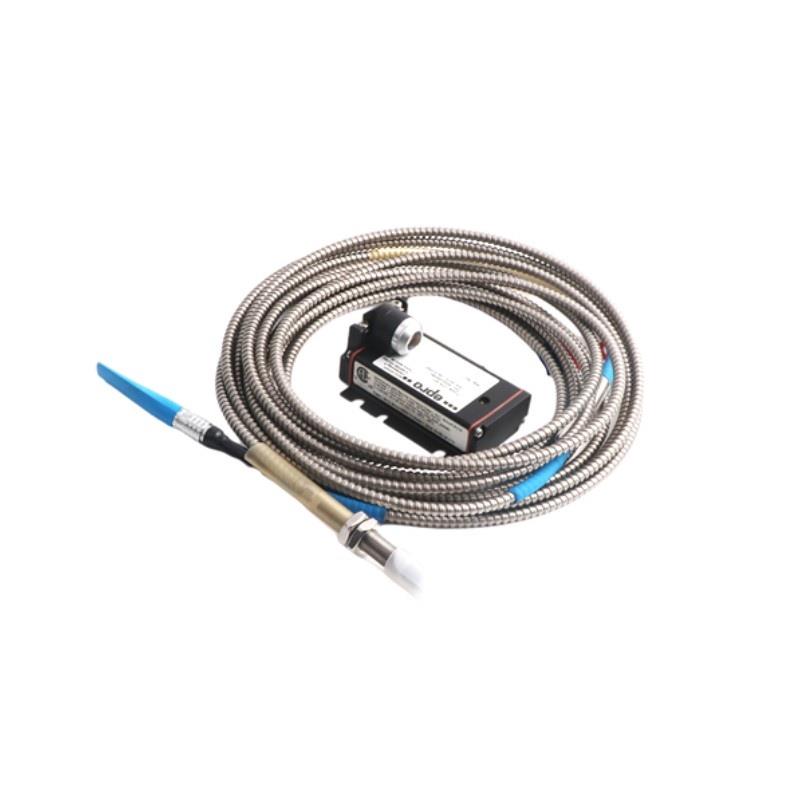

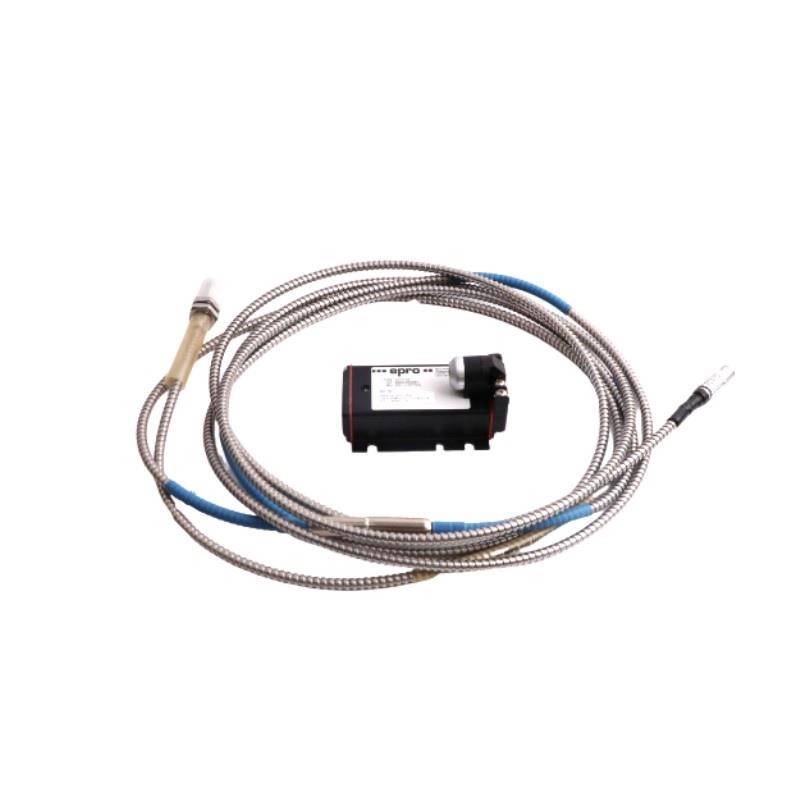

The Epro PR6424/019-121 16mm Eddy Current Sensor is a high-precision, non-contact displacement and proximity sensor designed for monitoring critical rotating machinery. By utilizing eddy current technology, it accurately measures shaft vibration, displacement, and proximity without mechanical contact, ensuring minimal wear and long-term reliability. Its 16mm sensor head diameter provides a compact and robust solution for integration into turbines, compressors, generators, pumps, and other industrial machinery. The PR6424/019-121 منfers stable output, high-frequency response, and resistance to harsh environments, making it an ideal choice for predictive maintenance, vibration analysis, and process optimization.
مواصفات المنتج
| Parameter | Details |
|---|---|
| الطراز Number | PR6424/019-121 |
| Sensor Type | Eddy Current Proximity / Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| الوزن | 0.2 kg |
| Measurement Range | ±1 mm (standard, customizable) |
| Output Signal | AC or DC voltage proportional to displacement |
| Linearity | ±1% من full scale |
| Temperature Range | –40 °C to +125 °C |
| Frequency Response | 0–10 kHz |
| Cable Type | Shielded coaxial cable (custom lengths available) |
| Material | Stainless steel housing, corrosion-resistant |
| Mounting Type | Threaded or flanged mount options |
| Connector Type | Industrial or MIL-spec connector |
Applications
-
Turbines – Provides precise monitoring من rotor displacement and vibration for operational safety.
-
Compressors – Detects misalignment and imbalance to prevent premature failure.
-
Generators – Continuous feedback من shaft position and vibration for process control.
-
Pumps – Monitors high-speed shaft displacement and vibration for early anomaly detection.
-
Industrial Motors – Ensures accurate rotor monitoring to maintain efficiency and performance.
-
Rotating Machinery – Integrates into industrial vibration monitoring systems for protection and reliability.
Advantages
-
Non-اتصل بنا Measurement – Reduces wear and maintenance needs.
-
High Accuracy – ±1% full-scale linearity for precise and repeatable measurements.
-
Durable Construction – Stainless steel housing resists corrosion and harsh environments.
-
Compact Design – 16mm sensor head enables installation in confined spaces.
-
Wide Operating Temperature – Reliable performance from –40 °C to +125 °C.
-
Flexible Mounting Options – Threaded or flanged mounts for versatile installation.
-
High-Frequency Response – Up to 10 kHz for high-speed machinery monitoring.
-
Stable Output Signal – AC or DC voltage compatible with DCS and monitoring systems.
FAQ
-
What type من signal does the PR6424/019-121 output?
The sensor outputs an AC or DC voltage proportional to shaft displacement, suitable for integration with DCS, vibration monitoring, or data acquisition systems. -
What is the measurement range for this sensor?
The standard measurement range is ±1 mm, which can be customized for specific applications. -
Can it operate under extreme temperatures?
Yes, it reliably operates from –40 °C to +125 °C for industrial environments. -
How is the sensor mounted on machinery?
It supports both threaded and flanged mounting options for flexible installation. -
Is it suitable for high-speed rotor applications?
Yes, the sensor has a frequency response up to 10 kHz, making it appropriate for high-speed rotating equipment. -
What materials are used for the sensor housing?
The housing is stainless steel and corrosion-resistant, ideal for industrial conditions. -
Does the sensor require a specific cable type?
A shielded coaxial cable is recommended to minimize electrical noise, with custom lengths available. -
Can it detect shaft misalignment or imbalance?
Yes, vibration and displacement signals can indicate early signs من misalignment or imbalance. -
What is the sensor’s linearity accuracy?
It provides ±1% full-scale linearity for accurate and reliable measurement. -
Can this sensor integrate with existing monitoring systems?
Yes, it is compatible with standard industrial vibration monitoring systems, DCS, and signal acquisition وحدةs.
Related الطرازs (Same Series)
| الطراز Number | Key Feature |
|---|---|
| PR6424/019-101 | Standard 16mm eddy current sensor for general applications |
| PR6424/019-022 | High-frequency response version |
| PR6424/019-023 | Sensor with reinforced housing for extreme environments |
| PR6424/019-024 | Integrated connector version for easier installation |
| PR6424/019-025 | Adjustable range sensor for customized measurements |
| PR6424/019-026 | High-precision linearity sensor for critical machinery monitoring |
Popular Epro الطرازs
| الطراز Number | Primary Application |
|---|---|
| PR6423/005-010 | Eddy current sensor for turbine and generator monitoring |
| PR6424/014-040 | 14mm displacement sensor for high-speed machinery |
| PR6424/01CS | Compact sensor for installations with limited space |
| PR6425/022-020 | High-resolution proximity sensor for precision equipment |
| PR6425/022-100 | Industrial eddy current sensor with extended temperature range |
| PR6426/030-050 | Sensor for vibration and position monitoring in rotating machinery |
