产品介绍

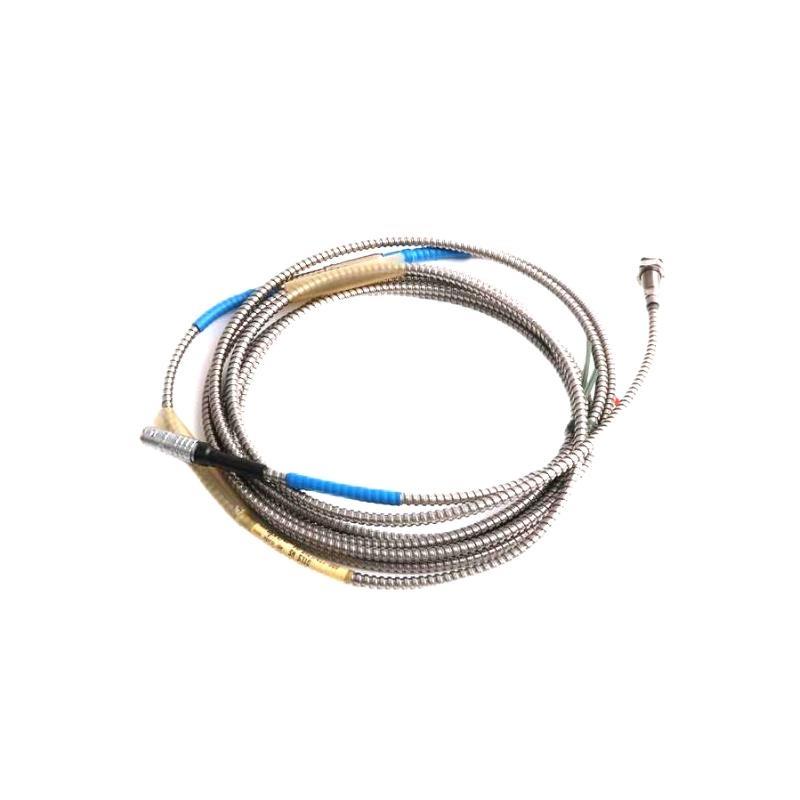

Epro PR6424/018-000 16 毫米涡流传感器是一款精密非接触式位移传感器，专为工业振动和轴位置监测而设计。该传感器采用坚固的不锈钢外壳和先进的涡流技术，可对涡轮机、压缩机、泵和其他旋转机械中的动态和静态轴运动进行高分辨率测量。它在宽温度范围内提供稳定的性能，非常适合需要在恶劣工作条件下长期保持可靠性的应用。
技术规格
| 范围 | 细节 |
|---|---|
| 型号 | PR6424/018-000 |
| 制造商 | Epro（由 Brüel & Kjær Vibro 设计） |
| 测量原理 | 非接触式涡流位移 |
| 传感器头直径 | 16毫米 |
| 标称测量范围 | 0–4 毫米（典型值），可通过 CON021 驱动器调节 |
| 线性范围 | 间隙中部周围±2毫米 |
| 敏感度 | 8毫伏/微米±2% |
| 频率响应 | 直流至 10 kHz (-3 dB) |
| 电源 | ±15 VDC（通过兼容的 Epro 驱动器） |
| 工作温度 | –35 °C 至 +180 °C（传感器头） |
| 储存温度 | –40 °C 至 +200 °C |
| Vibration Resistance | 20 g, 10–2 000 Hz |
| Protection Class | IP67 stainless-steel sealed housing |
| الوزن | 0.2 kg |
| Compliance | CE, ATEX optional, RoHS |
Applications
-
Turbomachinery Vibration Monitoring: Continuous measurement من shaft vibration amplitude and position for turbines, compressors, and generators.
-
Bearing Gap Detection: Detects shaft displacement relative to bearing housings for predictive maintenance.
-
Pump and Motor Monitoring: Provides real-time data to prevent cavitation damage or misalignment failures.
-
Rotating Equipment Diagnostics: Integrates with Epro CON021 or compatible drivers to feed vibration and displacement data to plant control systems.
-
الحالة-Based Maintenance: الدعمs data acquisition for advanced predictive maintenance programs in refineries, petrochemical plants, and power stations.
Advantages
-
High Measurement Accuracy: 8 mV/µm sensitivity with minimal drift ensures precise shaft-position data.
-
Wide Temperature Capability: Operates reliably in environments up to +180 °C, making it suitable for hot machine zones.
-
Rugged Construction: Stainless-steel IP67 housing and PTFE-insulated cable provide excellent chemical and moisture resistance.
-
Easy Integration: Seamlessly connects to Epro CON021 drivers and most industrial monitoring systems.
-
Fast Dynamic Response: DC to 10 kHz frequency range captures rapid shaft motion and transient events.
-
Low Maintenance: Non-contact design eliminates wear and extends service intervals.
FAQ
-
What is the typical linear measuring range من the PR6424/018-000 sensor?
The sensor provides a linear range من approximately ±2 mm around its calibrated mid-gap, suitable for most standard shaft-vibration monitoring applications. -
Which driver module is recommended for optimal performance with this sensor?
Epro recommends pairing the PR6424/018-000 with the CON021 driver, which provides proper excitation, signal conditioning, and calibration support. -
How is temperature compensation achieved within the sensor system?
The sensor incorporates a temperature-stable coil and uses the CON021 driver’s compensation circuitry to maintain accuracy across the full –35 °C to +180 °C range. -
What type من cable is supplied and how can it be extended?
The sensor comes with a factory-installed PTFE-insulated coaxial cable. Extensions must use low-loss coax with compatible impedance to maintain calibration accuracy. -
What is the maximum vibration level the sensor can withstand?
It is rated for continuous vibration up to 20 g within a 10–2 000 Hz bandwidth without affecting measurement precision. -
Is the sensor suitable for use in hazardous or explosive areas?
Yes, an ATEX-certified version is available for installation in Zone 1 and Zone 2 hazardous environments when used with approved barriers. -
How is the sensor calibrated in the field?
Field calibration is performed by adjusting the CON021 driver’s zero and gain settings using a precision micrometer gap reference. -
What is the typical frequency response and why is it important?
The PR6424/018-000 supports a DC to 10 kHz frequency range, allowing accurate capture من both static shaft position and high-frequency vibration components. -
Does the sensor require an external power supply?
Power is supplied through the compatible driver module (±15 VDC), eliminating the need for a separate dedicated supply at the sensor location. -
Can the sensor be used with non-Epro monitoring systems?
Yes, provided the monitoring system matches the sensor’s impedance and excitation requirements; proper calibration is essential to maintain accuracy.
Recommended Related الطرازs (Same Series)
| الطراز Number | الوصف |
|---|---|
| PR6424/000-030 | Standard 8 mm eddy current sensor for general machinery |
| PR6424/010-000 | 8 mm high-temperature version |
| PR6424/015-000 | 11 mm extended-range sensor |
| PR6424/018-001 | 16 mm sensor with special cable configuration |
| PR6424/020-000 | 25 mm large-gap sensor for heavy-duty shafts |
| PR6424/022-100 | High-frequency response variant |
Popular Epro الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف |
|---|---|
| MMS6210 | Advanced machine monitoring system for turbines and compressors |
| PR6423/005-010 | Compact eddy current probe for tight installations |
| PR6425/010-140 | High-temperature displacement sensor |
| MMS6312 | الحالة monitoring module for multi-channel setups |
| CON021 | Universal driver module for eddy current probes |
| MMS6110 | Vibration monitoring and diagnostics وحدة |
