Product Overview

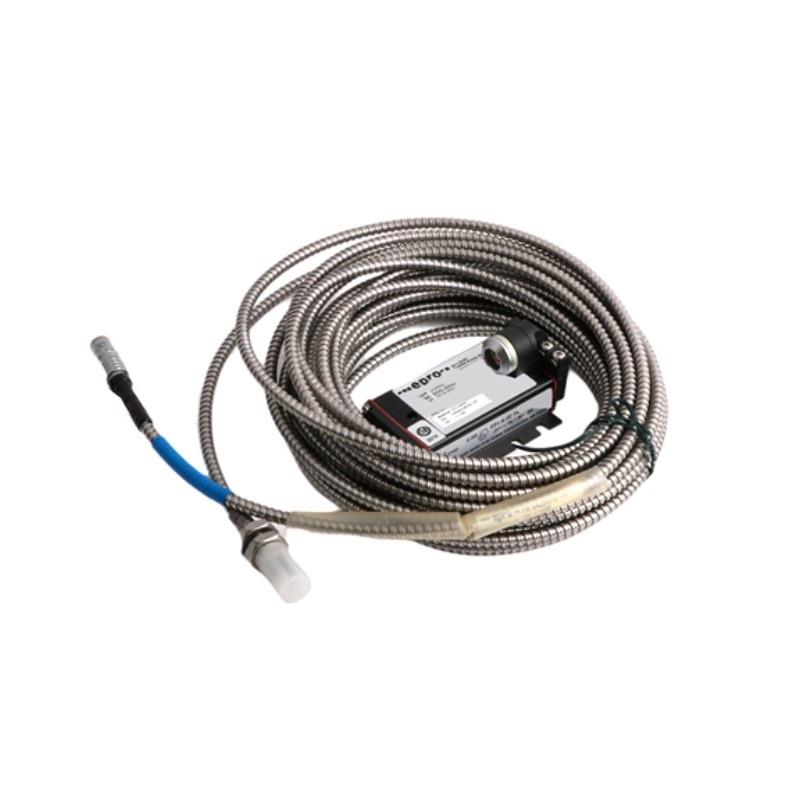

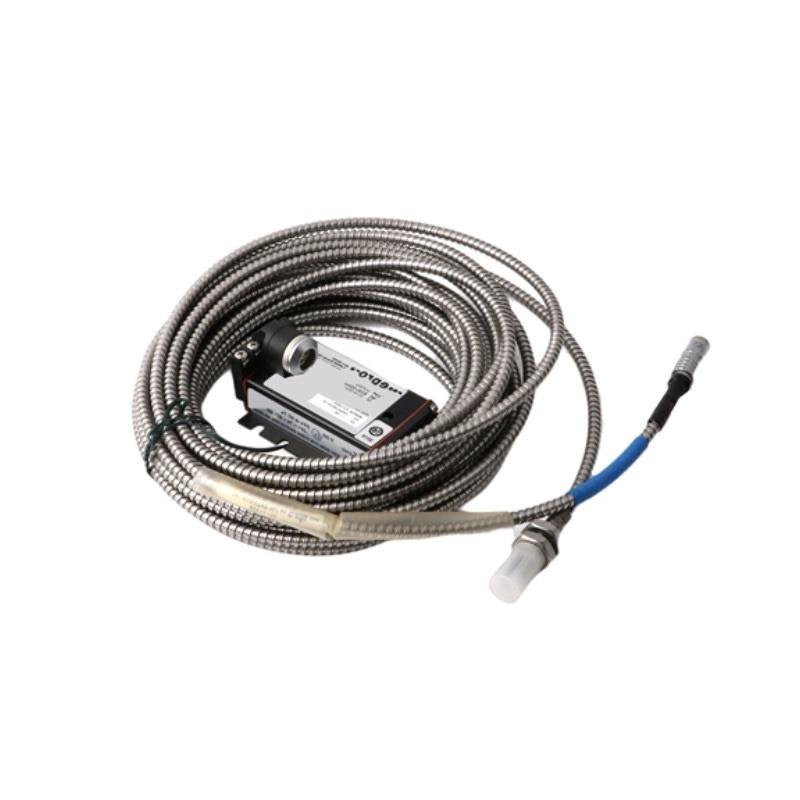

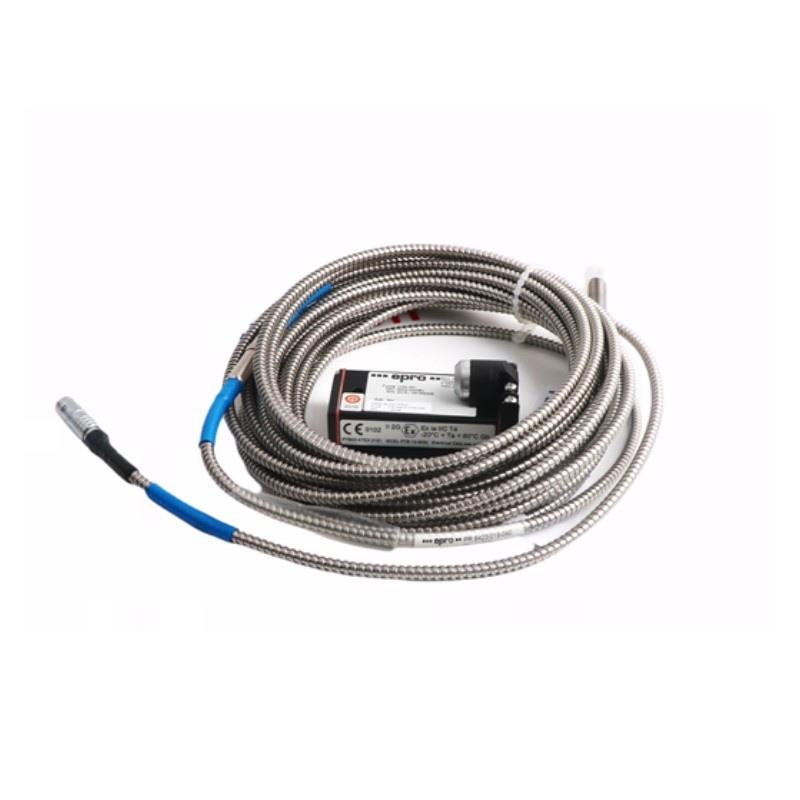

The Epro PR6423/012-130+CON021 8mm Eddy-Current Sensor is a high-precision, non-contact probe designed for shaft vibration and displacement monitoring in rotating machinery. Optimized with the CON021 preamplifier, it ensures accurate signal processing and reliable performance under demanding industrial conditions. Built with durable materials and منfering stable measurement sensitivity, this sensor is a key component in machinery protection and predictive maintenance systems.
Key Features
-
8 mm probe diameter for versatile vibration and displacement monitoring
-
Non-contact measurement for reduced wear and longer service life
-
Optimized with CON021 preamplifier for signal accuracy
-
Resistant to oil, dust, and industrial contaminants
-
Wide operating temperature range for harsh environments
-
Stainless steel housing for durability
-
High linearity and stable sensitivity over the full range
-
Designed for integration into critical machinery monitoring systems
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Epro |
| رقم القطعة | PR6423/012-130+CON021 |
| Product Type | Eddy-Current Sensor |
| Probe Diameter | 8 mm |
| Probe Length | 71 mm (typical) |
| Measurement Range | ±2 mm (model dependent) |
| Sensitivity | 7.87 mV/µm (with CON021) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Housing Material | Stainless steel |
| Connector Type | CON021 preamplifier |
| Dimensions | Sensor head diameter 8 mm |
| الوزن | 0.22 kg |
| Applications | Shaft vibration, axial displacement, machinery condition monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Industrial pumps and fans
-
Gearboxes and rotating equipment
-
Oil, gas, and petrochemical industries
-
Power generation and heavy machinery sectors
الأسئلة الشائعة (FAQ)
Q1: What is the probe diameter من the PR6423/012-130+CON021?
It has a probe diameter من 8 mm.
Q2: What type من measurements does it perform?
It measures shaft vibration and displacement without physical contact.
Q3: Which preamplifier is it optimized for?
It is specifically designed to work with the CON021 preamplifier.
Q4: What is the sensitivity من this sensor?
The typical sensitivity is 7.87 mV/µm when used with the CON021.
Q5: Can it operate in challenging industrial environments?
Yes, it is resistant to oil, dust, and other contaminants.
Q6: What is the operating temperature range?
It can operate from –35 °C to +180 °C.
Q7: What are its physical specifications?
Sensor head diameter 8 mm and weighs about 0.22 kg.
Q8: In which industries is this model commonly applied?
It is widely used in turbines, compressors, pumps, and power generation systems.
