Product Overview

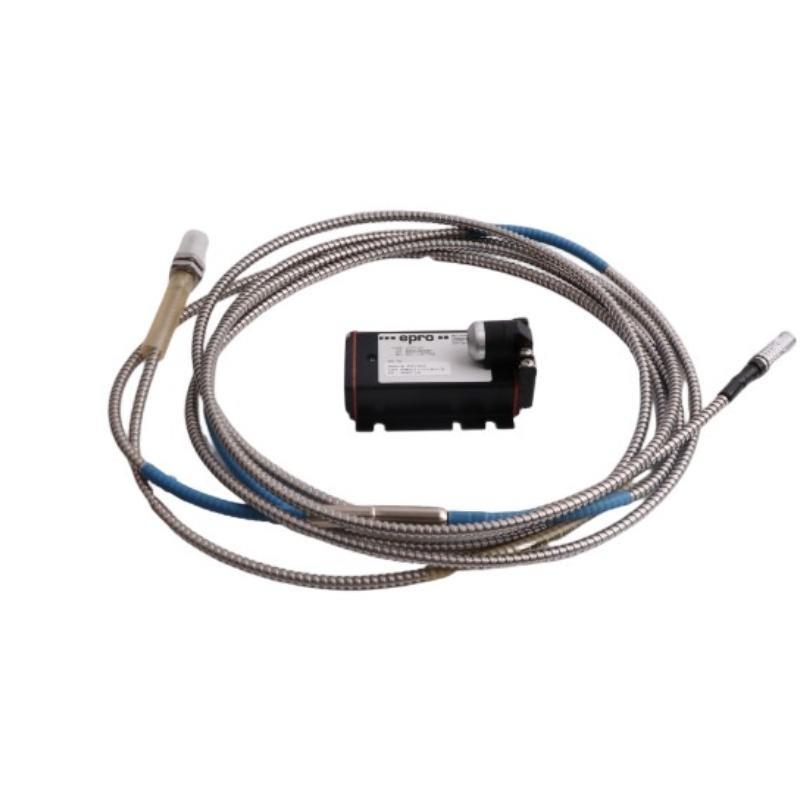

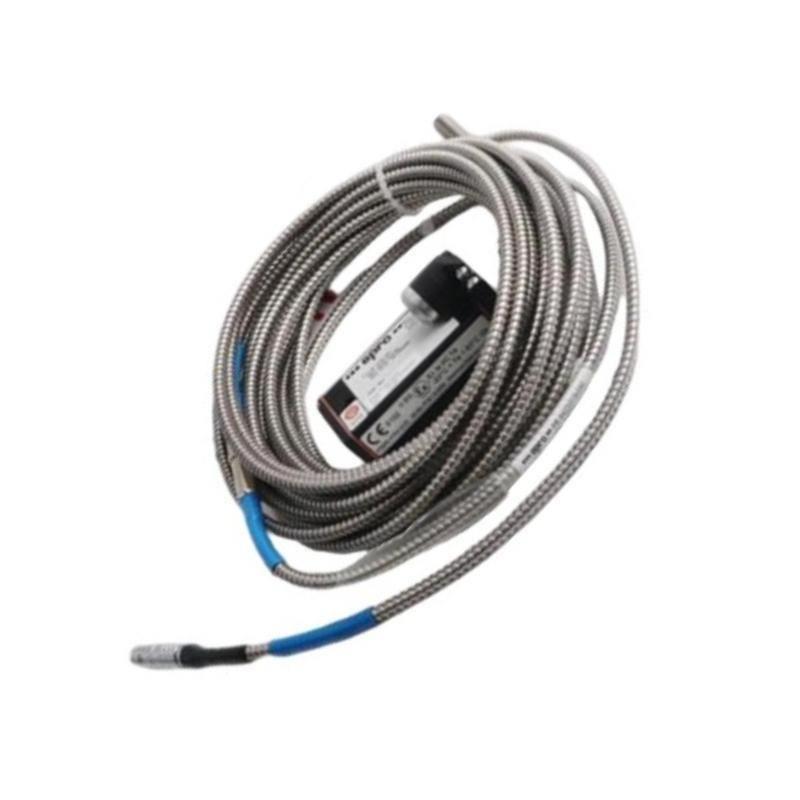

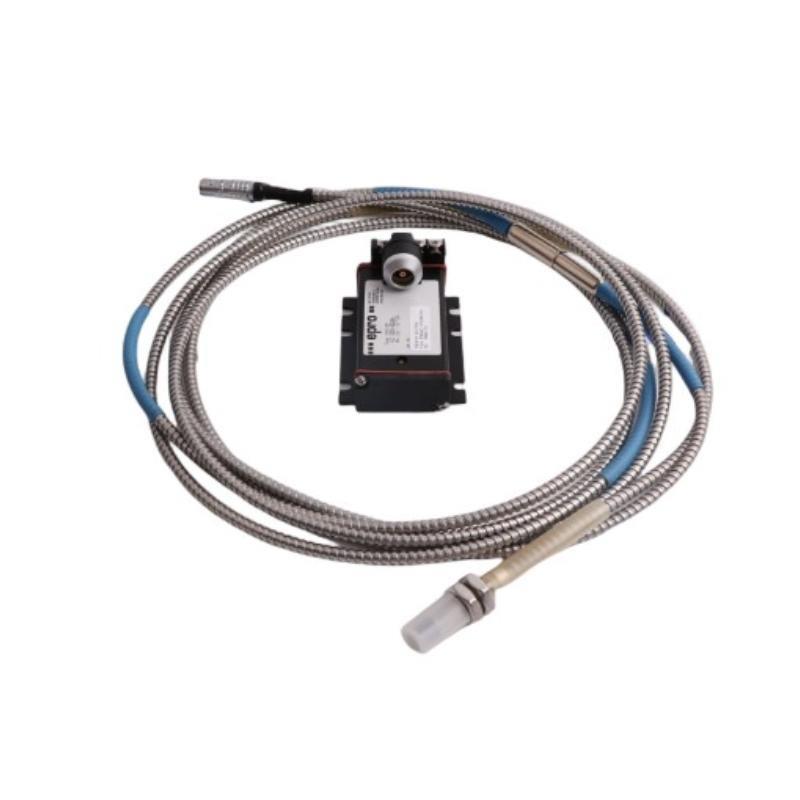

The Epro PR6423/010-040-CN is a high-precision 8 mm eddy-current sensor engineered for non-contact measurement من shaft displacement and vibration in rotating machinery. As part من the PR6423 series, this probe is designed to deliver reliable, long-term stability even in harsh industrial environments, ensuring accurate machinery condition monitoring and protection.
Key Features
-
8 mm tip eddy-current proximity sensor for shaft displacement and vibration monitoring
-
Designed for use with Epro CON021 and associated systems
-
High accuracy with stable output over wide temperature ranges
-
Resistant to oil, dust, and contaminants
-
Rugged stainless-steel design for industrial applications
-
Suitable for predictive maintenance and continuous monitoring
-
Long service life and dependable performance in harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | PR6423/010-040-CN |
| Series | PR6423 |
| Type | Eddy-Current Sensor |
| Tip Diameter | 8 mm |
| Measurement Range | Typically up to 2 mm (system dependent) |
| Frequency Range | DC to 10 kHz (typical) |
| Sensitivity | 8 mV/µm (nominal, system dependent) |
| Case Material | Stainless Steel |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity | Up to 100% condensing |
| Dimensions | Sensor head diameter 8 mm |
| الوزن | 0.1 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – turbines and generators
-
Oil & Gas – compressors, pumps, and rotating machinery
-
Petrochemical & Chemical – critical plant equipment monitoring
-
Manufacturing – predictive maintenance for rotating assets
-
Steel & Mining – heavy machinery and shaft monitoring
Advantages
-
Provides precise, non-contact shaft displacement measurement
-
Long-term reliability in demanding environments
-
Resistant to oil, dust, and harsh contaminants
-
Seamless integration with Epro CON021 monitoring systems
-
Enables predictive maintenance strategies
-
Reduces unplanned downtime and maintenance costs
الأسئلة الشائعة (FAQ)
Q1: What is the main function من this sensor?
It measures shaft displacement and vibration using non-contact eddy-current technology.
Q2: What is the tip diameter من this probe?
8 mm.
Q3: What monitoring system is it compatible with?
It is designed for use with Epro CON021 and related systems.
Q4: What is the measurement range?
Typically up to 2 mm, depending on the monitoring setup.
Q5: What is the sensitivity?
8 mV/µm nominal.
Q6: What is the operating temperature range?
-35 °C to +180 °C.
Q7: Is it suitable for use in high-humidity environments?
Yes, it supports up to 100% condensing humidity.
Q8: What material is the sensor body made من?
Stainless steel.
Q9: What are its physical dimensions?
Sensor head diameter 8 mm.
Q10: Which industries commonly use this sensor?
Power Generation, Oil & Gas, Petrochemical, Manufacturing, Steel & Mining.
