Product Overview

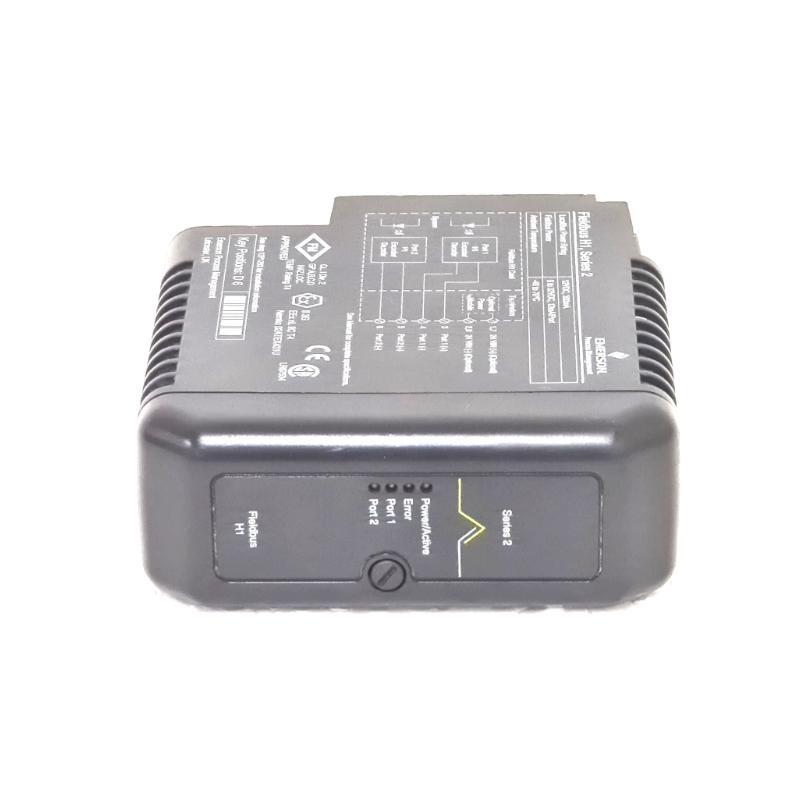

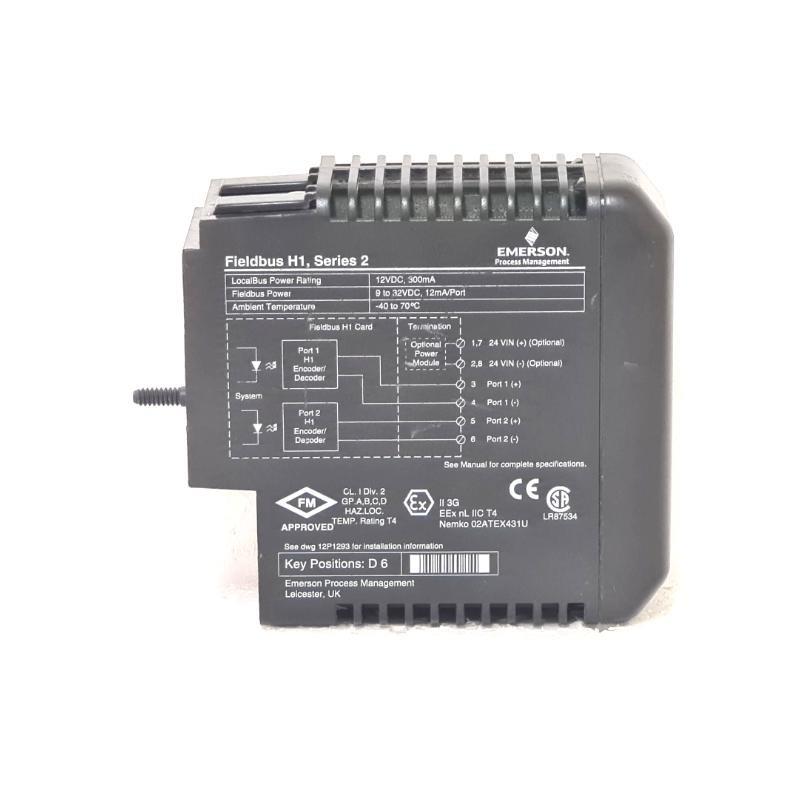

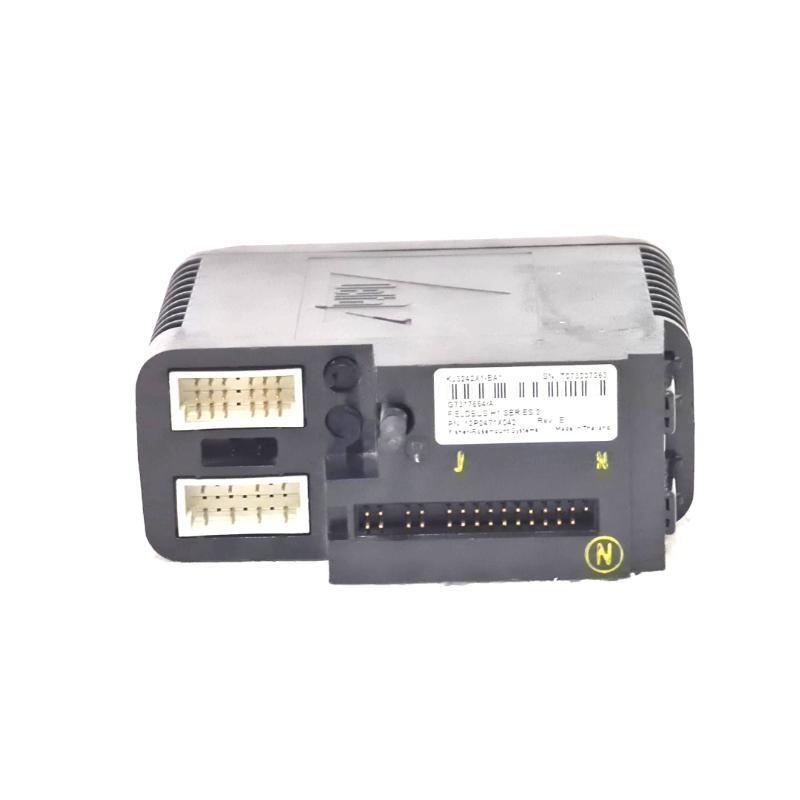

The Emerson VE4017P0 KJ3242X1-BA1 is a Fieldbus H1 interface card used within the DeltaV™ control system architecture. It enables robust digital communication with Fieldbus H1 devices, suitable for Zone 2 and Division 2 hazardous locations. It supports integration من smart field instruments, منfering diagnostics and device management through a high-speed local bus.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | KJ3242X1-BA1 |
| Product Name | Fieldbus H1 Card |
| Power (Local Bus) | 12 VDC at 300 mA |
| Power (Fieldbus) | 9–32 VDC at 12 mA per port |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% Non-condensing |
| Shock Resistance | 10g, ½ Sinewave, 11ms |
| Vibration Resistance | 1mm P-P (2–13.2Hz), 0.7g (13.2–150Hz) |
| Airborne Contaminants | ISA-S71.04 Class G3 |
| Enclosure Protection | IP20 |
| Dimensions | 107 x 41 x 105 mm |
| الوزن | 0.3 kg |
| Certifications | ATEX, IECEx, FM, Nemko |
Applications
-
Fieldbus H1 segment integration in DeltaV control systems
-
Hazardous environment automation (Zone 2, Class I Div 2)
-
Process industries: oil & gas, petrochemical, chemical, power
-
Smart field device communication and diagnostics
Product Advantages
-
Direct integration with DeltaV systems
-
Certified for global hazardous area standards
-
Rugged design for harsh industrial conditions
-
الدعمs redundant installation
-
Easy installation with rotary keying
-
No calibration or maintenance required
الأسئلة الشائعة (FAQ)
Q1: What does the VE4017P0 KJ3242X1-BA1 card do?
A1: It facilitates digital communication between DeltaV controllers and Foundation Fieldbus H1 field devices.
Q2: Is the card hot-swappable?
A2: رقم The card must only be inserted or removed in non-hazardous areas and one at a time.
Q3: Can it operate in extreme temperatures?
A3: Yes, it supports a temperature range من -40°C to +70°C.
Q4: What safety certifications does it carry?
A4: It has ATEX, IECEx, FM, and Nemko certifications for use in hazardous zones.
Q5: What is the IP rating من the module?
A5: The module has an IP20 enclosure rating.
Q6: Is any user calibration needed?
A6: رقم The card is factory calibrated and requires no adjustment.
Q7: What is the maximum humidity level it can withstand?
A7: It can handle up to 95% relative humidity, non-condensing.
Q8: How is the terminal block aligned?
A8: A rotary keying system ensures correct alignment with the card.
Q9: Does it support redundant fieldbus segments?
A9: Yes, redundancy is supported as part من the DeltaV architecture.
Q10: Is this card compatible with non-DeltaV systems?
A10: No, it is designed specifically for DeltaV systems.
Related Emerson الطرازs (Same Series)
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| KJ3243X1-BA1 | Fieldbus Interface Card | 107x41x105 | 0.3 |
| KJ3241X1-BA1 | Fieldbus Isolated Card | 107x41x105 | 0.3 |
| KJ3001X1-BB1 | Analog Input Card | 107x41x105 | 0.3 |
| KJ3002X1-BB1 | Analog Output Card | 107x41x105 | 0.3 |
| KJ4001X1-BA2 | Power Supply Card | 107x41x105 | 0.3 |
| VE4002S1T2B2 | DeltaV Discrete Output Module | 107x41x105 | 0.3 |
Popular Emerson الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| KJ3001X1-BB1 | 12-Channel Analog Input Module | 107x41x105 | 0.3 |
| KJ3002X1-BB1 | 8-Channel Analog Output Module | 107x41x105 | 0.3 |
| KJ4001X1-BA2 | 24V Power Supply Module | 107x41x105 | 0.3 |
| VE4003S2T2B4 | HART Analog Input Module | 107x41x105 | 0.3 |
| VE4001S1T2B3 | Discrete Input Module | 107x41x105 | 0.3 |
| VE4002S2T1B1 | Discrete Output Module | 107x41x105 | 0.3 |
