Product Overview

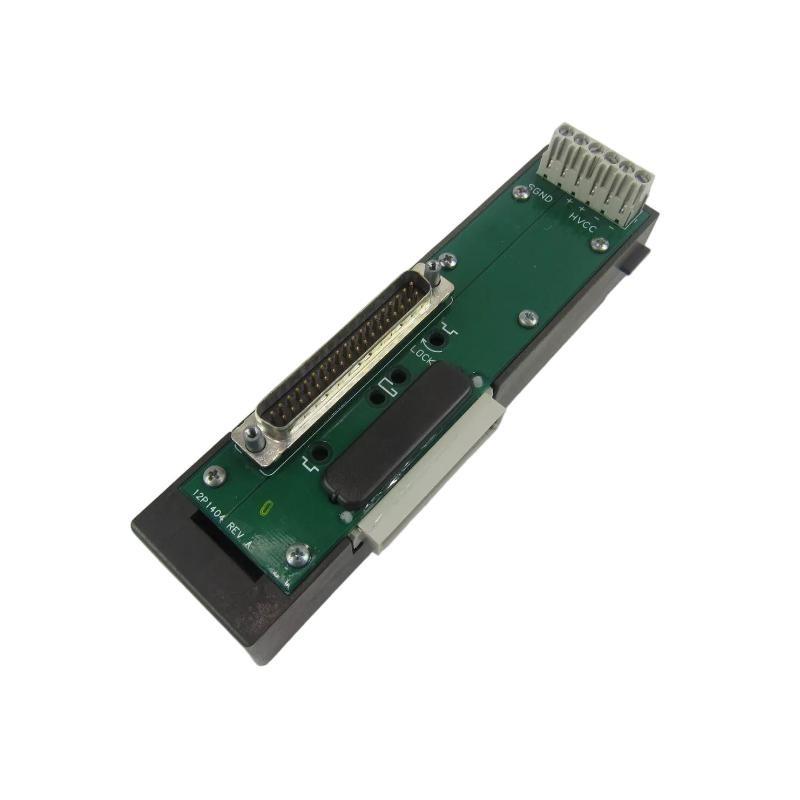

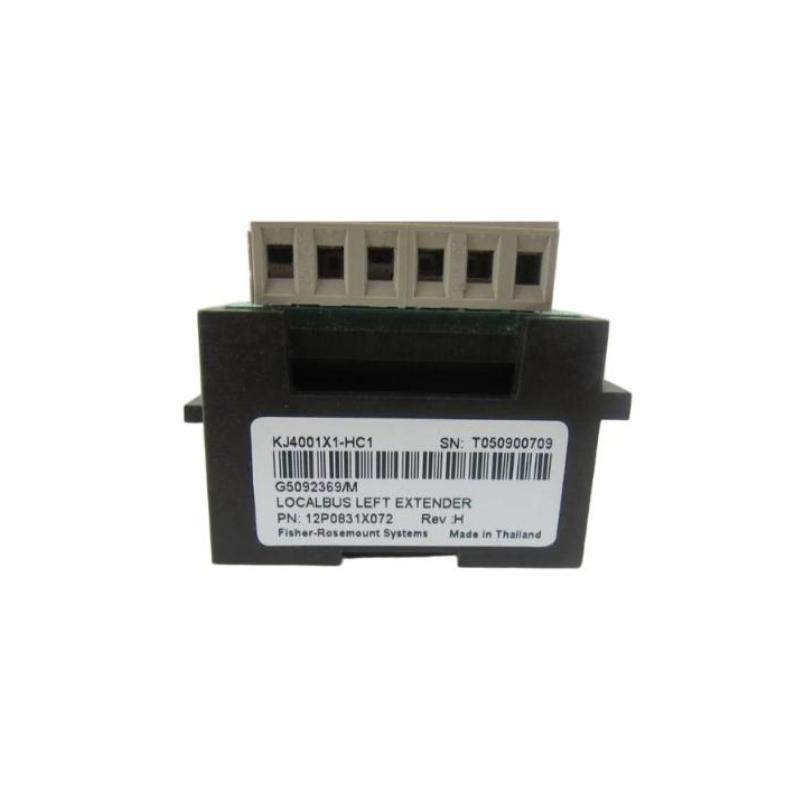

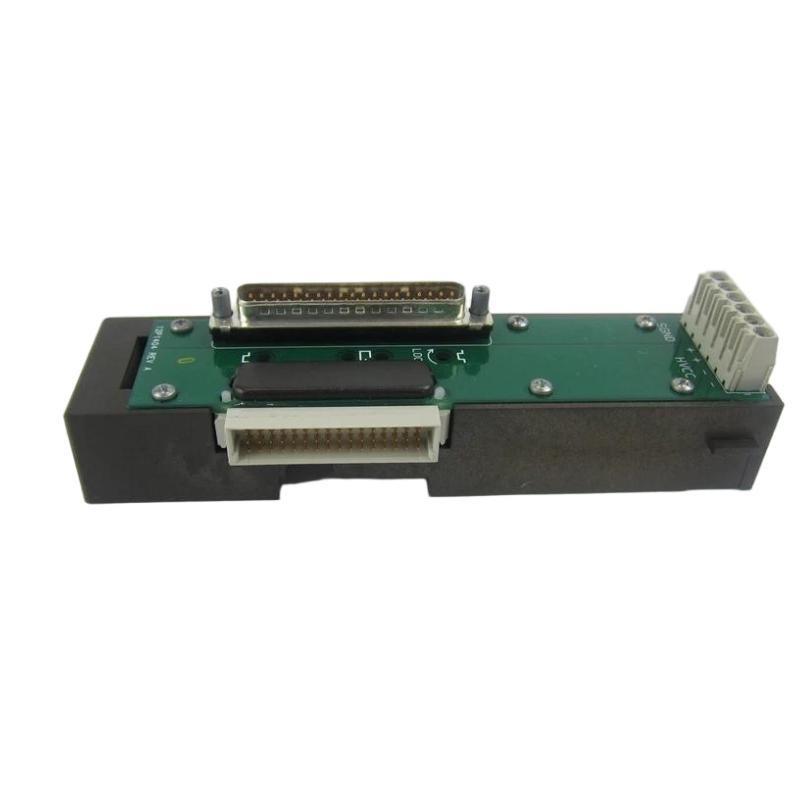

The Emerson KJ4001X1-HC1 Left Expander is an expansion module designed for Emerson DeltaV Distributed Control Systems (DCS). It extends the I/O capacity من a DeltaV controller by providing additional slots for I/O modules, enabling larger and more complex control system architectures. The Left Expander is engineered for seamless integration with DeltaV controllers, supporting high-speed data transfer, redundancy, and hot-swappable I/O modules to ensure continuous operation in mission-critical applications.
Key Features
-
Expands DeltaV controller I/O capacity for large system configurations
-
الدعمs hot-swappable I/O modules to reduce downtime
-
Seamless integration with DeltaV controller chassis
-
High-speed communication and data transfer between controller and I/O modules
-
الدعمs redundant system architecture for enhanced reliability
-
Rugged design suitable for industrial environments
-
LED indicators for status and diagnostics
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | KJ4001X1-HC1 |
| الشركة المصنعة | Emerson |
| Product Type | Left Expander Module |
| System Compatibility | DeltaV Distributed Control System |
| Function | I/O expansion for DeltaV controllers |
| Module Slots | Adds multiple I/O module slots (exact number depends on controller type) |
| Communication | High-speed backplane interface to controller |
| Redundancy | الدعمed in redundant DeltaV configurations |
| Hot-Swap Capability | Yes |
| Indicators | Status and fault LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 200 × 40 × 160 mm |
| الوزن | 0.13 kg |
| Mounting | DeltaV controller chassis |
| Compliance | CE, UL, RoHS, IEC standards |
Industry Applications
-
Oil & Gas – expanding I/O for process control in refineries and منfshore platforms
-
Petrochemical – large-scale control loops requiring additional I/O
-
Power Generation – turbine, boiler, and generator monitoring systems
-
Pharmaceuticals – batch and continuous process control with extensive I/O
-
Water & Wastewater – expanding plant automation I/O capacity
Advantages
-
Increases the I/O capacity من DeltaV controllers for large or complex systems
-
Hot-swappable for uninterrupted system operation
-
الدعمs redundant architecture for critical process reliability
-
Robust design for industrial environments
-
Provides seamless communication with the main DeltaV controller
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the KJ4001X1-HC1?
It expands the I/O capacity من a DeltaV controller by providing additional slots for I/O modules.
Q2: Can I replace I/O modules while the system is running?
Yes, it supports hot-swappable I/O modules.
Q3: Does it support redundant configurations?
Yes, it can be used in redundant DeltaV system architectures.
Q4: How does it connect to the main controller?
It connects via the high-speed backplane interface in the DeltaV controller chassis.
Q5: What is the operating temperature range?
0 °C to +60 °C.
Q6: How many I/O slots does it provide?
It adds multiple slots depending on the DeltaV controller configuration.
Q7: What indicators are available on the module?
LED indicators show module status and fault conditions.
Q8: Is it compatible with all DeltaV controllers?
It is compatible with DeltaV controller models that support Left Expander modules.
Q9: How is it mounted?
It is installed directly into the DeltaV controller chassis.
Q10: What standards does it comply with?
It complies with CE, UL, RoHS, and IEC standards.
