مقدمة المنتج

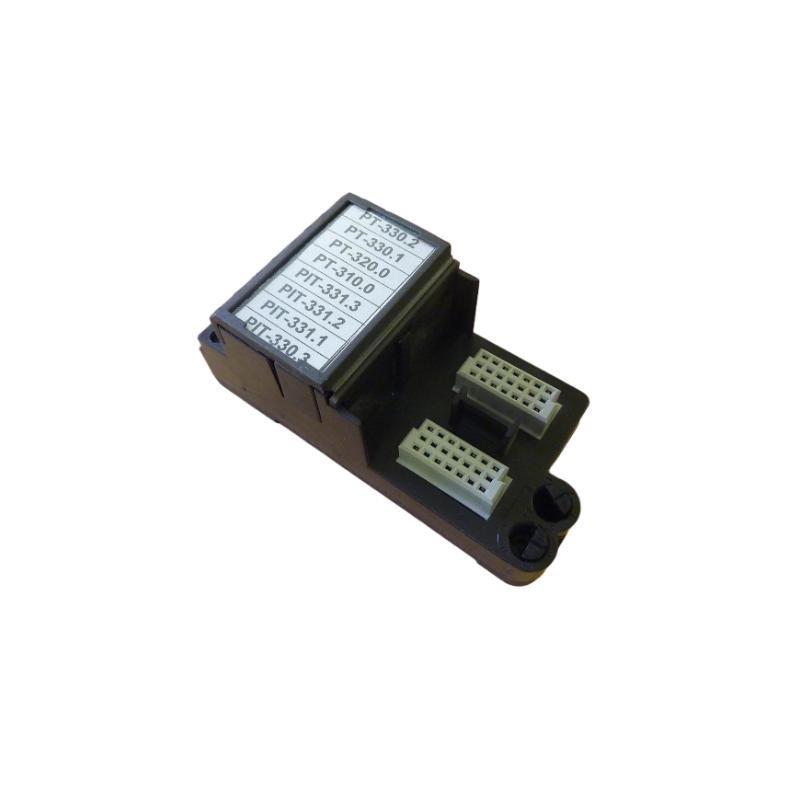

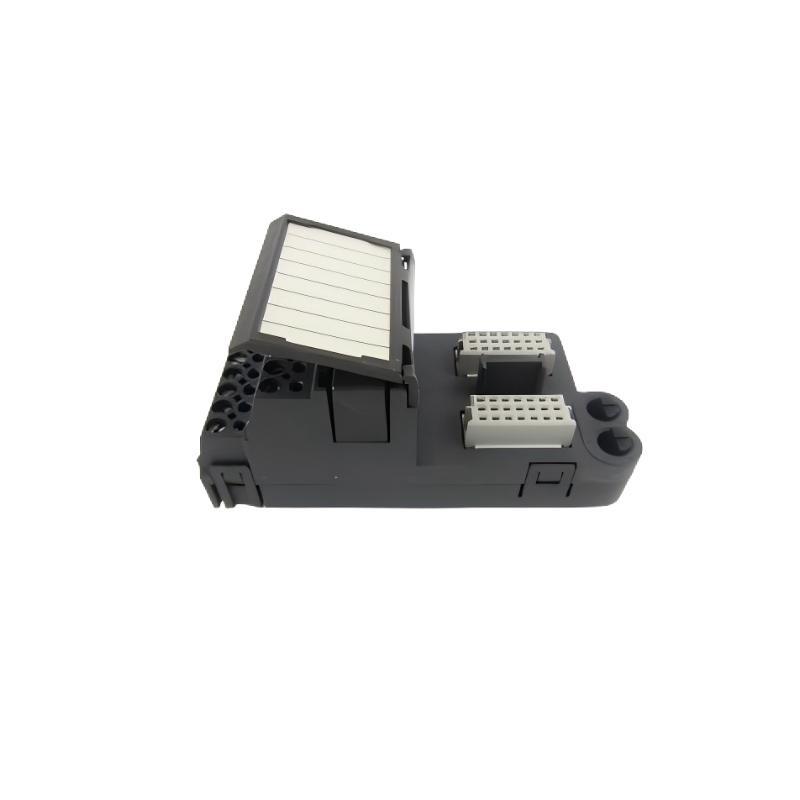

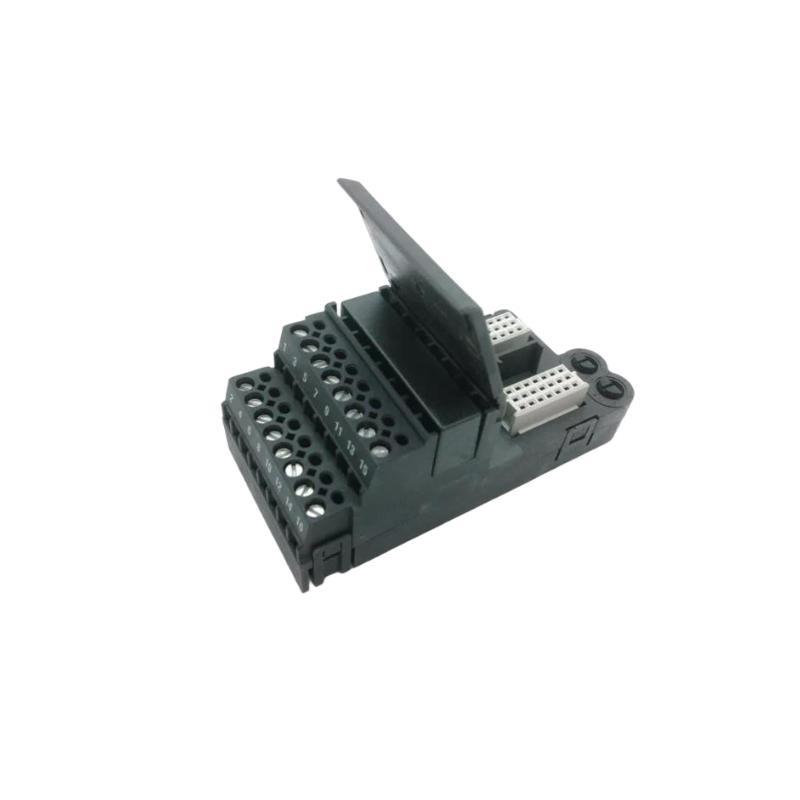

The Emerson KJ4001X1-CA1 12P0623X042 is a high-quality input/output termination assembly designed to simplify the integration من field devices with control systems in industrial automation environments. This module is engineered to provide a reliable interface for connecting analog and digital signals between the field devices and the controller.
With dimensions من 107 x 41 x 105 mm and weighing 0.0907 kg, it is a compact and lightweight solution that fits easily into control panels or automation systems without taking up valuable space. Its rugged design ensures durability and reliability under demanding industrial conditions.
The KJ4001X1-CA1 is optimized for a wide range من industrial applications, منfering efficient signal conditioning, data transmission, and easy maintenance. It plays a crucial role in facilitating the real-time monitoring and control من various process parameters such as temperature, pressure, flow, and level, making it a vital component for process control systems.
مواصفات المنتج
| Parameter | Details |
|---|---|
| الطراز | KJ4001X1-CA1 12P0623X042 |
| Module Type | Input/Output Termination Assembly |
| Dimensions (L x W x H) | 107 x 41 x 105 mm |
| الوزن | 0.0907 kg |
| Input/Output Type | Analog and Digital I/O |
| I/O Capacity | 12 I/O Terminals |
| Power Supply | 24V DC |
| Environmental Rating | IP20 (Protection against solid objects larger than 12mm) |
| Operating Temperature | -40°C to +70°C |
| Signal Processing | Signal الحالةing |
| Mounting | Panel Mount, DIN Rail Compatible |
| Compatibility | DeltaV Control System |
Applications
The Emerson KJ4001X1-CA1 12P0623X042 Input/Output Termination Assembly is designed for industrial automation and process control systems. Some من the primary applications include:
-
Process Control: In industries such as chemical, pharmaceutical, and oil and gas, the module serves as an interface for connecting sensors and actuators to control systems, enabling real-time monitoring and adjustment من process parameters.
-
Manufacturing Automation: Used in manufacturing and production lines, the module enables seamless communication between control systems and field devices, improving efficiency and reducing downtime.
-
Power Generation: The I/O termination assembly is used in power plants to manage the connections من sensors that monitor turbines, boilers, and other critical equipment, helping to ensure safe and efficient operations.
-
Water and Wastewater Treatment: It is used in water treatment plants, where it facilitates connections to sensors and monitoring devices that ensure the safe and consistent treatment من water and wastewater.
-
Building Automation: The KJ4001X1-CA1 is used in HVAC systems, lighting controls, and other energy management applications, making it ideal for smart buildings and industrial facilities.
-
Factory Automation: In factories, it connects various machines and systems for data acquisition and control, optimizing production processes and ensuring reliable system operation.
Product Advantages
-
Compact and Lightweight: With dimensions من 107 x 41 x 105 mm and a weight من 0.0907 kg, the module is space-efficient and can easily be mounted in control cabinets or DIN rail systems.
-
Versatile Input/Output: It supports both analog and digital I/O signals, allowing for easy connection to a wide range من field devices such as sensors, switches, and actuators.
-
Signal الحالةing: The module includes signal conditioning features to ensure the accurate processing من both analog and digital signals, ensuring reliable data transmission to control systems.
-
Easy Installation: The panel mount and DIN rail compatibility allow for easy installation and integration into existing automation systems.
-
Durable Design: With an IP20 rating, the module is designed to withstand dust and environmental contaminants, making it ideal for industrial environments.
-
Wide Temperature Range: The KJ4001X1-CA1 operates effectively in a temperature range من -40°C to +70°C, making it suitable for use in various industrial conditions, including extreme environments.
-
Energy-Efficient: With a 24V DC power supply, the module is energy-efficient, ensuring minimal power consumption while delivering reliable performance.
-
Cost-Effective: By providing a reliable connection between field devices and control systems, it helps reduce maintenance costs and downtime, contributing to long-term cost savings.
-
Seamless Integration: The KJ4001X1-CA1 is fully compatible with DeltaV control systems, making it easy to integrate into existing setups without additional configuration or effort.
-
Long-Term Reliability: Built to last in demanding industrial applications, the module provides long-term reliability and performance in harsh conditions.
الأسئلة الشائعة (FAQs)
Q1: What is the operating voltage for the Emerson KJ4001X1-CA1?
A1: The module operates with a 24V DC power supply, which is typical for many industrial automation systems.
Q2: How many I/O terminals are available on the KJ4001X1-CA1?
A2: The module provides 12 I/O terminals, making it ideal for handling multiple field device connections.
Q3: What is the environmental rating من the KJ4001X1-CA1?
A3: The module has an IP20 rating, which protects it from solid objects larger than 12mm but does not protect it from water ingress.
Q4: Can the KJ4001X1-CA1 be mounted on a DIN rail?
A4: Yes, the module is DIN rail compatible, allowing for easy mounting and integration into control panels.
Q5: What is the size من the KJ4001X1-CA1 module?
A5: The module has dimensions من 107 x 41 x 105 mm and weighs 0.0907 kg, making it compact and easy to install.
Q6: What is the temperature range in which the KJ4001X1-CA1 operates?
A6: The module operates effectively in temperatures ranging from -40°C to +70°C, which is suitable for a wide range من industrial environments.
Q7: What types من signals does the KJ4001X1-CA1 support?
A7: The module supports both analog and digital signals, making it versatile for various field devices.
Q8: Is the KJ4001X1-CA1 compatible with DeltaV systems?
A8: Yes, the KJ4001X1-CA1 is fully compatible with DeltaV control systems, providing seamless integration for efficient communication.
Q9: How much does the KJ4001X1-CA1 weigh?
A9: The module weighs 0.0907 kg, making it lightweight and easy to handle during installation.
Q10: What are the primary advantages من using the Emerson KJ4001X1-CA1?
A10: The module provides reliable signal conditioning, easy installation, and energy efficiency, while also منfering a wide operating temperature range, making it ideal for use in industrial automation and process control systems.
Related الطرازs
| الطراز | الوصف | I/O Capacity | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| KJ4002X1-CA1 | Input/Output Termination Assembly | 12 I/O Terminals | 110 x 50 x 120 | 0.095 |
| KJ4003X1-CA1 | Advanced I/O Termination Assembly | 16 I/O Terminals | 120 x 55 x 125 | 0.12 |
| KJ4004X1-CA1 | High-Capacity I/O Termination Assembly | 16 I/O Terminals | 130 x 60 x 130 | 0.15 |
| KJ4005X1-CA1 | Compact I/O Termination Assembly | 8 I/O Terminals | 100 x 45 x 110 | 0.085 |
| KJ4006X1-CA1 | Dual-Function I/O Termination Assembly | 12 I/O Terminals | 115 x 50 x 115 | 0.1 |
| KJ4007X1-CA1 | Modular I/O Termination Assembly | 20 I/O Terminals | 140 x 70 x 140 | 0.18 |
Popular Emerson الطرازs
| الطراز | الوصف | I/O Capacity | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|
| VE4002S2T2B2 | 2-Channel Input Module | 2 Inputs | 120 × 50 × 130 | 0.6 |
| VE3004S2T2B2 | 4-Channel Input Module | 4 Inputs | 140 × 60 × 140 | 0.85 |
| VE3006S2T2B2 | 6-Channel Input Module | 6 Inputs | 160 × 80 × 150 | 1.1 |
| VE4008S2T2B2 | 8-Channel Input Module | 8 Inputs | 180 × 90 × 160 | 1.3 |
| VE4009S2T2B2 | 9-Channel Input Module | 9 Inputs | 190 × 100 × 170 | 1.5 |
| VE5000S2T2B2 | 20-Channel Input Module | 20 Inputs | 220 × 150 × 200 | 2.2 |
