Product Overview

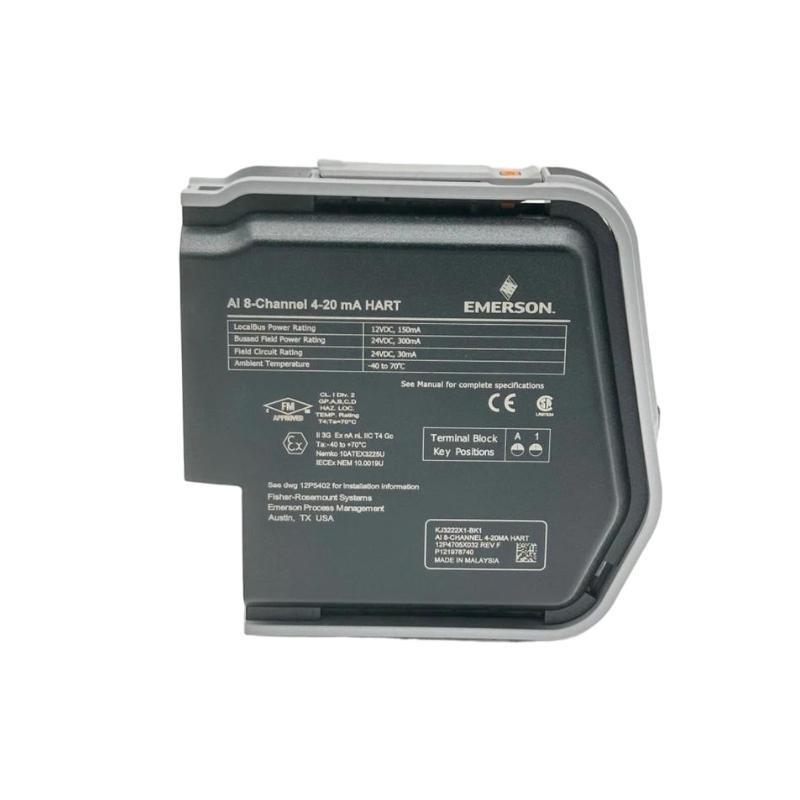

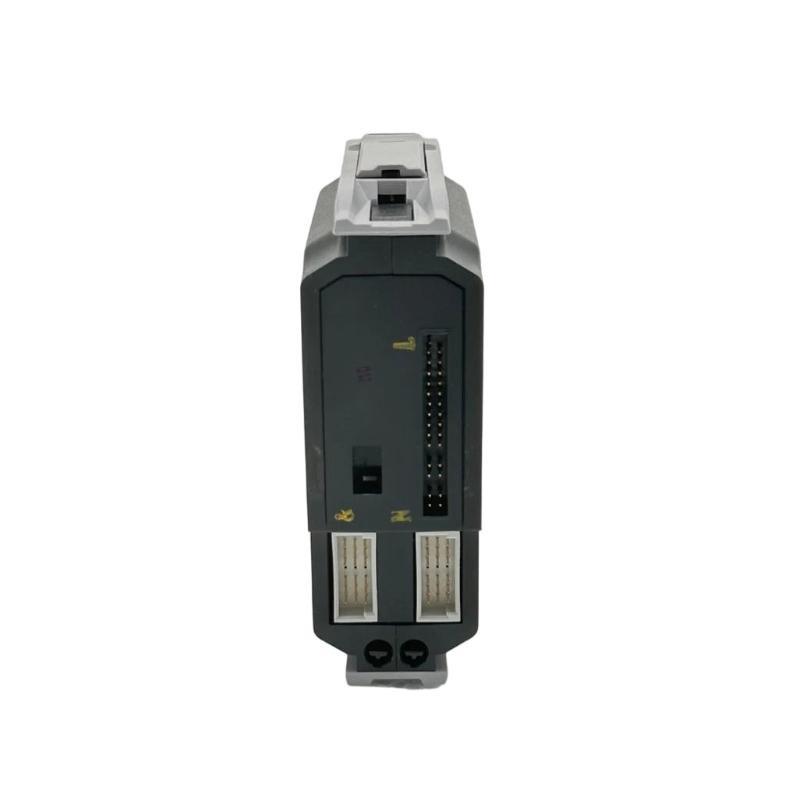

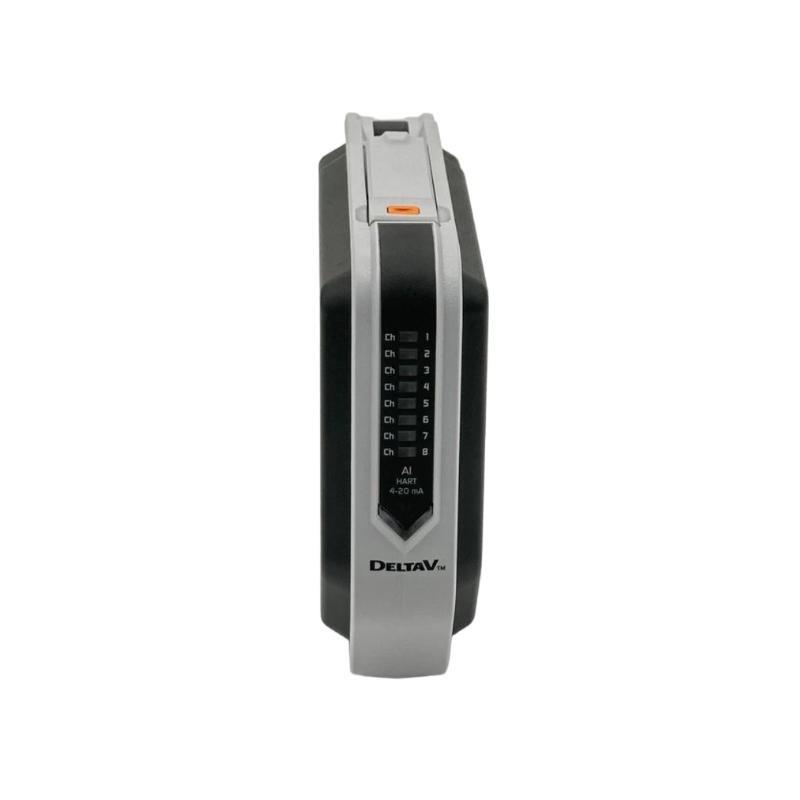

The Emerson KJ3222X1-BK1 Analog Input Module is a high-precision input module designed for DeltaV Distributed Control Systems (DCS). It provides accurate measurement and monitoring من analog signals from process sensors such as thermocouples, RTDs, pressure transmitters, and flow meters. The module supports high-resolution signal acquisition with integrated diagnostics, enabling reliable control and monitoring for mission-critical industrial applications. Hot-swappable design and robust construction make it ideal for demanding environments where system uptime and accuracy are essential.
Key Features
-
الدعمs multiple analog input channels for process variables
-
Compatible with voltage, current, RTD, and thermocouple signals
-
High resolution and accuracy for critical process measurements
-
Built-in diagnostics and fault detection
-
Hot-swappable for minimal downtime
-
Compact design for efficient cabinet space utilization
-
Seamless integration with DeltaV DCS systems
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | KJ3222X1-BK1 |
| الشركة المصنعة | Emerson |
| Product Type | Analog Input Module |
| System Compatibility | DeltaV Distributed Control System |
| Number من Channels | 8 analog input channels |
| Input Types | Voltage, current, RTD, thermocouple |
| Input Range | ±10 VDC, 0–20 mA, 4–20 mA, standard RTD and TC ranges |
| Resolution | 16-bit digital resolution |
| Accuracy | ±0.1% من span |
| Isolation | Channel-to-channel and channel-to-system isolation |
| Update Rate | 100 ms typical |
| Hot-Swap Capability | Yes |
| Indicators | Status and fault LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Dimensions | 130 × 40 × 160 mm |
| الوزن | 0.5 kg |
| Compliance | CE, UL, RoHS, IEC standards |
Industry Applications
-
Oil & Gas – process variable monitoring for compressors and turbines
-
Petrochemical – temperature, pressure, and flow measurement
-
Power Generation – accurate monitoring من turbine and generator parameters
-
Pharmaceuticals – controlled batch and continuous process measurement
-
Water & Wastewater – sensor input for pumps, motors, and treatment processes
Advantages
-
Provides precise and reliable analog measurements
-
الدعمs multiple sensor types and ranges
-
Integrated diagnostics enhance system reliability
-
Hot-swappable for uninterrupted operation
-
Compact and rugged design for industrial environments
الأسئلة الشائعة (FAQ)
Q1: What is the function من the KJ3222X1-BK1?
It acquires analog signals from field sensors for DeltaV DCS monitoring and control.
Q2: How many channels are available?
The module provides 8 analog input channels.
Q3: What types من signals can it process?
It can process voltage, current, RTD, and thermocouple signals.
Q4: What is the resolution من the inputs?
The module has a 16-bit resolution for high-accuracy measurements.
Q5: Can it be hot-swapped?
Yes, it supports hot-swapping without shutting down the system.
Q6: What is the accuracy rating?
±0.1% من full-scale span.
Q7: What is the typical update rate?
The module updates measurements approximately every 100 ms.
Q8: What is the operating temperature range?
0 °C to +60 °C.
Q9: How is the module installed?
It is installed in DeltaV I/O racks or terminals.
Q10: What standards does it comply with?
It complies with CE, UL, RoHS, and IEC standards.
