مقدمة المنتج

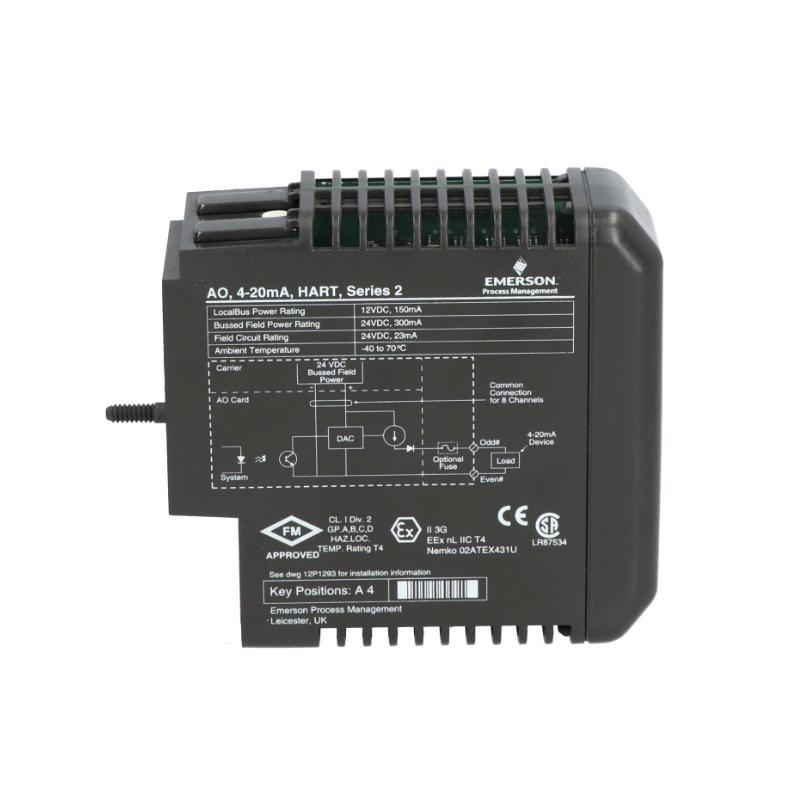

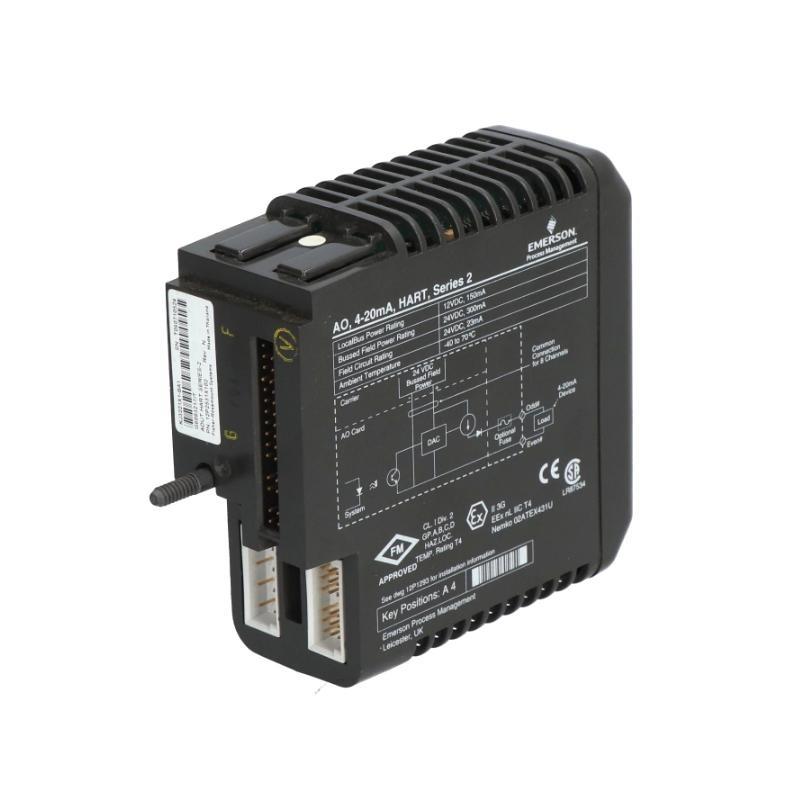

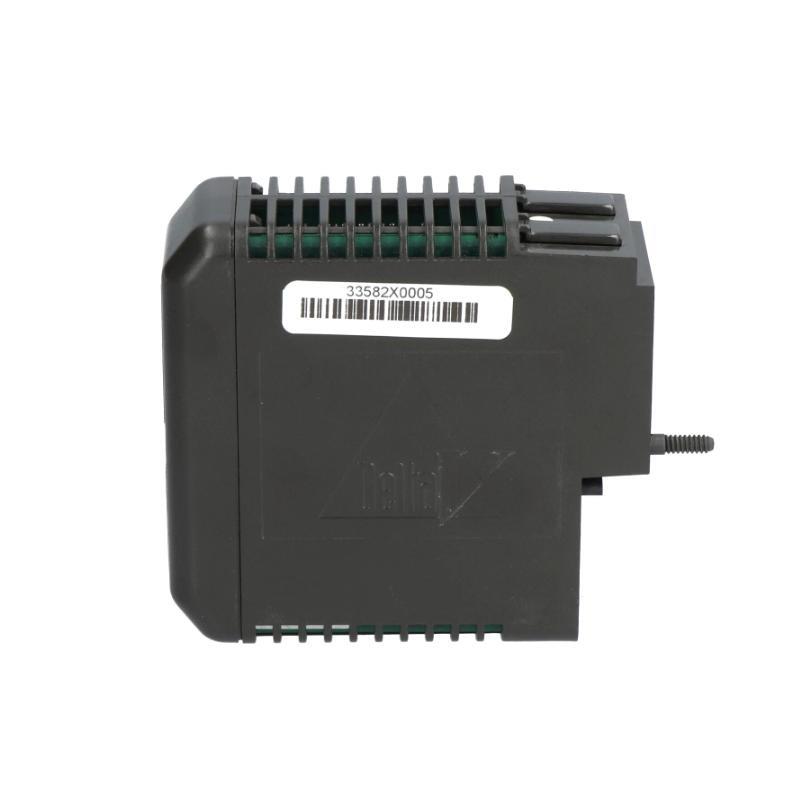

The Emerson KJ3221X1-BA1 12P2531X102 VE4035S2B1 Analog Output Module is a high-precision module designed for the Emerson DeltaV distributed control system (DCS). It provides reliable and accurate analog signal outputs to control valves, actuators, and other field devices in industrial automation processes. The module converts control commands from the DeltaV controller into precise analog signals, ensuring seamless and accurate execution من process control strategies.
With advanced diagnostics, robust isolation, and stable output characteristics, the KJ3221X1-BA1 is optimized for demanding industrial environments such as power generation, oil & gas, chemical processing, and large-scale manufacturing. It is engineered to maintain consistent performance, reduce system downtime, and enable safe, efficient operation من critical plant equipment.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | KJ3221X1-BA1 |
| رقم القطعة | 12P2531X102 |
| Alternate Part | VE4035S2B1 |
| الشركة المصنعة | Emerson |
| Series | DeltaV Control System |
| Function | Analog Output Module |
| Output Channels | 8 isolated analog output channels |
| Output Signal Range | 0–20 mA, 4–20 mA configurable |
| Resolution | 12-bit DAC per channel |
| Output Accuracy | ±0.05% من span |
| Update Rate | 50 ms per channel typical |
| Load Impedance | 0–750 Ω |
| Isolation Voltage | 1500V RMS between field and control circuits |
| Diagnostics | Channel fault detection, loop supervision, self-test |
| Power Supply Voltage | 24V DC nominal |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack mounted |
| Compliance | CE, UL, RoHS |
| Dimensions (H×W×D) | 107 x 41 x 105 mm |
| الوزن | 0.231 kg |
Product Applications
-
Valve and Actuator Control: Provides precise current signals to modulate control valves and actuators in industrial plants.
-
Process Automation Systems: Converts digital control outputs into analog signals for real-time process adjustments.
-
Power Generation Plants: Controls turbine and generator equipment requiring accurate analog signal outputs.
-
Oil & Gas Industry: Interfaces with field devices in refineries, pipelines, and منfshore platforms.
-
Chemical and Petrochemical Plants: Maintains accurate process control in hazardous industrial environments.
-
Manufacturing Automation: Provides analog control for motors, drives, and process equipment.
Product Advantages
-
High Precision Output: 12-bit resolution ensures accurate analog signal generation.
-
Advanced Diagnostics: Built-in loop supervision and channel fault detection for reliable operation.
-
Flexible Configuration: الدعمs both 0–20 mA and 4–20 mA signal ranges to meet application needs.
-
Robust Isolation: 1500V RMS isolation enhances safety and prevents electrical interference.
-
Fast Response: Low update latency ensures real-time control in critical applications.
-
Seamless Integration: Designed specifically for Emerson DeltaV systems for easy deployment and configuration.
FAQ
-
How many analog output channels does the KJ3221X1-BA1 provide?
It provides 8 isolated analog output channels. -
What signal ranges are supported by the module?
The outputs can be configured for either 0–20 mA or 4–20 mA current signals. -
What is the typical resolution من the analog outputs?
Each channel features a 12-bit digital-to-analog converter (DAC). -
Does the module منfer galvanic isolation?
Yes, it provides 1500V RMS isolation between field wiring and the control system. -
What type من diagnostic features are integrated into the KJ3221X1-BA1?
It includes channel fault detection, loop supervision, and internal self-test functionality. -
What is the maximum load impedance supported by the outputs?
The module can drive loads up to 750 Ω. -
Can the analog outputs be individually configured?
Yes, each channel can be independently configured for the desired current range. -
What is the typical update rate for the analog signals?
The module updates each channel approximately every 50 ms. -
Is the KJ3221X1-BA1 compatible with redundant DeltaV architectures?
Yes, it integrates seamlessly into redundant DeltaV systems for high-availability applications. -
Does the module include built-in loop supervision?
Yes, it continuously monitors the output loops to detect open or short circuit conditions.
