مقدمة المنتج

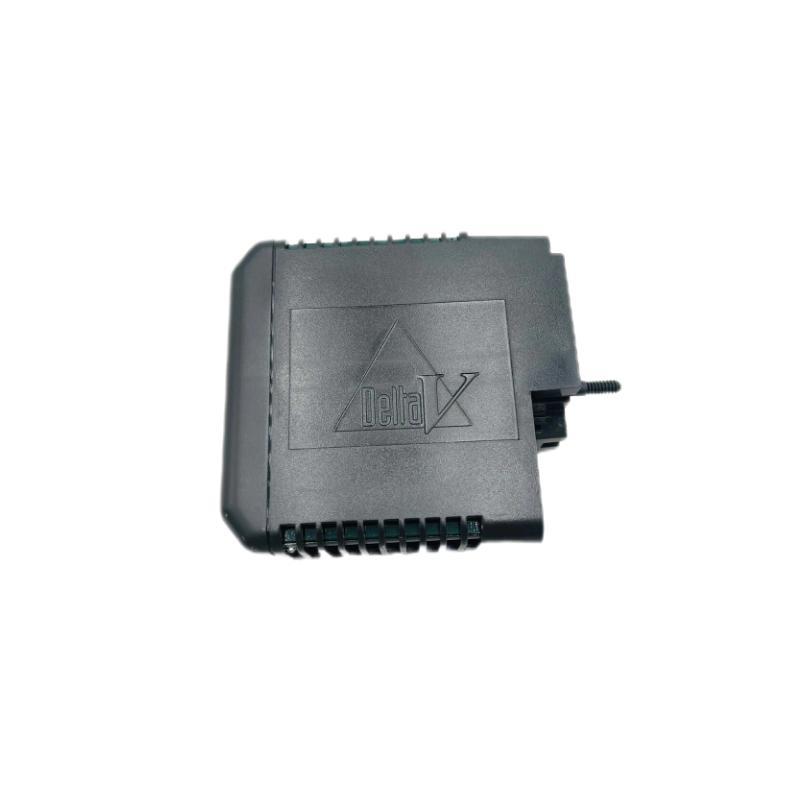

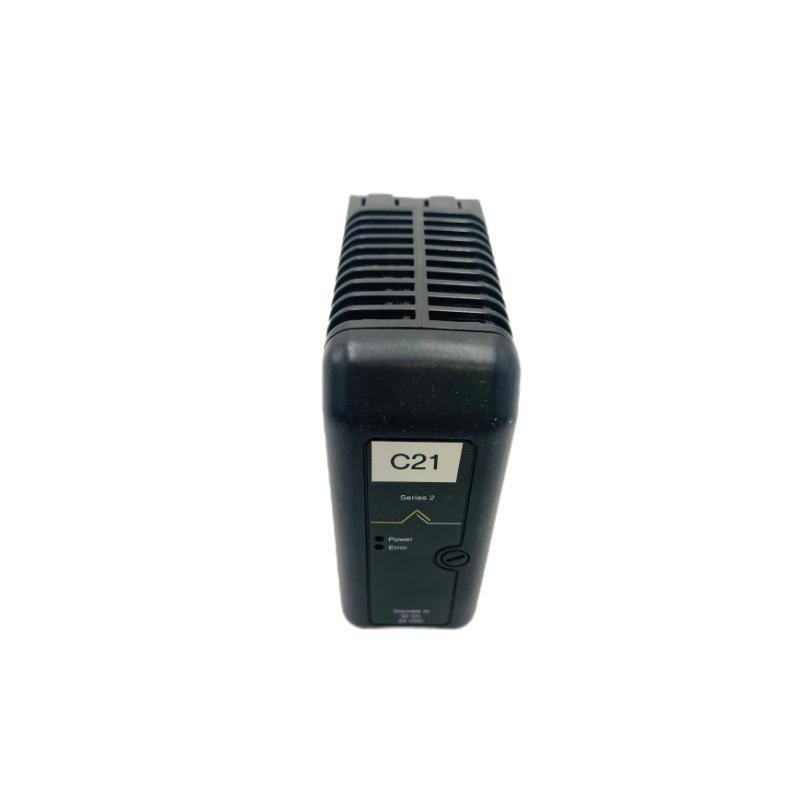

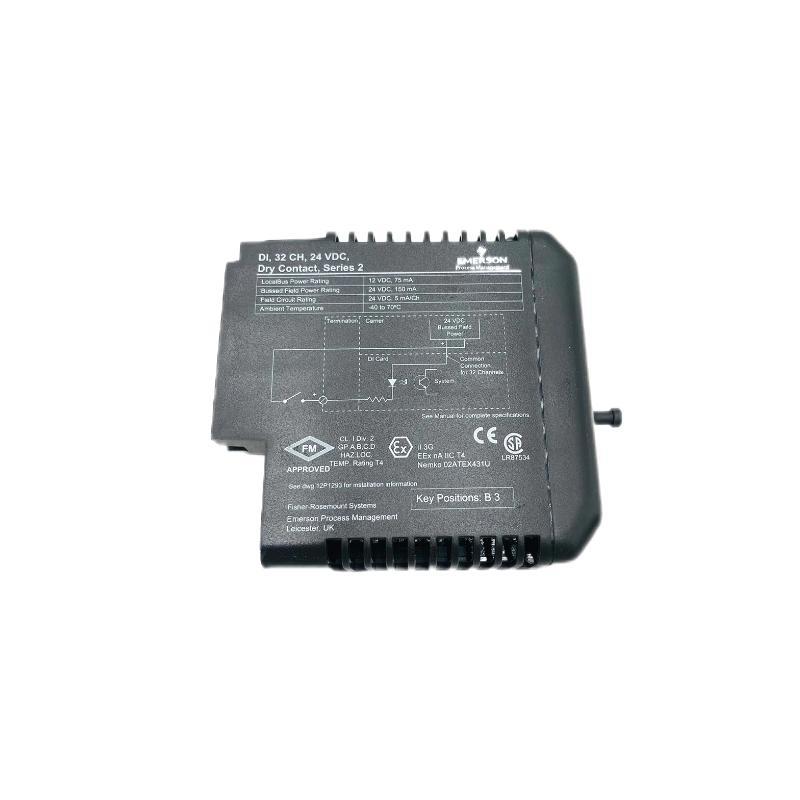

The Emerson KJ3203X1-BA1 is a high-performance Digital Input Module designed for use with Emerson’s DeltaV™ Distributed Control System (DCS). This module is engineered to provide reliable digital signal input to the control system, supporting a variety من industrial automation applications. The KJ3203X1-BA1 module is ideal for situations where accurate and responsive digital input data is critical for controlling processes such as safety systems, alarms, and monitoring equipment.
This module منfers robust diagnostics, high-speed performance, and easy integration into existing DeltaV™ systems, making it a perfect choice for industries that demand high reliability and precision.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Type | Digital Input Module |
| الطراز Number | KJ3203X1-BA1 |
| System Compatibility | Emerson DeltaV™ DCS |
| Number من Input Channels | 16 |
| Input Type | Digital (Discrete) |
| Input Voltage Range | 24 VDC nominal |
| Input Current per Channel | 5 mA (max) |
| Channel Isolation | Channel-to-channel and channel-to-bus isolation |
| Mounting Type | Plug-in for DeltaV™ I/O carriers |
| Diagnostics | Onboard diagnostics with LED indicators for each channel |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 120 x 45 x 130 mm |
| الوزن | 0.132 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Product Applications
The KJ3203X1-BA1 Digital Input Module is versatile and can be used across a variety من industries, including:
-
Chemical and Petrochemical Plants: Managing and monitoring emergency shutdown systems, pumps, and valves.
-
Oil and Gas Industry: Providing input for control systems in drilling rigs, pipelines, and refineries.
-
Power Generation Facilities: Monitoring digital sensors and controlling circuit breakers and turbine systems.
-
Water Treatment Plants: Input for controlling pumps, alarms, and filtration systems.
-
Food and Beverage Manufacturing: Automating packaging lines and controlling processing equipment.
-
Pharmaceutical Manufacturing: Providing critical input to pharmaceutical production and monitoring systems.
Product Advantages
-
High Reliability: Built to operate continuously in demanding environments, ensuring minimal downtime.
-
Integrated Diagnostics: Provides real-time diagnostics, helping to identify issues quickly and reduce troubleshooting time.
-
Easy Integration: Compatible with other Emerson DeltaV™ control systems for simple integration and scalability.
-
Channel-to-Channel Isolation: Each input is isolated from the others, preventing electrical interference and ensuring data integrity.
-
Fast Response Time: الدعمs high-speed digital signal input, making it ideal for applications where timely data is critical.
-
Safety Standards Compliance: Meets international safety certifications such as ATEX and IECEx, suitable for use in hazardous environments.
-
Compact Design: Space-saving design makes it suitable for tight panel spaces without compromising on performance.
الأسئلة الشائعة (FAQ)
-
Q: What is the primary function من the KJ3203X1-BA1 module?
A: It serves as a digital input module, receiving digital signals from field devices and providing those signals to the DeltaV™ control system. -
Q: How many input channels does the module have?
A: The module has 16 digital input channels. -
Q: What voltage is supported for input signals?
A: The module operates with a nominal input voltage من 24 VDC. -
Q: How much current does each input channel handle?
A: Each input channel handles a maximum current من 5 mA. -
Q: Can the KJ3203X1-BA1 be used in hazardous environments?
A: Yes, the module is certified for use in hazardous environments, with ATEX and IECEx certifications. -
Q: Does the module support diagnostics?
A: Yes, it includes onboard diagnostics with LED indicators for each input channel, making troubleshooting easier. -
Q: What is the temperature range for operating the module?
A: The operating temperature range is from 0°C to 60°C. -
Q: What type من mounting is used for this module?
A: The module is designed as a plug-in وحدة for DeltaV™ I/O carriers. -
Q: What is the size من the KJ3203X1-BA1 module?
A: The module measures 120 x 45 x 130 mm. -
Q: Is the KJ3203X1-BA1 compatible with other Emerson control systems?
A: Yes, it is compatible with the Emerson DeltaV™ system and can be integrated easily into existing setups.
