Product Overview

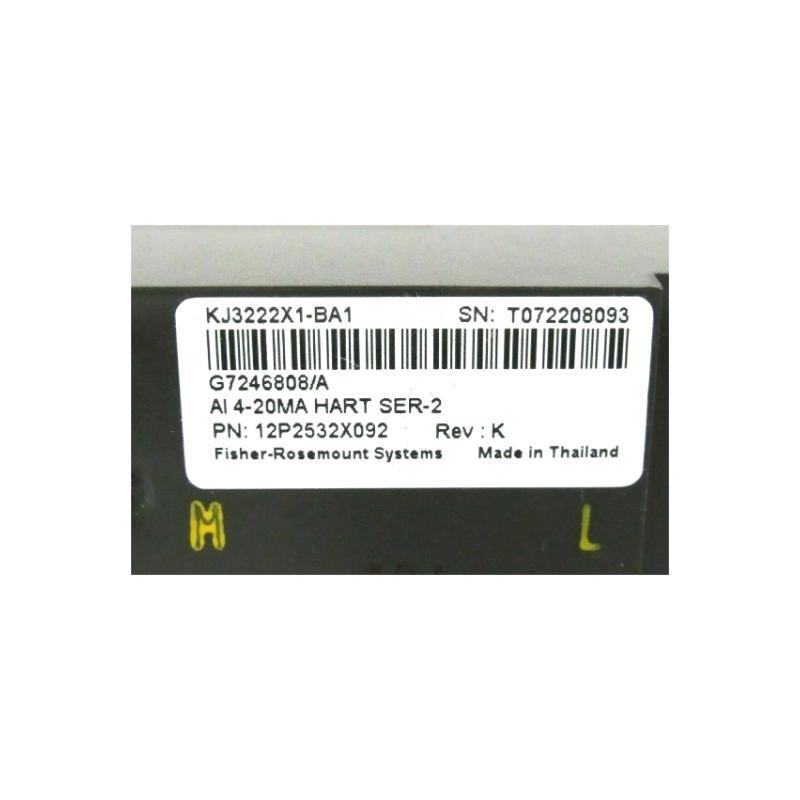

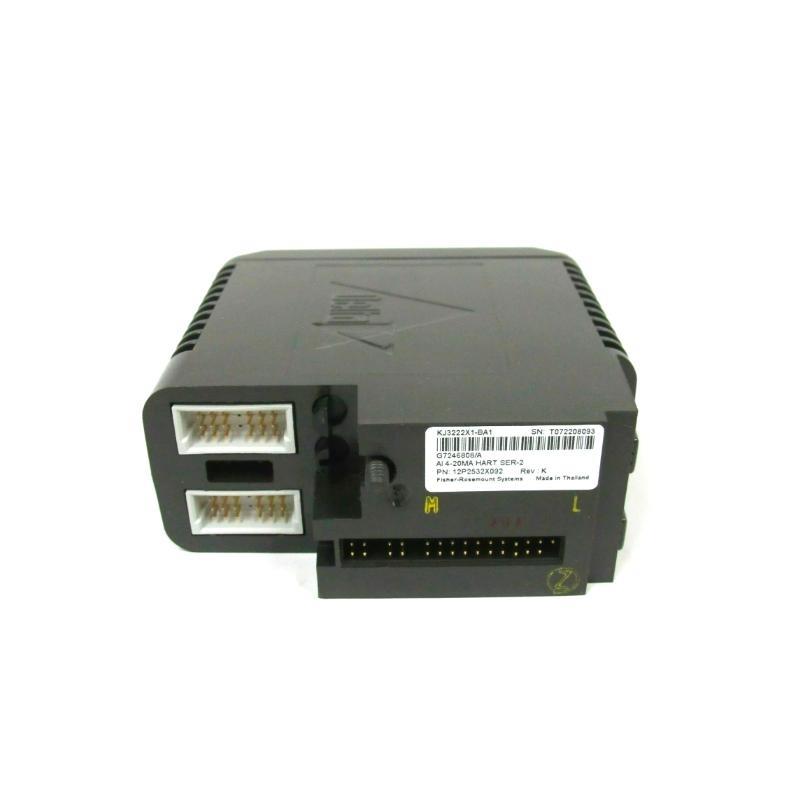

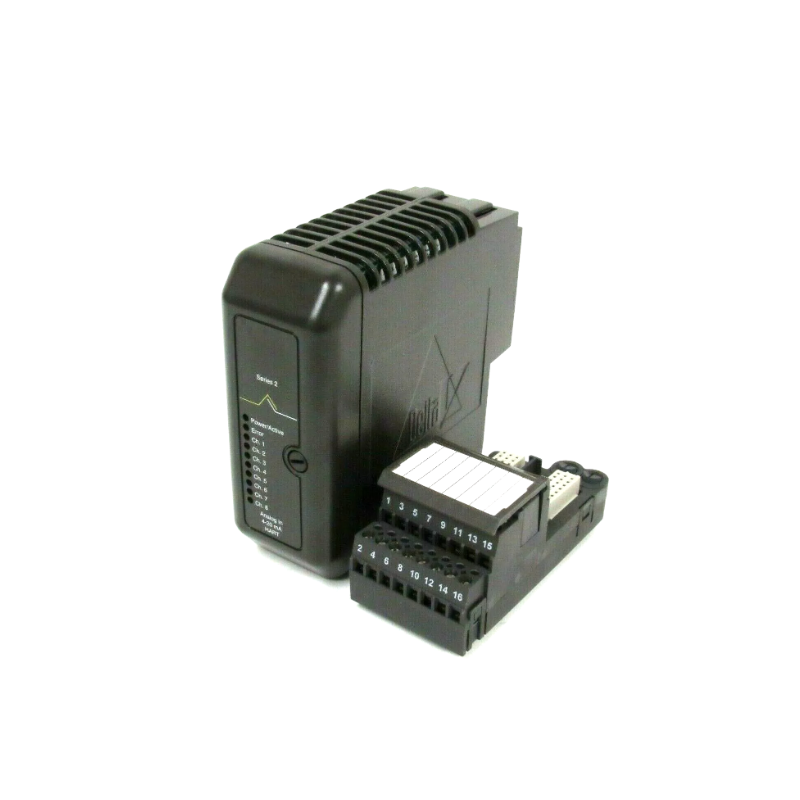

The Emerson 12P2532X092 KJ3222X1-BA1 Analog Input Module is an 8-channel device designed to convert analog signals from field instruments into digital data for processing within the DeltaV control system. This module is integral to the DeltaV M-Series Traditional I/O system, ensuring precise data acquisition and seamless integration for enhanced process control.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 12P2532X092 KJ3222X1-BA1 |
| Number من Channels | 8 |
| Input Signal Range | 4-20 mA |
| Communication Protocol | HART |
| Local Bus Power | 12 VDC at 150 mA |
| Bussed Field Power | 24 VDC at 300 mA |
| Field Circuit Rating | 24 VDC at 30 mA per channel |
| Ambient Temperature | -40 °C to +70 °C |
| Shock Resistance | 10 g half-sine wave for 11 ms |
| Vibration Resistance | 1 mm peak-to-peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz |
| Airborne Contaminants | ISA-S71.04-1985 Class G3 |
| Relative Humidity | 5% to 95% Non-Condensing |
| Dimensions (W x H x D) | 80 x 120 x 25 mm |
| الوزن | 0.18 kg |
Product Applications
The KJ3222X1-BA1 Analog Input Module is utilized across various industries for precise analog signal acquisition. Its applications include:
-
Process Control Systems: Capturing data from sensors to monitor and control industrial processes.
-
Remote Monitoring: Collecting data from field instruments in remote locations for centralized analysis.
-
Data Logging: Recording analog signals for historical analysis and regulatory compliance.
-
Automation Systems: Integrating with PLCs and DCSs to automate industrial operations.
Product Advantages
-
High Accuracy: Ensures precise measurement من analog signals, leading to reliable process control.
-
HART Compatibility: الدعمs HART protocol, enabling enhanced communication with smart field devices.
-
Robust Design: Built to withstand harsh industrial environments, ensuring durability and longevity.
-
Seamless Integration: Easily integrates with the DeltaV system, providing a unified control platform.
-
Scalability: Allows for expansion من input channels as system requirements grow.
Recent News Headlines
-
“Emerson Introduces Enhanced Analog Input Module for Improved Process Automation”
-
“New Features in Emerson’s KJ3222X1-BA1 Module Boost Industrial Efficiency”
-
“Emerson’s Latest Analog Input Module Receives Industry Acclaim for Performance”
الأسئلة الشائعة (FAQ)
-
What is the primary function من the KJ3222X1-BA1 Analog Input Module?
-
It converts analog signals from field instruments into digital data for processing by the DeltaV control system.
-
-
How many input channels does this module support?
-
It supports 8 analog input channels.
-
-
What type من input signals does the module accept?
-
It is configured for 4-20 mA signals, commonly used in industrial process control.
-
-
Is the module compatible with HART protocol devices?
-
Yes, it supports HART communication for enhanced device interaction.
-
-
What are the environmental operating conditions for the module?
-
It operates within a temperature range من -40 °C to +70 °C and 5% to 95% non-condensing humidity.
-
-
Can the module withstand industrial shock and vibration?
-
Yes, it is designed to resist 10 g shock and vibrations up to 0.7 g.
-
-
What are the power requirements for the module?
-
It requires 12 VDC at 150 mA for local bus power and 24 VDC at 300 mA for bussed field power.
-
-
How does the module integrate with the DeltaV system?
-
It seamlessly integrates, allowing for unified control and monitoring within the DeltaV architecture.
-
-
What certifications does the module have for hazardous environments?
-
It complies with certifications such as II 3 G Ex nA [ic] IIC Gc and FM13ATEX0034U.
-
-
Is the module suitable for use in environments with airborne contaminants?
-
Yes, it meets ISA-S71.04-1985 Class G3 standards for airborne contaminants.
-
Related الطرازs in the Same Series or Similar الطرازs
| الطراز Number | الوصف |
|---|---|
| KJ3222X1-BA2 | 16-Channel Analog Input Module, 4-20 mA, HART |
| KJ3223X1-BA1 | 8-Channel Analog Output Module, 4-20 mA |
| KJ3224X1-BA1 | 8-Channel Digital Input Module, 24 VDC |
| KJ3225X1-BA1 | 8-Channel Digital Output Module, 24 VDC |
| KJ3226X1-BA1 | 16-Channel Thermocouple Input Module |
| KJ3227X1-BA1 | 16-Channel RTD Input Module |
| KJ3228X1-BA1 | 8-Channel Pulse Input Module |
| KJ4001X1-BA2 | High-Density Analog Input Module, HART Compatible |
