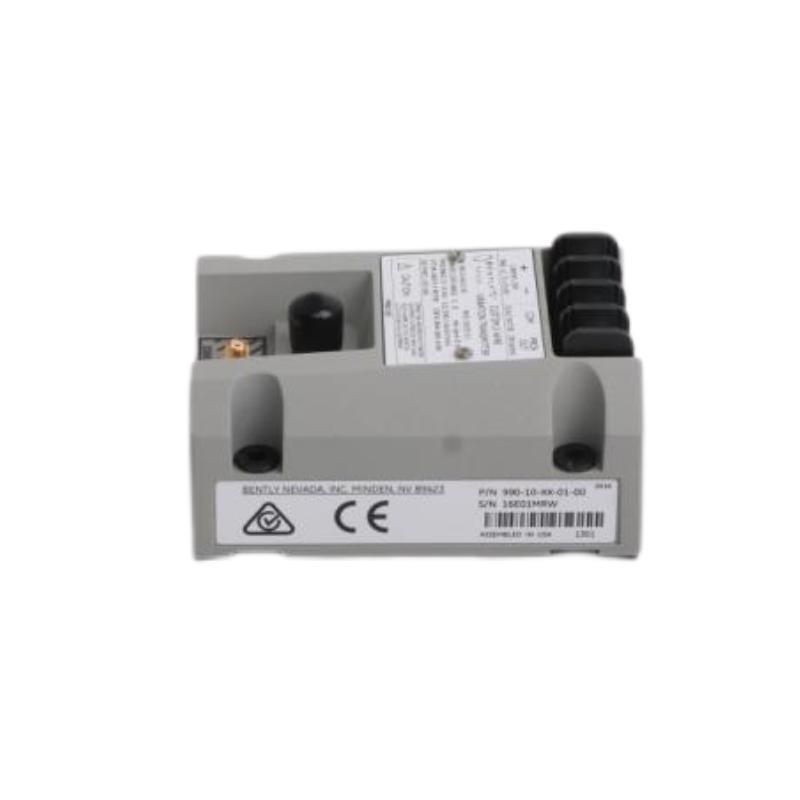

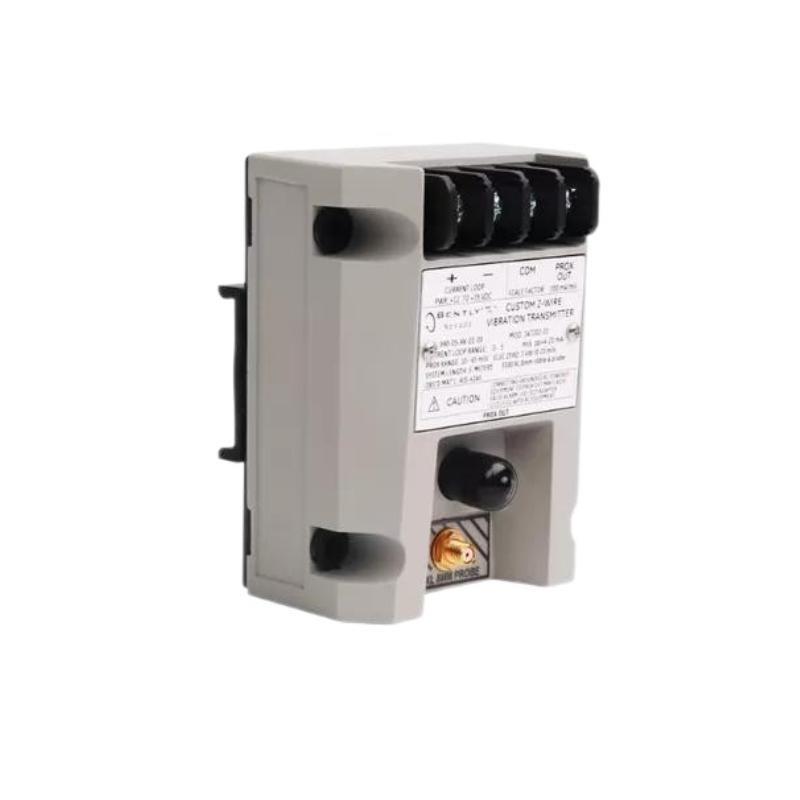

Product Overview
The Bently Nevada 990-05-XX-01-00 Vibration Transmitter is a two-wire, loop-powered transmitter designed to provide continuous machinery vibration monitoring. It integrates with a 3300 NSv proximity probe and extension cable to measure shaft vibration and converts the signal into a 4–20 mA output for control and monitoring systems.
Key Features
-
2-wire, loop-powered vibration transmitter design
-
4–20 mA output proportional to vibration amplitude
-
Integrated signal conditioning for proximity probe inputs
-
PROX OUT diagnostic output for vibration and gap signal access
-
Zero and span potentiometers for easy calibration
-
Built-in “Not OK” and signal defeat circuitry for probe failure detection
-

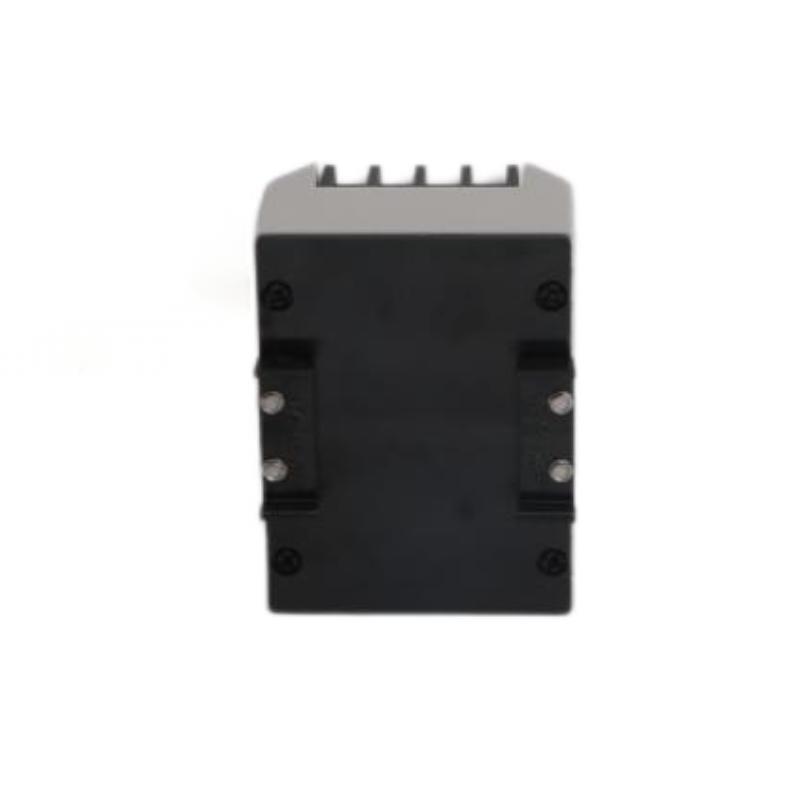

DIN-rail or bulkhead mounting options
-
Rugged potted construction for harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Bently Nevada |
| رقم القطعة | 990-05-XX-01-00 |
| Product Type | Two-wire vibration transmitter |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| الوزن | 0.43 kg |
| Power Supply | +12 to +35 V DC |
| Output | 4–20 mA proportional to vibration |
| Vibration Range | 0–5 mils peak-to-peak (~0–125 µm) |
| Frequency Response | 5 Hz to 6,000 Hz (-0, +3 dB) |
| Loop Accuracy | ±1.5% over full scale |
| Max Loop Resistance | 1,000 Ω (at 35 V DC) |
| Probe Gap | 0.5 to 1.75 mm recommended |
| Minimum Target Size | 9.5 mm (0.375 in) diameter |
| Operating Temperature – Transmitter | –35 °C to +85 °C |
| Operating Temperature – Probe | –52 °C to +177 °C |
| Relative Humidity | 0–100%, condensing |
| Mounting Options | 35 mm DIN rail or bulkhead screw mounting |
Industry Applications
-
Pumps and compressors
-
Electric motors and generators
-
Industrial fans and blowers
-
OEM equipment protection
-
Oil & gas and petrochemical plants
-
Power generation facilities
-
General process machinery vibration monitoring
الأسئلة الشائعة (FAQ)
Q1: What does the “05” in 990-05-XX-01-00 mean?
It indicates that the transmitter has a vibration measurement range من 0–5 mils peak-to-peak.
Q2: What does the “XX” in the part number represent?
It defines the total system length, including probe and extension cable.
Q3: What type من probes are compatible with this transmitter?
It is designed to operate with the 3300 NSv proximity probe and extension cables.
Q4: Can this transmitter provide dynamic vibration signals?
Yes, through the PROX OUT diagnostic output.
Q5: How is the transmitter powered?
It is loop-powered using a +12 to +35 V DC supply.
Q6: What happens if the probe becomes disconnected?
The transmitter drives its output below 3.6 mA, indicating a “Not OK” condition.
Q7: Can it be mounted on DIN rail?
Yes, it supports both DIN rail and bulkhead mounting.
Q8: What is the operating frequency response?
It covers 5 Hz to 6,000 Hz (-0, +3 dB).
Related Bently Nevada Modules
| الطراز | الوصف |
|---|---|
| 990-08-XX-01-00 | Vibration transmitter with 0–8 mils range |
| 990-10-XX-01-00 | Vibration transmitter with 0–10 mils range |
| 990-20-XX-01-00 | Extended range vibration transmitter |
| 122115-01 | Test adapter for PROX OUT signals |
| 3300 NSv Probe | Compatible proximity probe |
| 330130 Extension Cable | Required extension between probe and transmitter |
Popular Bently Nevada Modules
| الطراز | الوصف |
|---|---|
| 3500/42M | Vibration monitoring module |
| 3500/91 | Communication interface module |
| 330104 XL Probe | 8 mm proximity probe |
| 330708 XL Probe | 11 mm proximity probe |
| 330130 Extension Cable | Standard extension cable |
| 330330 Proximitor | Alternative proximitor sensor |
