مقدمة المنتج

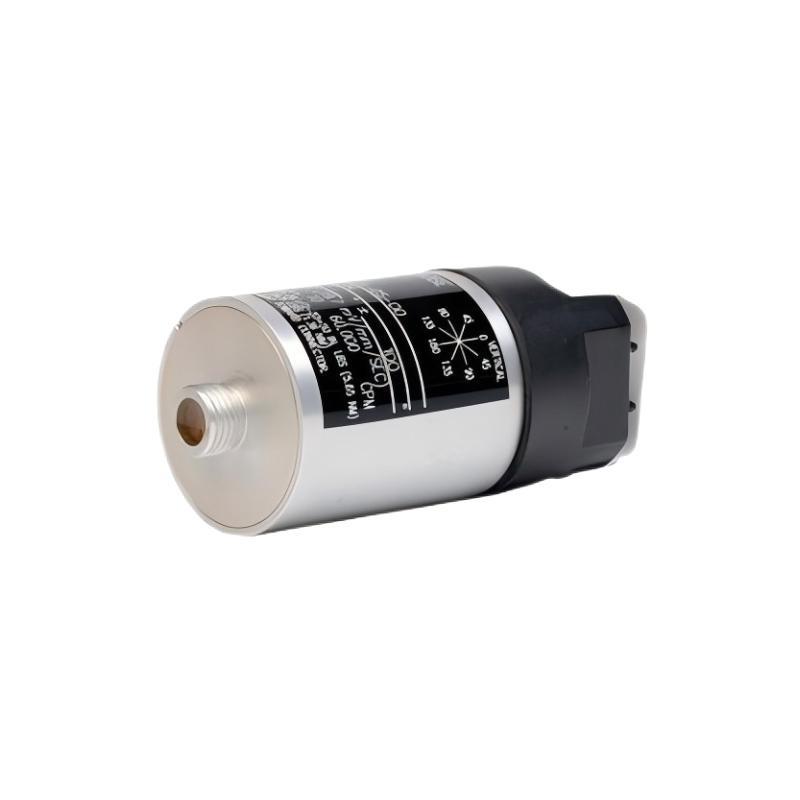

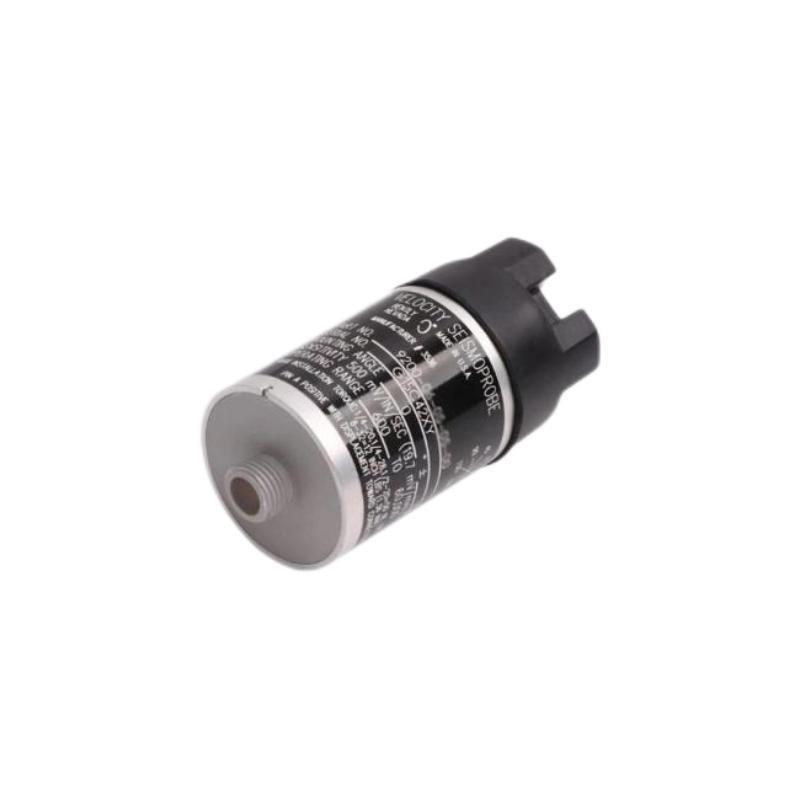

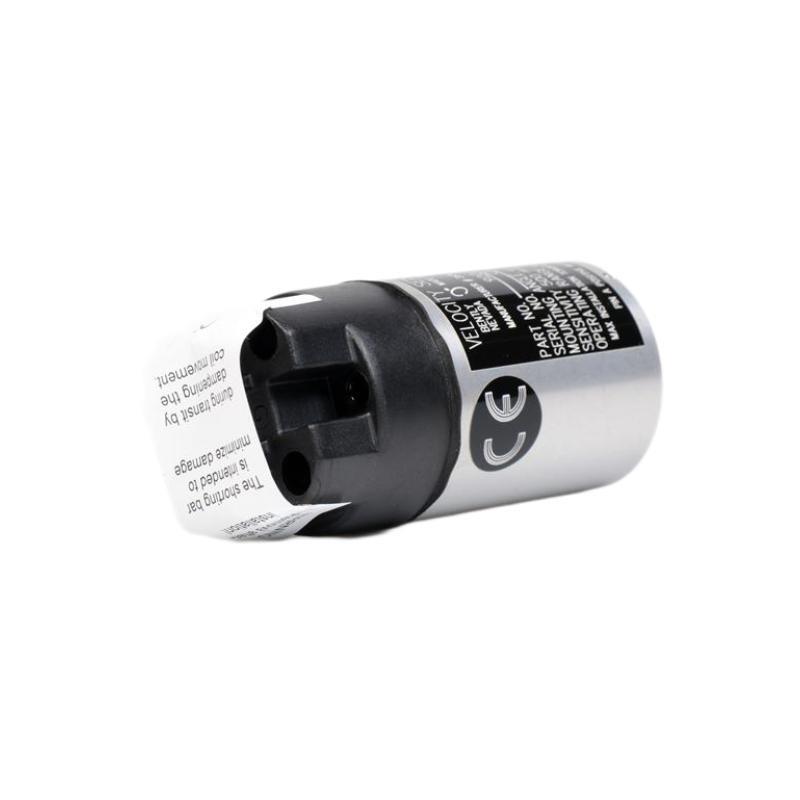

The Bently Nevada 9200-06-05-10-00 Dual-line Velocity Seismic Sensor is a precision monitoring device engineered to measure absolute vibration levels من industrial machinery. It is widely used in condition monitoring and predictive maintenance systems, ensuring reliable operation and minimizing unplanned downtime. This sensor is designed to deliver accurate vibration readings even in demanding environments, supporting machinery protection systems by detecting early signs من imbalance, misalignment, and mechanical looseness.
Built for heavy-duty applications, the 9200 series seismic sensor integrates seamlessly into Bently Nevada monitoring systems, making it a trusted solution for industries such as power generation, oil & gas, and heavy manufacturing.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | Bently Nevada 9200-06-05-10-00 Dual-line Velocity Seismic Sensor |
| Measurement Range | ±50 mm/s (peak velocity, depending on configuration) |
| Frequency Response | 4.5 Hz to 1,000 Hz (nominal) |
| Sensitivity | 20 mV/mm/s (±5%) |
| Output Signal | Dual-line, proportional to vibration velocity |
| Operating Temperature | -29 °C to +100 °C |
| Storage Temperature | -40 °C to +120 °C |
| Mounting Method | Stud mount (M6 or equivalent) |
| Electrical Connector | Two-wire system, hermetically sealed |
| Case Material | Stainless Steel |
| Power Supply | Self-generated (seismic, no external power required) |
| Sensor head diameter | 41.4mm |
| الوزن | 0.3 kg |
Product Applications
The 9200-06-05-10-00 is used extensively across multiple industries where reliable machinery monitoring is critical.
-
Power Generation: Monitoring vibration on turbines, compressors, and auxiliary equipment.
-
Oil & Gas: الحالة monitoring من pumps, compressors, and drilling machinery.
-
Heavy Manufacturing: Detecting imbalance and looseness in motors, fans, and conveyors.
-
Petrochemical Industry: Protecting critical rotating machinery to prevent unplanned shutdowns.
-
Steel & Mining: Measuring vibration levels من crushers, mills, and rotating shafts.
-
Aerospace & Defense Testing: High-accuracy vibration detection for structural analysis.
Product Advantages
-
High Reliability: Rugged stainless-steel housing ensures durability under harsh industrial conditions.
-
Accurate Measurement: Provides precise velocity measurements, critical for machinery protection.
-
Maintenance-Free Operation: Self-generating design eliminates need for external power.
-
Broad Compatibility: Seamlessly integrates with Bently Nevada 3500 and 3300 monitoring systems.
-
Wide Frequency Response: Capable من detecting both low- and high-frequency vibrations.
-
Proven Performance: Trusted across industries for over three decades in vibration monitoring.
-
Compact Design: Lightweight and easy to install on a variety من machinery setups.
-
Dual-Line Output: Ensures stable monitoring with redundancy in signal transmission.
الأسئلة الشائعة (FAQ)
Q1: What type من vibration does the Bently Nevada 9200-06-05-10-00 measure?
A1: It measures absolute velocity vibration من machinery casing or structures.
Q2: Can this sensor operate in extreme temperature environments?
A2: Yes, it operates reliably from -29 °C to +100 °C, and can be stored at -40 °C to +120 °C.
Q3: Is external power required for this sensor?
A3: No, it is a self-generating seismic sensor and does not require external power supply.
Q4: How is the sensor typically mounted?
A4: It is mounted using a threaded stud, ensuring firm attachment to the monitored surface.
Q5: What monitoring systems is it compatible with?
A5: It integrates seamlessly with Bently Nevada 3500 and 3300 series machinery monitoring systems.
Q6: What industries use this model most frequently?
A6: It is commonly used in oil & gas, power generation, petrochemical, and heavy manufacturing sectors.
Q7: How does it compare to accelerometers?
A7: Unlike accelerometers, which measure acceleration, this sensor directly measures velocity, making it more suitable for machinery health monitoring.
Q8: What are the main advantages من the dual-line output?
A8: Dual-line output provides redundancy and improved signal integrity in monitoring systems.
Q9: Can it withstand mechanical shocks during operation?
A9: Yes, it is designed to withstand shocks up to 500 g peak without performance degradation.
Q10: What is the Sensor head diameter and weight من this sensor?
A10: 41.4mm and 0.3 kg.
