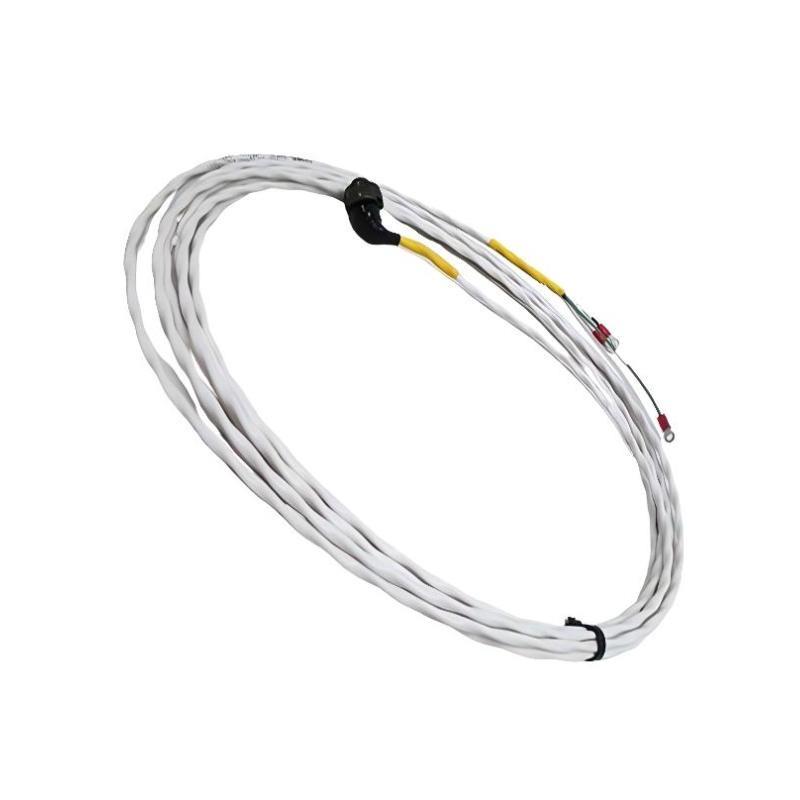

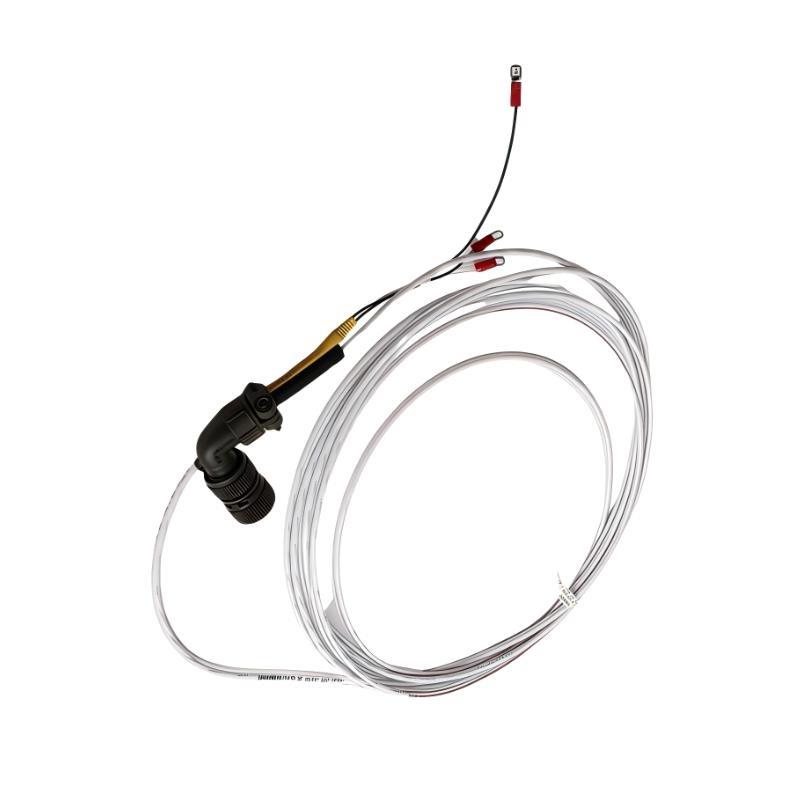

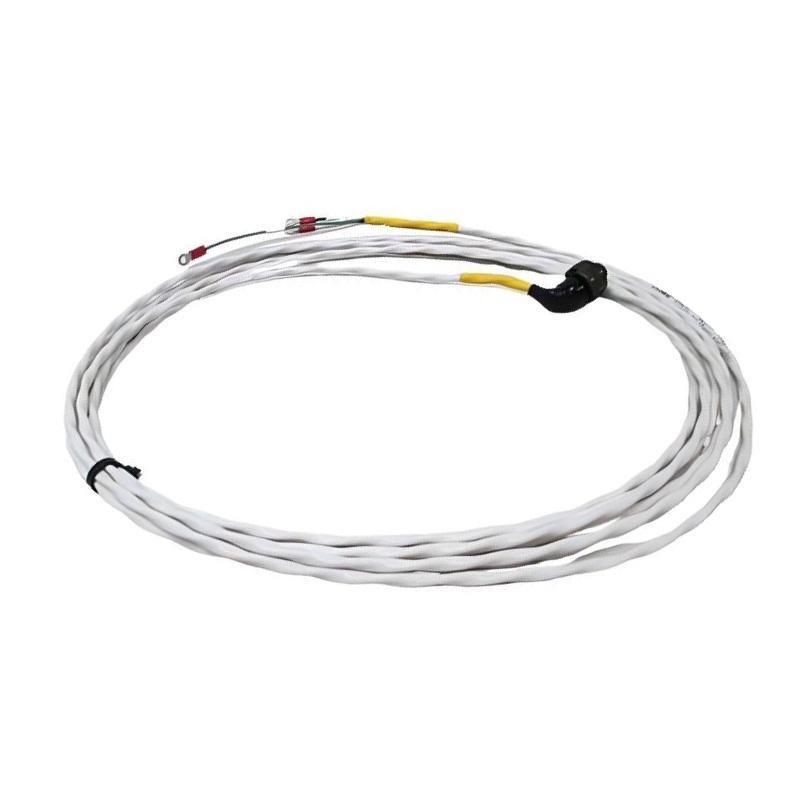

The Bently Nevada 89477-25 Interconnect Cable is a premium-grade interconnection solution engineered to ensure reliable signal transmission between Bently Nevada monitoring systems and associated transducers. Designed to meet stringent industrial standards, this 25-foot cable ensures high performance, superior signal integrity, and long-term durability under demanding environmental conditions. It plays a vital role in vibration monitoring systems by connecting proximity probes, proximitors, and monitoring modules, allowing seamless data communication essential for predictive maintenance and machinery protection.
The cable is constructed using rugged materials with excellent shielding properties to minimize electromagnetic interference (EMI) and signal loss. Its design ensures consistent electrical characteristics, which are critical in dynamic monitoring environments such as turbines, compressors, and industrial rotating machinery. The 89477-25 Interconnect Cable is part من Bently Nevada’s extensive line من reliable connectivity solutions and is widely recognized for its superior quality, mechanical strength, and ease من installation in both standard and harsh environments.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | Bently Nevada 89477-25 |
| Type | Interconnect Cable |
| Cable Length | 25 ft |
| Conductor Material | High-purity copper |
| Insulation Type | Fluoropolymer (Teflon or equivalent) |
| Shielding | Double-layer braid and foil shield for EMI protection |
| Operating Temperature Range | -55°C to +200°C |
| Connector Type | Factory-installed connectors with secure mechanical locking |
| Signal Compatibility | Proximity probes, Proximitor sensors, and vibration monitors |
| Resistance | <10 ohms per 1000 ft |
| Capacitance | 35 pF/ft nominal |
| Voltage Rating | 300V RMS maximum |
| Bend Radius | 50 mm minimum |
| Environmental Protection | Oil-resistant, UV-resistant, and flame-retardant jacket |
| Certifications | CE, RoHS compliant |
| الشحن الوزن | 3 kg |
Applications
The Bently Nevada 89477-25 Interconnect Cable is designed for industrial use in systems where high-fidelity signal transmission is required for accurate vibration and condition monitoring.
Its key applications include:
-
Turbine monitoring systems (steam and gas)
-
Compressor vibration measurement
-
Generator and motor shaft condition analysis
-
Pumps and fan monitoring in process industries
-
Integration with 3300 and 3500 Bently Nevada series monitoring systems
-
Custom installations requiring shielded signal transmission in harsh conditions
The cable’s robust design ensures reliable operation in environments subject to vibration, heat, oil exposure, and electrical noise.
Product Advantages
-
High Signal Integrity: Advanced shielding minimizes noise interference and signal degradation.
-
Rugged Construction: Withstands harsh industrial conditions such as temperature extremes and mechanical stress.
-
Ease من Installation: Flexible and durable design ensures straightforward routing and connection.
-
Reliable Compatibility: Fully compatible with Bently Nevada vibration monitoring systems and transducers.
-
Long Service Life: Built using high-grade materials to ensure long-term performance without frequent replacement.
-
Enhanced Safety: Complies with international electrical and safety standards.
-
Maintenance Efficiency: Reduces downtime by ensuring consistent signal performance for accurate diagnostics.
FAQ
-
What type من connectors are used in the 89477-25 cable?
The cable is equipped with precision-engineered connectors featuring secure mechanical locking, ensuring reliable contact and minimizing signal loss during operation. -
Can this cable be used with non-Bently Nevada sensors?
While optimized for Bently Nevada systems, it can be used with compatible sensors following proper impedance matching and connection configuration. -
How is electromagnetic interference reduced in this cable?
The 89477-25 uses a dual-layer shield (foil and braided copper) to block external EMI and maintain clean signal transmission even in high-noise environments. -
Is the cable suitable for high-temperature industrial areas?
Yes, the cable operates effectively within a temperature range من -55°C to +200°C, making it ideal for use near turbines and other heat-generating equipment. -
What is the recommended bend radius during installation?
A minimum bend radius من 50 mm is recommended to prevent mechanical stress and maintain internal conductor integrity. -
Can the cable be customized to a different length?
Yes, Bently Nevada منfers this cable series in various standard and custom lengths to meet different installation requirements. -
Is the 89477-25 cable resistant to oil and chemical exposure?
The cable features a special jacket formulation that is resistant to oils, industrial chemicals, and UV exposure for enhanced durability. -
What signal types can this cable transmit?
It supports low-level analog vibration and displacement signals typically used in proximity and vibration monitoring systems. -
Does the cable require periodic maintenance?
Generally, no routine maintenance is required; however, periodic inspection for mechanical wear or connector corrosion is recommended in harsh environments. -
Can the cable be routed alongside power cables?
It is not recommended. To maintain signal quality, the cable should be routed separately from high-voltage power lines to prevent electromagnetic coupling.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف |
|---|---|
| 89477-15 | Interconnect Cable, 15 ft length |
| 89477-50 | Interconnect Cable, 50 ft length |
| 89477-10 | Interconnect Cable, 10 ft length |
| 89477-30 | Interconnect Cable, 30 ft length |
| 89477-05 | Interconnect Cable, 5 ft length |
| 89477-100 | Interconnect Cable, 100 ft length |
