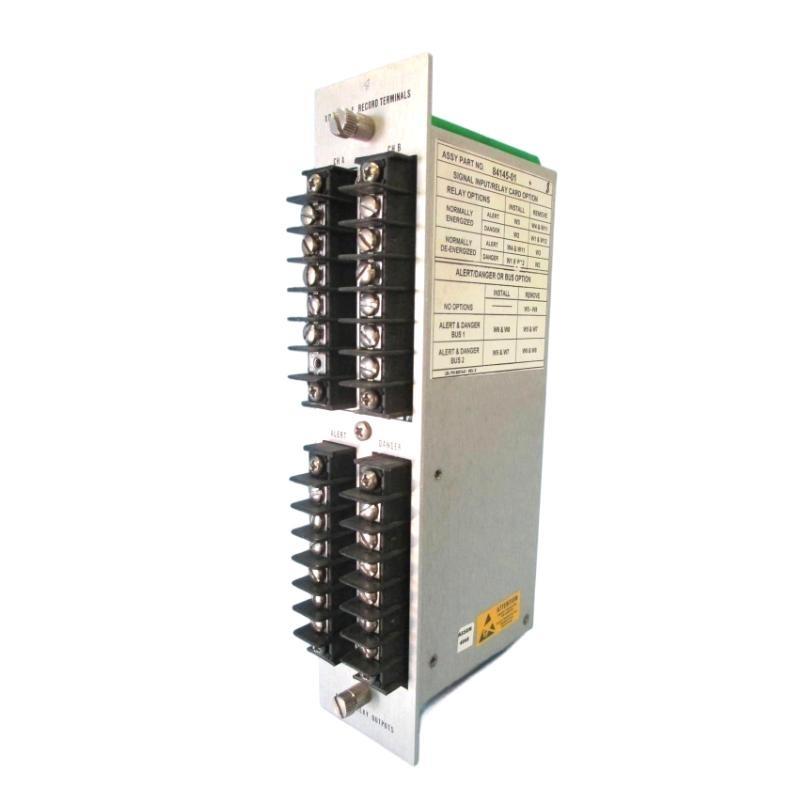

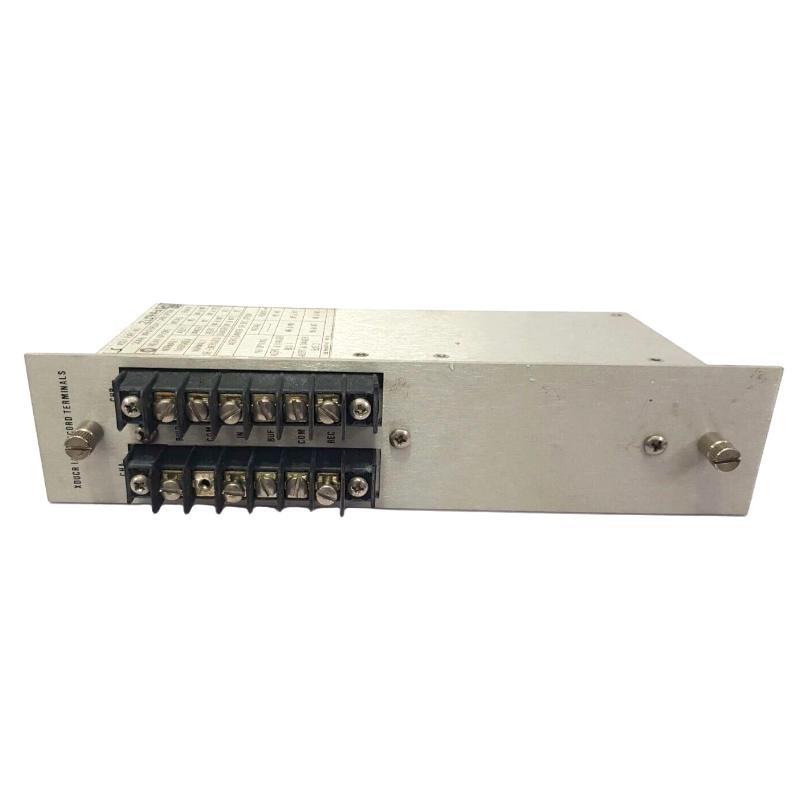

The Bently Nevada 84145-01 / 78462-01 XDCR I/O and Record Terminal is a specialized interface module designed for advanced machinery protection and condition monitoring systems. Serving as a critical bridge between transducers (XDCR) and the monitoring rack, this module provides secure signal termination, conditioning, and routing for a variety من sensor inputs, such as proximity probes, velocity sensors, and accelerometers. By delivering reliable signal integrity and simplified field wiring, the 84145-01 / 78462-01 ensures precise data acquisition for Bently Nevada monitoring platforms like the 3500 series. Its rugged construction and noise-resistant design make it ideal for demanding industrial environments, supporting accurate recording and diagnostics من rotating equipment.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | 84145-01 / 78462-01 |
| Type | XDCR I/O and Record Terminal |
| Input Channels | الدعمs multiple transducer signal inputs |
| Signal Type | Proximity probe, velocity, and accelerometer signals |
| Input Voltage Range | ±24 VDC maximum (sensor supply) |
| Output | الحالةed signals to monitoring rack |
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Isolation | Channel-to-channel and channel-to-ground isolation |
| Connection Type | Removable terminal blocks with screw clamp |
| Noise Immوحدةy | >60 dB common-mode rejection |
| Protection | Over-voltage and reverse-polarity protection |
| Dimensions | 51 x 102 x 229 mm |
| الوزن | 0.35 kg |
| Mounting | Direct rack insertion or DIN rail adapter |
| Certification | CE, UL, RoHS compliant |
| Status Indication | Front-panel LED for input and output status |
Applications
The 84145-01 / 78462-01 XDCR I/O and Record Terminal is used wherever reliable transducer signal management and recording are essential:
-
Power Generation Plants: Interfaces proximity probes and velocity sensors for turbines, generators, and auxiliary equipment.
-
Oil & Gas Facilities: Provides secure and noise-free transducer connections for compressors, pumps, and منfshore platforms.
-
Petrochemical Industry: Records and routes critical sensor signals in refineries and chemical process وحدةs.
-
Steel and Mining Operations: Handles transducer signals for large motors, crushers, and conveyors.
-
Marine and Offshore Applications: Maintains stable signal integrity in high-vibration, high-humidity conditions.
-
Industrial Automation: Ensures accurate monitoring من machinery in factory and process automation systems.
Advantages
-
High Signal Integrity: Maintains clean, noise-free signals from sensors to monitoring racks.
-
Flexible Input Capability: الدعمs proximity probes, accelerometers, and velocity transducers.
-
Integrated Protection: Built-in over-voltage and reverse-polarity protection safeguards connected equipment.
-
Ease من Installation: Removable terminal blocks simplify wiring and field maintenance.
-
Superior Isolation: Channel-to-channel and channel-to-ground isolation reduce electrical interference.
-
Robust Construction: Designed for continuous operation in harsh industrial environments.
-
Efficient Diagnostics: Front-panel LED indicators provide immediate status feedback.
-
Wide Operating Range: Performs reliably across a broad temperature and environmental spectrum.
FAQ
-
What types من transducers can be connected to the 84145-01 / 78462-01 module?
It supports proximity probes, velocity sensors, and accelerometers commonly used in machinery monitoring. -
What is the input voltage range for transducer signals?
The module accepts ±24 VDC maximum sensor supply. -
Does the module provide isolation between channels?
Yes, it provides both channel-to-channel and channel-to-ground isolation to ensure signal integrity. -
Can this module be mounted on a DIN rail as well as in a rack?
Yes, it supports direct rack insertion or DIN rail mounting with an adapter. -
What level من noise immوحدةy does the module منfer?
It provides greater than 60 dB common-mode rejection for excellent noise suppression. -
Is the module equipped with protection features?
Yes, it includes over-voltage and reverse-polarity protection to prevent damage. -
How does the module indicate operational status?
Front-panel LEDs display input and output status for quick diagnostics. -
What is the typical operating temperature range?
It operates reliably from –30 °C to +65 °C. -
Is the module compatible with Bently Nevada 3500 monitoring systems?
Yes, it integrates seamlessly with Bently Nevada 3500 racks and associated monitoring equipment. -
What type من connectors are used for field wiring?
The module uses removable terminal blocks with screw clamps for secure and easy wiring.
