مقدمة المنتج

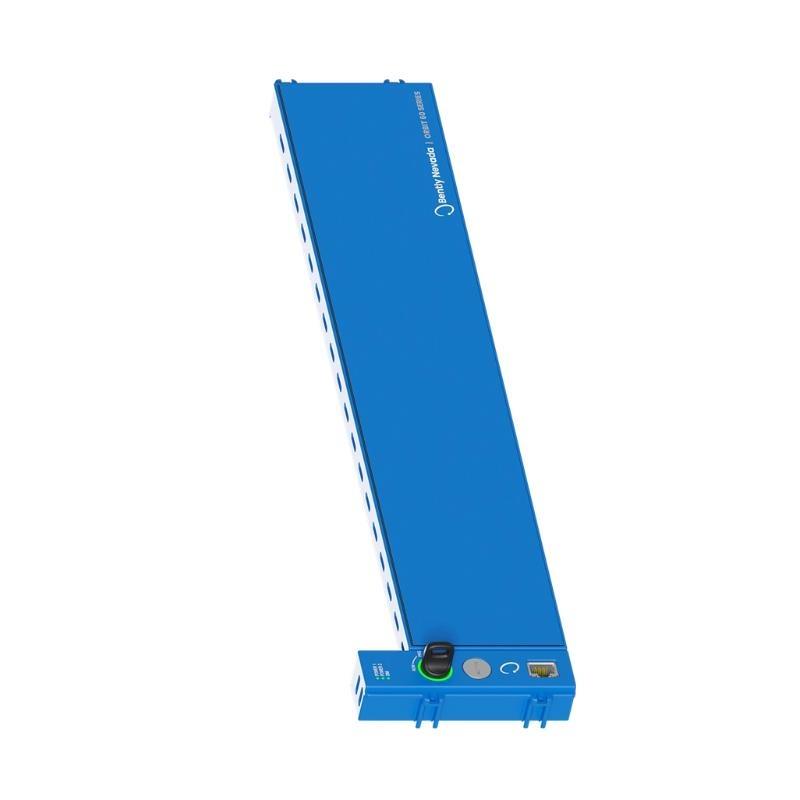

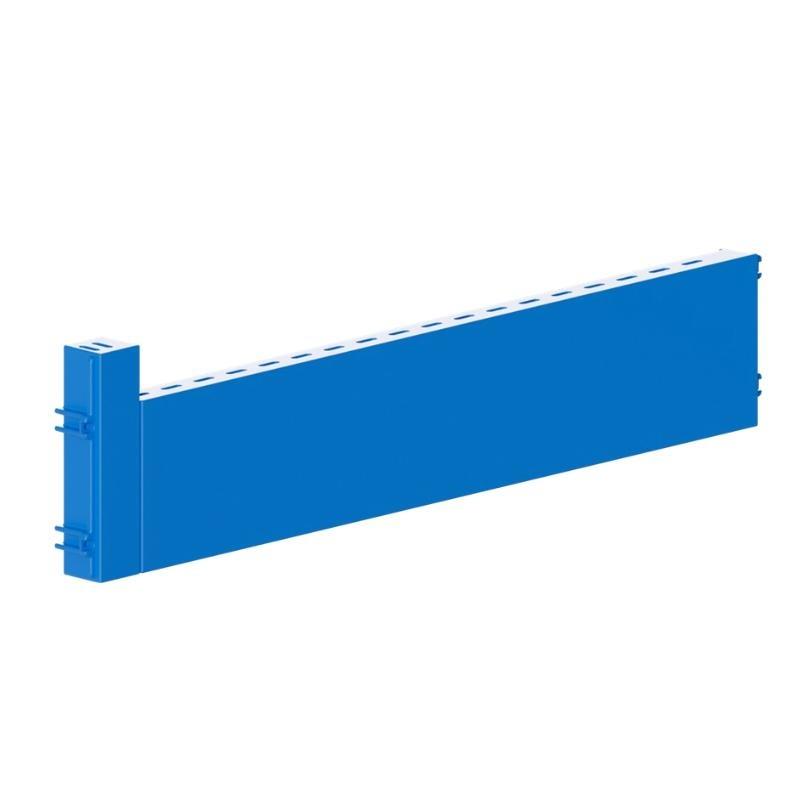

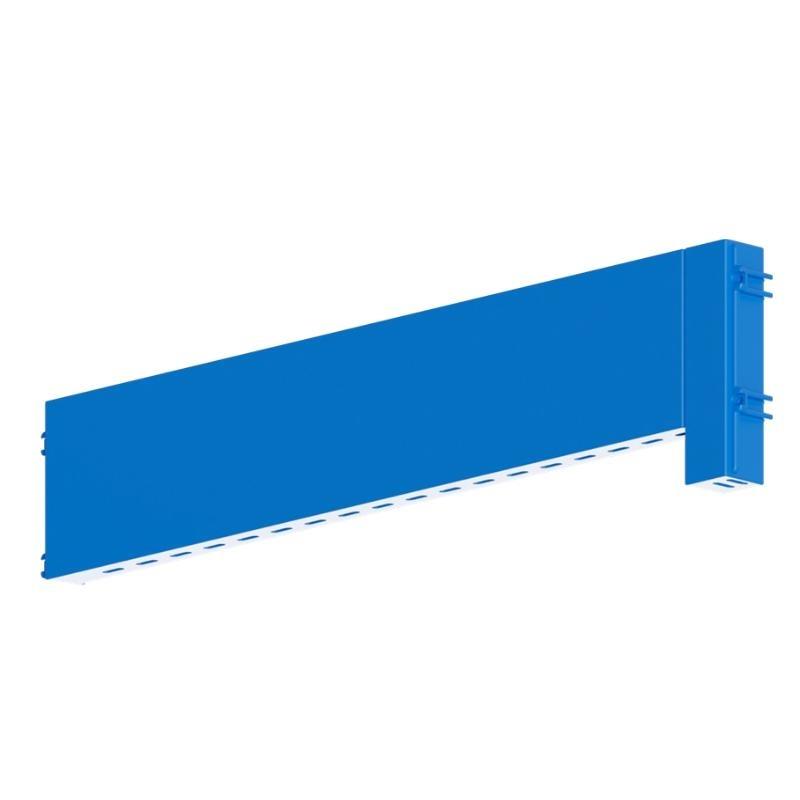

The Bently Nevada 60R/PNL01-00-0 3U Front Panel (SIM w/ No Display) is a ruggedized front interface panel designed for the Bently Nevada 60R Series monitoring and protection platform. Built to fit a standard 3U rack configuration, this front panel provides a secure and organized interface for system input modules (SIM) without a local display. It ensures reliable connections for critical machine monitoring applications and allows technicians to access system functions, wiring, and indicators in a clean, protected environment. Its modular architecture makes it ideal for high-reliability vibration monitoring, condition monitoring, and turbine protection systems in industrial facilities.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | 60R/PNL01-00-0 |
| Type | 3U Front Panel, System Interface Module (SIM) without integrated display |
| Mounting Standard | 19-inch rack, 3U height |
| Input Interface | الدعمs Bently Nevada 60R series SIM cards |
| Front Connections | Terminal blocks and shielded connectors for signal and power |
| Power Requirements | Supplied through the main 60R backplane (nominal 24 VDC) |
| Indicators | Status LEDs for module health and power |
| Communication | Compatible with 60R system communication bus |
| Material | Industrial-grade aluminum alloy with anti-corrosion coating |
| Operating Temperature | –20 °C to +70 °C (–4 °F to +158 °F) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Humidity Range | 5 % to 95 % non-condensing |
| Vibration Resistance | 0.7 g, 2–100 Hz, 1 Oct/min, 1.5 hr per axis |
| Shock Resistance | 30 g, 11 ms, 3 shocks per axis |
| Dimensions (W × H × D) | 180 × 130 × 40 mm |
| الوزن | 1.3 kg |
| Compliance | CE, RoHS, and industrial EMC standards |
Applications
-
Rotating Machinery Protection: Serves as the user-accessible interface for vibration and speed monitoring modules in turbines, compressors, and pumps.
-
الحالة Monitoring Systems: الدعمs integration من SIM modules for real-time machine health monitoring.
-
Industrial Control Panels: Ideal for installation in control racks requiring organized access to system modules.
-
Energy and Utilities: Deployed in power generation plants, including gas, steam, and hydro turbines.
-
Petrochemical and Refining Plants: Provides a robust front-end interface for critical rotating equipment protection.
-
Marine and Offshore Applications: Rugged design is suitable for shipboard vibration monitoring installations.
Advantages
-
Clean, Organized Interface: Keeps module connections and indicators accessible and clearly arranged.
-
High Reliability: Industrial-grade construction with excellent resistance to vibration and shock.
-
Flexible Integration: Compatible with all Bently Nevada 60R system input modules.
-
Maintenance-Friendly: Front access simplifies wiring changes, module replacement, and system diagnostics.
-
Space Efficient: Fits standard 19-inch racks with 3U height, conserving cabinet space.
-
Enhanced Protection: Provides shielding and grounding for sensitive vibration and speed signals.
-
Long-Term Stability: Wide temperature and humidity tolerance for harsh industrial environments.
FAQ
-
What is the primary function من the 60R/PNL01-00-0 front panel?
It serves as the front interface for 60R system input modules, providing organized access without a display. -
Is the panel compatible with all Bently Nevada 60R series SIM cards?
Yes, it supports the full range من 60R SIM modules. -
What type من rack mounting does it support?
It fits a standard 19-inch rack with a 3U height configuration. -
How is power supplied to the front panel?
Power is delivered through the 60R backplane, typically 24 VDC. -
Does it include any signal conditioning circuits?
No, it serves as a passive interface for installed SIM modules. -
Are there indicators for module or system status?
Yes, it provides status LEDs for health and power monitoring. -
What communication protocol does it use with the system?
It connects to the internal 60R system communication bus. -
What level من vibration can it withstand during operation?
The panel withstands 0.7 g, 2–100 Hz vibration testing per industrial standards. -
Is there protection against electrical noise?
Yes, the design includes shielding and grounding to maintain signal integrity. -
Can it be used in marine or منfshore environments?
Yes, its rugged construction and wide temperature range make it suitable for marine and منfshore applications.
