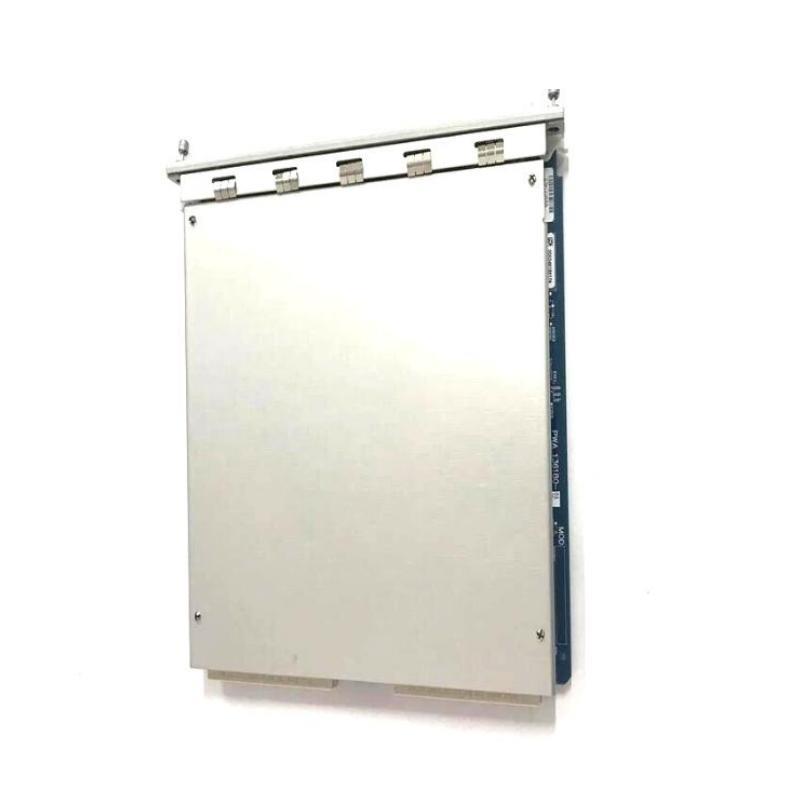

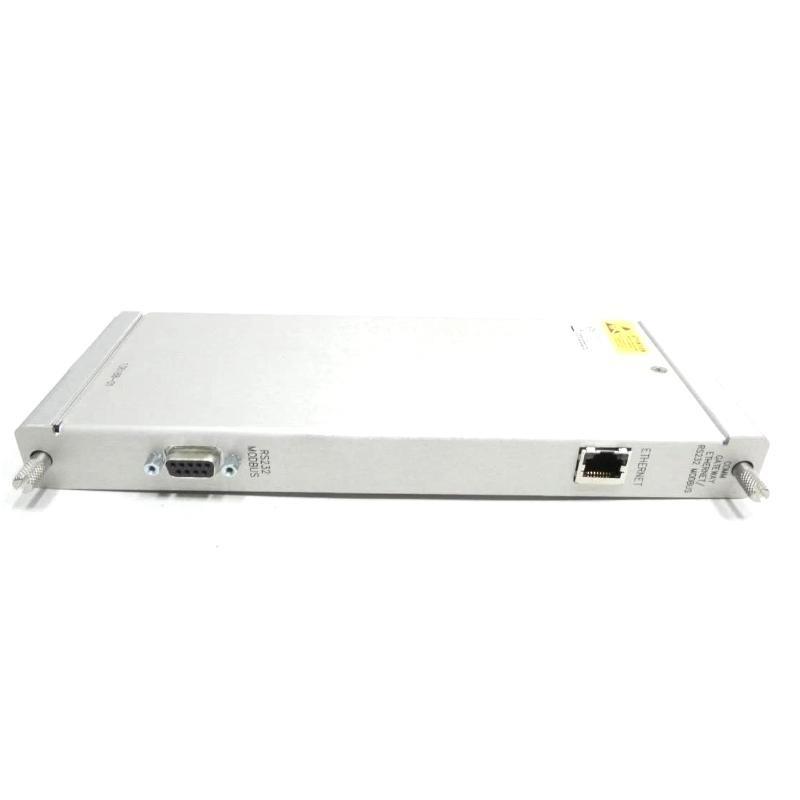

Bently Nevada 3500/92 Communication Gateway Module Overview
The Bently Nevada 3500/92 Communication Gateway Module enables seamless integration between 3500 series monitoring systems and external networks. Designed for high-reliability industrial environments, it ensures secure, real-time data transfer and simplifies system management.
Key Features and Advantages
-
Facilitates remote monitoring and data communication for 3500 series systems.
-
الدعمs multiple protocols for versatile connectivity.
-
Provides reliable performance in harsh industrial conditions.
-
Compact design with low power consumption.
-
Simplifies diagnostics and system configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 136180-01 + 136188-01 |
| Dimensions | 241 x 24.4 x 242 mm |
| الوزن | 0.82 kg |
| Communication Protocols | Ethernet, Modbus, OPC |
| Power Supply | 24 VDC |
| Operating Temperature | -40°C to 85°C |
| Mounting | DIN Rail |
| Status Indicators | LED indicators for network status |
| Compliance | CE, UL |
Applications
-
Integration من 3500 series monitoring systems with plant control networks.
-
Remote condition monitoring and data acquisition.
-
Networked diagnostics for rotating machinery.
-
System-wide alarm and event communication.
Advantages
-
Enhances operational reliability with robust communication capabilities.
-
Reduces downtime through proactive monitoring and diagnostics.
-
Easy installation with DIN rail mounting and standardized protocols.
-
Scalable for both small and large monitoring systems.
FAQ
1. What is the primary function من the 3500/92 Communication Gateway Module?
It provides seamless communication between Bently Nevada 3500 series systems and external control or monitoring networks.
2. Which protocols are supported?
Ethernet, Modbus, and OPC are natively supported.
3. What is the operating temperature range?
The module operates between -40°C and 85°C.
4. Can it be installed on a standard DIN rail?
Yes, the module is designed for easy DIN rail installation.
5. How does it improve system reliability?
By enabling real-time remote monitoring and diagnostics, it allows for proactive maintenance.
6. What is the power requirement?
It requires a 24 VDC power supply.
7. Is the module compatible with all 3500 series modules?
Yes, it is compatible with standard 3500 series monitoring modules.
8. What kind من network status indicators does it provide?
LED indicators display communication and network status.
9. Can it be used in harsh industrial environments?
Yes, it is rated for industrial conditions and extreme temperatures.
10. Does it comply with industry safety standards?
Yes, it meets CE and UL certifications.
Related الطرازs (Same Series / Similar Function)
| الطراز Number | Function / الوصف | Dimensions | الوزن |
|---|---|---|---|
| 3500/92-01 | Communication Gateway, basic version | 241 x 24.4 x 242 mm | 0.82 kg |
| 3500/93 | Redundant Gateway Module | 241 x 24.4 x 242 mm | 0.85 kg |
| 3500/94 | Ethernet Interface Module | 241 x 24.4 x 242 mm | 0.83 kg |
| 3500/95 | Modbus Interface Module | 241 x 24.4 x 242 mm | 0.82 kg |
| 3500/96 | OPC Communication Module | 241 x 24.4 x 242 mm | 0.84 kg |
| 3500/97 | Advanced Network Gateway Module | 241 x 24.4 x 242 mm | 0.85 kg |
Popular Bently Nevada الطرازs
| الطراز Number | Function / الوصف | Dimensions | الوزن |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | 50 x 10 x 10 mm | 0.1 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor | 60 x 20 x 20 mm | 0.15 kg |
| 31000-29-05-00-060-01-02 | Proximity Probe Housing | 120 x 40 x 40 mm | 0.3 kg |
| 3500/22 | 3500 Rack Monitoring Module | 482 x 44 x 150 mm | 2.5 kg |
| 3500/55 | 3500 Vibration Monitor Module | 482 x 44 x 150 mm | 2.6 kg |
| 3300/00-00-00 | 3300 XL System Interface Module | 241 x 24.4 x 242 mm | 0.8 kg |
