Product Overview

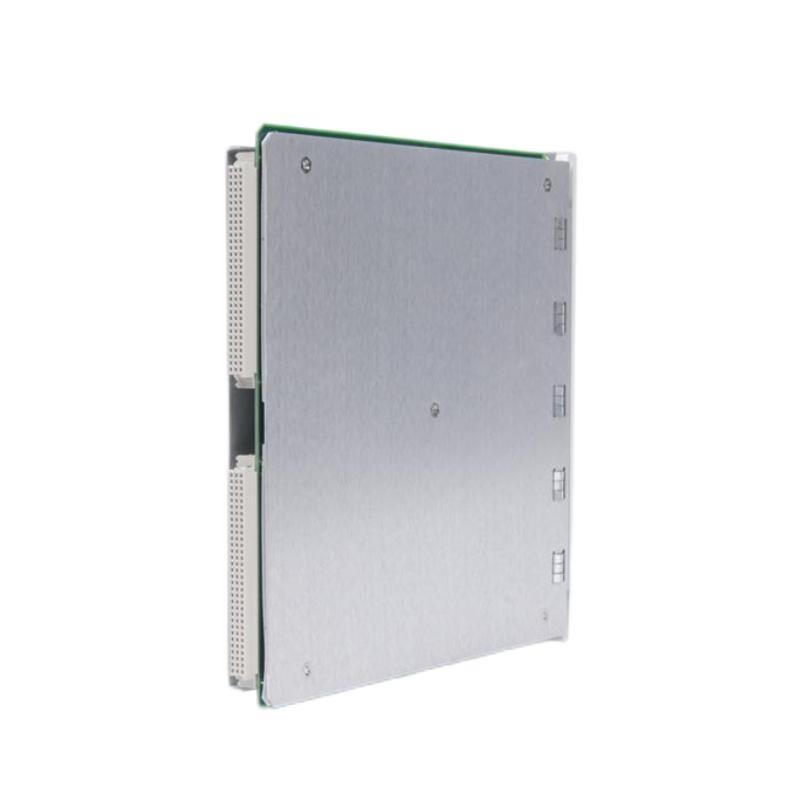

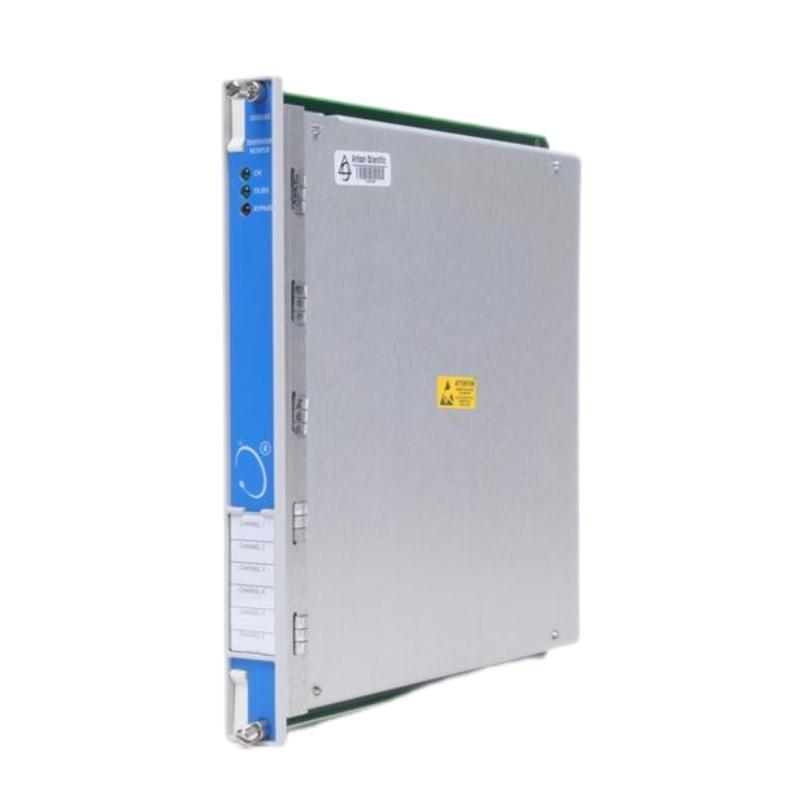

The Bently Nevada 3500/60-01-00 Temperature Monitor is a six-channel module designed for critical temperature monitoring in industrial machinery. It supports both RTD (Resistance Temperature Detector) and TC (Thermocouple) inputs and is fully programmable via the 3500 Rack Configuration Sمنtware. This version does not include recorder output functionality, differentiating it from the 3500/61.
Technical Specifications
| Parameter | Details |
|---|---|
| Channels | 6 (supports RTD and TC inputs) |
| RTD Types الدعمed | 100Ω Platinum (α=0.00385, 0.00392), 120Ω Nickel, 10Ω Copper |
| Thermocouple Types الدعمed | Type E, J, K, T |
| Temperature Range (RTD) | -200°C to +850°C (varies by RTD type and barrier use) |
| Temperature Range (TC) | Type E: -100°C to +1000°C Type J: -18°C to +760°C Type K: -18°C to +1370°C Type T: -160°C to +400°C |
| Input Impedance | 10 MΩ |
| RTD Current Source | 925 ±15 µA @ 25°C |
| Power Consumption | 7 W (3500/60) |

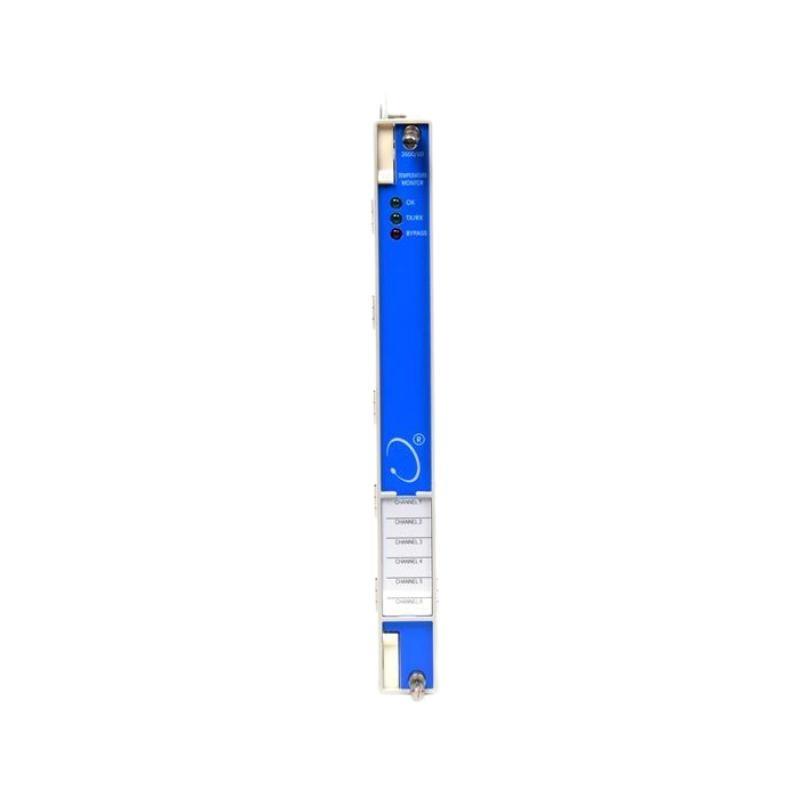

| Output (Front Panel LEDs) | OK, TX/RX, BYPASS |
| Alarm Setpoints | Programmable (0–100% من full scale) |
| Alarm Time Delays | Alert: 1–60s (1s intervals) Danger: 1–60s (0.5s intervals) |
| Isolation | Channel-to-channel: 250 Vdc System: 500 Vdc (isolated versions only) |
| Accuracy | ±1°C to ±3°C (varies by rack and termination configuration) |
| Dimensions (Monitor Module) | 241.3 mm x 24.4 mm x 241.8 mm (H x W x D) |
| الوزن (Monitor Module) | 0.91 kg |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Certifications | SIL 2, FCC Part 15, EMC, RoHS, ATEX, CSA/NRTL/C, IECEx, DNV GL, ABS |
Applications
-
Industrial machinery protection
-
Gas and steam turbine temperature monitoring
-
Compressor temperature tracking
-
Heat exchanger and boiler systems
-
Oil & gas production equipment
-
Process plant safety systems
Key Advantages
-
الدعمs both RTD and Thermocouple sensors
-
Six-channel monitoring in one module
-
No calibration required after configuration
-
High input isolation enhances signal integrity
-
Programmable alarm logic with delay settings
-
Part من the Bently Nevada 3500 machinery protection system
-
TMR-compatible for high-reliability installations
FAQ – الأسئلة الشائعة
Q1: What types من temperature sensors can the 3500/60-01-00 monitor?
A1: It supports RTDs (100Ω platinum, 120Ω nickel, 10Ω copper) and thermocouples (Types E, J, K, T).
Q2: Does this module include recorder output signals?
A2: No, the 3500/60-01-00 version does not have recorder output. For that functionality, use the 3500/61 model.
Q3: How many temperature channels are available?
A3: The module supports 6 independent input channels.
Q4: Is this وحدة suitable for high-vibration industrial environments?
A4: Yes, it’s designed for machinery condition monitoring in rugged environments.
Q5: Can the module be used in hazardous locations?
A5: Yes, it carries certifications such as CSA/NRTL/C, ATEX, and IECEx for Class I, Zone 2 environments.
Q6: Is calibration required after setup?
A6: No, calibration is not needed once configured via the 3500 Configuration Sمنtware.
Q7: What is the power consumption من the 3500/60-01-00?
A7: It consumes approximately 7 watts.
Q8: Can the module be used in TMR configurations?
A8: Yes, it can be installed in Triple Modular Redundant setups for critical systems.
Q9: How are alarm delays configured?
A9: Alert delays can be set from 1–60 seconds; Danger delays from 1–60 seconds in 0.5s steps.
Q10: What is the resolution من the temperature measurements?
A10: For most sensors, the resolution is 1°C or 1°F, depending on configuration.
Related Bently Nevada 3500 Series الطرازs
| الطراز | الوصف | Channels | Recorder Output | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|---|---|
| 3500/61-01-00 | Temperature Monitor with Recorder Outputs | 6 | Yes | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/44M | Aeroderivative GT Vibration Monitor | 4 | Yes | 241.3 x 24.4 x 241.8 | 0.90 |
| 3500/42M | Proximitor Seismic Monitor | 4 | Yes | 241.3 x 24.4 x 241.8 | 0.89 |
| 3500/40M | Proximitor Monitor | 4 | Yes | 241.3 x 24.4 x 241.8 | 0.89 |
| 3500/32M | 4-Channel Relay Module | 4 | No | 241.3 x 24.4 x 241.8 | 0.87 |
| 3500/22M | Transient Data Interface Module | – | Yes | 241.3 x 24.4 x 241.8 | 0.92 |
