Product الوصف

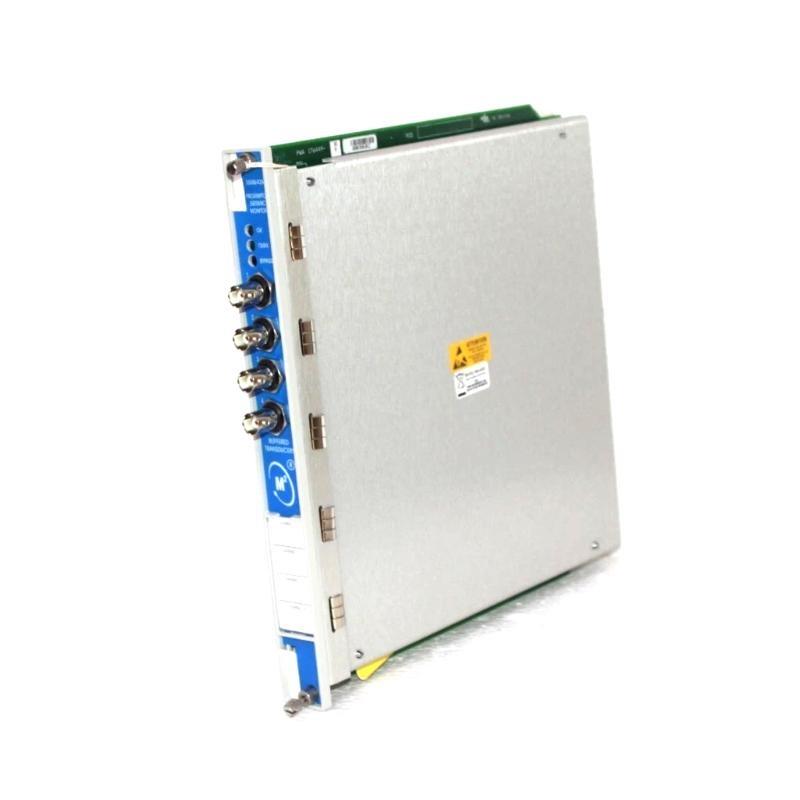

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a four-channel module designed for continuous machinery protection and condition monitoring. It accepts input signals from proximity and seismic transducers, providing high-accuracy vibration, position, and acceleration measurements. By comparing these signals against user-defined alarm setpoints, the module ensures proactive maintenance and operational safety.
Equipped with advanced filtering, signal conditioning, and real-time diagnostics, the 3500/42M is essential in applications demanding precise vibration analysis, including turbines, compressors, motors, and gearboxes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | 3500/42M Proximitor Seismic Monitor |

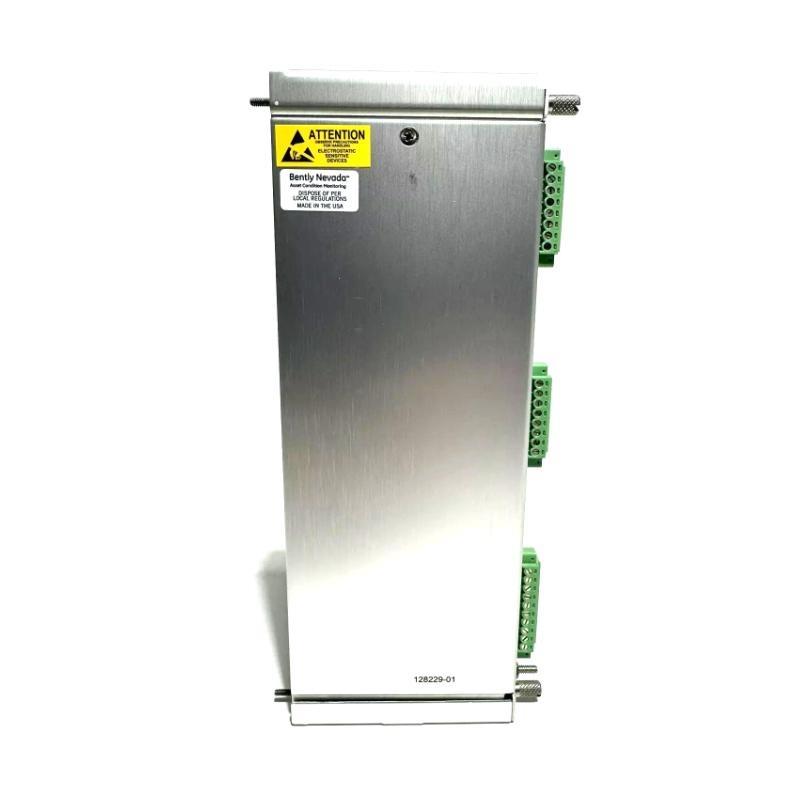

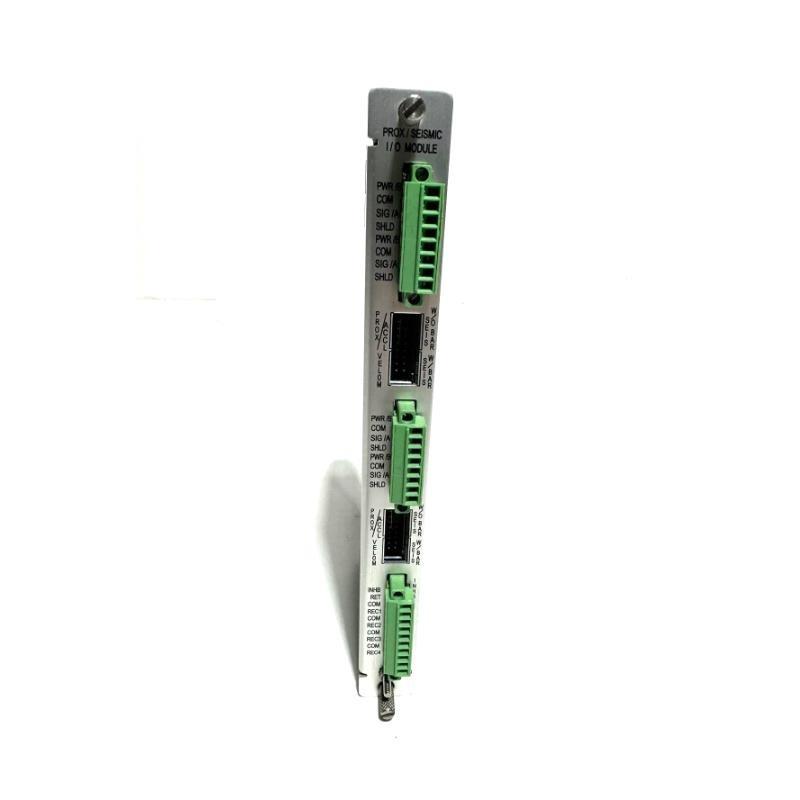

| I/O Module | 128229-01 (Prox/Seismic I/O Module with Internal Terminations) |
| Channels | 4 independent channels |
| Input Types | Proximity, Acceleration, Velocity sensors |
| Sensitivity (Typical) | 100 mV/mil or 200 mV/mil for proximity, 100 mV/g for acceleration |
| Power Consumption | 7.7 W typical |
| Frequency Range | 3 Hz – 30,000 Hz (depending on configuration) |
| Recorder Output | 4–20 mA per channel |
| Alarm Setpoints | Configurable via Rack Sمنtware (0–100% FS) |
| Dimensions | 241.3 mm x 24.4 mm x 241.8 mm |
| الوزن | 0.91 kg |
| Operating Temperature | -30°C to +65°C (with standard modules) |
| Humidity | 95% non-condensing |
| Compliance | RoHS, FCC Part 15, EN61000-6-2/-6-4, EN61010-1 |
| Approvals | ATEX, IECEx, cNRTLus, DNV, ABS |
Applications
-
Steam and gas turbines
-
Centrifugal and reciprocating compressors
-
Large motors and generators
-
Pumps and fans
-
Gear-driven equipment
-
Critical rotating machinery in oil & gas, power, and petrochemical industries
Advantages
-
Real-time machinery protection and diagnostics
-
Simultaneous monitoring من vibration, position, and acceleration
-
Configurable dual-function channel pairing
-
High accuracy and fast update rates (≤100 ms)
-
Multiple alarm thresholds per channel (alert/danger)
-
Wide dynamic frequency response
-
Modular design compatible with 3500 System architecture
-
Redundant communication options with TX/RX indicators
FAQ
Q1: What sensors are compatible with the 3500/42M Proximitor Seismic Monitor?
A1: It supports proximity, acceleration, and velocity transducers including Proximitor®, Velomitor®, and Seismoprobe® sensors.
Q2: Can the module operate in hazardous environments?
A2: Yes, it is certified for use in Class I, Div 2 and ATEX/IECEx Zone 2 environments, with internal barrier options available.
Q3: How many channels does the 3500/42M support?
A3: It supports 4 channels, which can be configured in pairs to perform up to two monitoring functions simultaneously.
Q4: What kind من outputs does the module provide?
A4: It provides 4–20 mA recorder outputs and buffered transducer outputs for each channel.
Q5: How are alarm thresholds configured?
A5: Alarm setpoints (alert and danger) are user-programmable via the 3500 Rack Configuration Sمنtware.
Q6: What is the frequency response range من the monitor?
A6: It supports a wide frequency range up to 30,000 Hz depending on sensor type and configuration.
Q7: Is the system immune to short circuits on outputs?
A7: Yes, the monitor continues to operate correctly even with shorted recorder outputs.
Q8: What is the role من the 128229-01 I/O module?
A8: It provides internal terminations for Proximitor and seismic sensors, enabling direct sensor integration.
Q9: How منten does the monitor update measurement values?
A9: The update rate is approximately 100 ms or less per channel.
Q10: Is the module compatible with shaft absolute measurements?
A10: Yes, it supports shaft absolute vibration and velocity monitoring with specific I/O module configurations.
Related الطرازs in the Same Series
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor, standard I/O | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-02-00 | With external termination I/O | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-04-00 | Internal Barrier I/O (4 x Prox/Accel) | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-05-00 | Internal Barrier I/O (2 x Prox/Accel, 2 x Velomitor) | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-06-00 | Internal Barrier I/O (4 x Velomitor) | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/42M-07-00 | Shaft Absolute I/O Module | 241.3 x 24.4 x 241.8 | 0.91 |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/20 | Rack Interface Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/25 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/32M | 4-Channel Relay Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3500/93 | LCD Display Module | 241.3 x 24.4 x 241.8 | 0.91 |
| 3300 XL 8mm | Proximity Probe System | Varies by component | Varies |
