Product الوصف

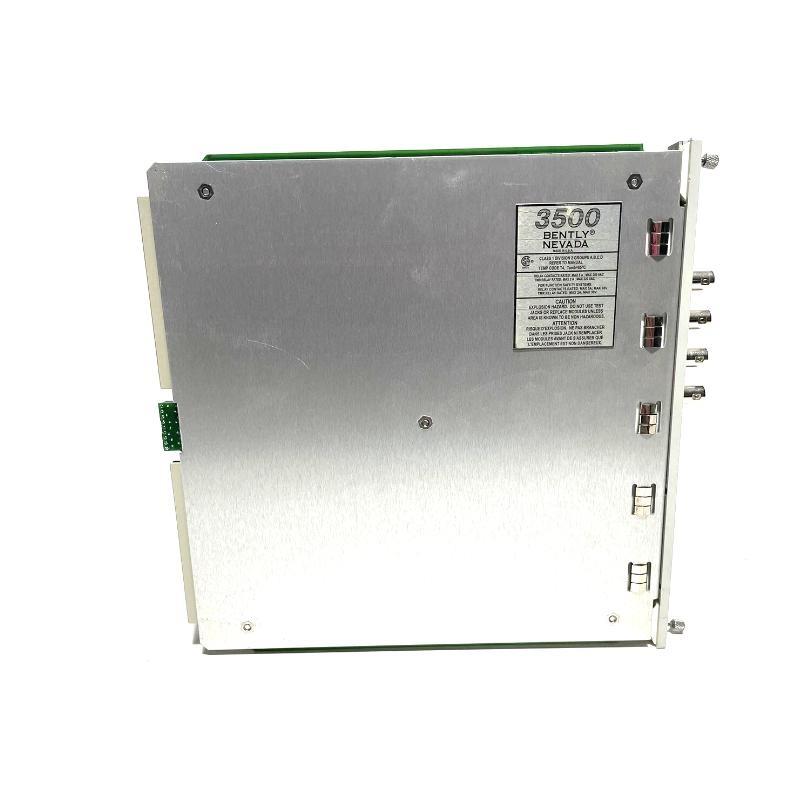

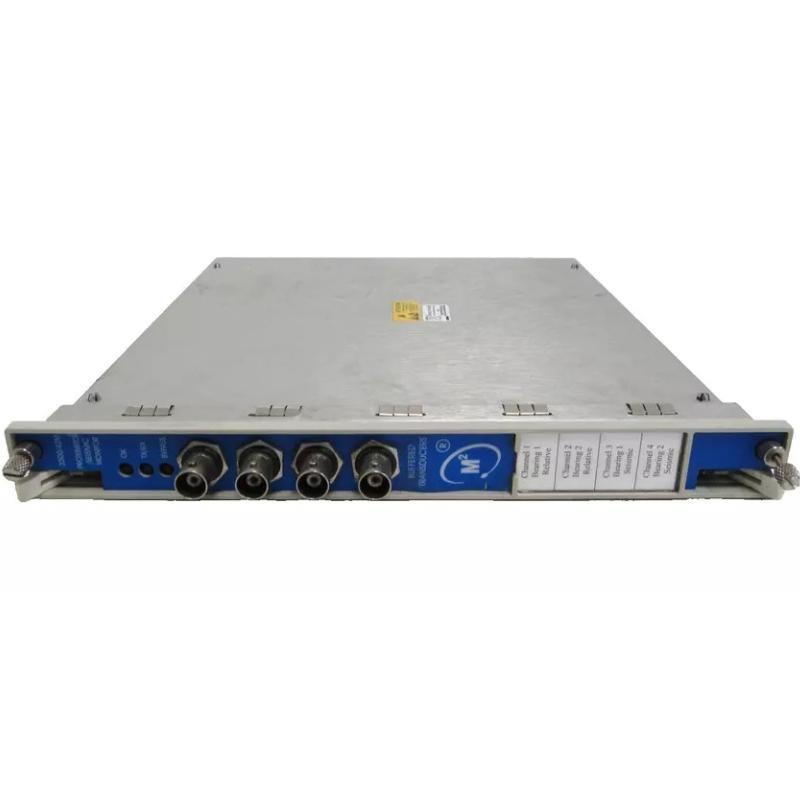

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a four-channel module designed to monitor vibration, position, and seismic parameters in critical rotating machinery. It continuously compares measured parameters with programmable alarm thresholds to protect equipment and notify personnel من abnormal conditions. Each channel pair can be programmed independently to perform different monitoring functions simultaneously.
Product Features and Advantages
-
الدعمs proximity and seismic transducers for versatile monitoring
-
Multiple measurement modes including radial vibration, thrust, acceleration, eccentricity, and more
-
User-programmable alarm setpoints with high accuracy
-
Fast update rates and buffered outputs for real-time data
-
Robust design suitable for harsh industrial environments
Applications
-
Turbomachinery vibration monitoring
-
Shaft position and displacement measurement
-
Thrust bearing wear detection
-
Seismic and structural vibration monitoring
-
Rotating machinery health diagnostics in power plants, refineries, and منfshore platforms
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 4 channels (proximity, velocity, or acceleration transducers) |
| Power Consumption | 7.7 W typical |
| Sensitivity | Radial Vibration: 3.94 mV/μm or 7.87 mV/μm |
| Frequency Response | Up to 30,000 Hz (depending on mode) |
| Alarm Accuracy | Within ±0.13% |
| Operating Temperature | -30°C to +65°C |
| Dimensions (H x W x D) | 241.3 x 24.4 x 241.8 mm |
| الوزن | 0.91 kg |
| Compliance | FCC, CE, RoHS, ABS, DNV GL |
| Hazardous Area Approvals | Class I Div 2, ATEX, IECEx |
FAQ
Q1: What types من transducers can the 3500/42M monitor?
A1: It supports proximity probes, velocity pickups, and accelerometers.
Q2: Can each channel monitor different parameters?
A2: Yes, channels are programmable in pairs to monitor different or identical parameters.
Q3: What is the update rate من the output signals?
A3: The monitor updates approximately every 100 milliseconds.
Q4: Does it provide buffered transducer outputs?
A4: Yes, each channel has a buffered output for direct transducer signal access.
Q5: What is the operating temperature range?
A5: It operates between -30°C and +65°C.
Q6: How accurate are the alarm setpoints?
A6: Alarm setpoints are accurate within ±0.13% من the desired value.
Q7: What certifications does the device carry?
A7: It complies with FCC, CE, RoHS, and carries marine and hazardous area certifications.
Q8: Can it be used in hazardous environments?
A8: Yes, it is certified for Class I Division 2 and ATEX/IECEx Zone 2.
Q9: How is configuration performed?
A9: Using the Bently Nevada 3500 Rack Configuration Sمنtware.
Q10: What is the typical application من this monitor?
A10: Protection and condition monitoring من critical rotating machinery like turbines, compressors, and pumps.
Recommended Related or Similar الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 3500/42M-01-00 128229-01 | Proximitor Seismic Monitor with internal terminations | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-01-00 128240-01 | Proximitor Seismic Monitor with external terminations | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-04-00 135489-01 | Proximitor Seismic Monitor with internal barriers | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-07-00 138708-01 | Shaft Absolute I/O Module with internal terminations | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-09-00 140471-01 | Prox/Velom I/O Module with internal terminations | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/42M-10-00 140482-01 | Prox/Velom I/O Module with external terminations | 241.3 x 24.4 x 241.8 | 0.91 kg |
Popular Bently Nevada الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/25 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/32M | Tachometer Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/33 | 16-Channel Relay Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/40M | Proximitor Monitor (REBAM) | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/93 | LCD Display Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
