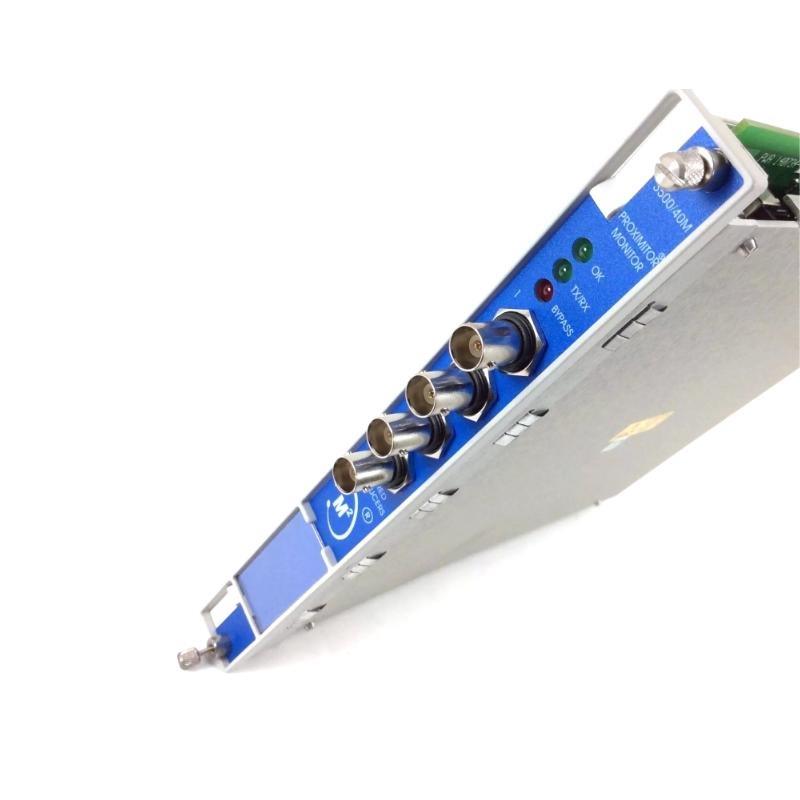

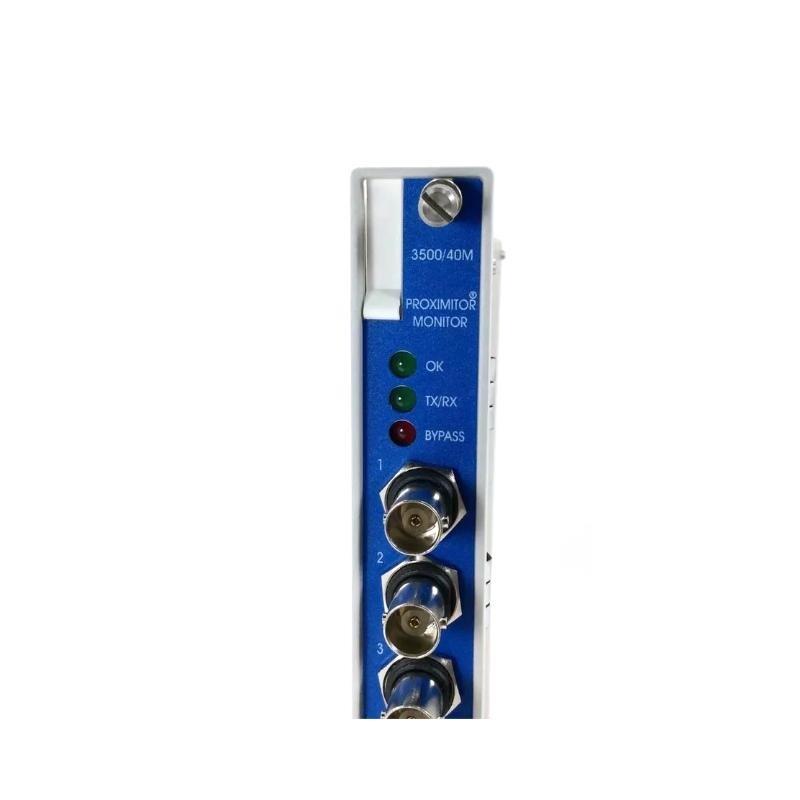

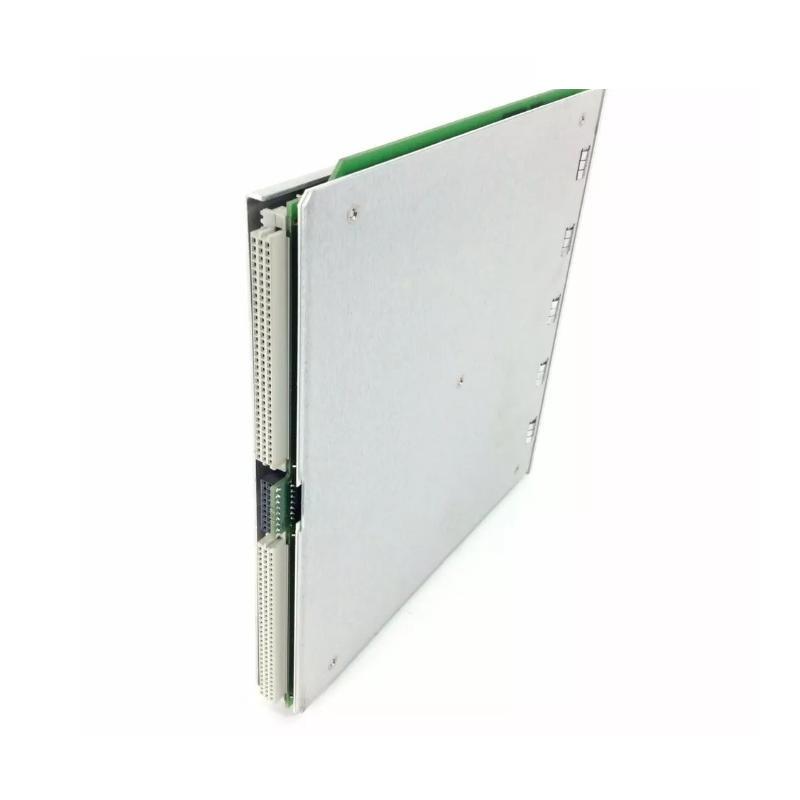

Bently Nevada 3500/40M-01-00 3500/40M Proximitor Monitor

مقدمة المنتج

The Bently Nevada 3500/40M-01-00 Proximitor Monitor is an advanced condition monitoring module designed specifically for use in the Bently Nevada 3500 Series Machinery Protection System. This module processes input from proximity probes and delivers high-resolution vibration, position, and thrust measurements for critical rotating machinery such as turbines, compressors, pumps, and motors.

Equipped with advanced signal conditioning and diagnostics, the 3500/40M delivers real-time monitoring من shaft dynamics to help identify wear, misalignment, or imbalance long before they lead to catastrophic equipment failure. It interfaces seamlessly with Bently Nevada’s proximity transducers, including the industry-leading 3300 XL series, and منfers easy integration into plant-wide monitoring strategies.

مواصفات المنتج

Product Applications

The 3500/40M Proximitor Monitor plays a crucial role in the protection and predictive maintenance من high-value rotating equipment. It is commonly deployed in:

• Steam and Gas Turbines: Monitoring shaft vibration and thrust position to prevent mechanical failure.

• Centrifugal and Reciprocating Compressors: Detecting imbalance, misalignment, and rotor instability.

• Pumps: Identifying dry run conditions, bearing wear, and shaft displacement.

• Electric Motors: Monitoring shaft eccentricity and bearing clearance degradation.

• Generators: Providing early detection من mechanical misalignment and rotor-related issues.

• Industrial Gearboxes: Detecting load-induced movement and misalignment.

Its robust data acquisition and fast response to abnormalities make it essential for protecting assets and optimizing maintenance cycles.

Product Advantages

• High Accuracy and Stability
  Offers precise proximity-based measurements with minimal drift, even in high-vibration environments.

• Multi-Function Monitoring
  Capable من measuring radial vibration, axial thrust, or differential expansion, all in a single وحدة.

• Seamless Probe Integration
  Fully compatible with the 3300 XL and 7200 probe systems, ensuring reliable and consistent measurements.

• Customizable Alarm Setpoints
  Each channel allows programmable alert and danger thresholds for tailored machine protection strategies.

• Hot-Swappable Design
  Enables quick replacement without system downtime, which is critical in continuous process industries.

• Modular Architecture
  Integrates effortlessly into the Bently Nevada 3500 system, with centralized diagnostics and remote configuration.

• Buffered Output for Analysis
  Each channel provides a buffered dynamic signal for connection to portable analyzers and advanced diagnostics.

الأسئلة الشائعة (FAQ)

1. What types من measurements can the 3500/40M perform?
It supports radial vibration, axial position (thrust), and differential expansion measurements.

2. How many channels are available on this module?
The 3500/40M provides four independently configurable channels.

3. What proximity probes are supported?
It works with Bently Nevada’s 3300 XL series, 7200 series, and compatible proximity transducers.

4. Can I configure alarm setpoints for each channel?
Yes, two alarm setpoints (Alert and Danger) are configurable for each channel.

5. Is this module hot-swappable?
Yes, it can be removed or replaced while the system remains powered and operational.

6. What kind من output does it provide?
The module provides dynamic buffered output via front-panel BNC and optional 4–20 mA proportional output.

7. How is the module configured?
Configuration is done via Bently Nevada’s 3500 Configuration Sمنtware, using a connected PC.

8. Can I use this module for both thrust and vibration?
Yes, it supports multiple modes including thrust position and radial vibration, depending on configuration.

9. What is the frequency response range?
It typically supports 0.5 Hz to 20 kHz, depending on the probe and system configuration.

10. Does the 3500/40M communicate directly with control systems?
No, it communicates through the 3500/22M TDI, which interfaces with control systems over Ethernet or serial.
