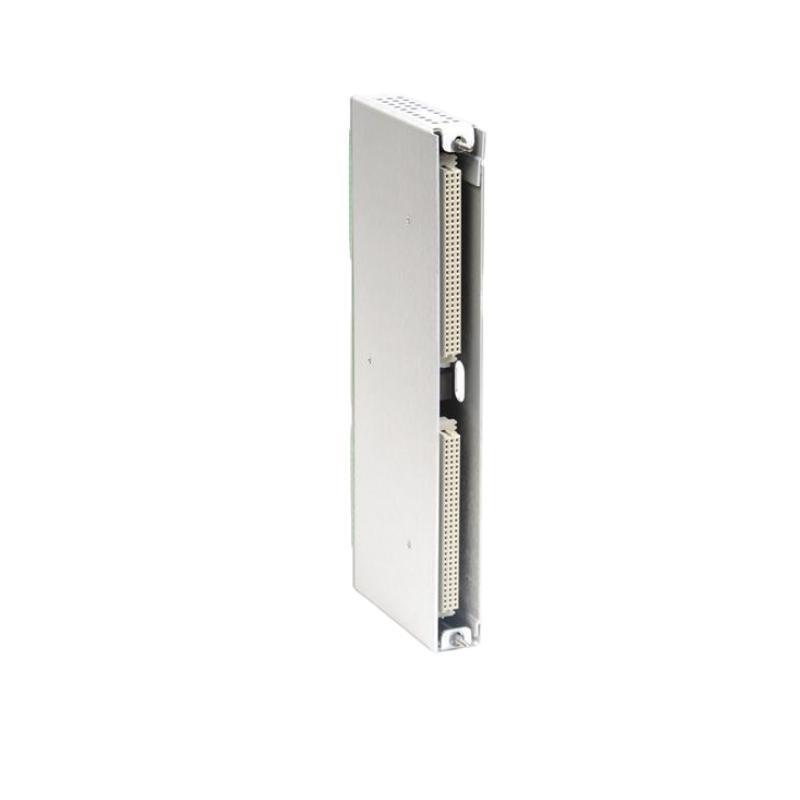

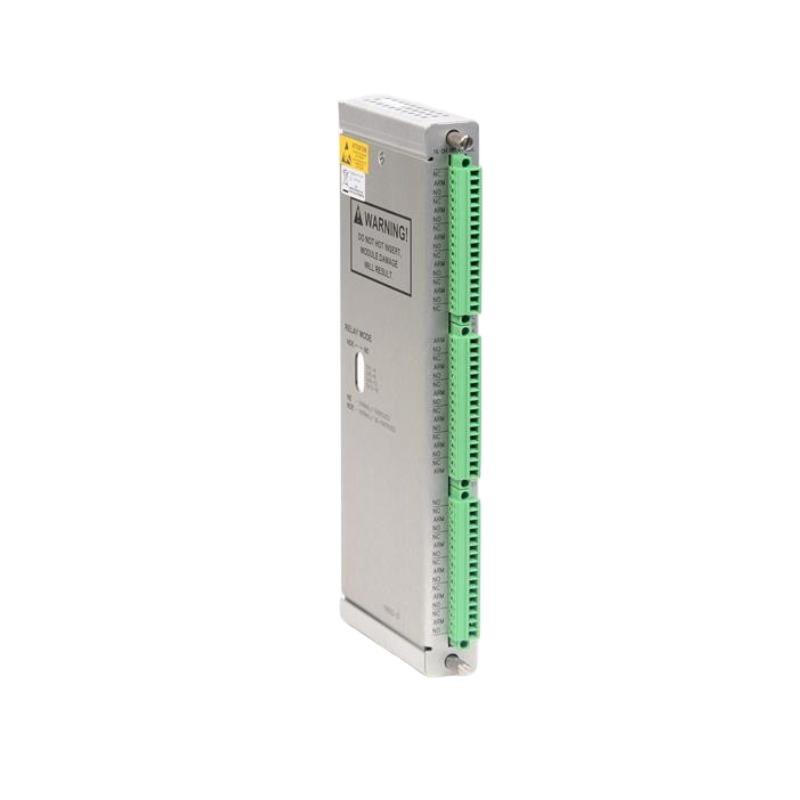

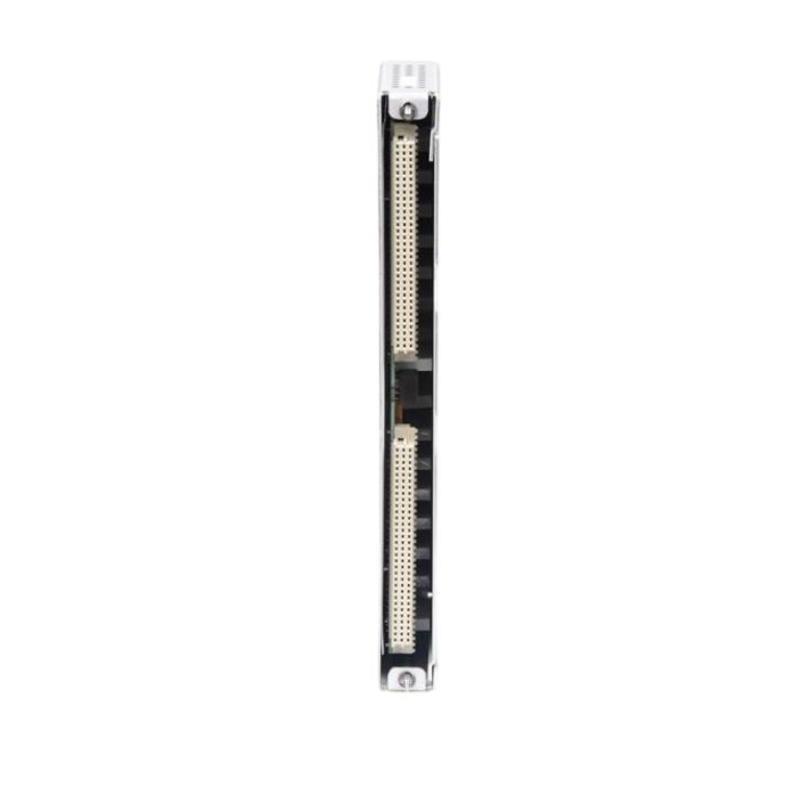

Bently Nevada 3500/33-01-02 16-Channel Relay Output Module

Product Overview

The Bently Nevada 3500/33-01-02 16-Channel Relay Output Module is a high-performance, reliable solution designed for controlling and monitoring machinery in industrial environments. As part من the 3500 Series, this module provides users with up to 16 independent relay outputs for monitoring, alarm, and shutdown functions. It is used to trigger specific actions in response to predefined conditions or machine status, منfering critical protection for industrial equipment.

This relay output module is compatible with Bently Nevada’s 3500 الحالة Monitoring System, seamlessly integrating into the system to provide automated control, data acquisition, and protection in real-time. With its versatile design, the 3500/33-01-02 module is an excellent choice for industries such as power generation, oil & gas, petrochemical, and manufacturing, where machinery health monitoring and reliable control are vital.

For any technical inquiries or further product assistance, please contact our customer service team.

Technical Specifications

Applications

The 3500/33-01-02 16-Channel Relay Output Module is ideal for applications where reliable relay-based control and protection من machinery are required. Key applications include:

• الحالة Monitoring: This module is used to provide relay outputs based on monitored conditions like vibration, temperature, or pressure, allowing for automatic control and protection من machinery.

• Power Generation: In power plants, this module is used for controlling and protecting critical equipment such as turbines, generators, and motors by triggering shutdowns or alarms in response to abnormal conditions.

• Oil & Gas: The module is used to protect oil and gas equipment by providing relay-based outputs for emergency shutdown systems, alarming, and critical machinery control.

• Petrochemical Plants: It is used for controlling equipment such as compressors, reactors, and pumps, providing alarms or system shutdowns when safety thresholds are exceeded.

• Manufacturing: Ideal for production line equipment, it allows for automated control and monitoring, preventing machinery failure by triggering protective measures.

• Industrial Automation: It integrates with large-scale automated control systems to provide relay outputs in response to critical machinery readings, ensuring smooth and safe operation.

Advantages

• 16 Independent Channels: The module supports up to 16 individual channels, منfering great flexibility for controlling a variety من equipment in industrial settings.

• High Voltage Isolation: Each relay channel is isolated at 1500 VAC, protecting sensitive equipment from electrical surges and interference between channels.

• Versatile Mounting Options: It can be mounted on a DIN rail or directly onto a panel, منfering flexibility in installation depending on the needs من your system.

• Wide Temperature Range: With an operating temperature range from -40°C to +85°C, the relay module can function effectively in extreme environmental conditions.

• High Current Rating: The relay module supports up to 5A at 30 VDC or 1A at 250 VAC, making it capable من controlling heavy-duty industrial equipment and systems.

• Seamless Integration: The module easily integrates with Bently Nevada’s 3500 Series الحالة Monitoring Systems, منfering a comprehensive solution for real-time monitoring and control.

• Durable Construction: Designed for industrial-grade durability, this relay module is built to withstand harsh environments and provide long-lasting performance.

FAQ

1. What types من relay contacts are available on the 3500/33-01-02 module?

   • The relay output is SPDT (Single Pole Double Throw), allowing for flexible control options, including normally open and normally closed configurations.

2. How many relay channels does the 3500/33-01-02 module support?

   • The module supports 16 independent relay channels, providing versatile control over multiple equipment components in one وحدة.

3. What is the voltage isolation between channels in the 3500/33-01-02 module?

   • The relay channels are isolated at 1500 VAC, ensuring electrical isolation and preventing interference between the channels.

4. What is the maximum current rating for the relay outputs?

   • Each channel supports a relay rating من 5A at 30 VDC or 1A at 250 VAC, making it suitable for controlling various machinery and equipment.

5. What is the power supply requirement for the 3500/33-01-02 module?

   • The module requires a 24 VDC power supply to operate.

6. What is the temperature range من the 3500/33-01-02 relay module?

   • The module operates in a temperature range from -40°C to +85°C, which allows it to perform reliably in extreme environments.

7. How is the 3500/33-01-02 module mounted?

   • The module can be mounted on a DIN rail or directly on a panel, منfering flexibility depending on the installation needs.

8. What certifications does the 3500/33-01-02 module have?

   • The module is CE and UL certified, ensuring it meets industry standards for safety and performance.

9. What is the relay output configuration من the 3500/33-01-02 module?

   • The module provides both normally open (NO) and normally closed (NC) relay contact configurations for flexible integration with control systems.

10. Can the 3500/33-01-02 module be used in hazardous areas?

• While the module is designed for industrial environments, for hazardous locations, please contact our customer service team to verify compatibility with specific safety standards.
