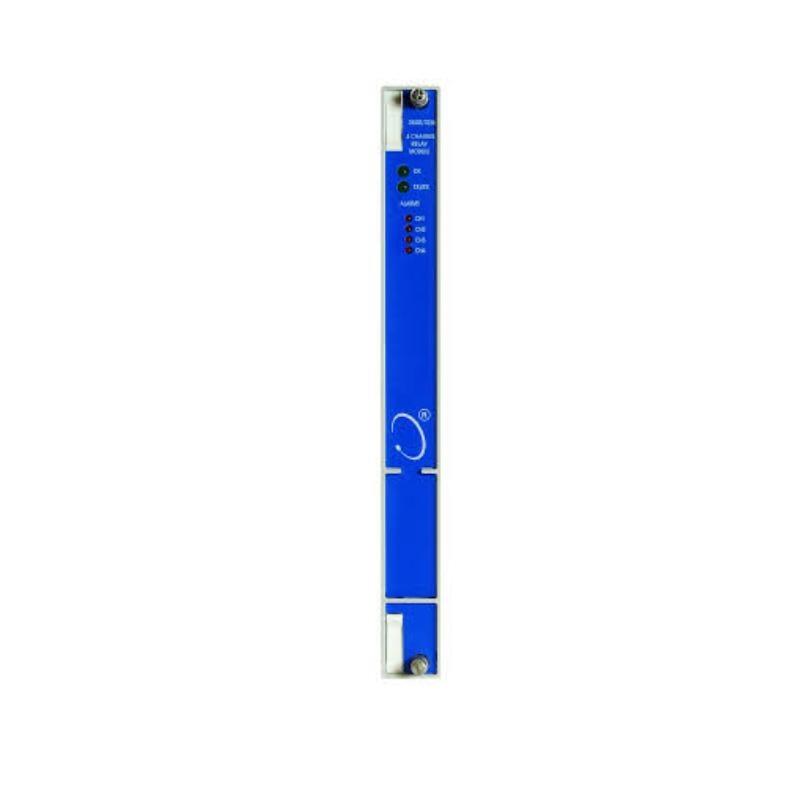

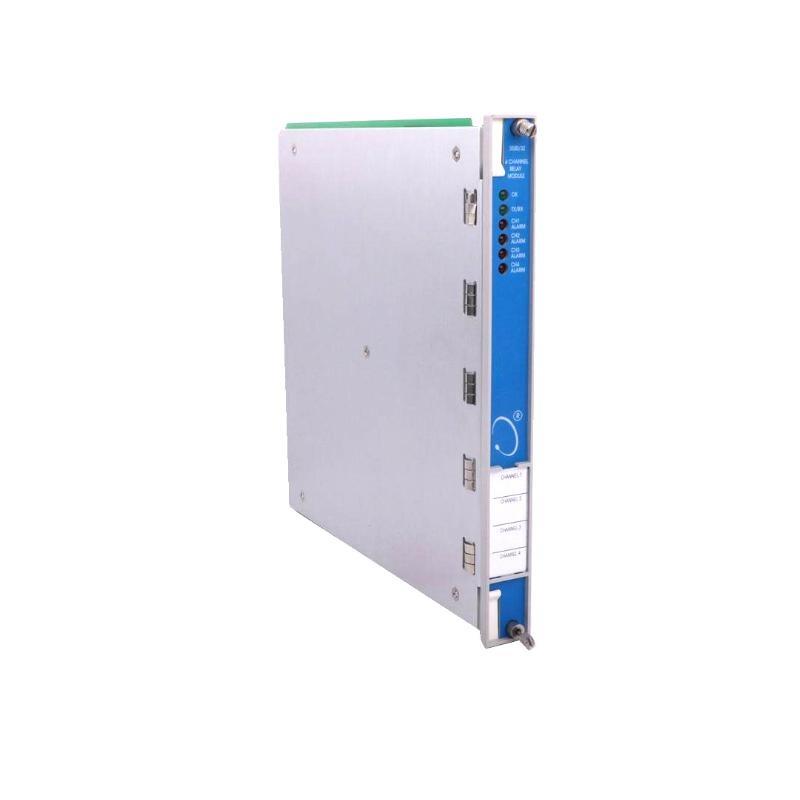

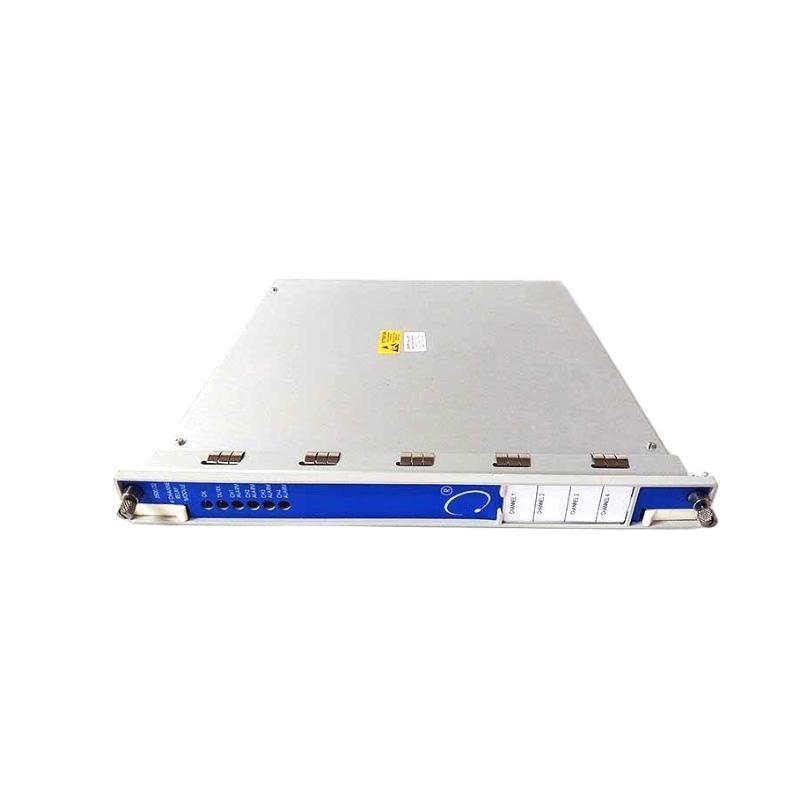

Bently Nevada 3500/32M 149986-02+125720-01 4-Channel Relay Output Module

مقدمة المنتج

The Bently Nevada 3500/32M 149986-02+125720-01 is a high-performance 4-channel relay output module designed for use in critical monitoring and control applications. This module is a vital component من the Bently Nevada 3500 Series, منfering precise and reliable control over external equipment and systems. Its primary function is to act as an interface between the monitored equipment and the control systems, providing immediate response through its relay outputs in real-time.

Ideal for machinery protection, process control, and alarm systems, the 3500/32M 149986-02+125720-01 module delivers enhanced performance and faster response times compared to traditional modules. The integration من this relay module into your monitoring system ensures that external devices can be activated or deactivated instantly based on real-time sensor data.

The module is compact yet powerful, designed to withstand harsh industrial environments, منfering a high degree من reliability and durability. It is منten used in industries such as oil and gas, power generation, manufacturing, and petrochemical sectors, where real-time control and protection are paramount.

مواصفات المنتج

Product Applications

The Bently Nevada 3500/32M 149986-02+125720-01 is suitable for a wide range من applications in both industrial and process control systems. Its ability to trigger external devices or systems with high precision makes it a crucial component in numerous sectors.

1. Machinery Protection Systems
   The 3500/32M is used in machinery protection systems to control emergency shutdowns, alarms, or cooling systems when critical thresholds are exceeded. This is vital for preventing damage to machinery and minimizing unplanned downtime.

2. Process Control Systems
   This relay output module is commonly employed in process control, where it triggers actions such as activating or deactivating valves, pumps, or fans based on real-time data from monitored equipment. This ensures optimal and safe operation من the entire process.

3. Turbine and Compressor Protection
   For turbine and compressor protection, the 3500/32M plays a key role in activating safety measures or alarms when excess vibration, temperature, or pressure is detected, safeguarding critical assets from catastrophic damage.

4. Alarm and Warning Systems
   The module’s relay channels can be used in alarm systems, instantly triggering alarms or alerts based on specific conditions such as process deviations or machine malfunctions. It enhances response times and ensures operators are informed immediately من any issues.

5. Data Logging and Monitoring Systems
   The 3500/32M is also useful in data acquisition systems where it controls the activation من data logging devices. This ensures that all relevant data is captured and stored for future analysis, contributing to more informed decision-making in maintenance and operations.

6. Remote Monitoring and Control
   In remote monitoring systems, the module enables operators to control devices located in hard-to-reach or hazardous environments. It provides real-time control and feedback, facilitating smooth remote operation.

Product Advantages

1. Fast Response Time
   The 3500/32M منfers a relay switching time من less than 10 ms, ensuring rapid activation من external devices. This quick response time is crucial in applications like machinery protection, where milliseconds can make a significant difference in preventing damage.

2. Four Independent Channels
   With four independent relay channels, this module منfers flexibility in controlling different devices based on separate parameters. This independence allows for a customizable setup suited to a variety من industrial applications.

3. Wide Operating Temperature Range
   The 3500/32M operates within a wide temperature range من -40°C to +70°C, ensuring reliable performance in extreme industrial environments, from freezing cold to high heat conditions.

4. Compact and Durable Design
   Despite its small size, the 3500/32M is built to withstand tough industrial conditions. It is constructed to ensure long-term durability with minimal maintenance needs, منfering superior reliability and low total cost من ownership.

5. Electrical Isolation
   The module منfers 250V AC isolation between channels, protecting against electrical surges or noise and ensuring that faults in one channel do not affect others.

6. Easy Installation and Integration
   The 3500/32M can be easily mounted on a DIN rail or panel, simplifying installation. Its modular design allows for straightforward integration into existing monitoring systems.

7. LED Status Indicators
   Each relay channel is equipped with LED indicators that provide clear feedback about the status من the system. This feature allows operators to quickly diagnose any issues or malfunctions.

FAQ

Q1: How many relay channels does the 3500/32M have?
A1: The 3500/32M has 4 independent relay channels.

Q2: What is the maximum relay output rating for the 3500/32M?
A2: The module’s relay output is rated for 5A at 30V DC and 1A at 120/240V AC.

Q3: What is the relay switching time من the 3500/32M?
A3: The relay switching time is less than 10 ms.

Q4: What is the power supply requirement for the 3500/32M?
A4: The module requires a 24V DC power supply with a ±10% tolerance.

Q5: What is the operating temperature range for the 3500/32M?
A5: The module operates in a temperature range من -40°C to +70°C.

Q6: Can the 3500/32M be used for turbine protection?
A6: Yes, the module is suitable for turbine protection systems, helping to activate alarms or shutdowns in case من excessive vibration or temperature.

Q7: How is the 3500/32M mounted?
A7: The module can be mounted on a DIN rail or directly on a panel.

Q8: Does the 3500/32M provide electrical isolation between its channels?
A8: Yes, the module provides 250V AC electrical isolation between its relay channels.

Q9: Can the 3500/32M be used in remote monitoring applications?
A9: Yes, the module is ideal for remote monitoring and control applications, especially in hazardous or difficult-to-reach locations.

Q10: What is the weight من the 3500/32M?
A10: The 3500/32M weighs 0.7 kg.
