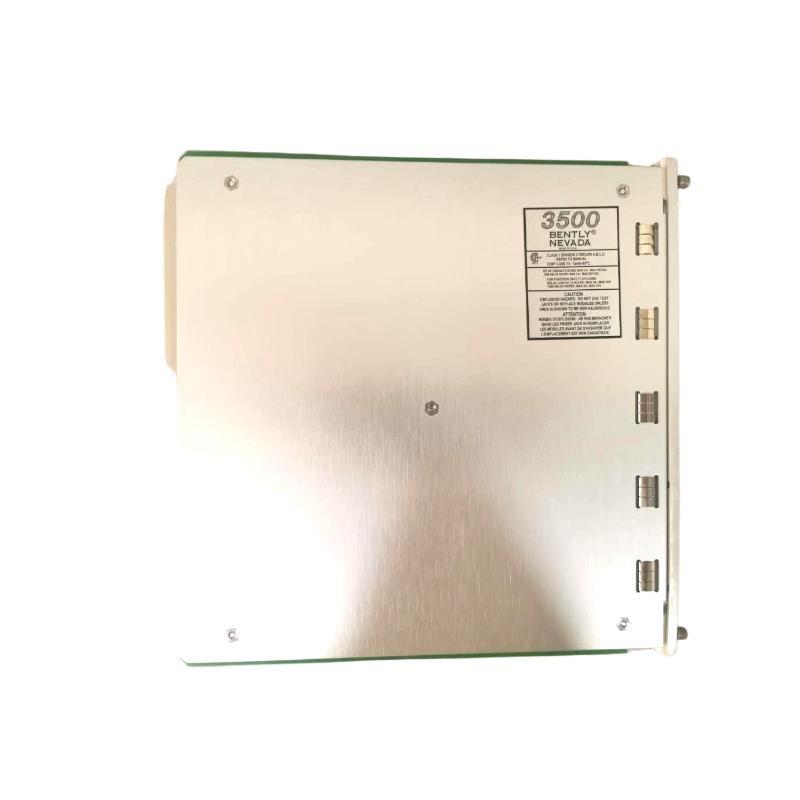

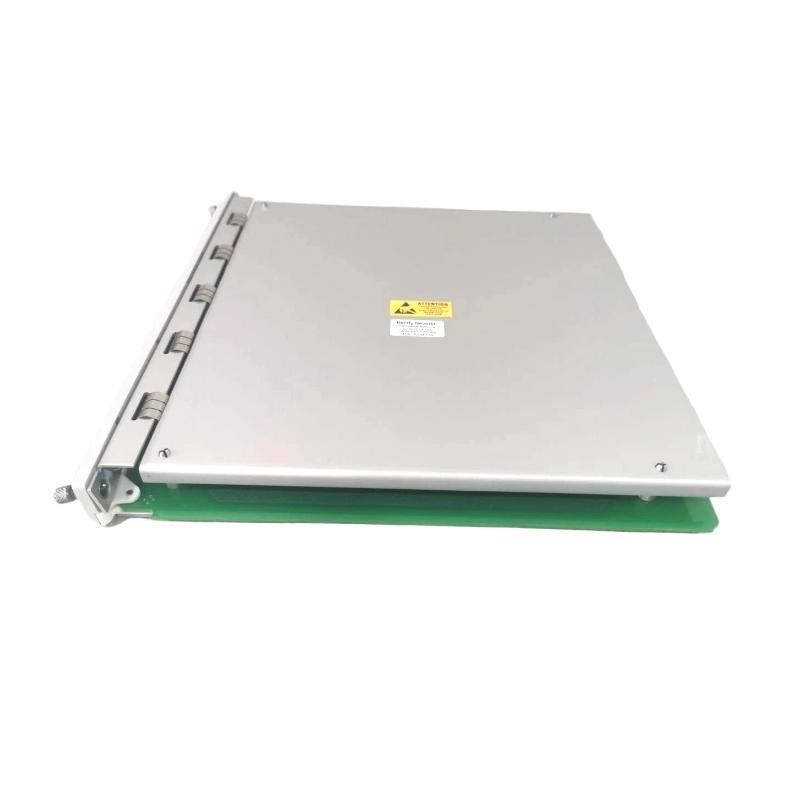

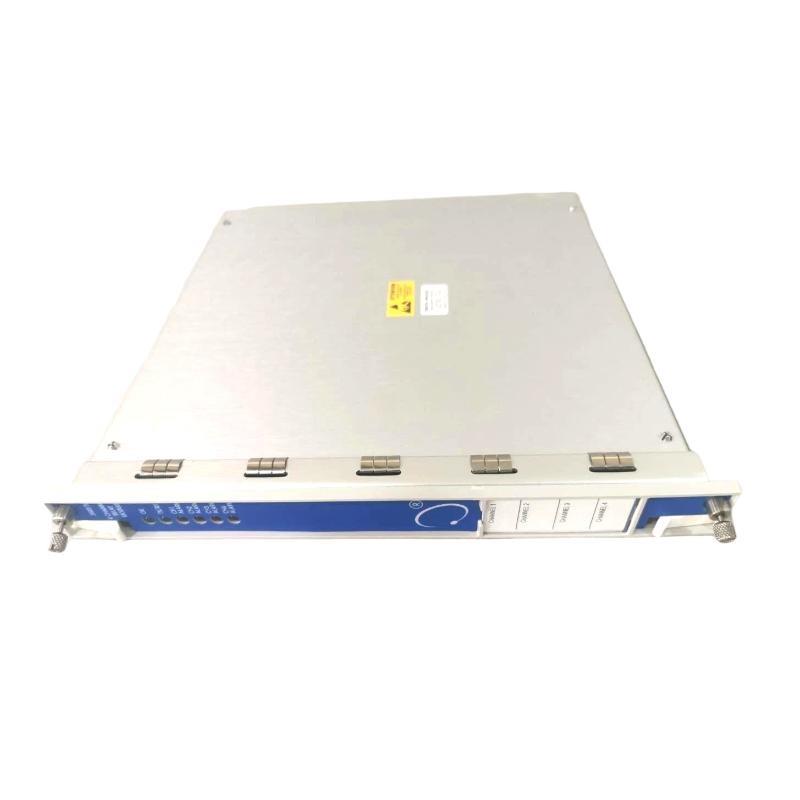

Bently Nevada 3500/32M 125712-01 4-Channel Relay Module

مقدمة المنتج

The Bently Nevada 3500/32M 125712-01 is a 4-channel relay module from the renowned 3500 Series by Bently Nevada, designed for highly reliable monitoring and control applications in industrial environments. This advanced relay module is ideal for protecting machinery and optimizing system performance by allowing external devices to be controlled with precision and efficiency.

The 3500/32M 125712-01 module plays a crucial role in protecting machinery from damage by monitoring critical system parameters and triggering external devices like alarms, shutdown systems, and cooling systems when abnormal conditions arise. It is suitable for industries such as power generation, oil & gas, chemical manufacturing, and mining where rapid responses to potential failures are vital for operational safety and efficiency.

With the combination من high performance, easy integration, and robust design, the 3500/32M 125712-01 provides exceptional reliability and ensures the protection من critical machinery in high-stakes industrial environments.

مواصفات المنتج

Product Applications

The 3500/32M 125712-01 4-channel relay module is designed for use in a wide range من industrial applications, particularly in machinery protection and control systems. Key applications include:

1. Machinery Protection Systems
   The 3500/32M 125712-01 is commonly used in machinery protection systems where it provides immediate response in the event من abnormal conditions. It ensures the protection من equipment by activating external devices such as alarms, cooling systems, or shutdown systems when critical thresholds are reached.

2. Alarm Systems
   This module can be connected to alarm systems, triggering external alarms when abnormal conditions are detected. It provides operators with timely warnings من potential problems before they escalate into serious failures.

3. Control Systems for Process Monitoring
   The 3500/32M can be integrated into industrial process control systems, where it controls external devices such as actuators, valves, and pumps. This ensures the smooth functioning من processes by automatically adjusting the system based on real-time conditions.

4. Turbine and Compressor Protection
   The 3500/32M is widely used for the protection من turbines and compressors. By monitoring various parameters and activating protective actions, the module helps prevent costly breakdowns and ensures the safe operation من these critical assets.

5. Shutdown and Safety Systems
   In emergency shutdown systems, the 3500/32M plays an important role in preventing damage to equipment and systems. If hazardous conditions are detected, it immediately triggers a shutdown or activates backup systems to ensure the safety من both personnel and machinery.

6. Data Logging and Measurement
   The 3500/32M is also used for data acquisition in industrial environments. It can be connected to external data logging and measurement equipment, allowing for continuous monitoring من system parameters for later analysis and decision-making.

Product Advantages

1. Quick Relay Switching
   The 3500/32M 125712-01 provides relay switching times من less than 10 milliseconds, ensuring immediate action when critical system parameters deviate from the desired range. This quick response helps minimize equipment damage and prevent extended downtime.

2. Independent Relay Channels
   The module منfers 4 independent relay channels, providing flexibility for controlling multiple external devices simultaneously. Each channel can be configured to handle different alarms, shutdowns, or other control actions, ensuring efficient and reliable system operation.

3. Wide Temperature Range
   The 3500/32M can operate in extreme temperatures from -40°C to +70°C, making it suitable for use in harsh industrial environments. This broad operating range ensures reliable performance in both hot and cold conditions.

4. Compact and Robust Design
   Despite its compact size (241 x 24.4 x 242 mm), the 3500/32M is built to withstand demanding industrial conditions. The module is resistant to vibration, moisture, and dust, ensuring long-lasting durability even in rugged environments.

5. Electrical Isolation Between Channels
   The 3500/32M provides electrical isolation between relay channels (250V AC), preventing faults in one channel from affecting the others. This feature ensures the stability and reliability من the system, reducing the risk من cascading failures.

6. LED Status Indicators
   The module includes LED indicators for each relay channel, providing clear visual feedback on the operational status من the system. This makes it easy to monitor the module’s performance and troubleshoot potential issues quickly.

7. Flexible Mounting Options
   The 3500/32M can be mounted on a DIN rail or directly onto a panel, منfering flexibility in installation to suit a variety من system configurations. This ensures the module can be integrated seamlessly into both new and existing systems.

FAQ

Q1: How many relay output channels are available in the 3500/32M?
A1: The 3500/32M features 4 independent relay output channels.

Q2: What is the operating temperature range من the 3500/32M?
A2: The 3500/32M operates within a temperature range من -40°C to +70°C.

Q3: What is the relay switching time من the 3500/32M?
A3: The relay switching time is less than 10 milliseconds.

Q4: Can the 3500/32M be used for turbine protection?
A4: Yes, the 3500/32M is ideal for turbine and compressor protection applications.

Q5: What is the relay output rating من the 3500/32M?
A5: The relay output is rated at 5A for 30V DC and 1A for 120/240V AC.

Q6: How is the 3500/32M mounted?
A6: The module can be mounted on a DIN rail or directly onto a panel.

Q7: Does the 3500/32M provide electrical isolation between channels?
A7: Yes, the 3500/32M provides 250V AC electrical isolation between channels.

Q8: What is the weight من the 3500/32M?
A8: The 3500/32M weighs 0.7 kg.

Q9: What is the coil voltage required for the 3500/32M?
A9: The module operates with a 24V DC coil voltage.

Q10: Can the 3500/32M be used in hazardous environments?
A10: Yes, the 3500/32M is designed for use in industrial environments with varying conditions, including harsh and hazardous locations.
