Product Overview

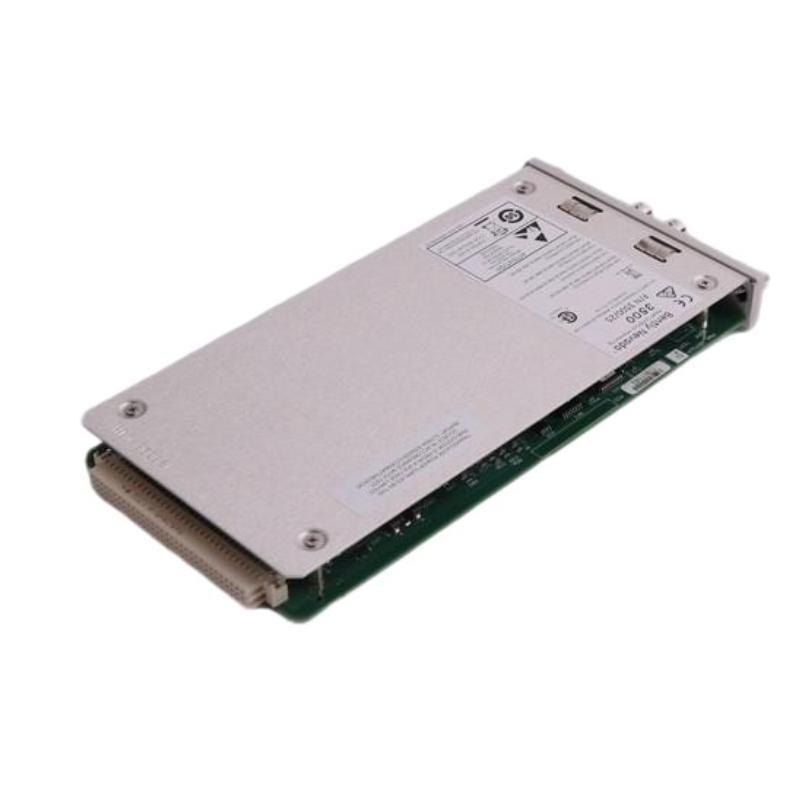

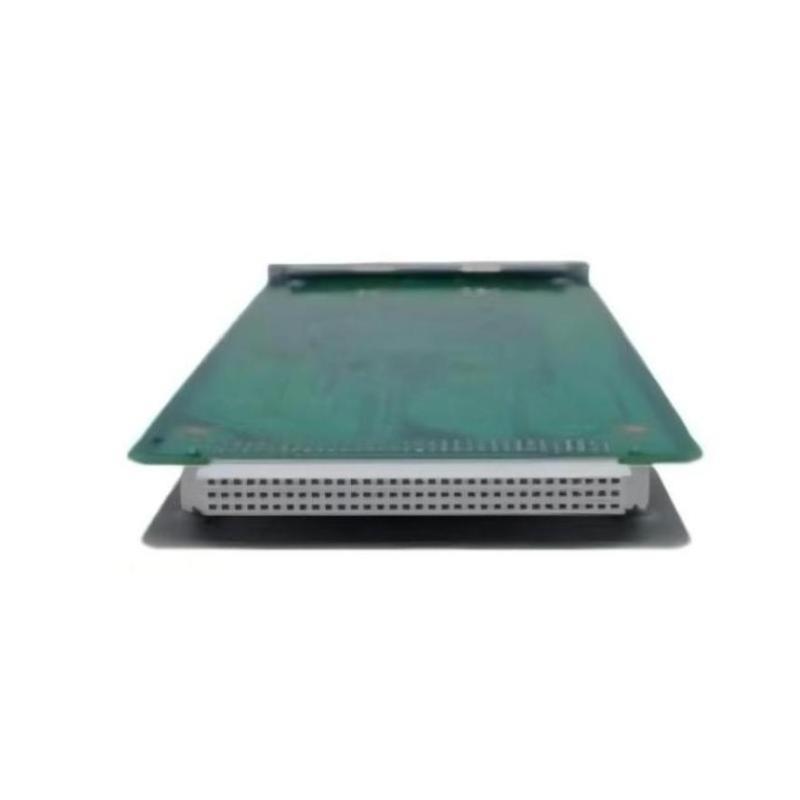

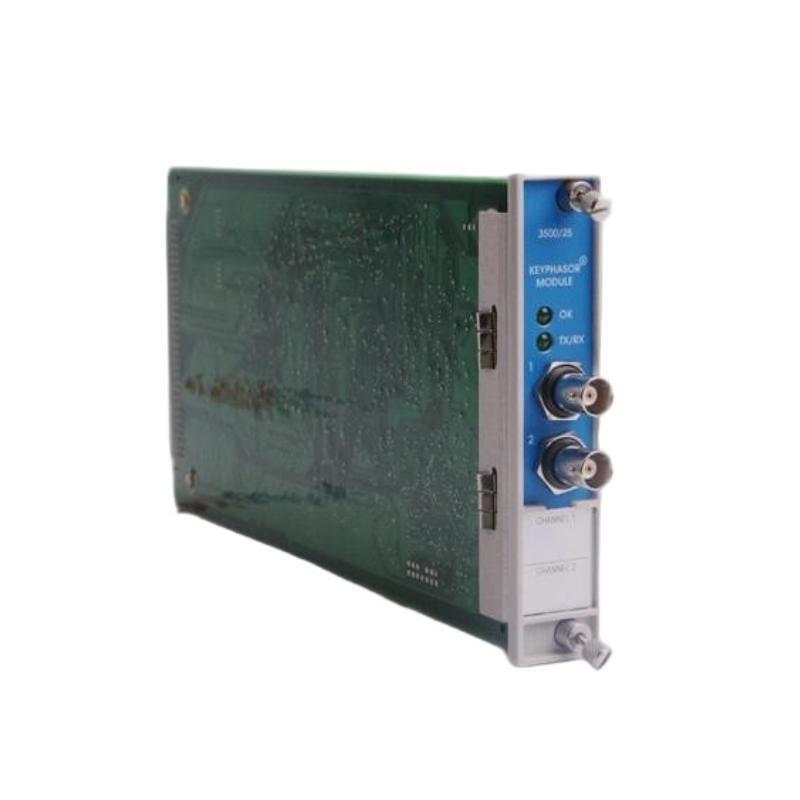

The Bently Nevada 3500/25-01-00 Enhanced Key Phase Module is a high-performance module designed for the 3500 Series Machinery Protection System. It provides accurate keyphasor input processing for shaft vibration monitoring and speed detection, ensuring precise machinery protection and reliable operation.
Key Features
-
Accurate keyphasor input processing for shaft vibration and speed detection
-
Part من the 3500 Series Machinery Protection System
-
High reliability for critical rotating machinery applications
-
الدعمs integration with multiple 3500 series modules
-
Advanced signal processing for precise measurements
-
Compact, rack-mounted design for easy installation
-
Designed for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| الطراز | 3500/25-01-00 |
| Type | Enhanced Key Phase Module |
| Compatible System | Bently Nevada 3500 Series Machinery Protection System |
| Input Signal Type | Keyphasor / Tachometer input |
| Number من Channels | 1 |
| Signal Processing | Enhanced filtering and pulse shaping |
| Output | Processed keyphasor pulses for system use |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Indicators | Module OK, Input Fault |
| Mounting | 3500 series rack |
| Dimensions | 119.9 x 24.4 x 256.5 mm |
| الوزن | 0.34 kg |
الأسئلة الشائعة (FAQ)
1. What is the main function من the 3500/25-01-00 module?
It provides accurate keyphasor input processing for shaft vibration monitoring and speed detection.
2. Which system is this module compatible with?
It is designed for the Bently Nevada 3500 Series Machinery Protection System.
3. How many channels does it support?
It supports a single keyphasor input channel.
4. What type من input signal does it process?
It processes keyphasor or tachometer input signals.
5. What is the operating temperature range?
It operates reliably between 0 °C and +60 °C.
6. Can this module be integrated with other 3500 series modules?
Yes, it is fully compatible and can integrate with other 3500 series modules.
7. What output does the module provide?
It outputs processed keyphasor pulses for use in the 3500 system.
8. Does it have diagnostic indicators?
Yes, it includes Module OK and Input Fault LEDs.
Related Bently Nevada Modules
| الطراز | الوصف |
|---|---|
| 3500/25-02-01-02 | Enhanced Key Phase Module |
| 3500/25-02-01-CN | Enhanced Key Phase Module |
| 3500/25-00-01 | Standard Key Phase Module |
| 3500/25-01-01 | Key Phase Module with extended diagnostics |
| 3500/25-03-01 | Key Phase Module for dual-channel input |
| 3500/25-04-01 | Key Phase Module with advanced filtering |
