Product Overview

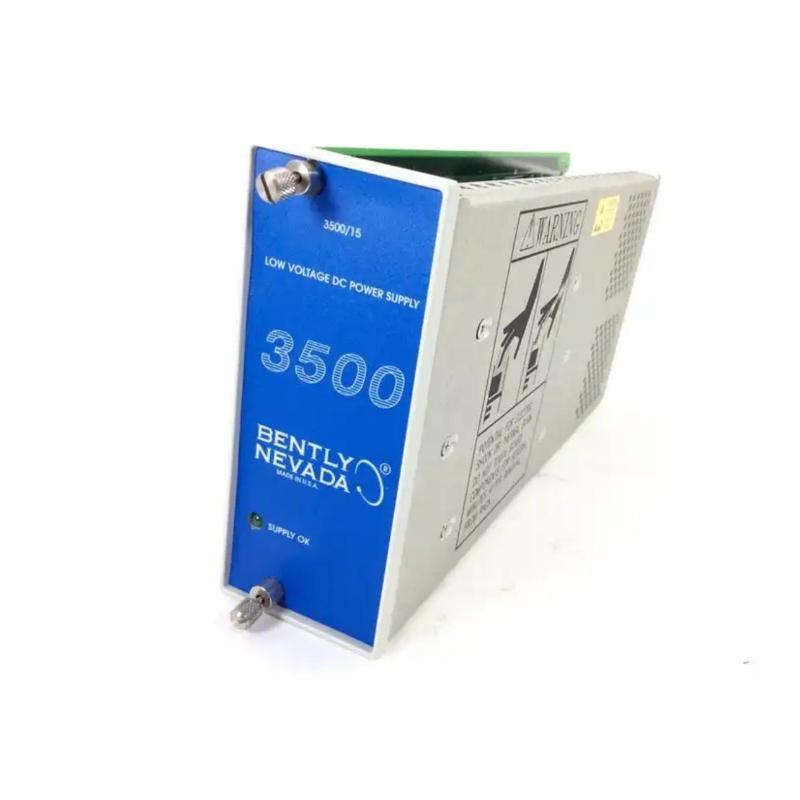

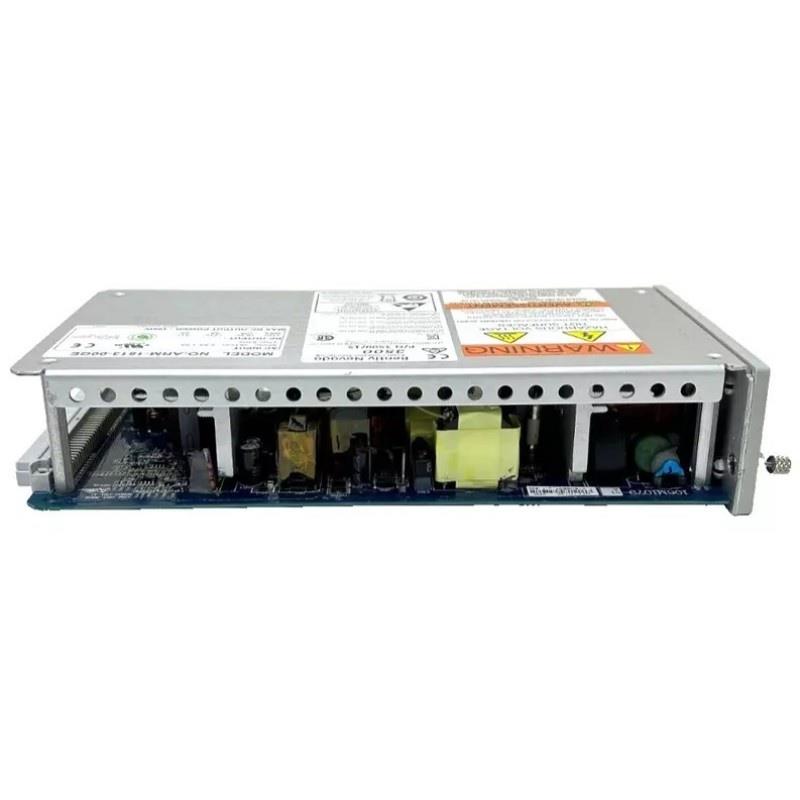

The Bently Nevada 3500/15-05-00 power supply module is a versatile and robust AC/DC power supply وحدة designed specifically for the Bently Nevada 3500 Series Machinery Protection System. This module provides both alternating current (AC) and direct current (DC) power outputs, ensuring a stable and continuous power source for various monitoring and control modules within the 3500 rack.
Engineered with industrial-grade components, the 3500/15-05-00 guarantees high reliability and efficiency in harsh operating environments. Its advanced design includes protective features such as overvoltage, overcurrent, and short-circuit protection, enhancing system safety and reducing downtime. The compact size allows seamless integration into the 3500 system, making it suitable for a wide range من industrial applications where power integrity and reliability are paramount.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 3500/15-05-00 |
| Type | AC/DC Power Supply Module |
| Input Voltage Range | 85 to 265 VAC (47 to 63 Hz) |
| Output Voltage (DC) | 24 VDC ±5% |
| Output Current | Up to 2.5 A |
| Output Voltage (AC) | 120/240 VAC (depending on configuration) |
| Efficiency | > 85% |
| Dimensions (L x W x H) | 120.7 x 50.8 x 251.5 mm |
| الوزن | 1.39 kg |
| Mounting | 3500 Series rack mount |
| Protection Features | Overvoltage, Overcurrent, Short circuit protection |
| Cooling | Passive ventilation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Certifications | CE, UL, CSA |
| Compliance | RoHS Compliant |
Applications
The 3500/15-05-00 AC/DC power supply module is a critical component in the Bently Nevada 3500 system, used to power multiple monitoring modules for machinery protection. Typical applications include:
-
Power Generation – Powering vibration, temperature, and speed monitoring modules in turbines and generators.
-
Oil & Gas – Providing stable power for pumps, compressors, and rotating equipment protection.
-
Petrochemical Plants – الدعمing instrumentation for chemical processing machinery.
-
Mining & Heavy Industry – Ensuring reliable power for machinery condition monitoring in harsh environments.
-
Marine and Offshore – Supplying power to protection systems aboard vessels and منfshore platforms.
-
Water and Wastewater Treatment – Powering motors and pumps monitoring systems for continuous operation.
Key Advantages
-
Dual Power Outputs: Supplies both AC and DC power to accommodate a wide range من modules and system requirements.
-
Wide Input Voltage Range: Accepts a broad input range (85-265 VAC), enabling use worldwide without additional transformers.
-
Compact and Space-Saving: Its small footprint fits neatly into 3500 series racks, saving valuable panel space.
-
Robust Protection Features: Protects the system against electrical faults such as overvoltage, overcurrent, and short circuits.
-
Passive Cooling: Eliminates the need for fans, reducing maintenance and improving reliability.
-
High Efficiency: Ensures efficient power conversion, minimizing energy loss and heat generation.
-
Industrial-Grade Design: Built to endure harsh operating conditions, including vibration and temperature extremes.
-
Compliance with Industry Standards: Certified to meet international safety and environmental standards.
الأسئلة الشائعة (FAQ)
-
What types من power outputs does this module provide?
It provides both AC and DC power outputs for versatile system support. -
What is the input voltage range for the 3500/15-05-00?
The module accepts 85 to 265 VAC input voltage at 47 to 63 Hz. -
What is the maximum DC output current?
It can supply up to 2.5 A at 24 VDC. -
Can this module be installed in any 3500 series rack?
Yes, it is designed for seamless installation in all standard 3500 racks. -
What protection features are included in the power supply?
The module includes overvoltage, overcurrent, and short circuit protection. -
Does the power supply require active cooling?
No, it uses passive ventilation for cooling. -
What are the physical dimensions من this power supply?
It measures 120.7 mm (L) × 50.8 mm (W) × 251.5 mm (H). -
How much does the module weigh?
Approximately 1.39 kg. -
Is the power supply RoHS compliant?
Yes, it complies with RoHS environmental standards. -
What operating temperatures can the module withstand?
It operates reliably from -40°C to +70°C.
Recommended Related or Series الطرازs
| الطراز | الوصف |
|---|---|
| 3500/15-04-04-00 | Low Voltage DC Power Supply Module |
| 3500/15-03-01-00 | AC Power Supply Module |
| 3500/15-04-02-00 | DC Power Supply with Extended Temperature Range |
| 3500/15-06-01-00 | Redundant Power Supply Module |
| 3500/15-04-05-00 | DC Power Supply with Enhanced Surge Protection |
| 3500/15-05-01 | Alternate AC/DC Power Supply Variant |
