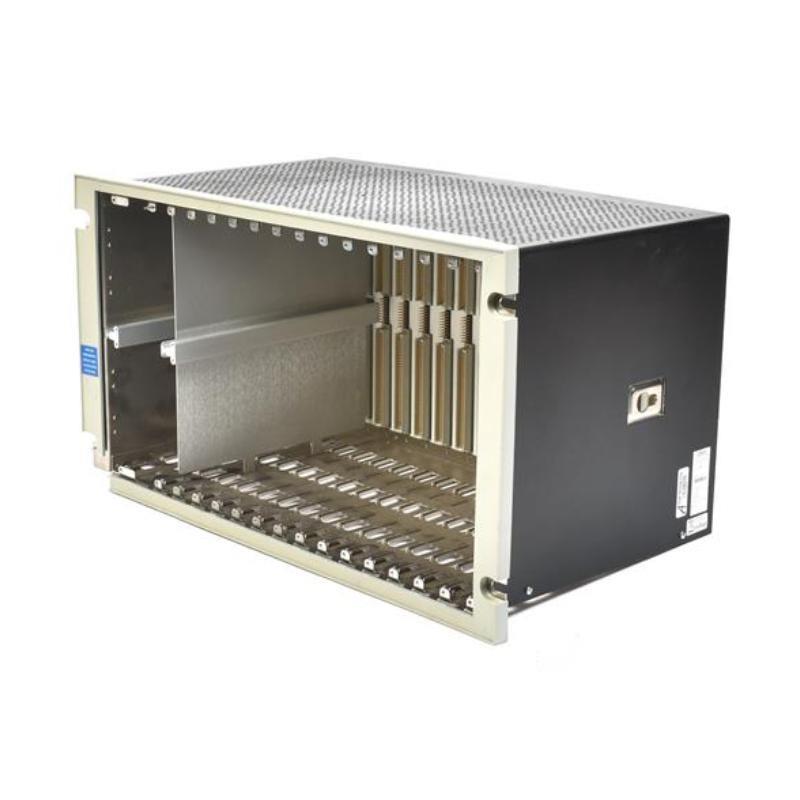

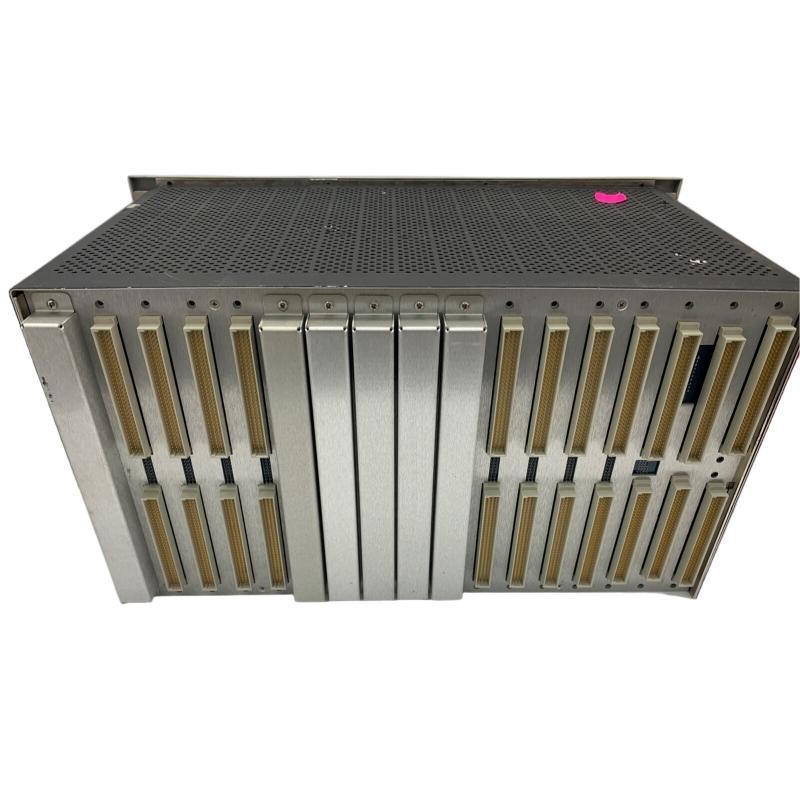

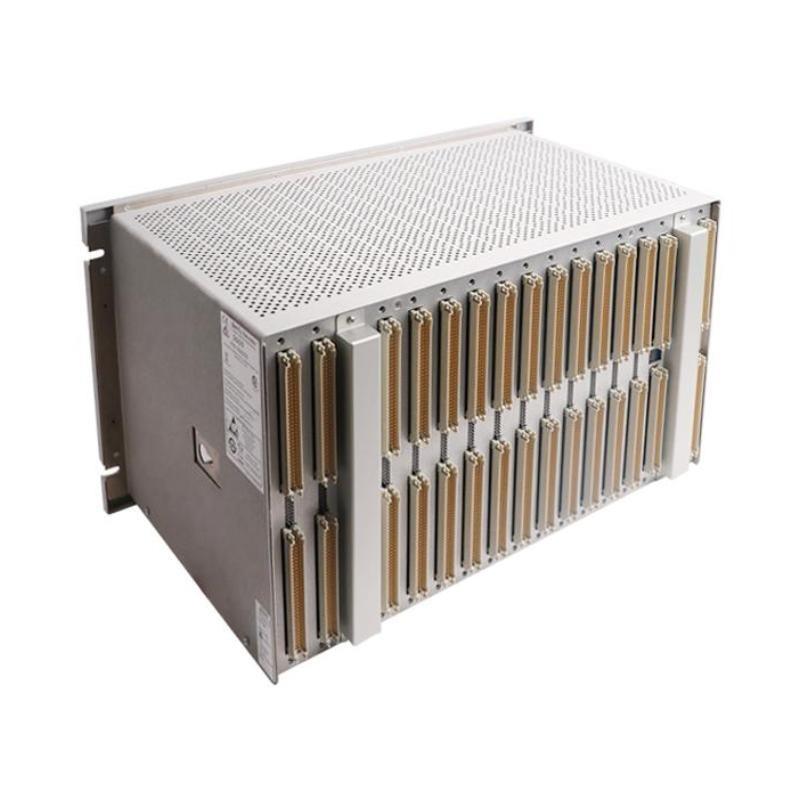

The Bently Nevada 3500/05-02-04-01-00-01 System Rack is a robust, industry-standard 19-inch rack وحدة designed to house and integrate Bently Nevada’s 3500 Series monitoring modules. Engineered for high-performance machinery protection and condition monitoring, the rack serves as the backbone من the 3500 Series System. It provides structural support and electrical interconnections for up to 14 modules, including monitoring modules, power supplies, and communication interfaces.
The model number 3500/05-02-04-01-00-01 identifies specific configuration details such as rack size, mounting type, I/O module type, and grounding configuration. This model is designed for panel mounting with an internal barrier and low-voltage ground.
Its modularity, reliability, and compatibility with various 3500 Series modules make it suitable for use in a wide range من industries, including power generation, oil & gas, petrochemical, and heavy manufacturing.
Technical Specifications
| Parameter | Details |
|---|---|
| Product الطراز | 3500/05-02-04-01-00-01 |
| Series | Bently Nevada 3500 Series |
| Rack Type | 19-inch EIA standard rack |
| Mounting Style | Panel mount |
| Slots متاح | 14 module slots |
| I/O Module Type | Internal barrier |
| Rack Grounding | Low-voltage ground |
| Cooling | Passive air cooling |
| Material | Aluminum alloy chassis with anti-corrosion coat |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 0% to 95% non-condensing |
| Ingress Protection | IP20 |
| Power Supply Compatibility | 3500/15 AC/DC Power Supply Modules |
| Communication الدعم | TDI, TDXNet, Ethernet |
| Rack Size | 12-inch (7 module slots) |
| الوزن | 4.5 kg |
Product Applications
The Bently Nevada 3500/05-02-04-01-00-01 System Rack is widely deployed across industries for critical equipment protection and real-time condition monitoring. Typical application areas include:
-
Gas and steam turbines
-
Centrifugal compressors
-
Pumps and fans
-
Electric motors and generators
-
Gearboxes and rolling mills
-
Marine propulsion systems
-
Petrochemical rotating assets
By hosting various vibration and process modules, the rack plays a central role in ensuring operational reliability, maintenance planning, and asset longevity.
Product Advantages
-
Modular Design: الدعمs up to 14 modules, enabling customized protection and monitoring solutions.
-
High System Availability: Redundant power and communication options minimize the risk من failure.
-
Flexible Mounting: Panel mount configuration allows for installation in different control cabinets.
-
Integrated Safety: Internal barriers improve electrical isolation and protect sensitive systems.
-
Standard Compliance: Compatible with industrial standards, including API 670 machinery protection.
-
Seamless Integration: Easily connects with control systems via TDI modules and Ethernet.
-
Durable Build: Designed to withstand harsh industrial conditions with robust chassis and finish.
-
Scalable System: Suitable for both small-scale and large-scale machine setups.
-
Fast Module Replacement: Hot-swappable modules reduce downtime during maintenance.
-
Long Service Life: Proven reliability in continuous operation environments.
FAQ
Q1: What is the maximum number من modules supported in this rack?
A1: The rack can support up to 14 modules, including monitoring, power supply, and communication modules.
Q2: Is this rack compatible with redundant power supply configurations?
A2: Yes, it can support dual 3500/15 Power Supply Modules for redundancy.
Q3: What type من mounting does this specific model use?
A3: الطراز 3500/05-02-04-01-00-01 is designed for panel mounting.
Q4: What kind من grounding configuration does this rack منfer?
A4: It uses a low-voltage ground setup, suitable for systems with dedicated grounding needs.
Q5: Can this rack be used in hazardous environments?
A5: Yes, when used with certified modules and internal barriers, it supports use in hazardous locations.
Q6: What is the recommended ambient temperature range for operation?
A6: The rack operates best within -30°C to +65°C.
Q7: What communication interfaces are supported?
A7: The rack supports TDI modules, which allow Ethernet and System 1 connectivity.
Q8: Is this rack backward compatible with older 3300 series modules?
A8: No, the 3500 rack and modules are not compatible with the older 3300 series.
Q9: Does it come pre-wired, or is wiring required during installation?
A9: Wiring must be completed during installation based on the specific module configuration.
Q10: What kind من maintenance does the 3500 rack require?
A10: Periodic dust cleaning and ensuring solid module contacts are the primary maintenance tasks. Modules themselves are hot-swappable and easy to inspect.
