Product Overview

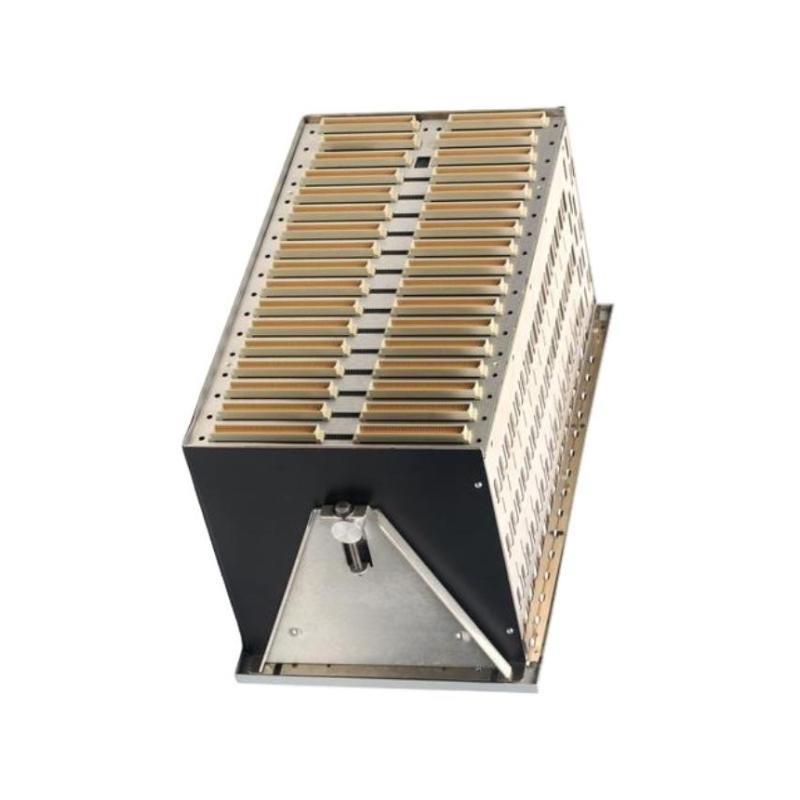

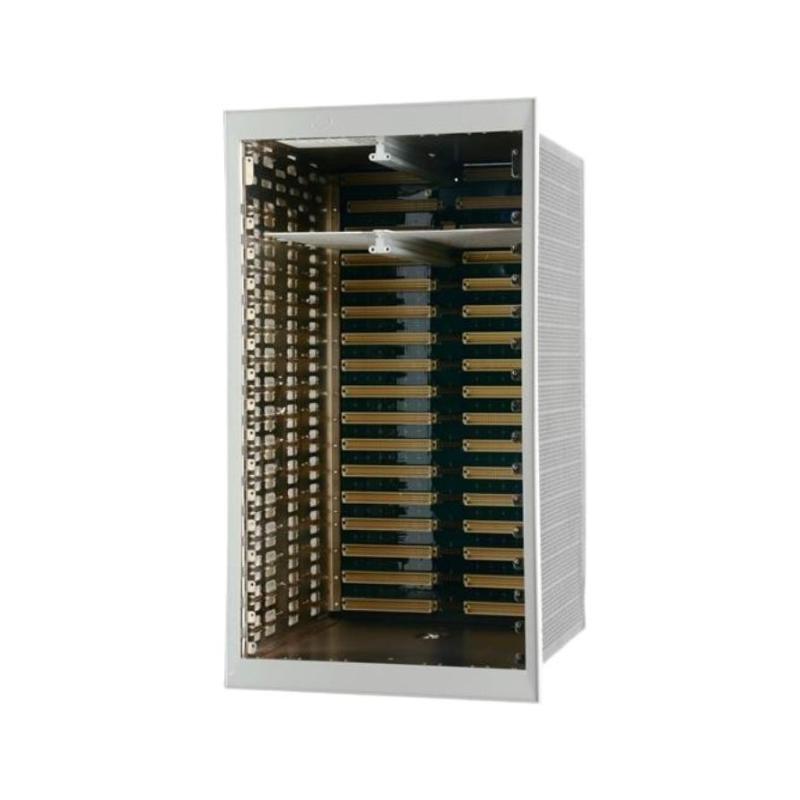

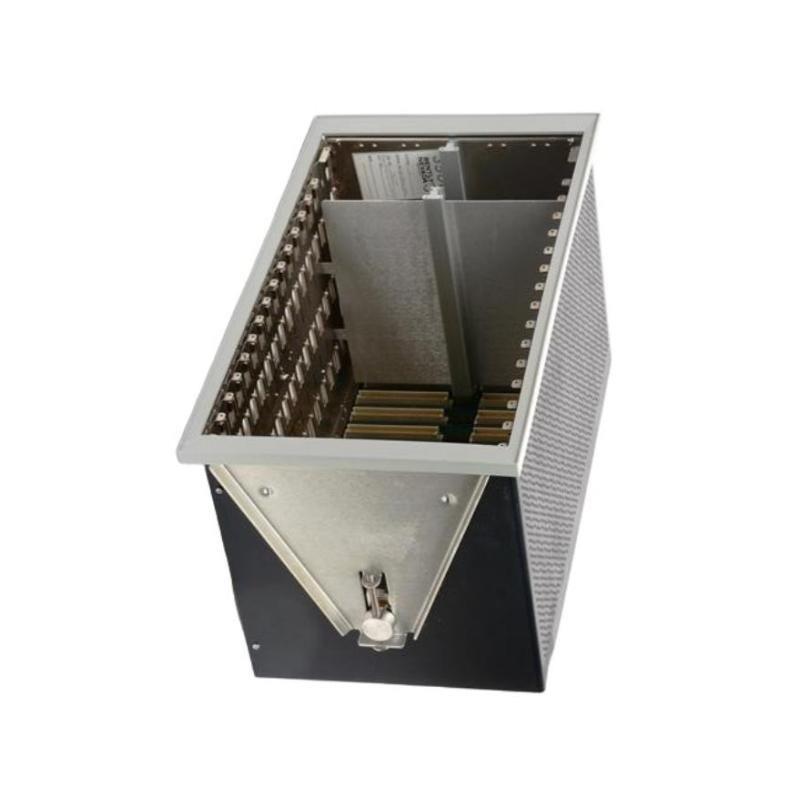

The Bently Nevada 3500/05-01-01-05-00-01 System Rack is a robust, modular platform designed to house and interconnect Bently Nevada 3500 series monitoring and protection modules. It supports multiple module slots and منfers enhanced system reliability with redundant power supply slots. Engineered for use in demanding industrial environments, this system rack provides a stable foundation for machinery protection systems deployed in power generation, oil & gas, petrochemical, and other heavy industries.
Key Features
-
Modular design accommodates up to 14 modules
-
الدعمs two redundant power supplies for increased reliability
-
Rugged aluminum construction for durability in harsh environments
-
Compatible with all Bently Nevada 3500 series modules
-
Designed for efficient cooling and easy maintenance
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | 3500/05-01-01-05-00-01 |
| Product Type | System Rack |
| Number من Slots | Up to 14 module slots |
| Power Supply Slots | 2 redundant power supply slots |
| Mounting Type | 19-inch rack or panel mount |
| Dimensions | Rack Size : 19-inch (14 module slots) |
| الوزن | 4.5 kg |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Construction | Aluminum frame with protective coating |
| Compatibility | Bently Nevada 3500 Series modules |
Industry Applications
-
Power generation machinery protection
-
Oil and gas equipment monitoring
-
Petrochemical process control systems
-
Pulp and paper machinery condition monitoring
-
Mining and metals equipment protection
-
Marine and منfshore machinery systems
الأسئلة الشائعة (FAQ)
Q1: How many modules can be installed in the rack?
Up to 14 Bently Nevada 3500 series modules.
Q2: Does it support redundant power supplies?
Yes, up to two redundant power supply slots are available.
Q3: What is the temperature operating range?
-30°C to +65°C (-22°F to +149°F).
Q4: Can it be installed in standard 19-inch racks?
Yes, it supports both 19-inch rack and panel mounting.
Q5: Is the rack compatible with all 3500 series modules?
Yes, all 3500 series modules are compatible.
Q6: What is the weight من the rack?
Approximately 4.5 kg.
Q7: Is the rack designed for harsh industrial environments?
Yes, it features rugged construction to withstand tough conditions.
Q8: Are modules hot-swappable?
Yes, modules can be replaced without shutting down the system.
Q9: Are power supplies included?
No, power supplies must be purchased separately.
Q10: Is the rack certified for hazardous locations?
The rack itself is not rated, but it can be used with certified modules.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 3500/05-01-01-00-00-00 | Standard 3500/05 System Rack |
| 3500/05-01-01-02-00-01 | Redundant Power Supply System Rack |
| 3500/05-02-02-00-00-00 | Extended Configuration System Rack |
| 3500/15-01-01-00 | AC Power Supply Module |
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/40-01-01-00 | Vibration Monitoring Module |
Popular Bently Nevada Modules
| الطراز Number | الوصف |
|---|---|
| 3500/15 | Power Supply Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Dynamic Motion & Speed Module |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/60 | Temperature Monitor Module |
| 3500/44 | Shaft Vibration Monitor Module |
