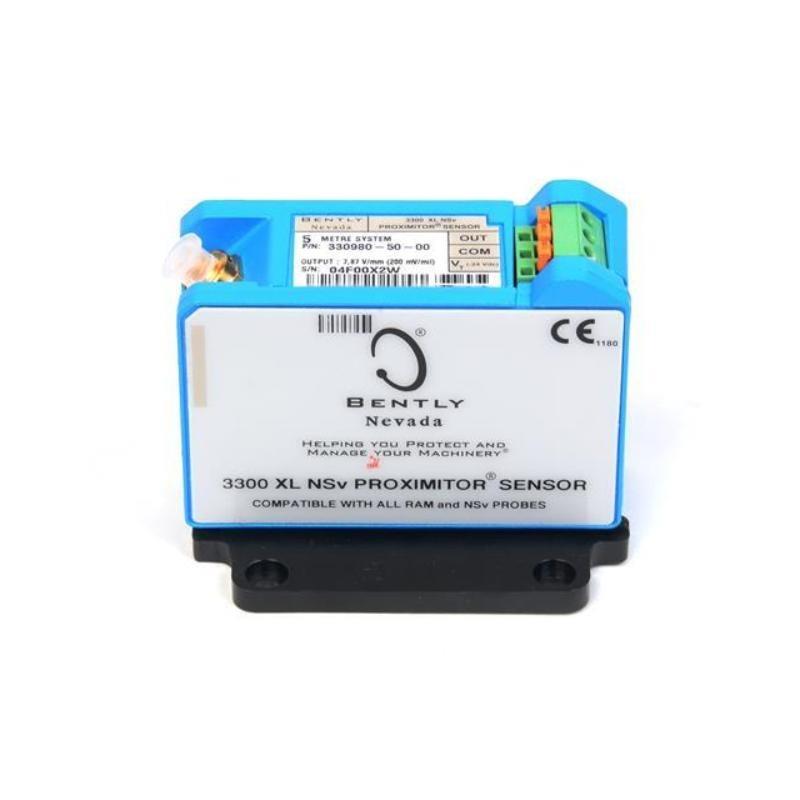

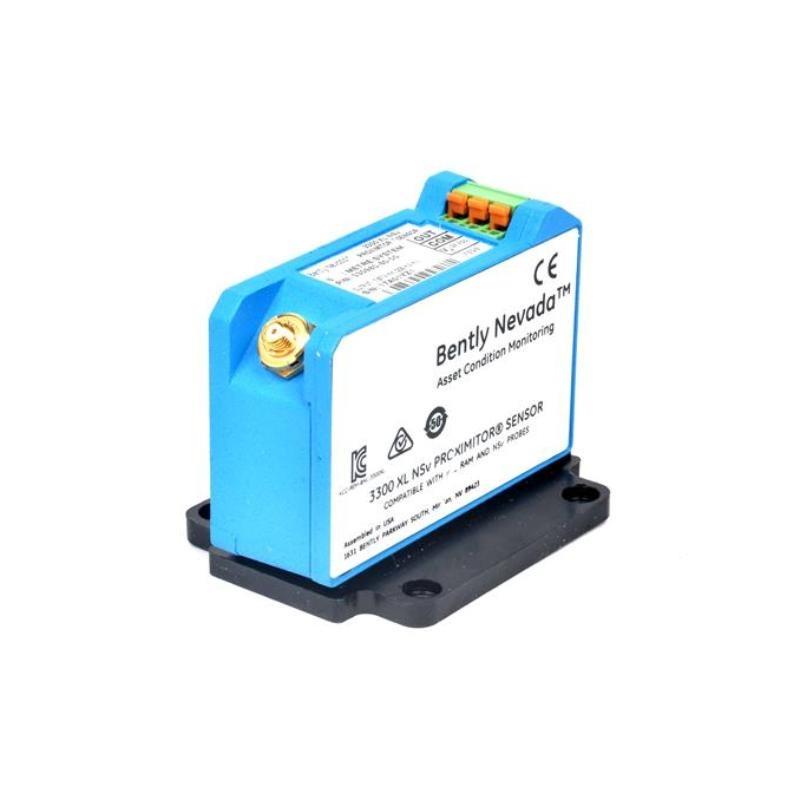

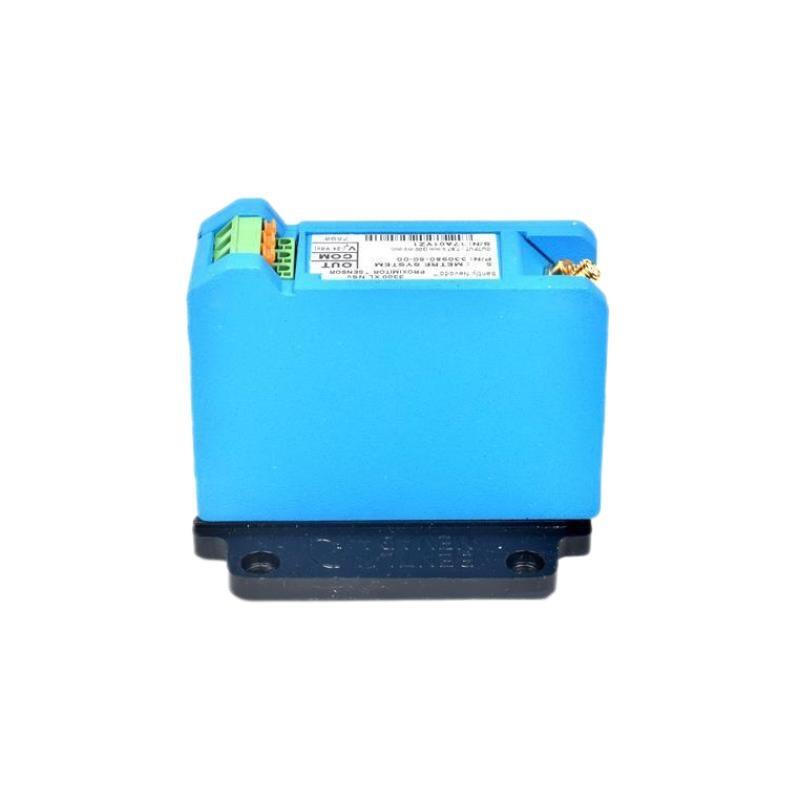

The Bently Nevada 330980-50-00 is a 3300 XL NSv Proximitor Sensor, designed specifically for use in compact installations where space is limited and smaller targets must be monitored. It forms a complete transducer system with a 3300 NSv proximity probe and extension cable. Optimized for small shaft diameters and tight mounting spaces, this sensor system delivers accurate vibration, position, and phase reference measurements in machines such as centrifugal compressors, small turbines, and gearboxes.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Proximitor Sensor for Proximity Transducer System |
| System الطراز | 3300 XL NSv |
| Input | 3300 RAM/NSv Probe and Extension Cable |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 1.5 mm (60 mils) |
| Recommended Gap Setting | 1.0 mm (40 mils) |
| Operating Temperature | -52°C to +100°C (Sensor) |
| Storage Temperature | -52°C to +105°C (Sensor) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Power Supply | -17.5 to -26 Vdc, 12 mA max |
| Output Resistance | 50 Ω |
| Humidity | 100% condensing (non-submersible, protected) |
| Dimensions (System Length) | 5.0 meters |
| Total الوزن | 0.255 kg (Proximitor Sensor) |
| Mounting | Panel Mount |
| Compliance | CE, FCC, RoHS, SIL 2/3, ATEX/IECEx, cNRTLus |
Applications
-
Small shaft radial vibration monitoring (shaft < 51 mm)
-
Axial (thrust) position measurement
-
Phase reference (Keyphasor) signal monitoring
-
Zero-speed and tachometer feedback
-
Retrمنits for 3300 RAM, 3000/7000-series 190 systems
-
Compressors, turbines, and rotating machinery with tight clearances
Advantages
-
Suitable for compact, space-restricted installations
-
Compatible with previous generation 3300 RAM components
-
High EMI/RFI immوحدةy for harsh industrial environments
-
Improved chemical resistance and sealing with Viton O-rings
-
SpringLoc terminals simplify field wiring
-
Durable ClickLoc connectors and CableLoc retention
-
Factory-calibrated to AISI 4140 steel with optional customization
FAQ
Q1: What shaft size is ideal for using the 330980-50-00 sensor?
A1: It is optimized for shafts smaller than 51 mm for radial, and flat targets smaller than 15 mm for axial measurements.
Q2: What is the linear range من the sensor?
A2: The system provides a linear range من 1.5 mm (60 mils).
Q3: Can this sensor be mounted on a DIN rail?
A3: The 330980-50-00 model is for panel mount; DIN mount options include 330980-51-00.
Q4: What materials are compatible for calibration?
A4: The sensor is factory-calibrated to AISI 4140 steel, but can be custom-calibrated for others.
Q5: Is the system suitable for hazardous areas?
A5: Yes, it carries multiple approvals including ATEX, IECEx, and cNRTLus for Zone 0 and Zone 2.
Q6: What is the recommended gap setting?
A6: The system is recommended to be gapped at 1.0 mm (40 mils).
Q7: Does it support long cable runs?
A7: Yes, up to 305 meters between the sensor and the monitor is supported.
Q8: Is the connector secure under vibration?
A8: Yes, the ClickLoc and CableLoc designs provide robust mechanical retention under dynamic conditions.
Q9: Can it be used in marine environments?
A9: Yes, it meets maritime classification rules for منfshore applications.
Q10: What is the weight من the proximitor sensor?
A10: The typical weight is approximately 0.255 kg.
